Monday July 27, 2009
Started installing crotch strap brackets (Center Fuselage)
2.0 Hours

Previous - Index - Next

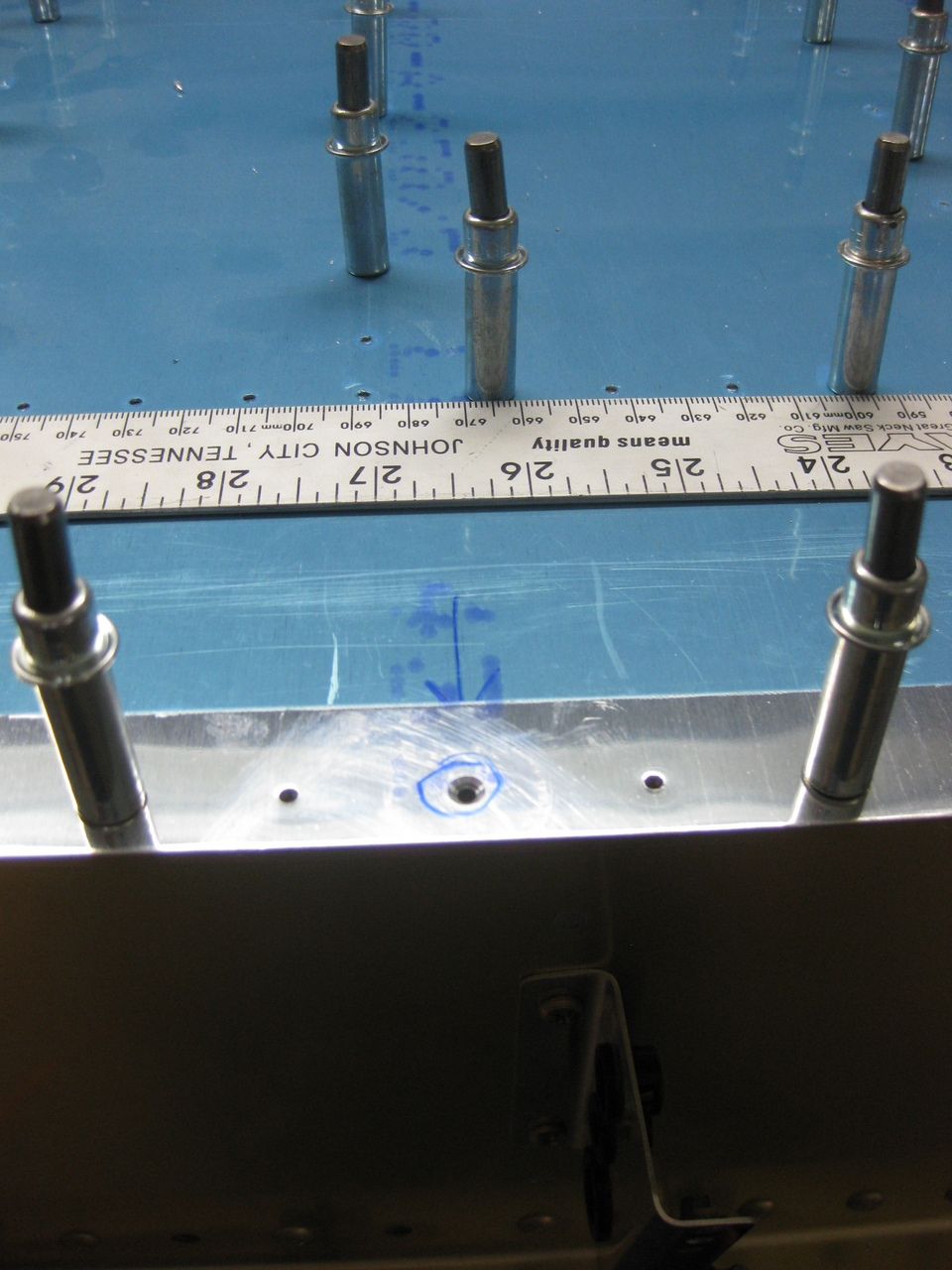

The instructions tell you to countersink four of the holes along the forward edge of the center fuselage section assembly, so I did that. This is to create a smooth surface on the inside of the F-704 bulkhead flange, against which a stiffener will later sit.

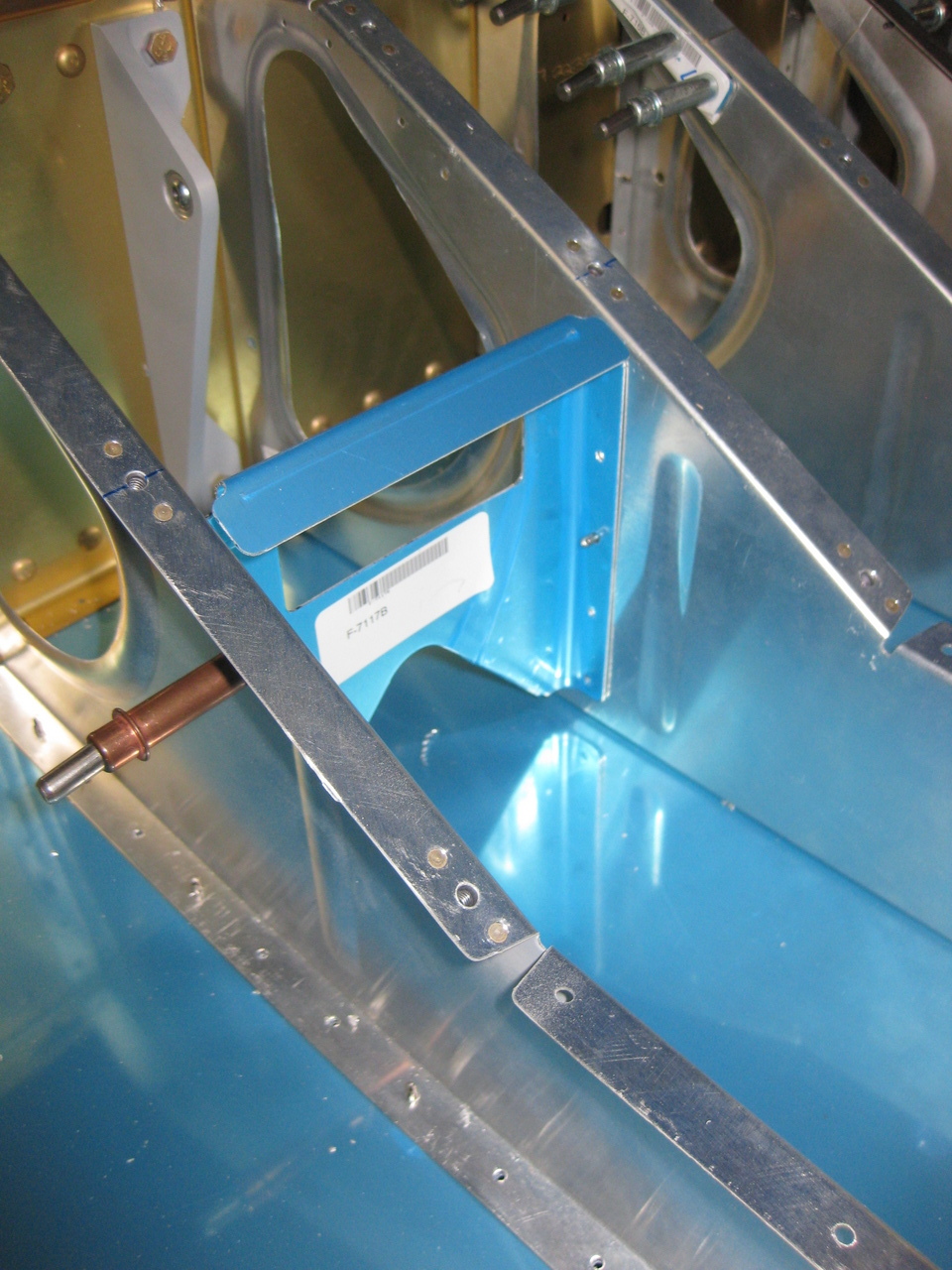

Then, I started work on the crotch strap brackets. I carefully aligned and drilled the aft bracket as shown.

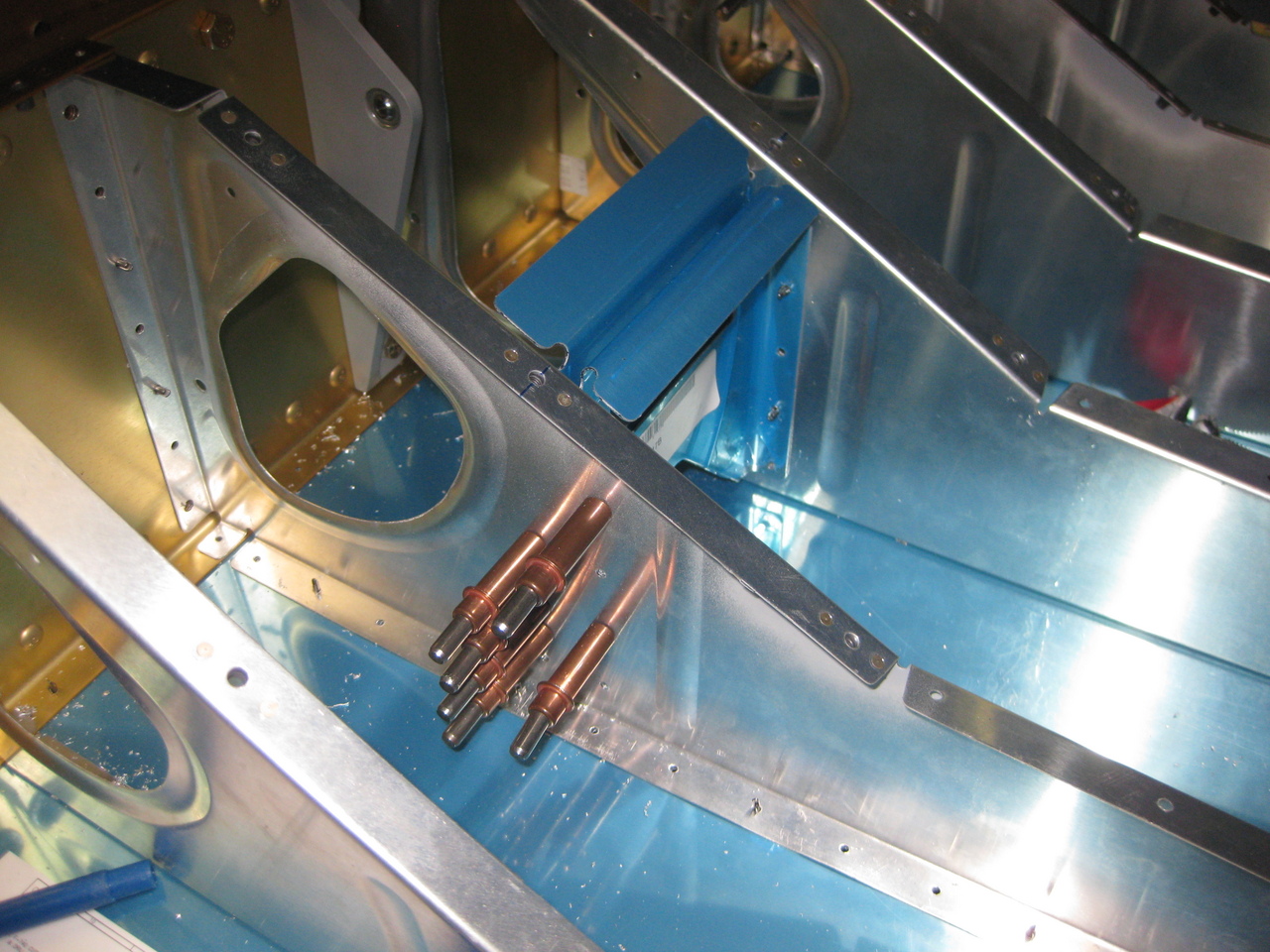

And the forward bracket...
