Sunday October 11, 2009
Center Fuse Riveting & Skin Prep (Center Fuselage)
4.6 Hours

Previous - Index - Next

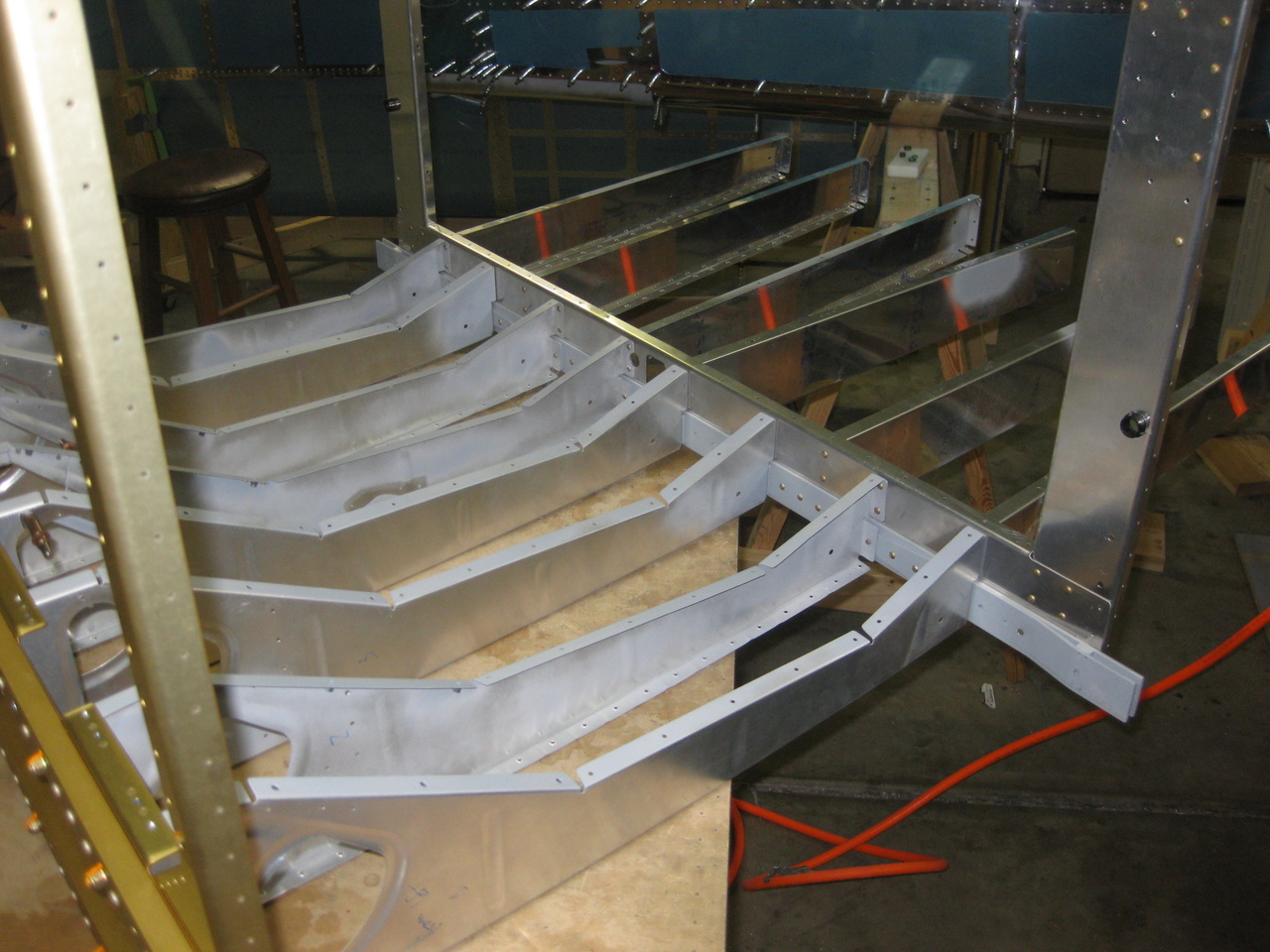

I joined up the F-705 bulkhead with the seat ribs and riveted the four seat ribs that don't connect with baggage area ribs. Then, I riveted the baggage ribs in one at a time. All of the rivets were squeezable, but I had to bend the seat rib flanges out of the way pretty far.

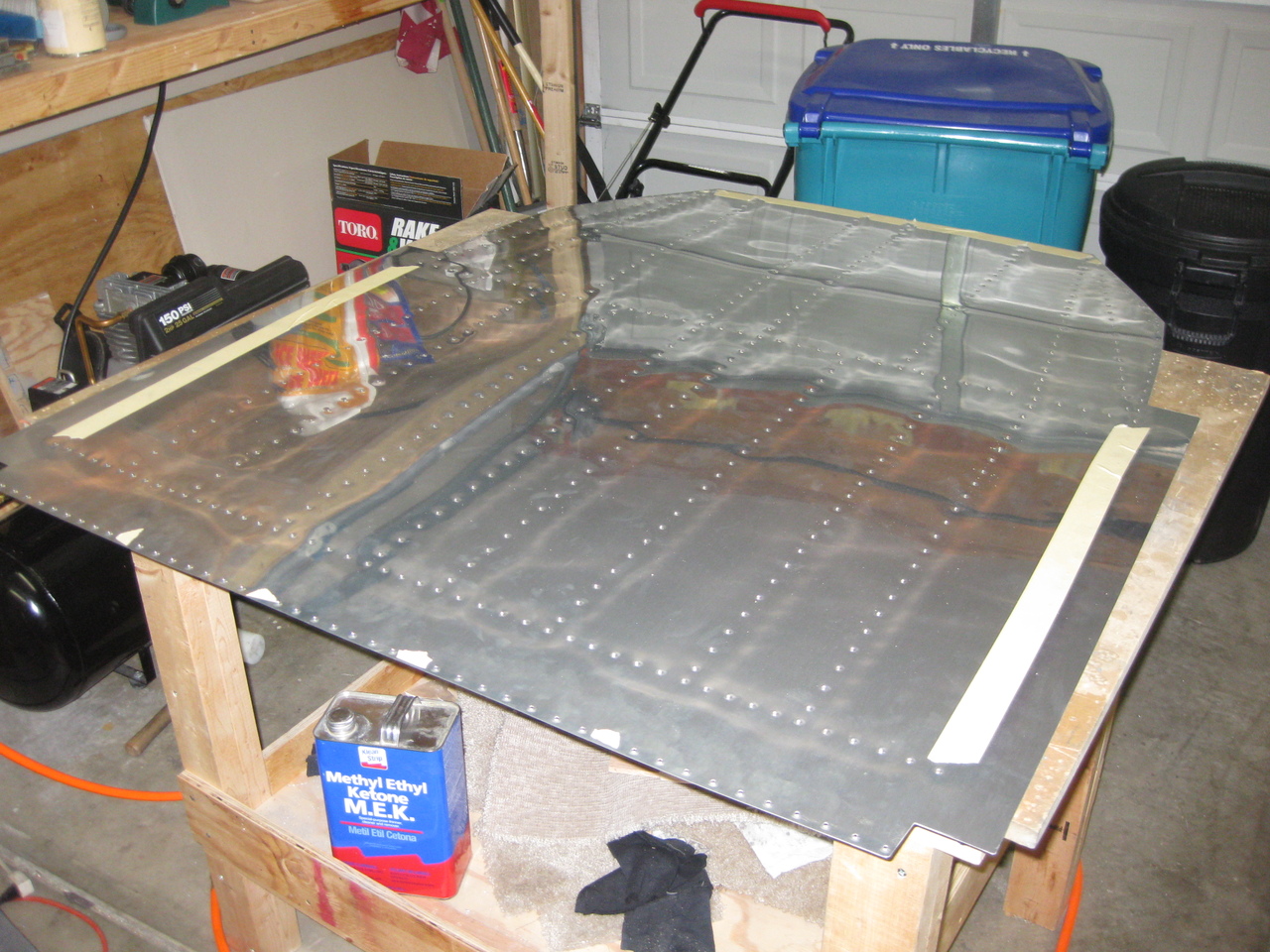

Then, I deblued, deburred, and dimpled the center section bottom skin.

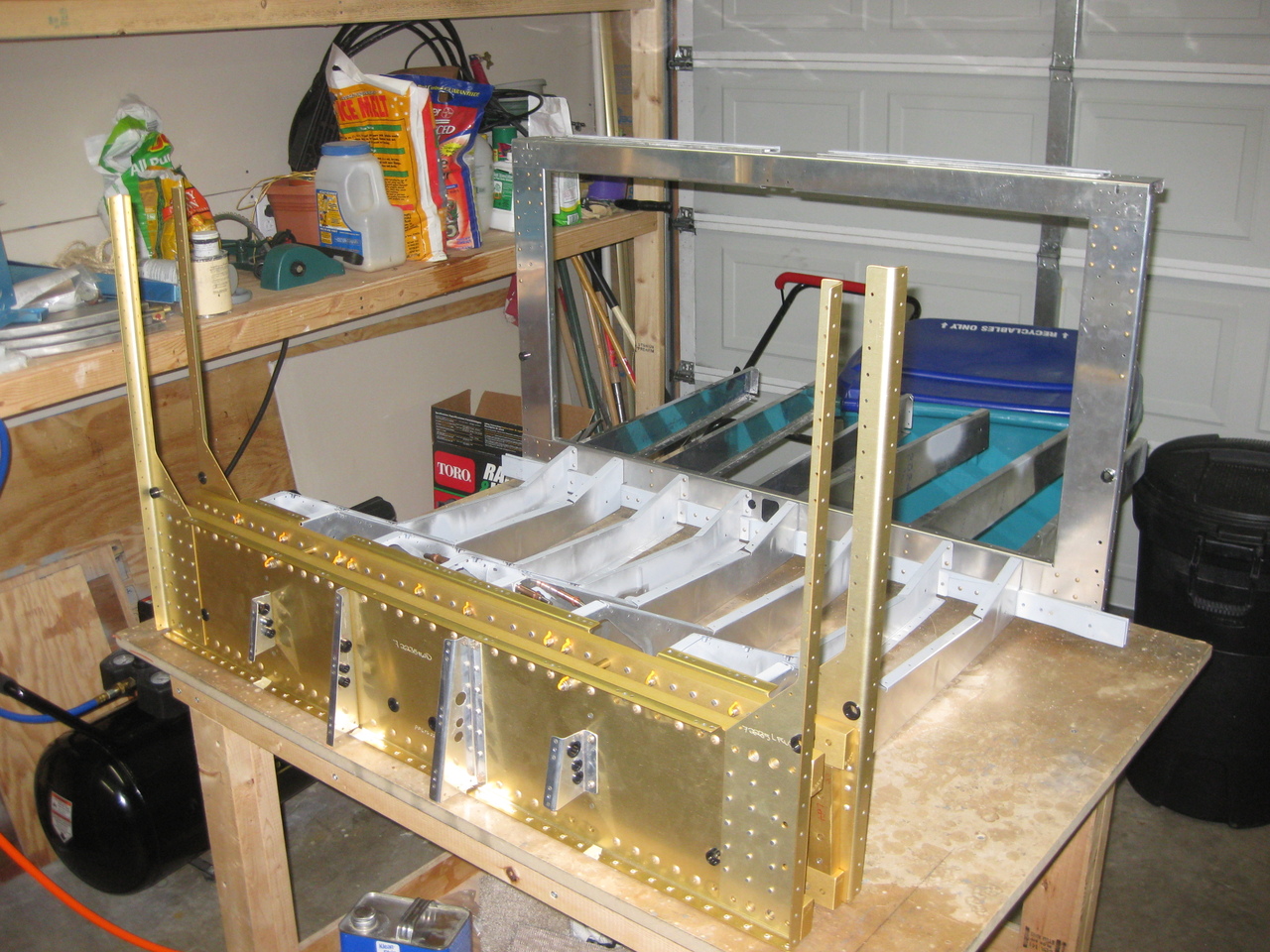

I bolted the control column mounts back to the aft F-704 bulkhead and then bolted the two halves of F-704 together for what I hope is the last time.

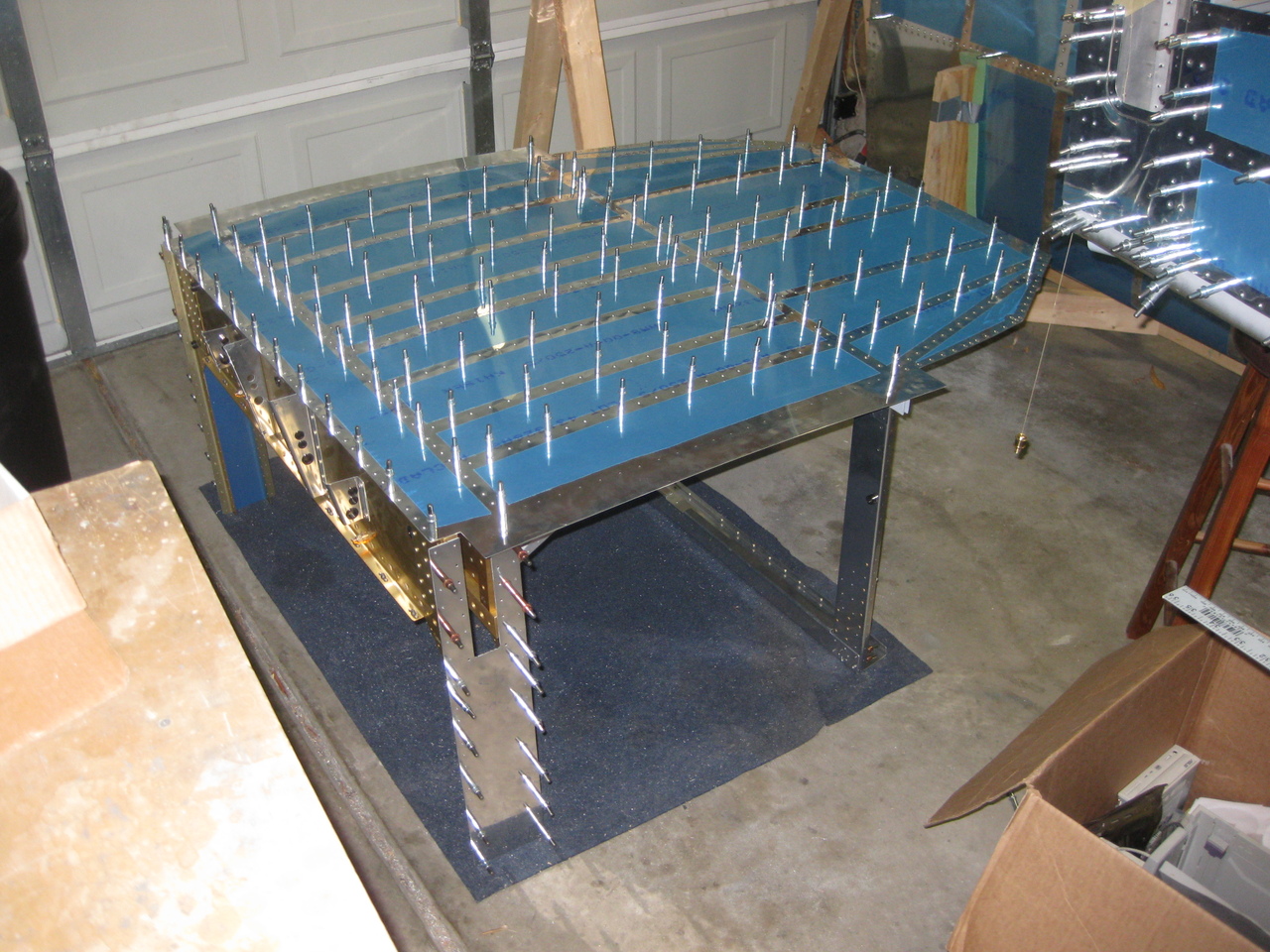

Here's the center section upside down and cleco'd to the skin for riveting.

That's pretty much all I can do with the center fuselage section until I can get some riveting help. Emily has been a bit under the weather lately, but she's gonna help me as soon as she can.
