Tuesday December 8, 2009
Misc. Fuselage Drilling
(0.8 Hours Center Fuselage, 0.8 Hours Forward Fuselage)
1.5 Hours Total

Previous - Index - Next

Tonight, I started knocking items off of my pre-disassembly to-do list.

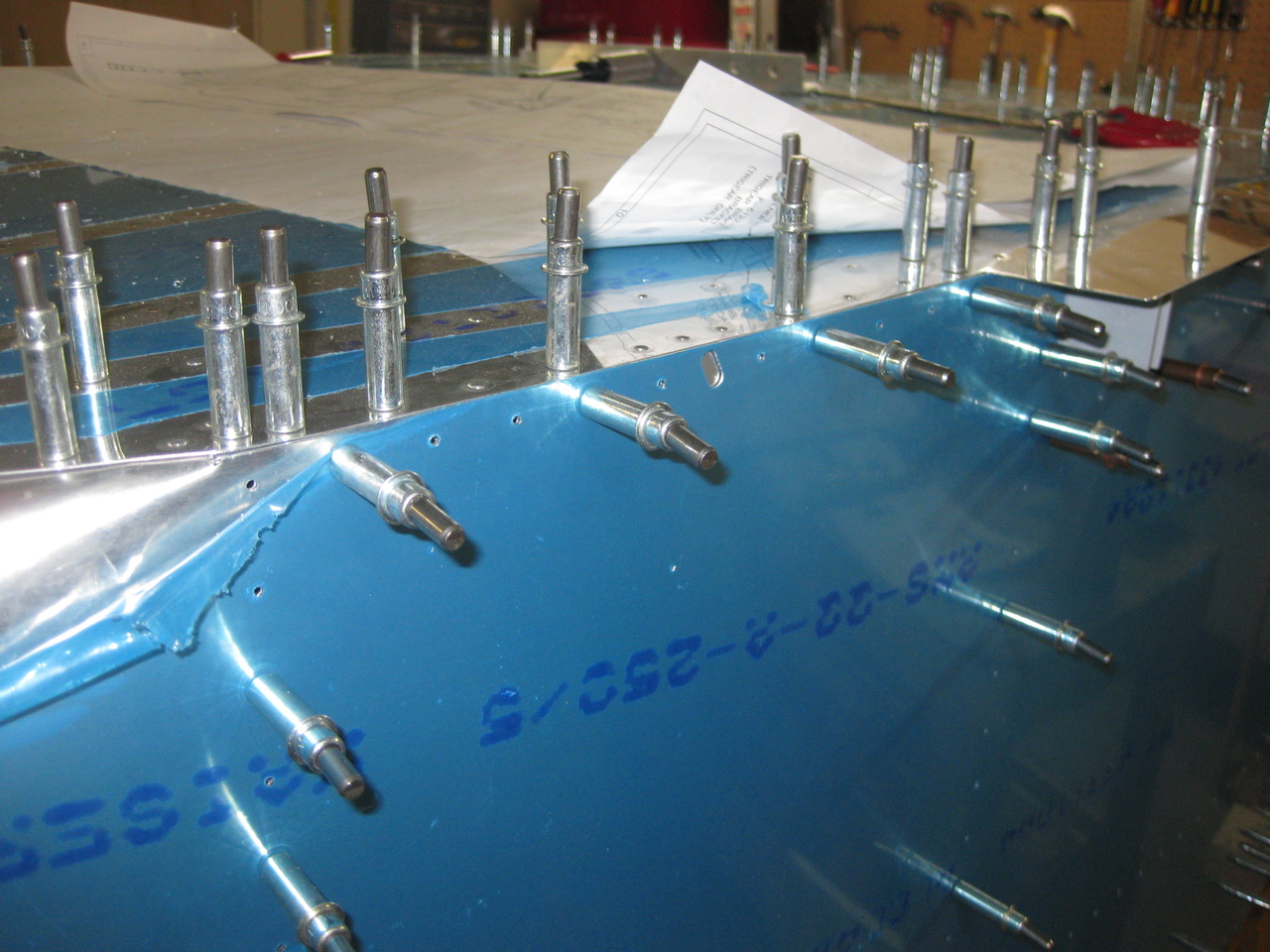

The first item was drilling the F-770 side skins to the F-715 side seat ribs.

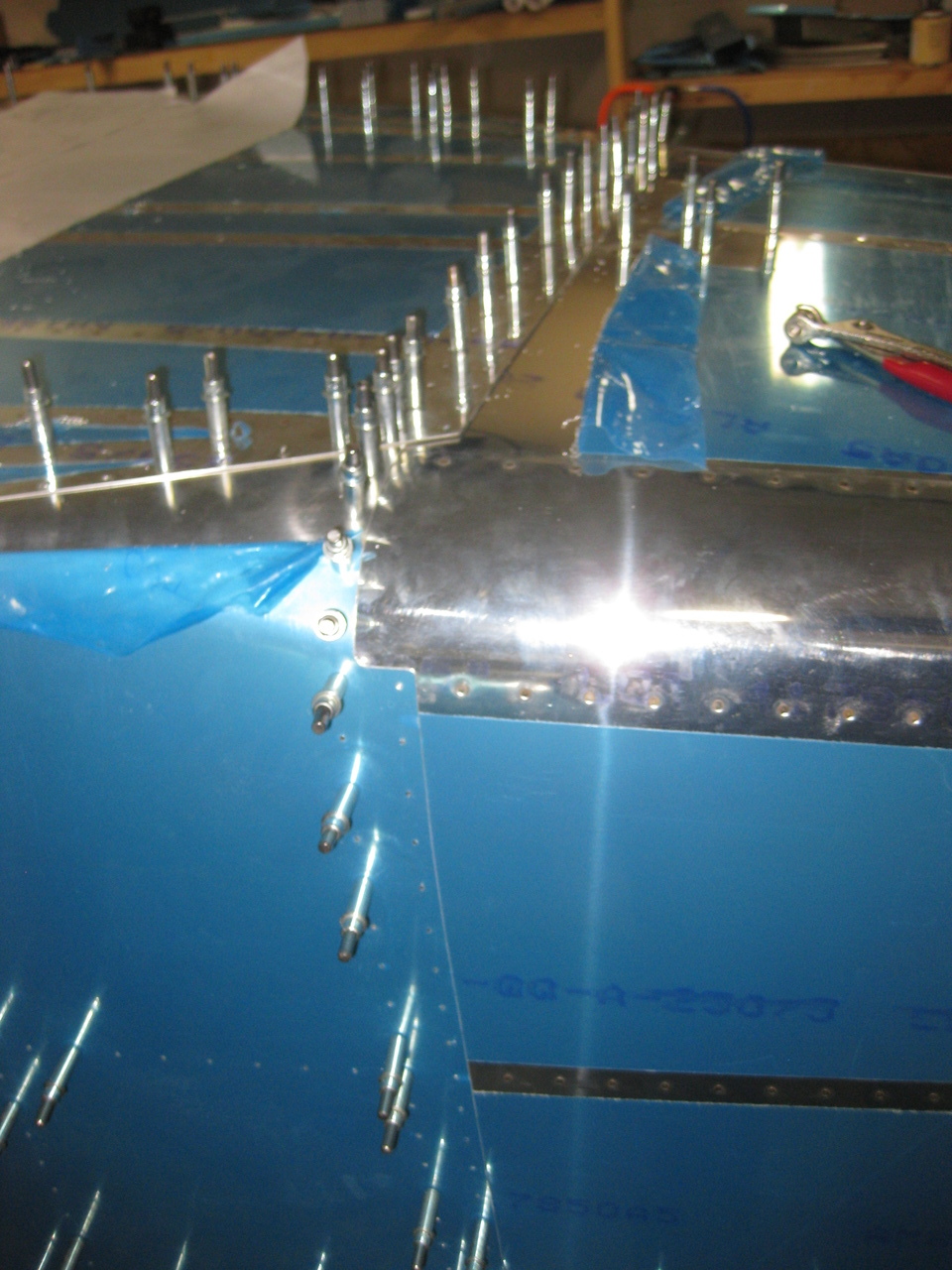

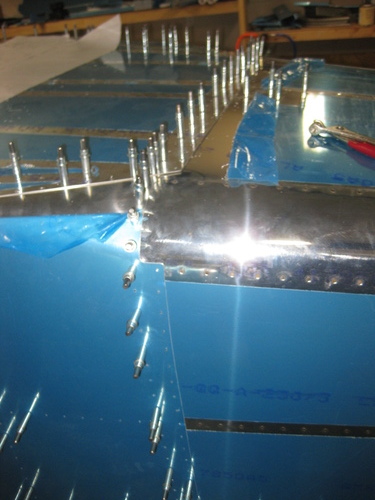

Next, I match-drilled the aft row of holes where the center and aft fuselage join.

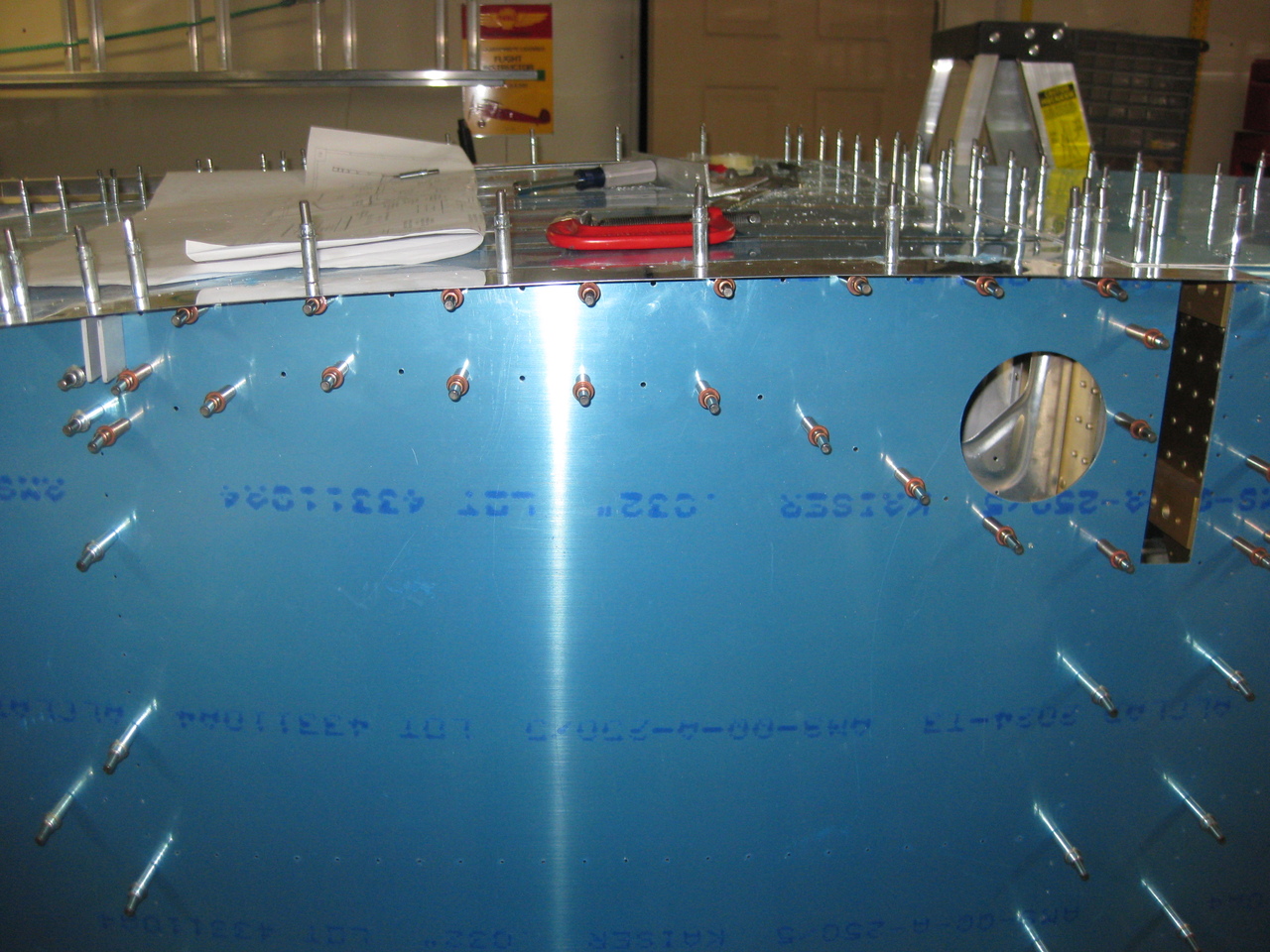

Then, I used a 1" hole saw to open these holes on both sides that will eventually be the fuel lines.

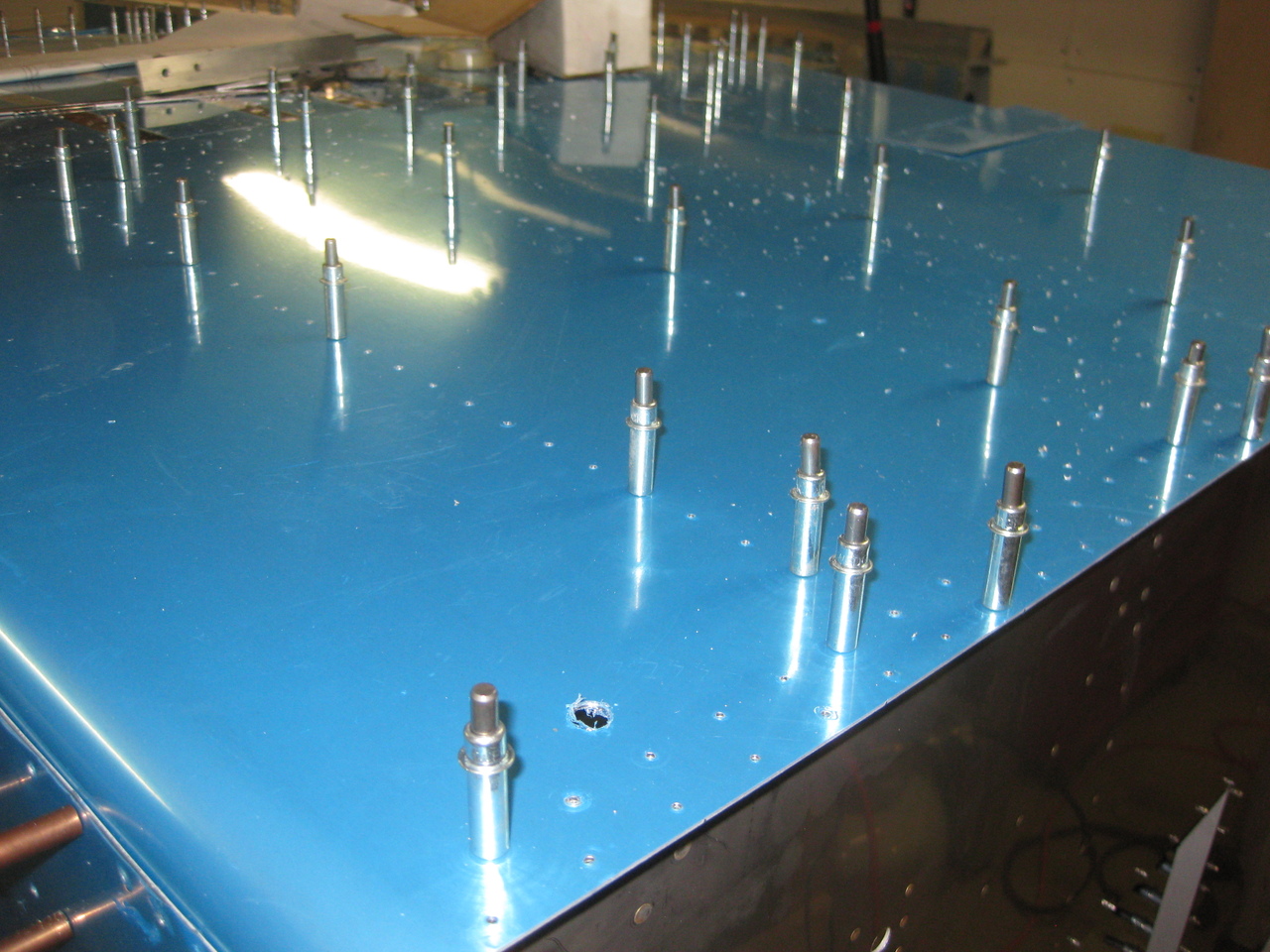

I also drilled the fuel vent line openings on the bottom of the forward fuse.

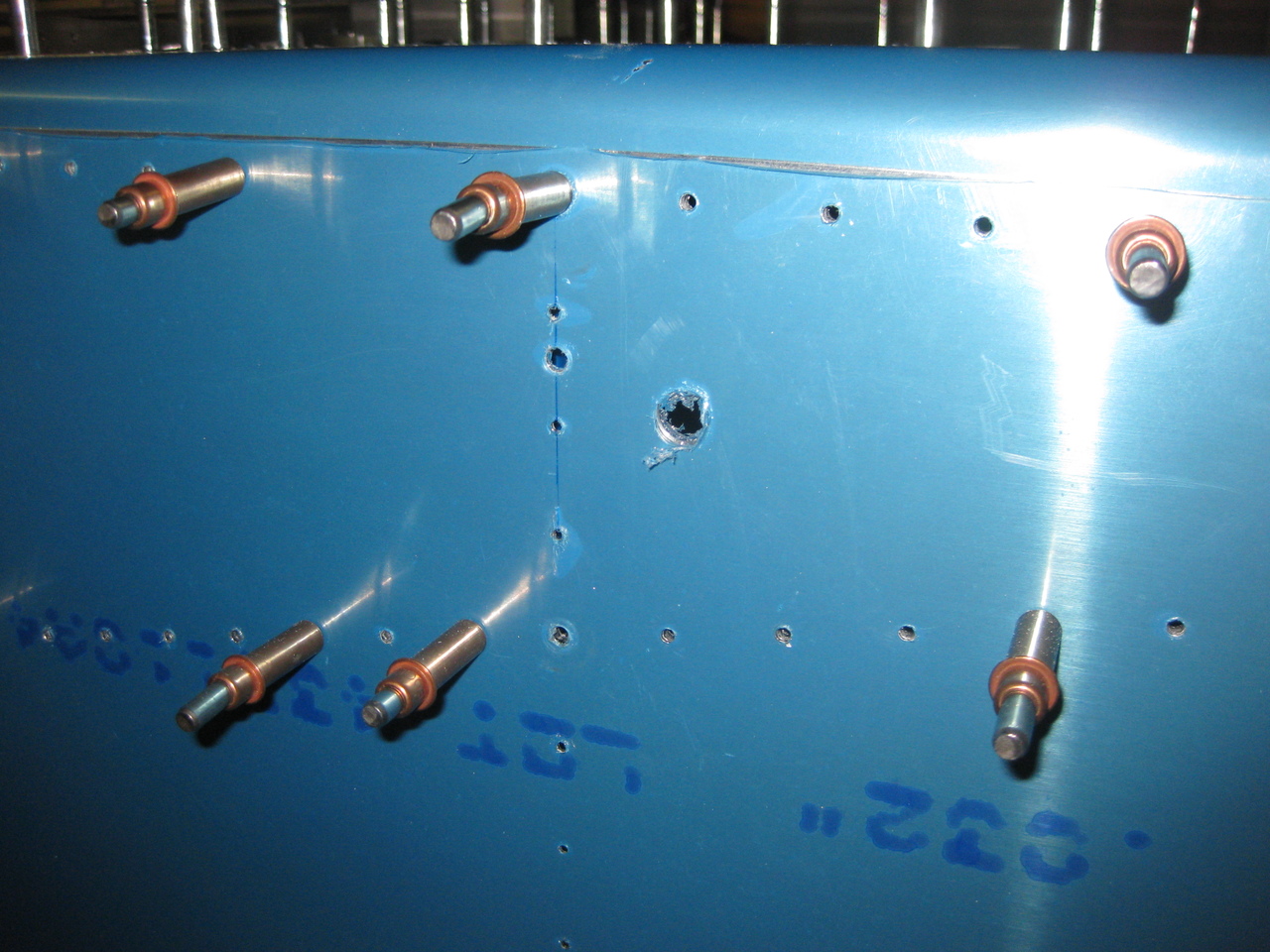

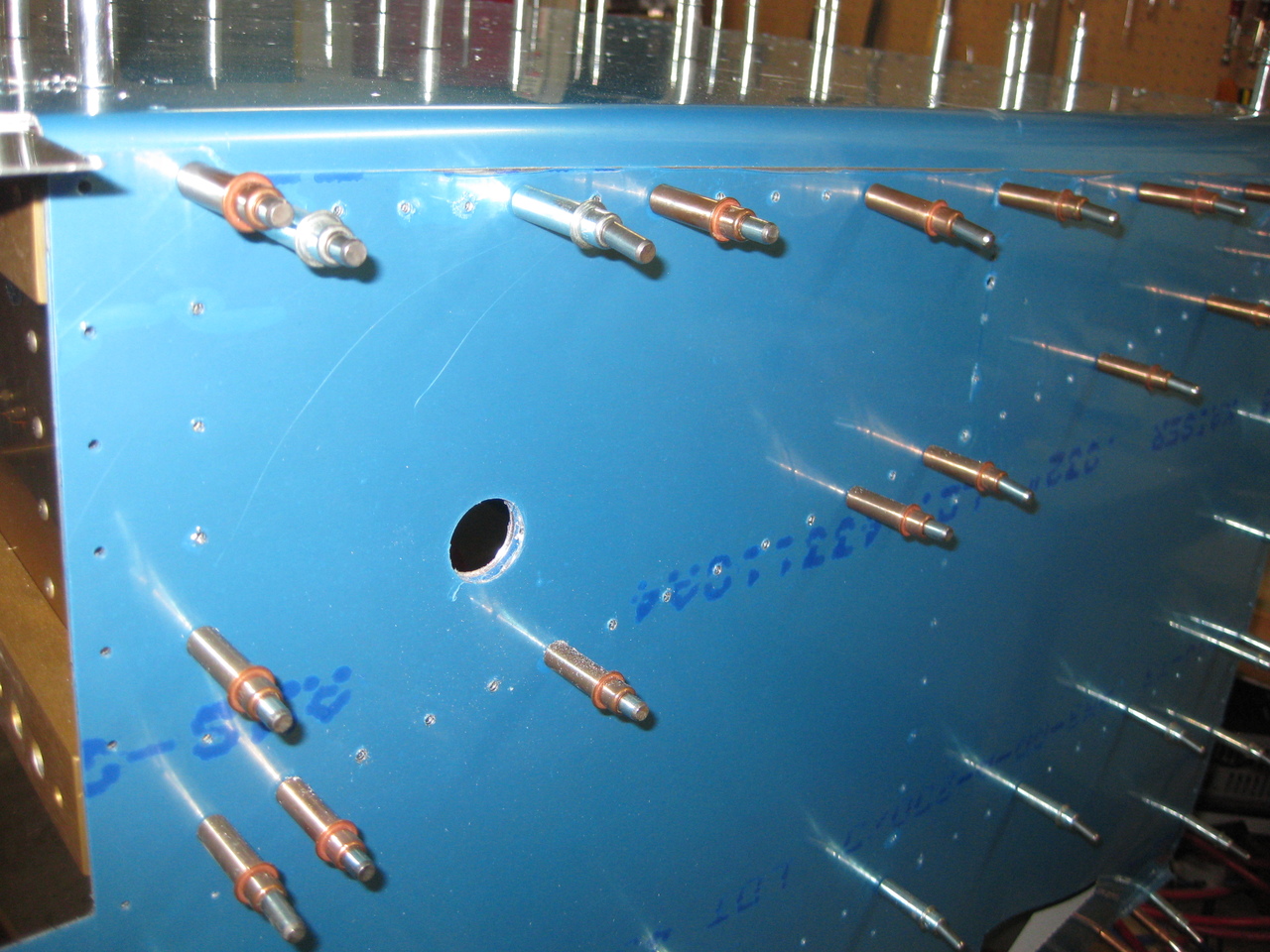

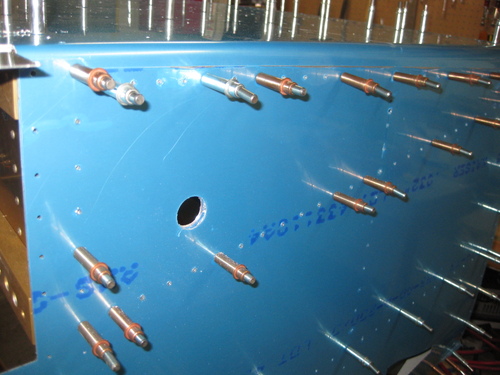

I drilled the two fuel vent line openings on the side skins where the lines will enter from the tanks.

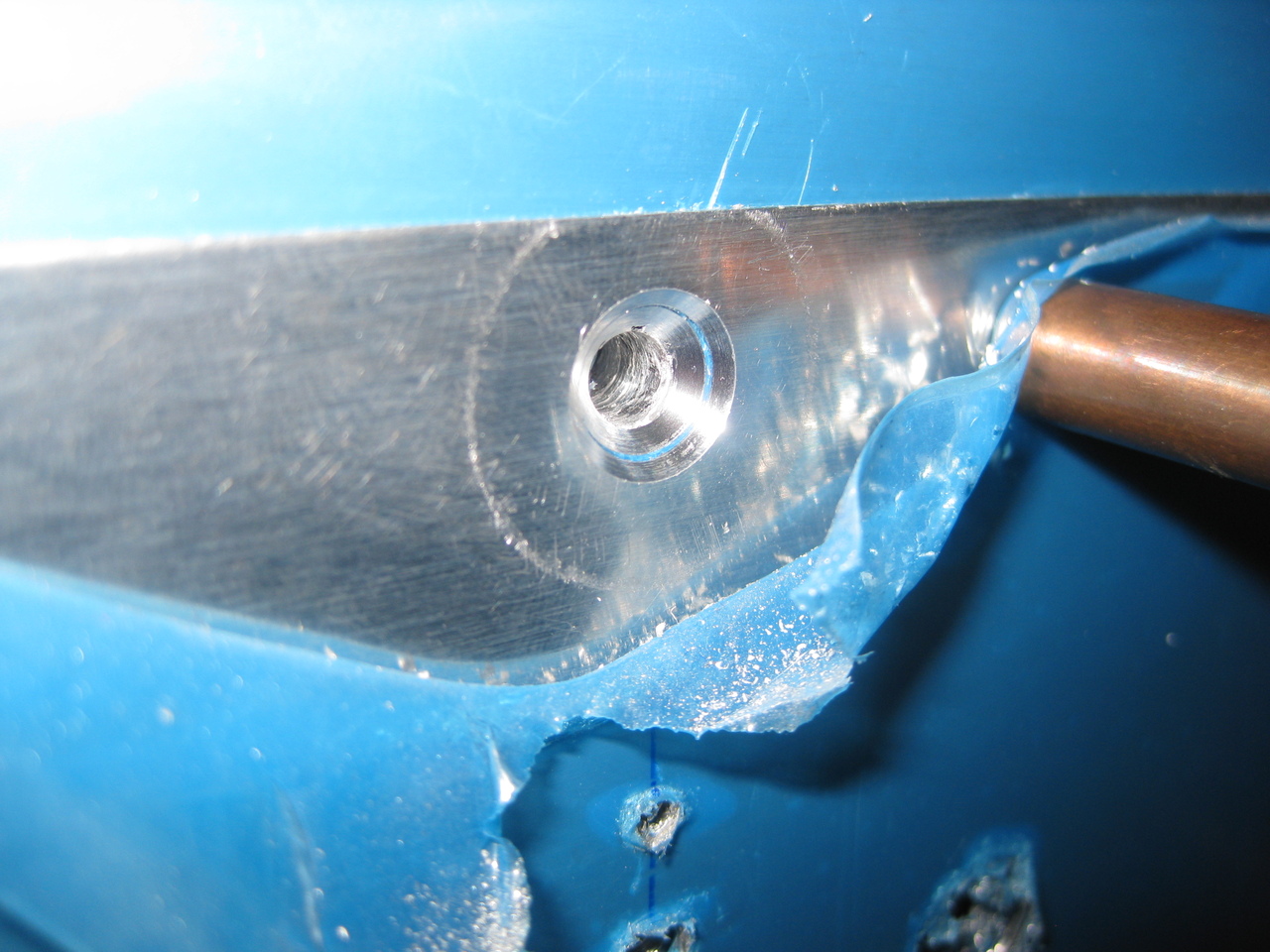

Next, I drilled to #12 and countersunk these holes on both sides that sit just under the fuel tank attach brackets.

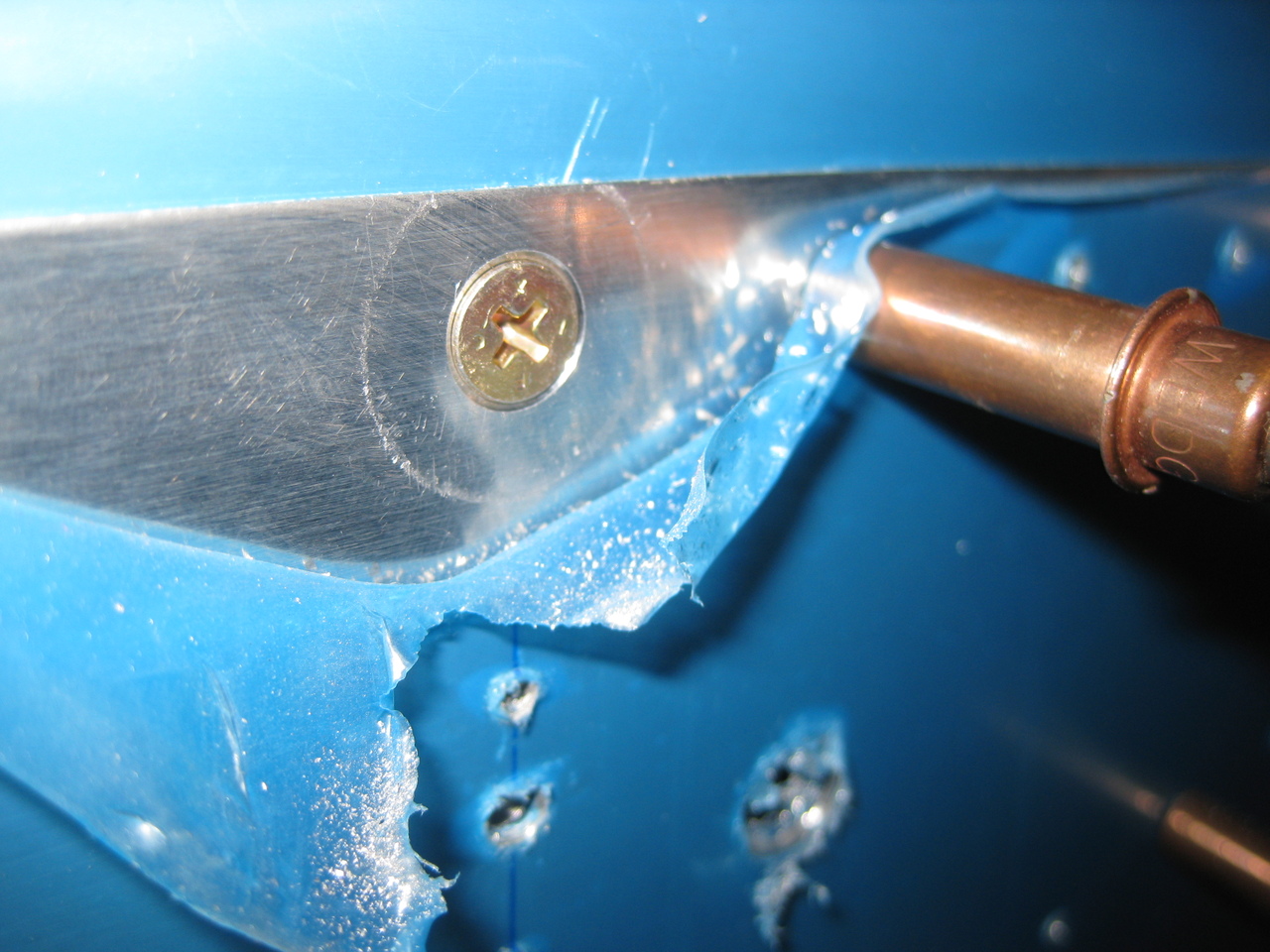

Flush for this screw...

And finally, I drilled the F-770 side skins to the F-623 ribs.

I made a good dent in the list...
