Saturday December 12, 2009
Drilling, Disassembly, Countersinking, Deburring (Forward Fuselage)
4.0 Hours

Previous - Index - Next

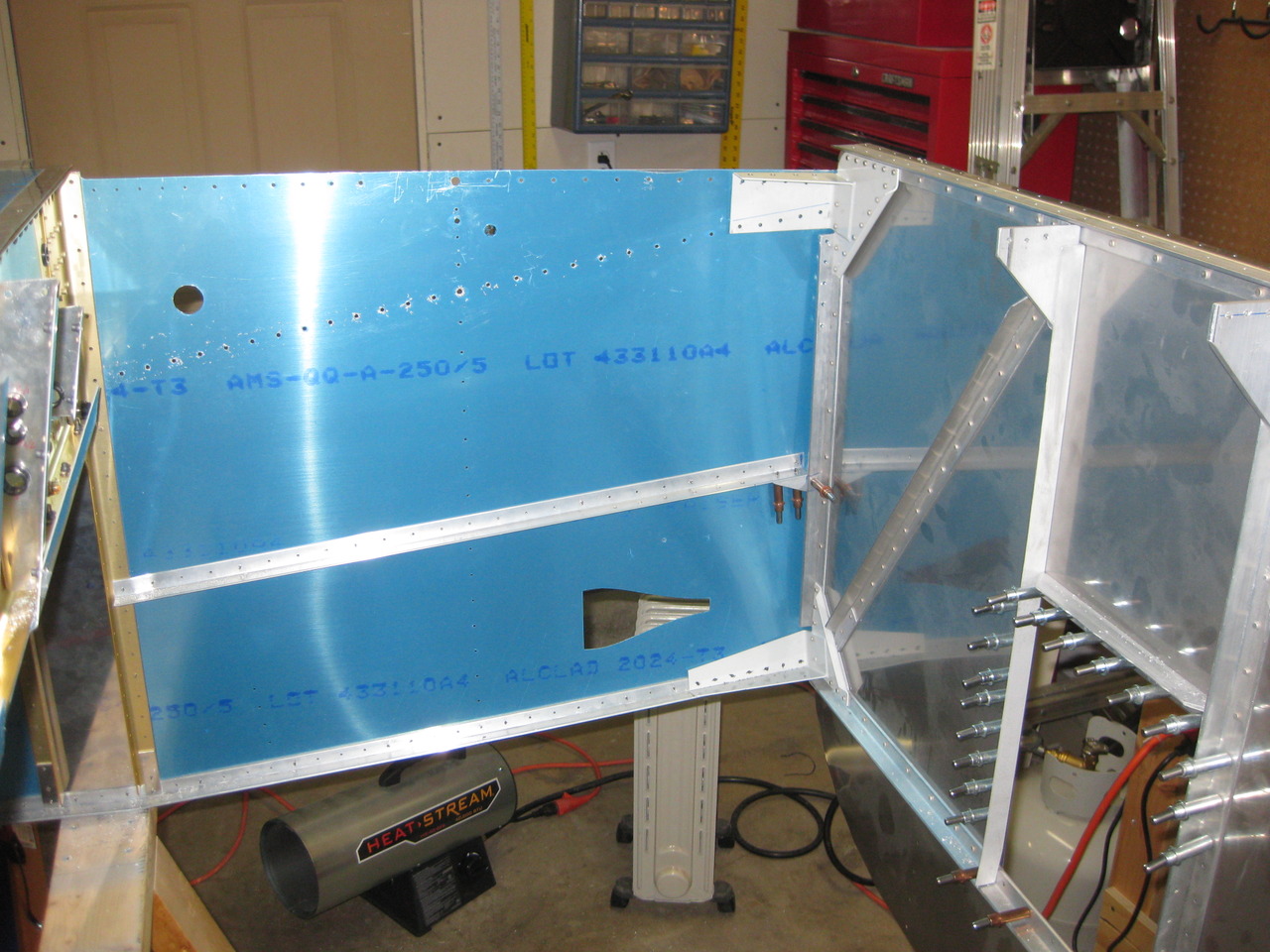

I cleco'd in the F-750 side panels and drilled them to the bulkheads.

Then, I began to carefully mark the skins where holes will or won't be countersunk. As I did this, I pulled out some pieces and marked holes on them as well.

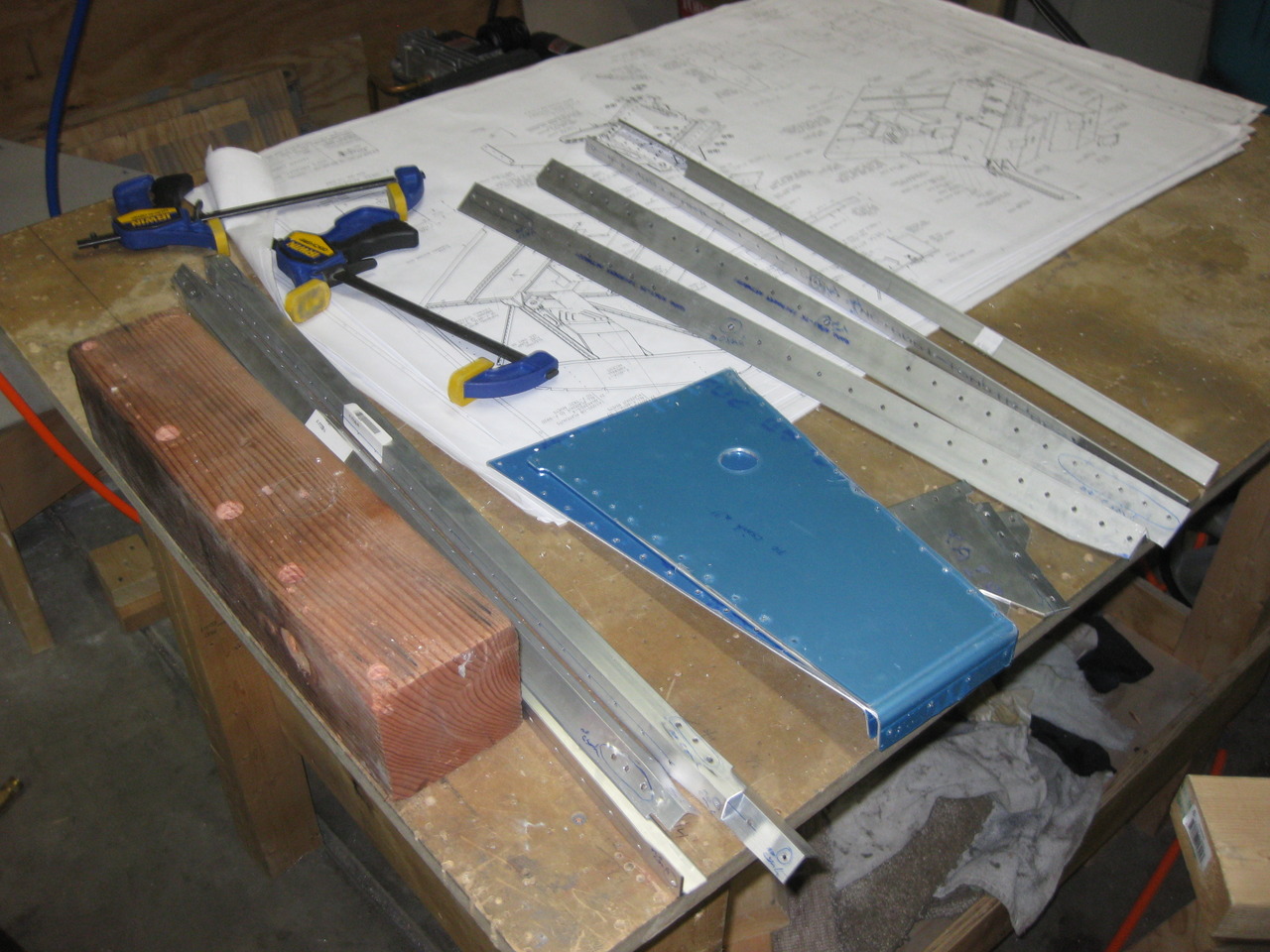

Starting to pull stuff apart...

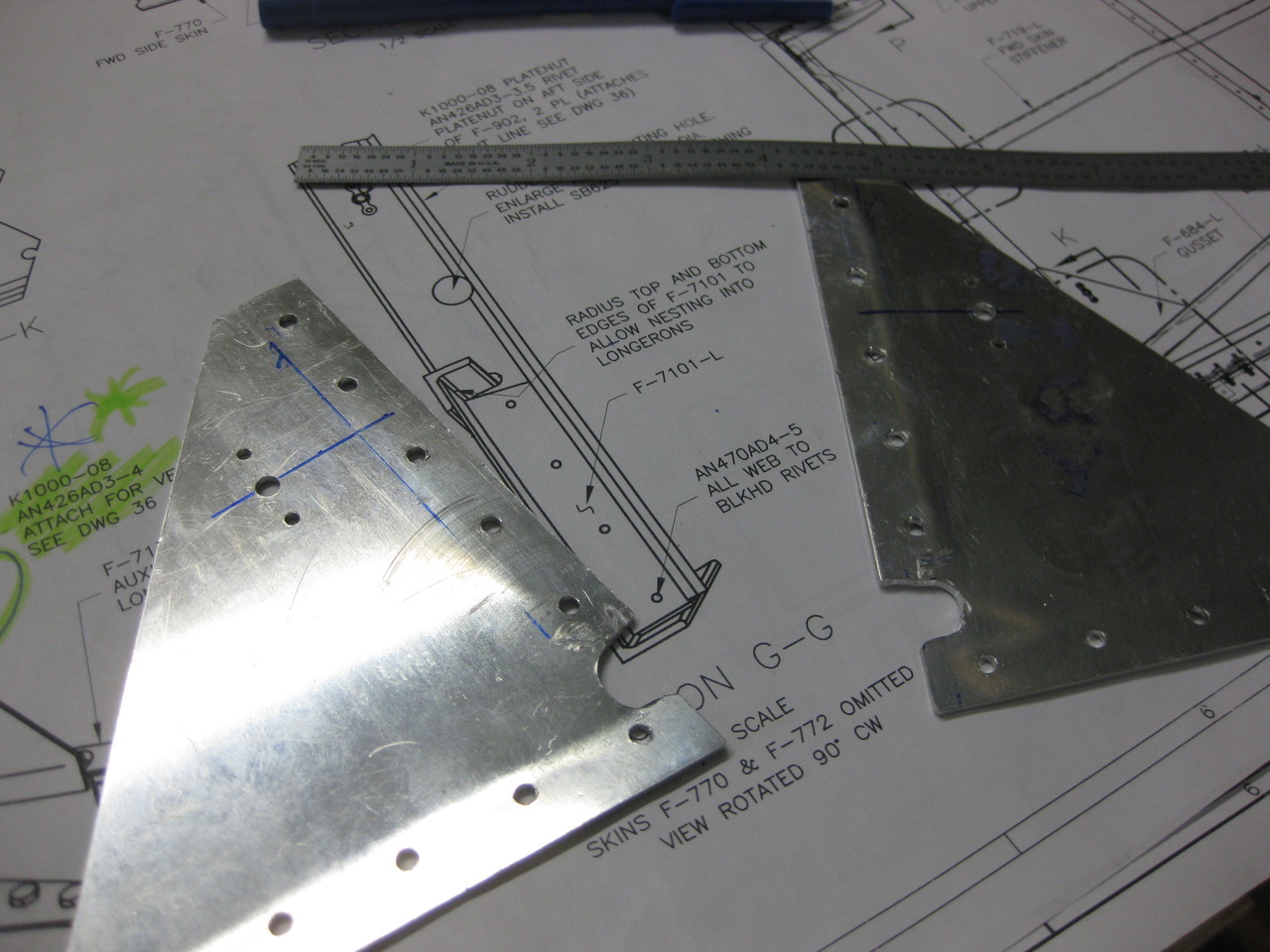

I marked and drilled holes in these gussets for nutplates. This will later hold a couple of clamps that attach the fuel vent line.

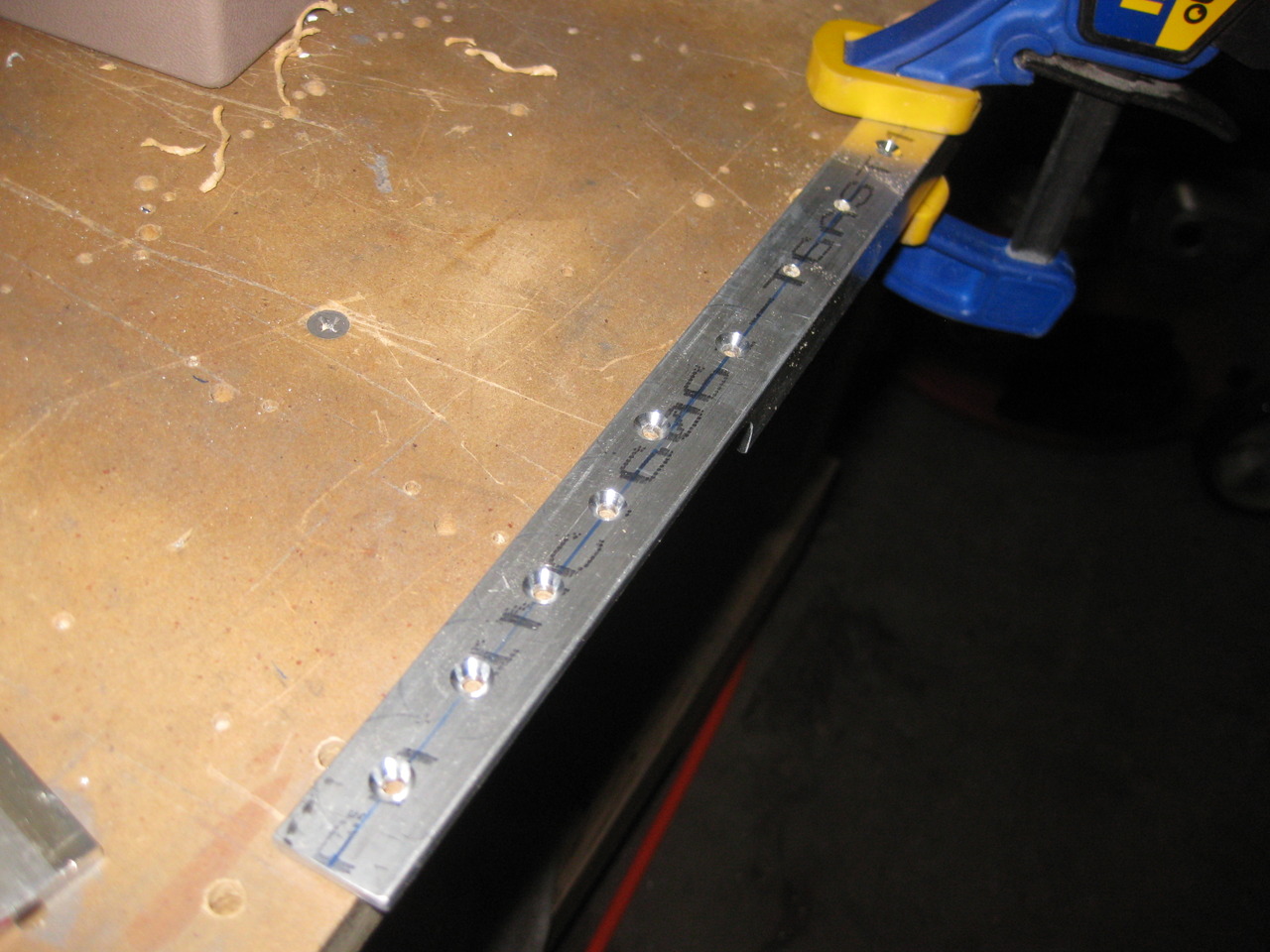

Then, I started deburring and countersinking forward stiffeners and longerons. Not too much to say about this part.

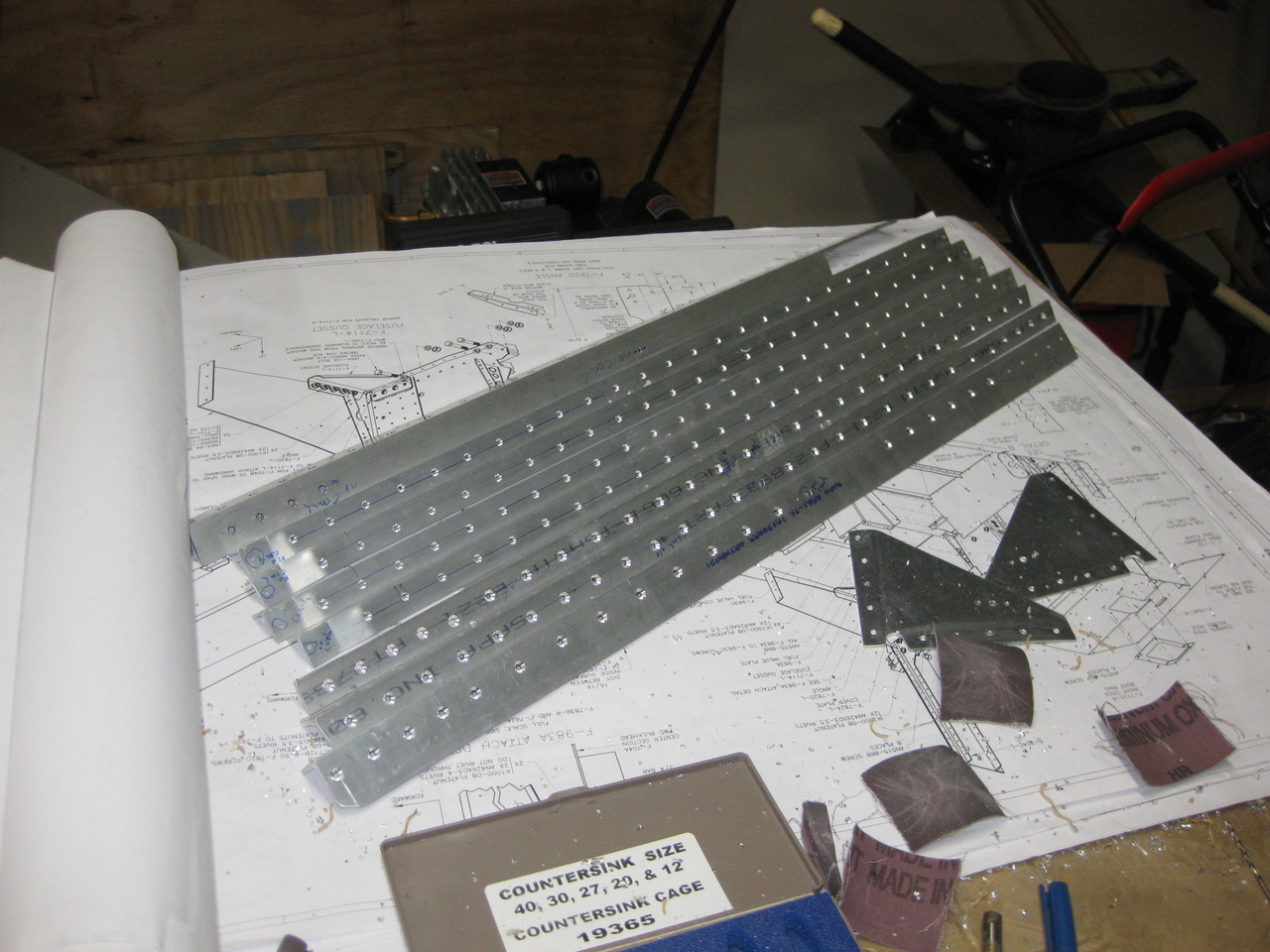

Here's a whole pile of stiffeners ready to be primed tomorrow.
