Monday December 21, 2009
Forward Fuselage Riveting, Misc... (Forward Fuselage)
2.8 Hours

Previous - Index - Next

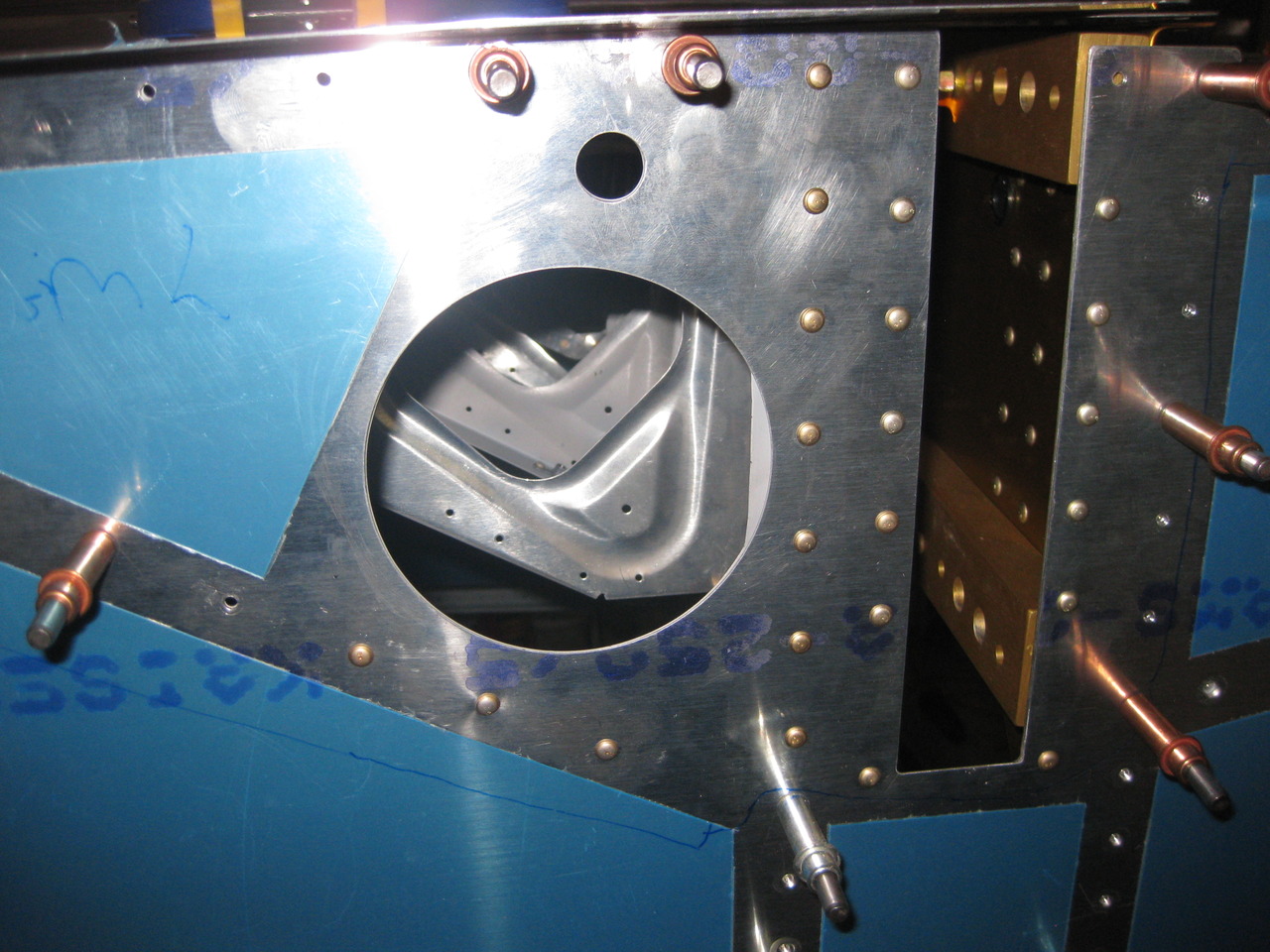

Tonight, it was time to start riveting. I riveted these rivets where I could squeeze them through the aileron pushrod hole.

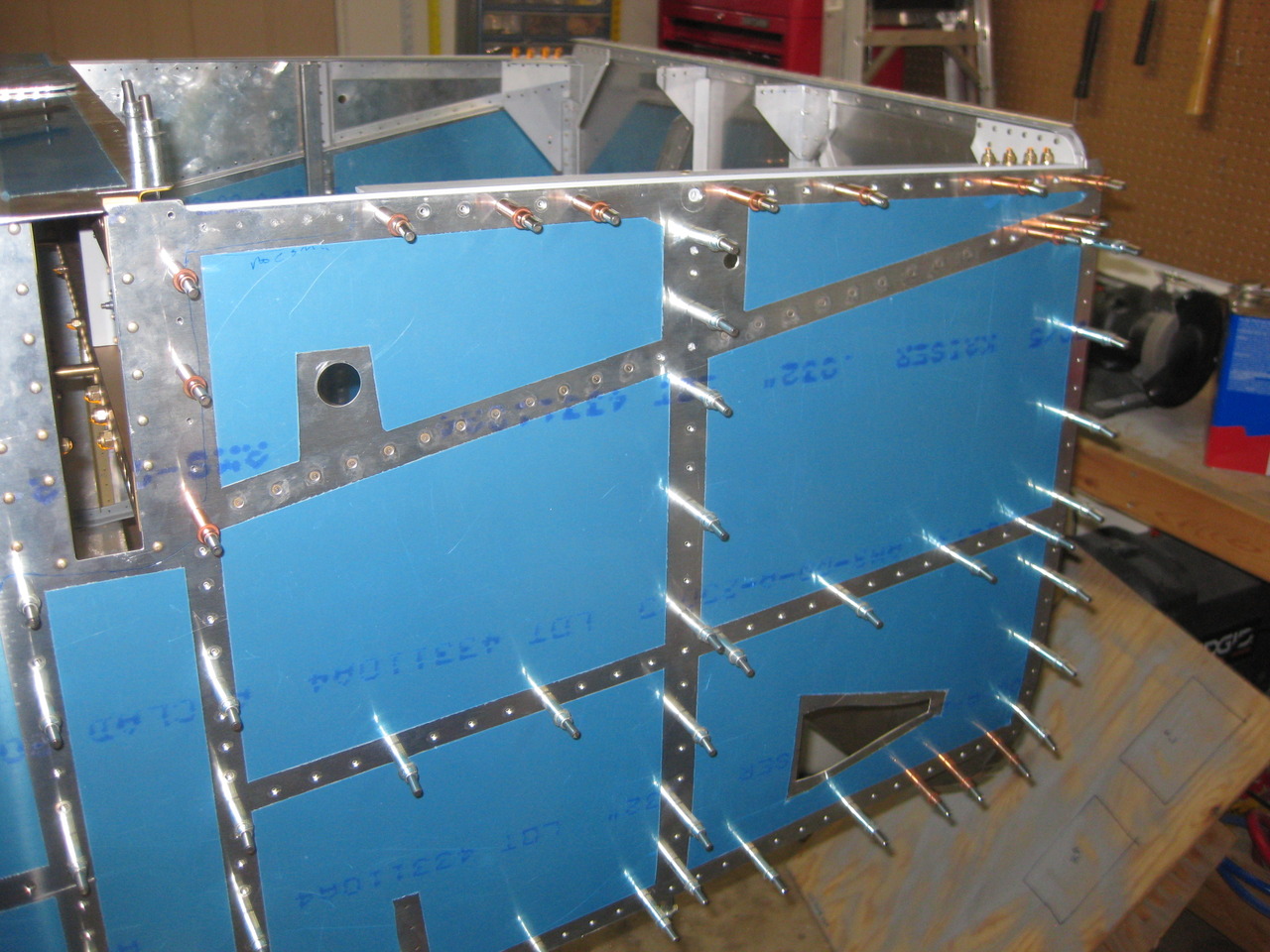

Then, I started working on these forward fuselage rivets. Here I've riveted the auxiliary longeron.

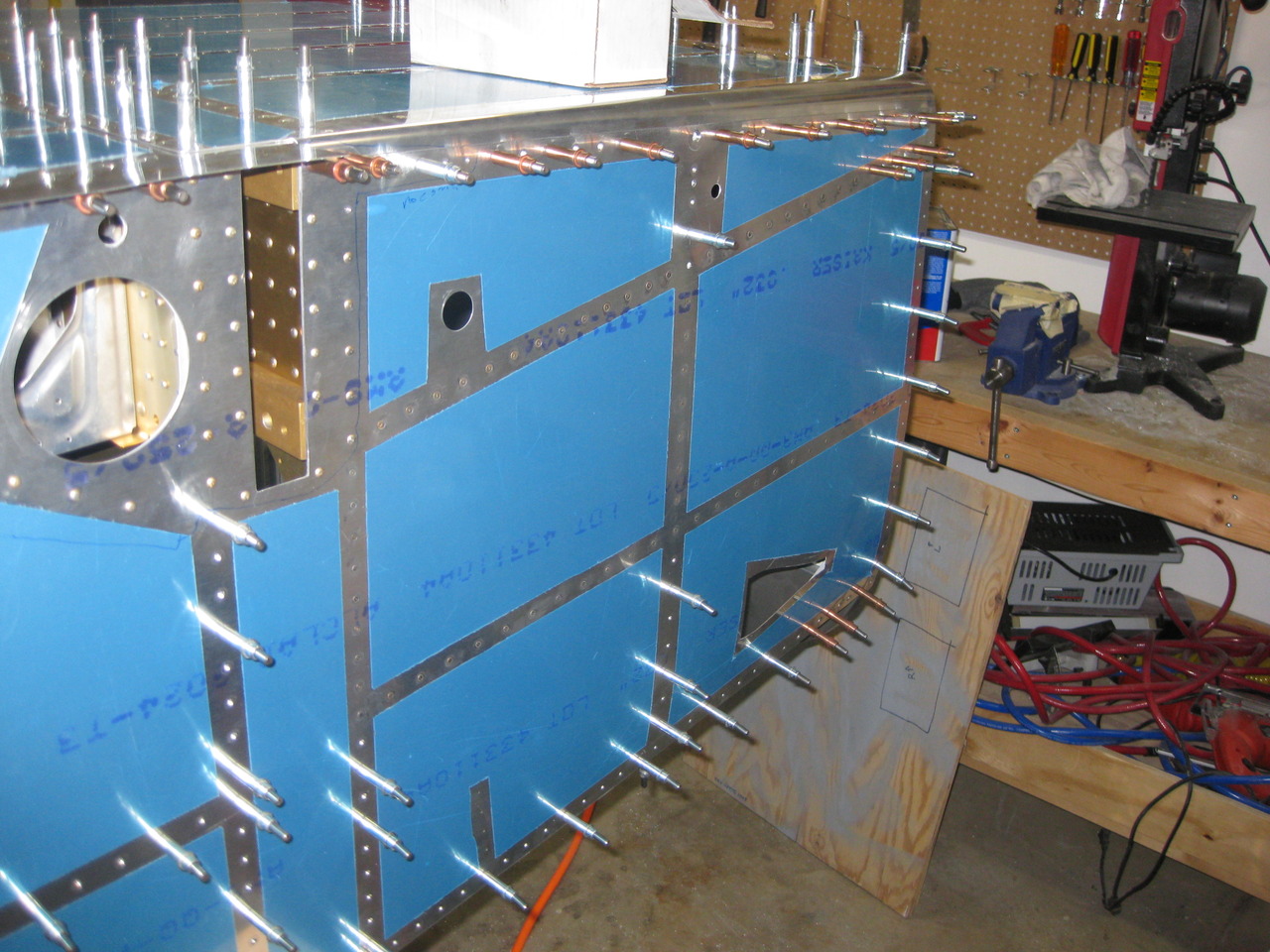

Then, I riveted the F-920 bulkhead and the F-704 bulkhead to the skin down to the auxiliary stiffener.

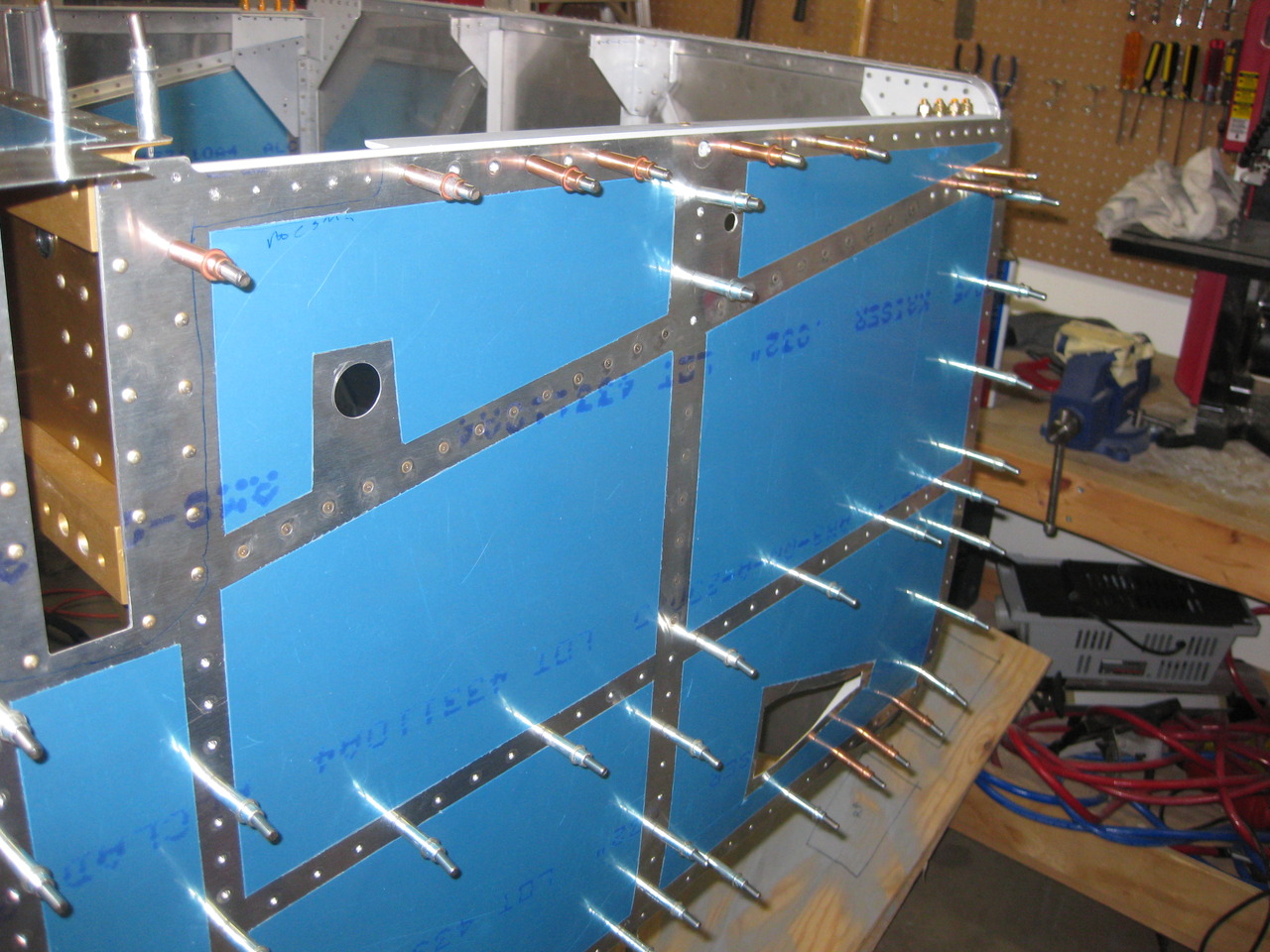

Finally, I riveted the auxiliary stiffener all the way across.

I also riveted all of the same stuff on the other side of the fuselage.

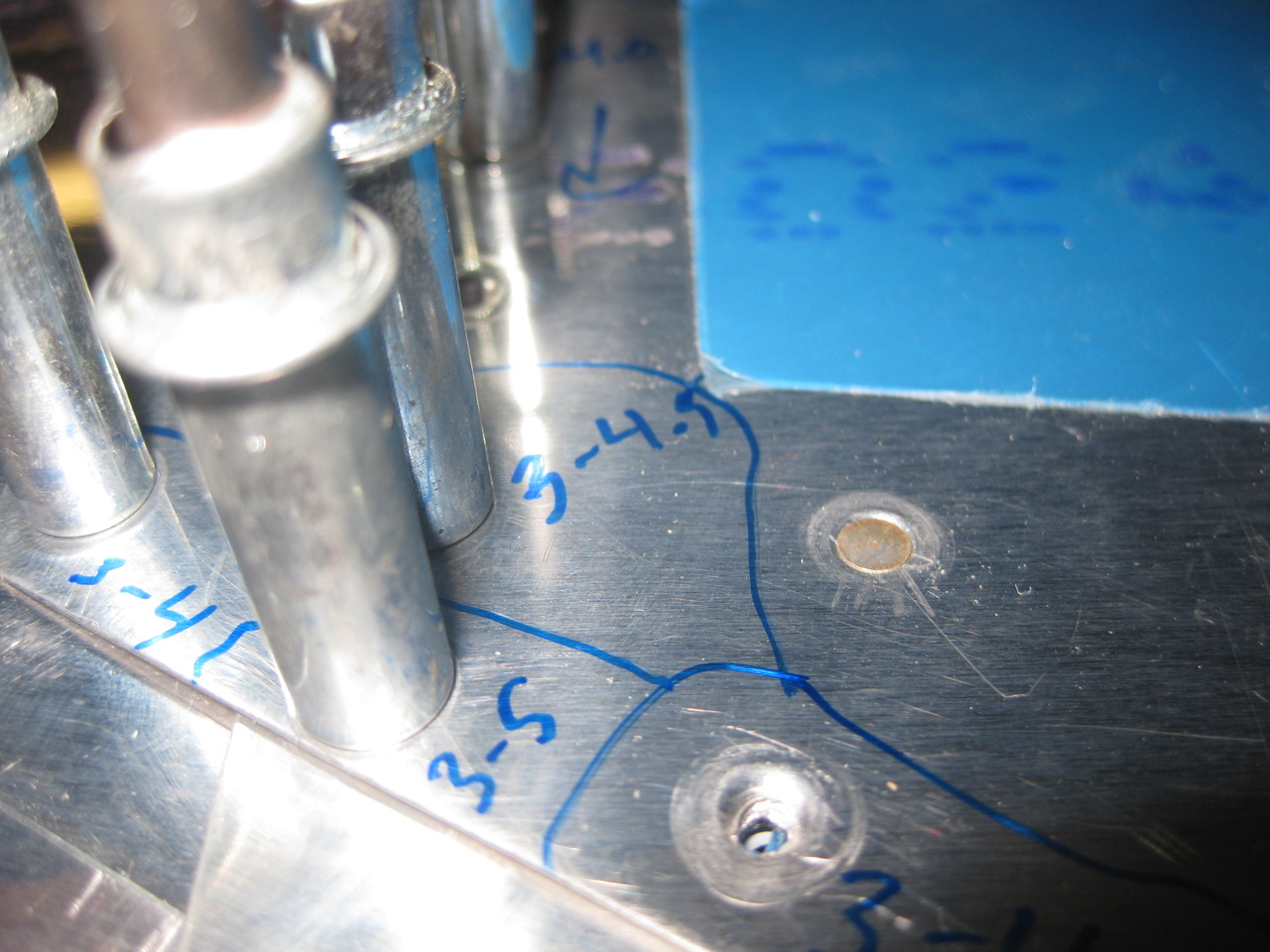

Then, I started carefully marking rivet lengths so that when Emily is out helping me rivet, we don't have to constantly consult the plans.
