Tuesday May 4, 2010
Seatbelt Anchors, Baggage Bulkhead (Center Fuselage)
1.9 Hours

Previous - Index - Next

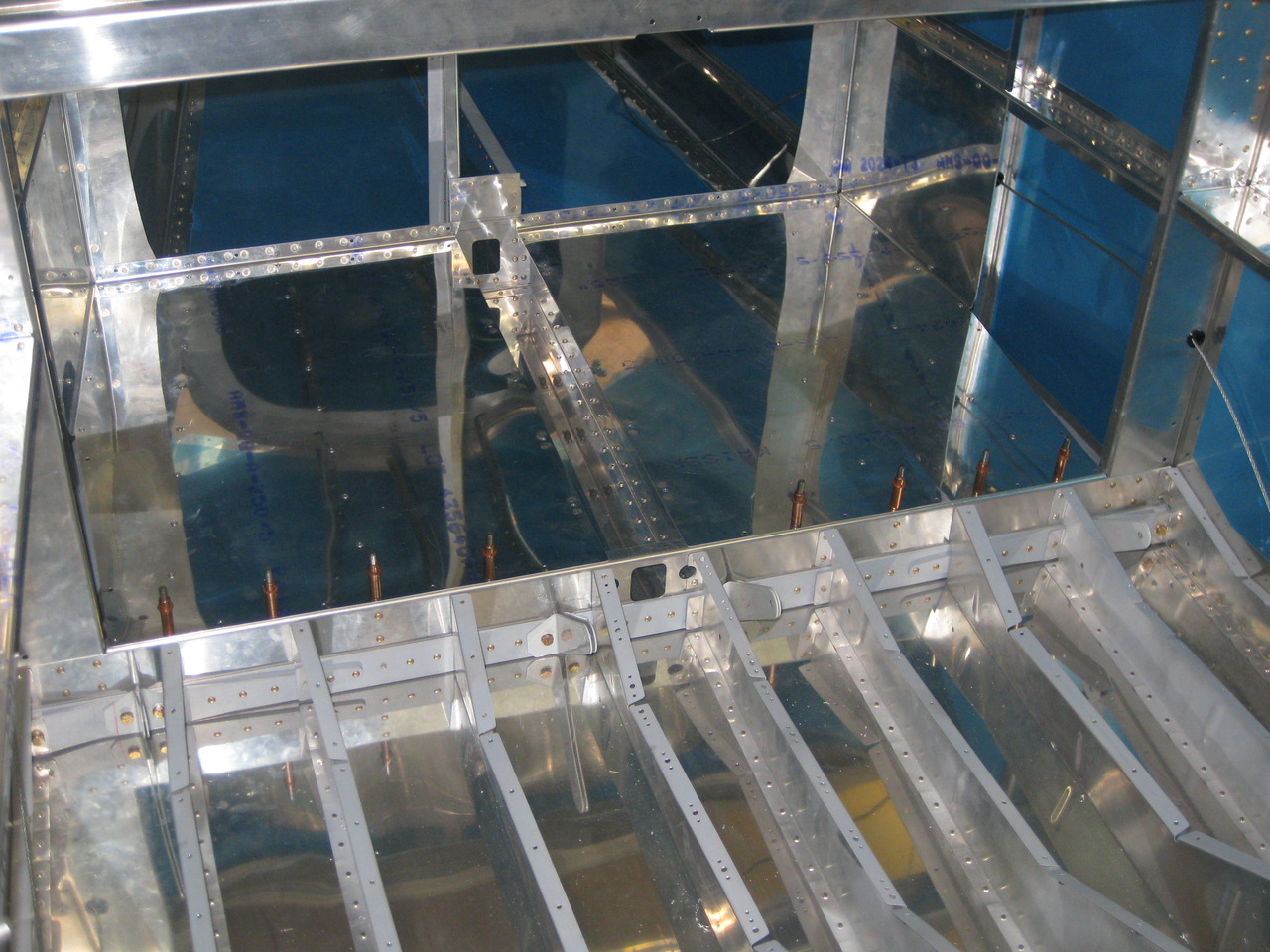

First thing tonight, I finished drilling out rivets on the baggage floor, bolted down the remaining seatbelt anchors, and re-riveted the baggage area floors.

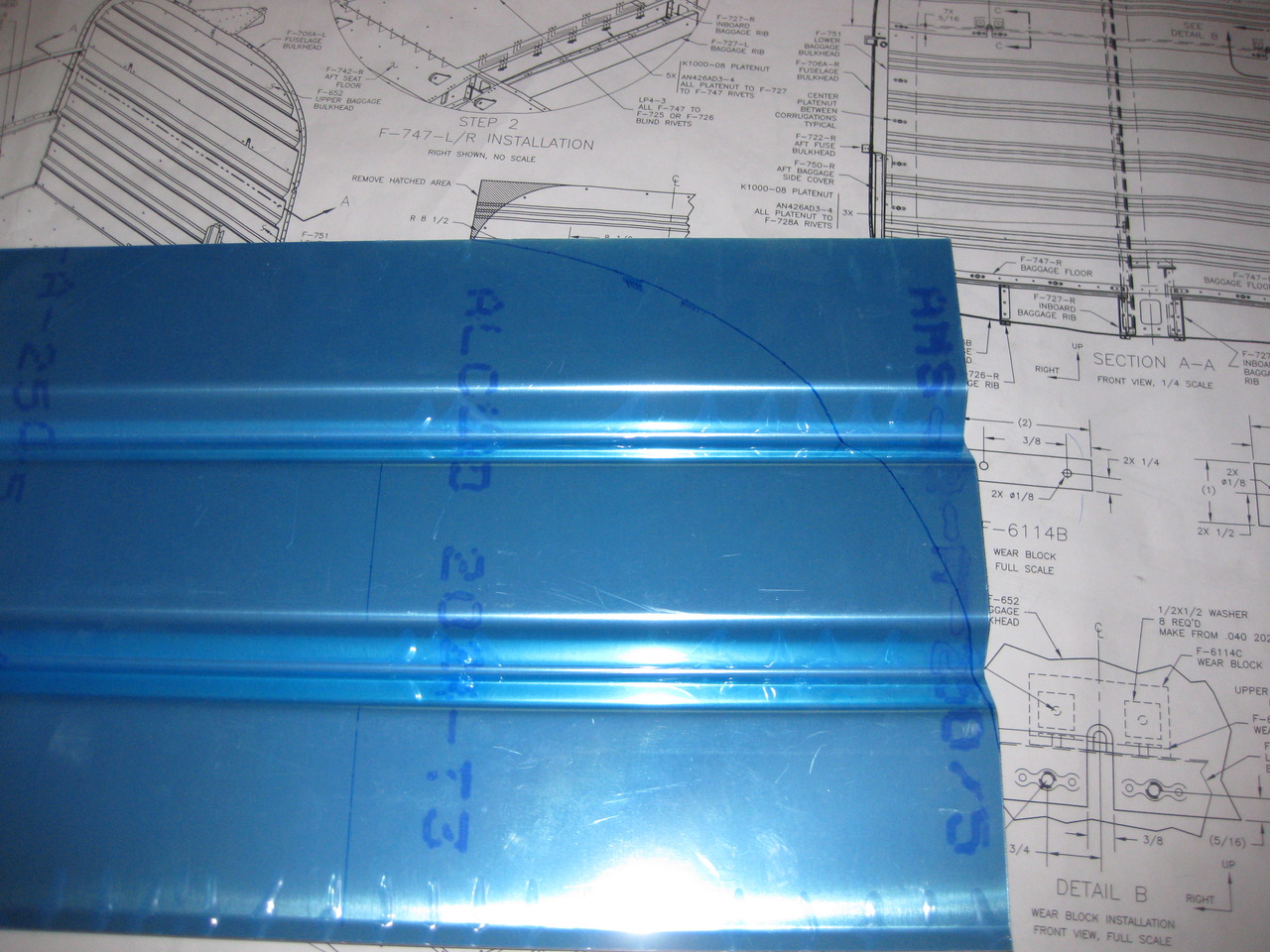

Then, I got to work on the baggage area bulkhead cover. It comes in two pieces, the top of which has to be trimmed to a curve to match the bulkhead. I carefully measured and traced the curve.

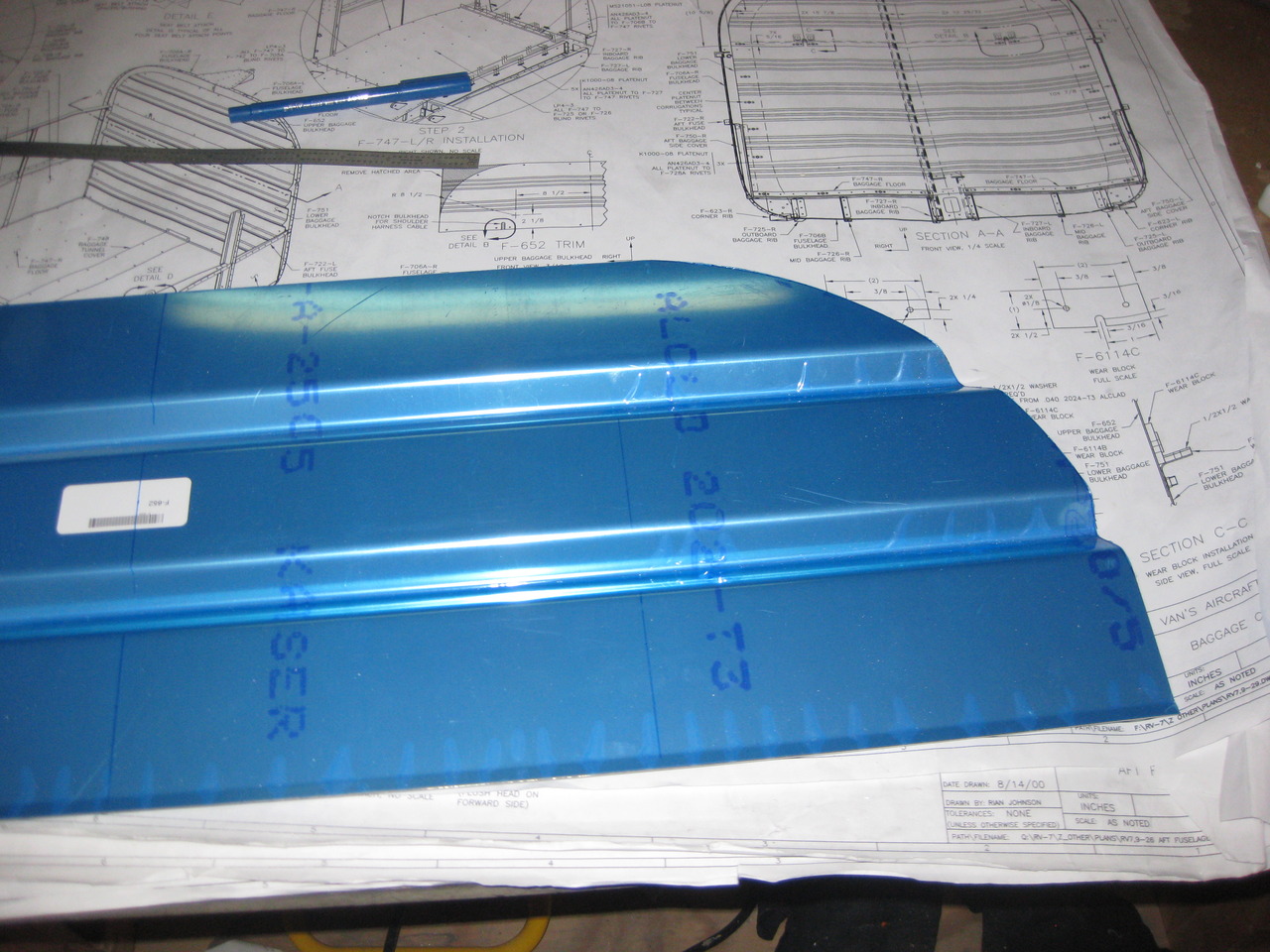

And then cut it carefully on the bandsaw followed by some filing. I still need to trim the other side.

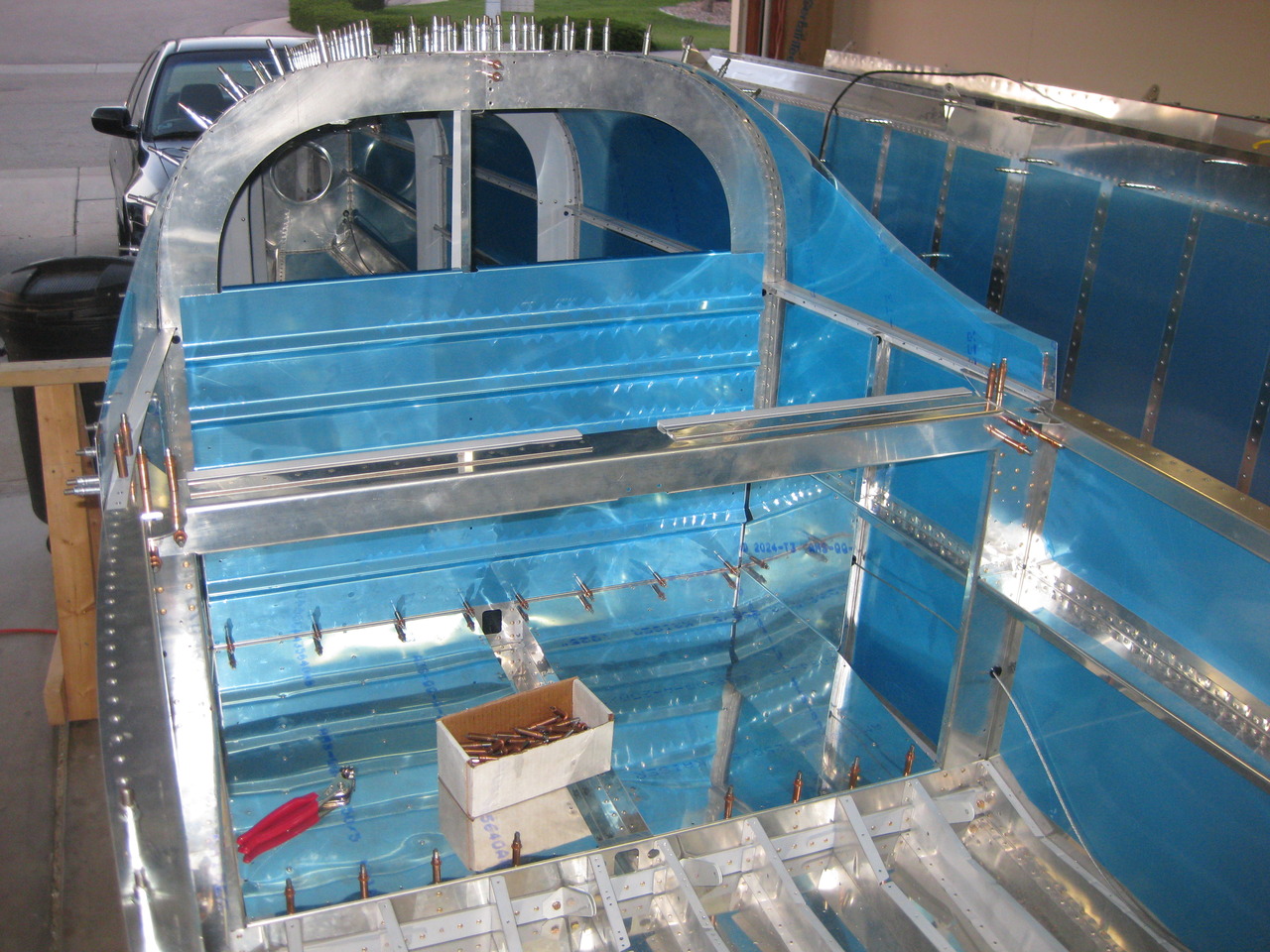

For fun, here's the lower half cleco'd into the fuselage.
