Saturday June 5, 2010
Finished up the flap stuff...mostly. (Center Fuselage)
1.6 Hours

Previous - Index - Next

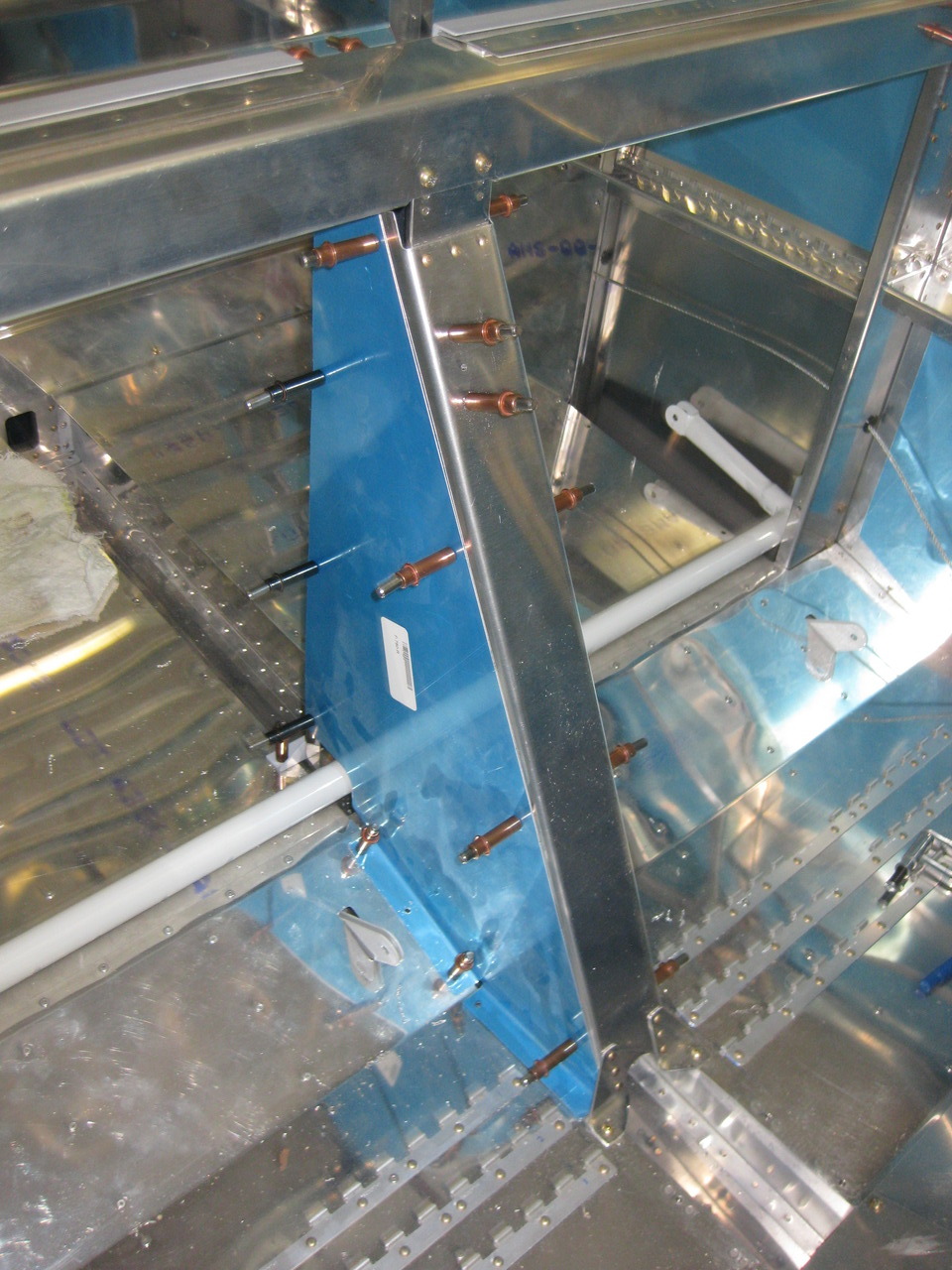

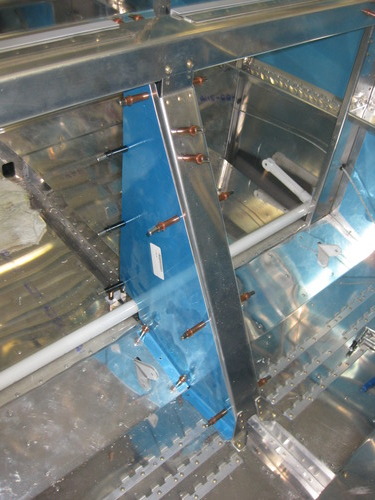

This afternoon, I got back out to the garage, finally. I trimmed the top of the two flap cover skins, cleco'd them in place, and drilled them to the aft support brace.

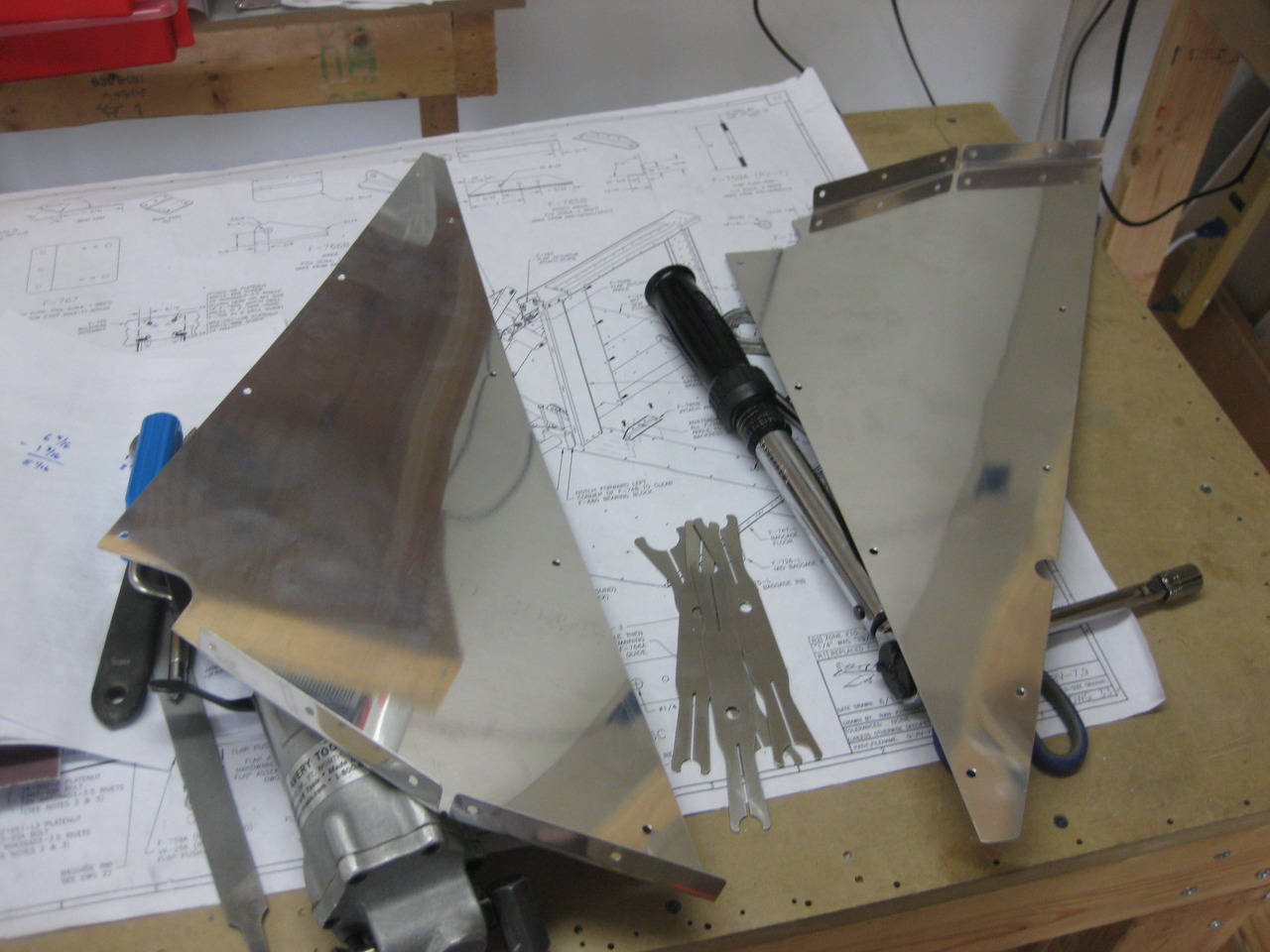

Then, I took everything out of the fuselage. First, I deburred the cover skins.

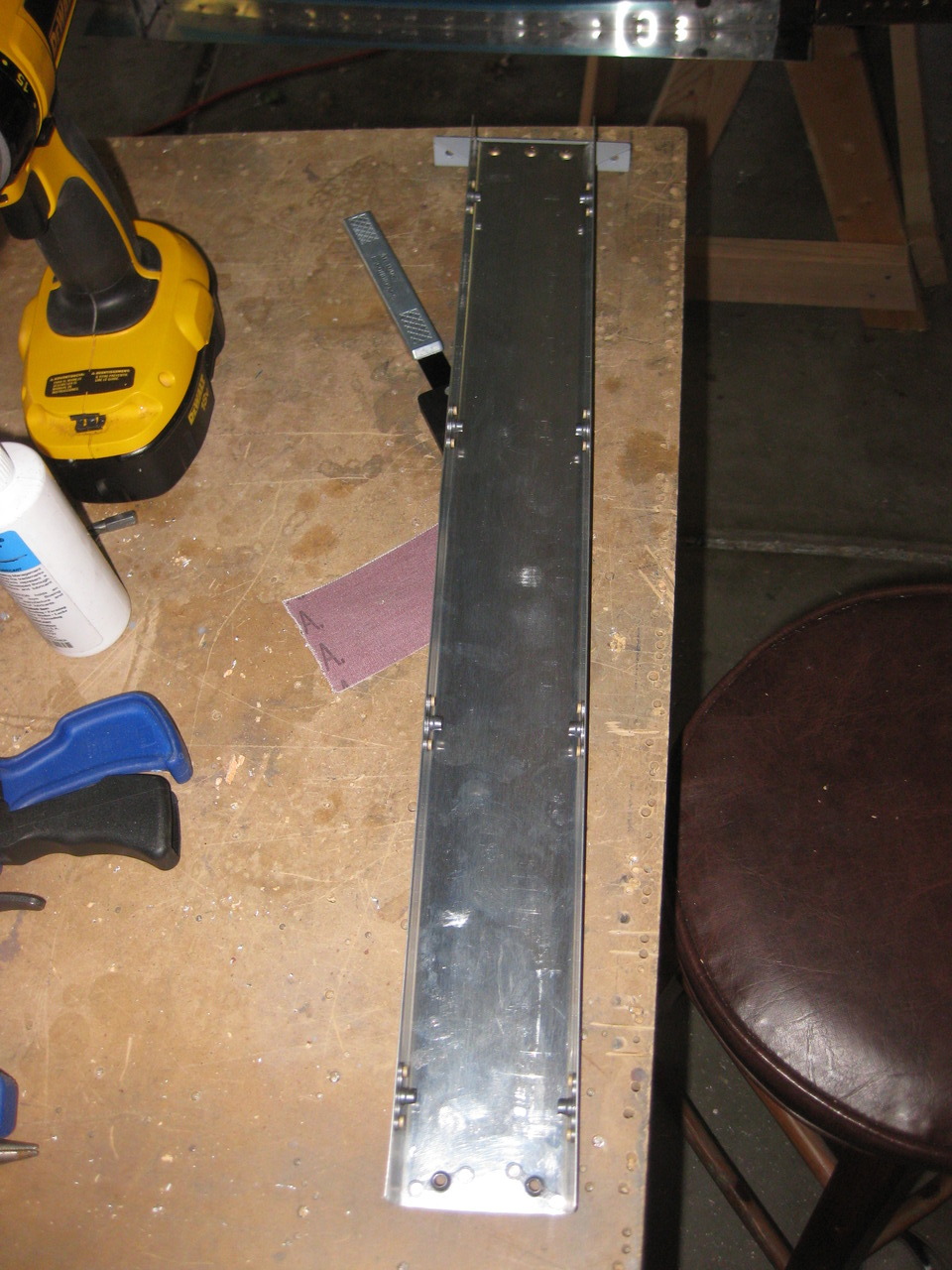

I installed all of the nutplates on the aft support brace.

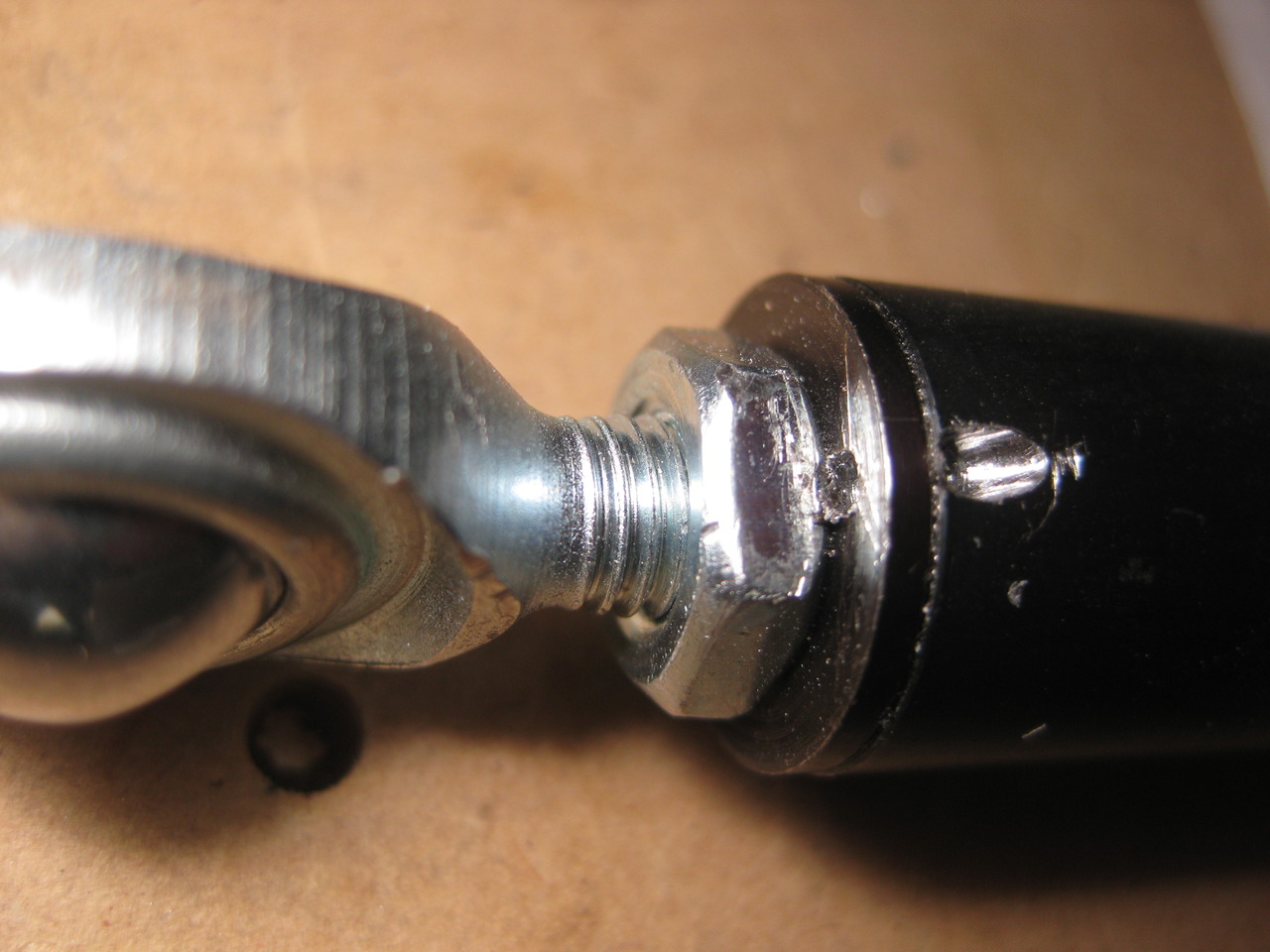

I drilled the safety wire hole in the flap motor end.

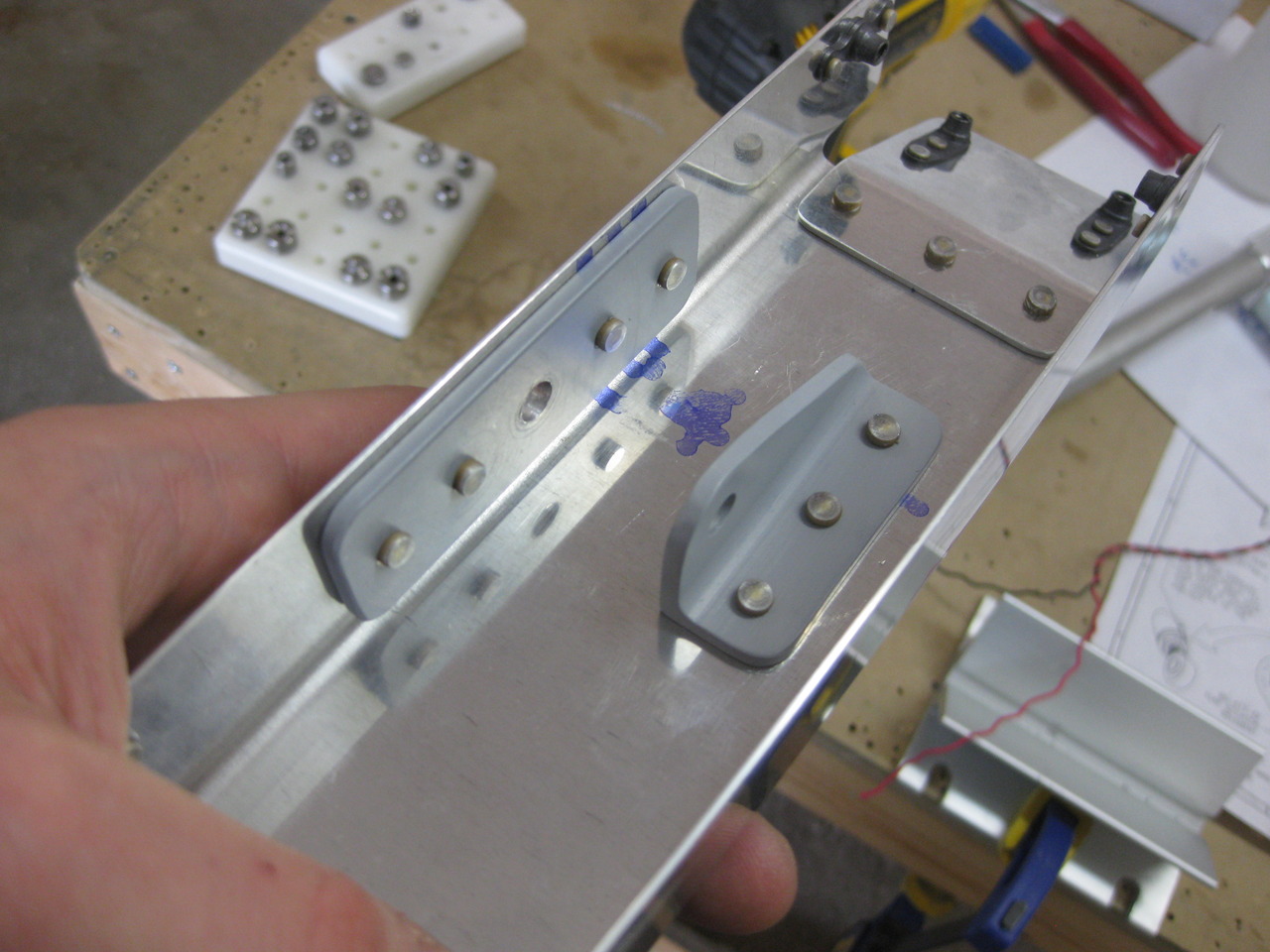

Finally, I primed and riveted the little angle piece into the forward flap brace.
