Cabin Frame Roll Bar Drilling (Cabin Frame)
2.2 Hours

Previous - Index - Next

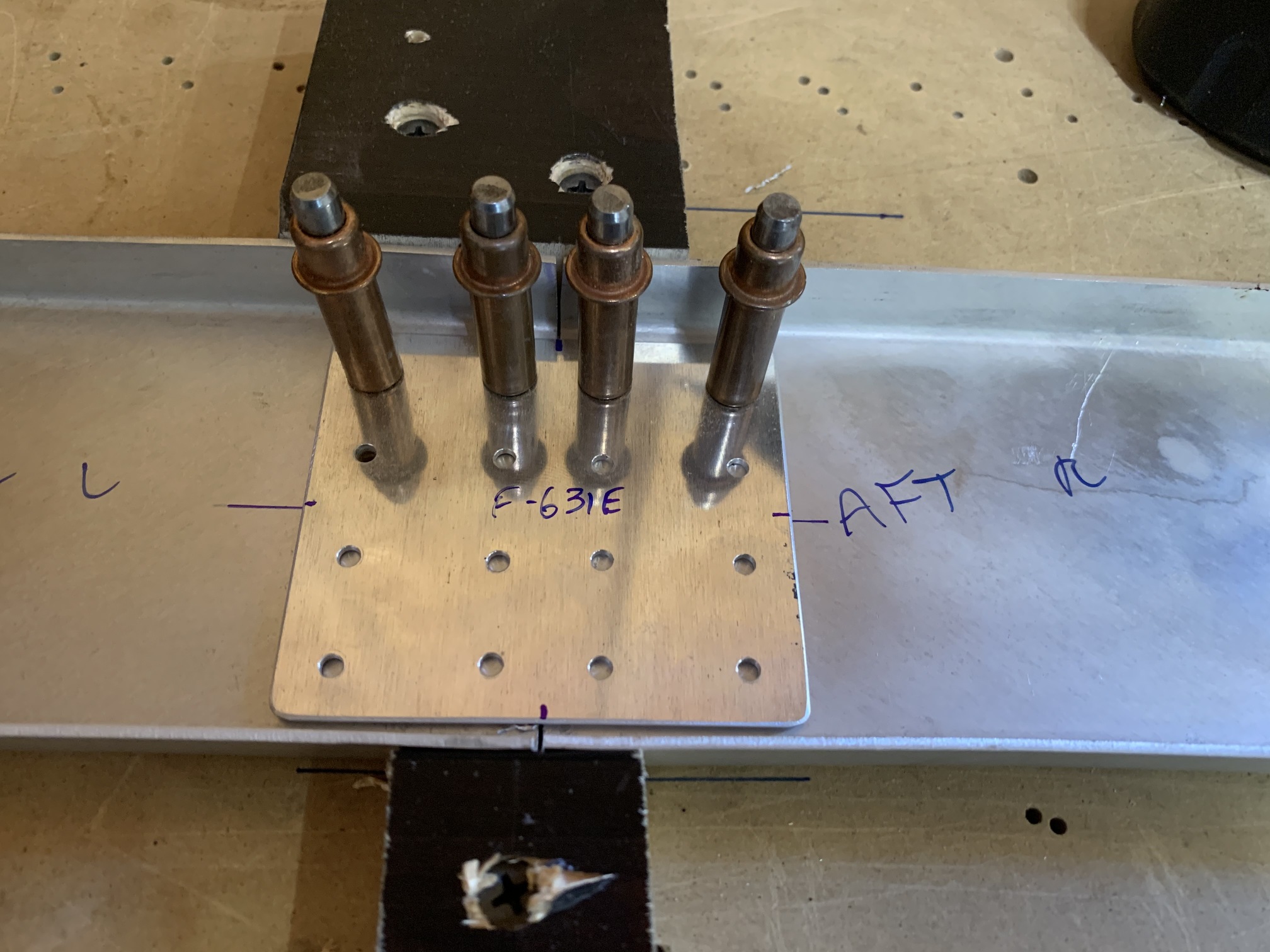

Tonight I remeasured the height and width dimensions, which were both correct. Then, I drilled the F-631E splice plate to the aft channels.

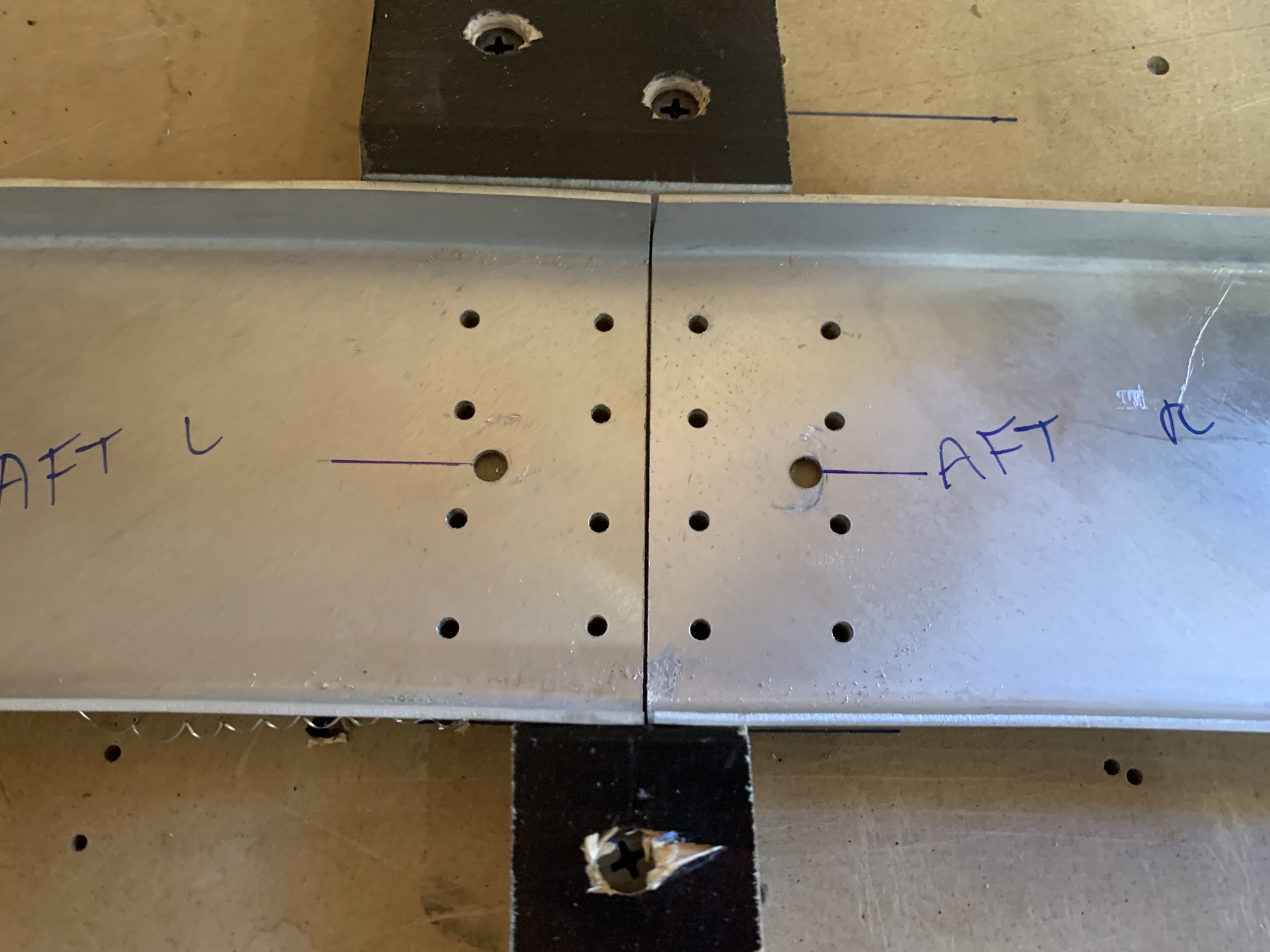

Came out nicely and avoided the tooling holes.

Then I started fitting the F-631B inner strap.

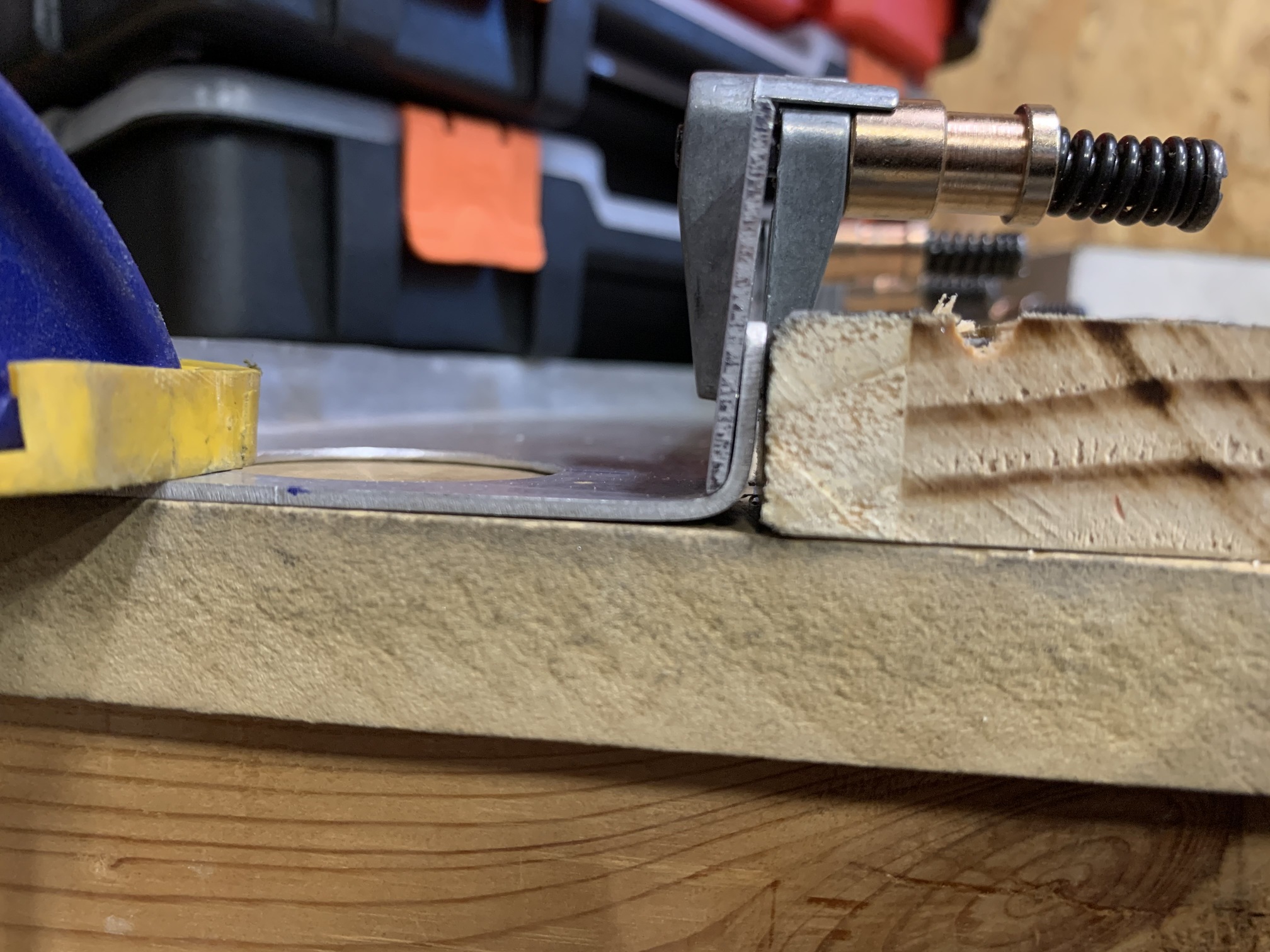

It required a lot of filing to snug it into the radius of the channel.

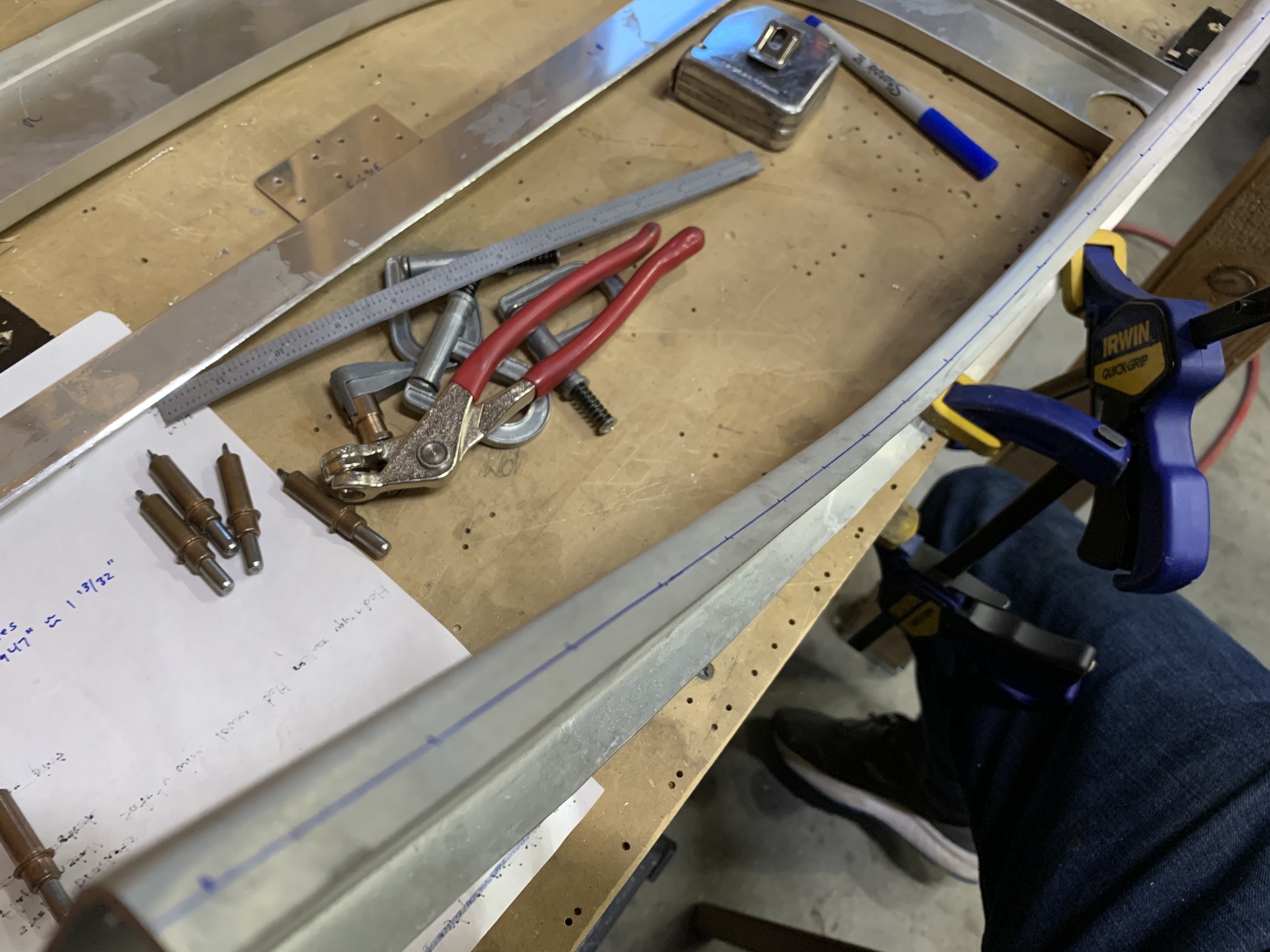

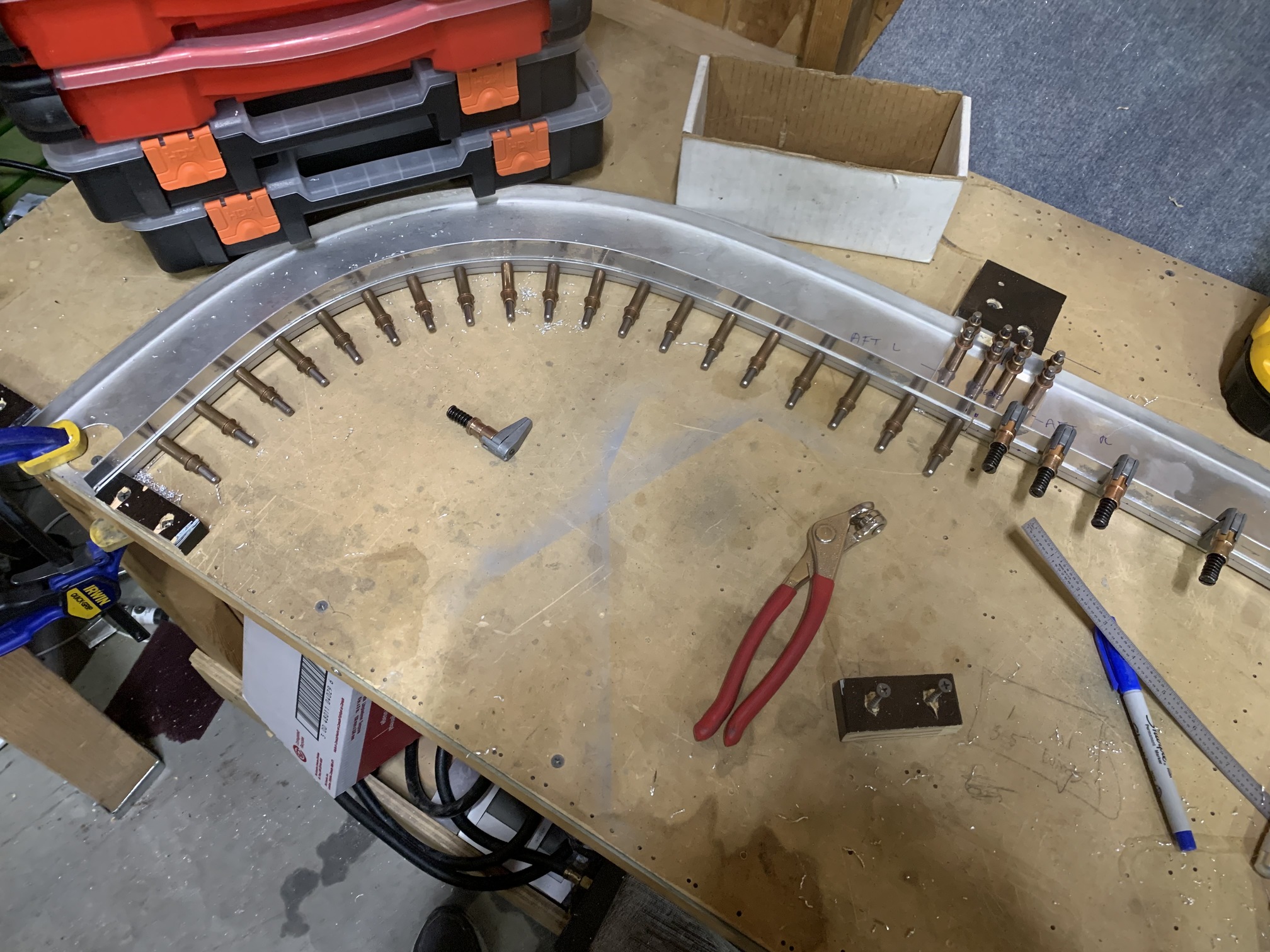

Then I painstakingly marked for holes in the inner channel flange.

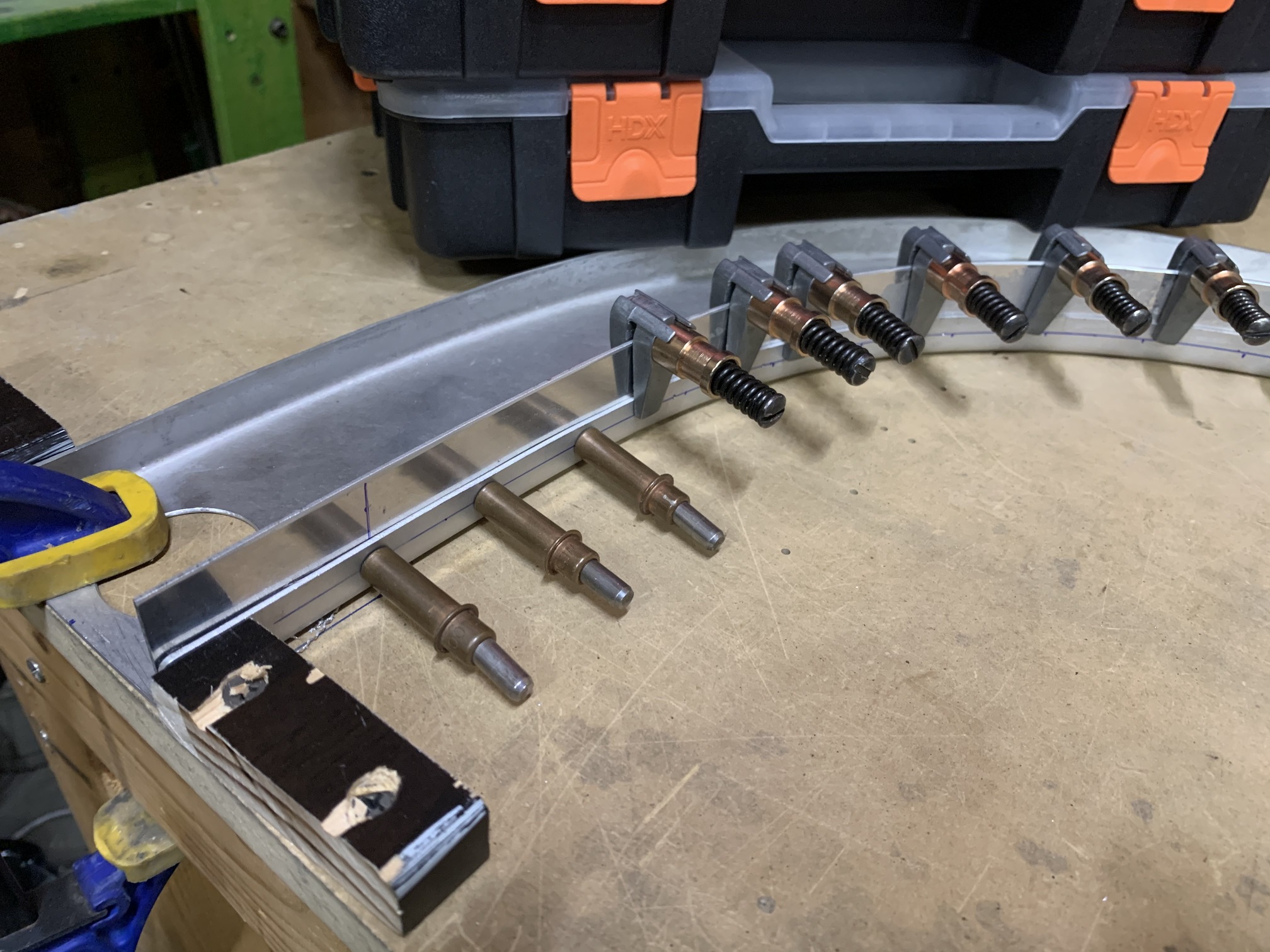

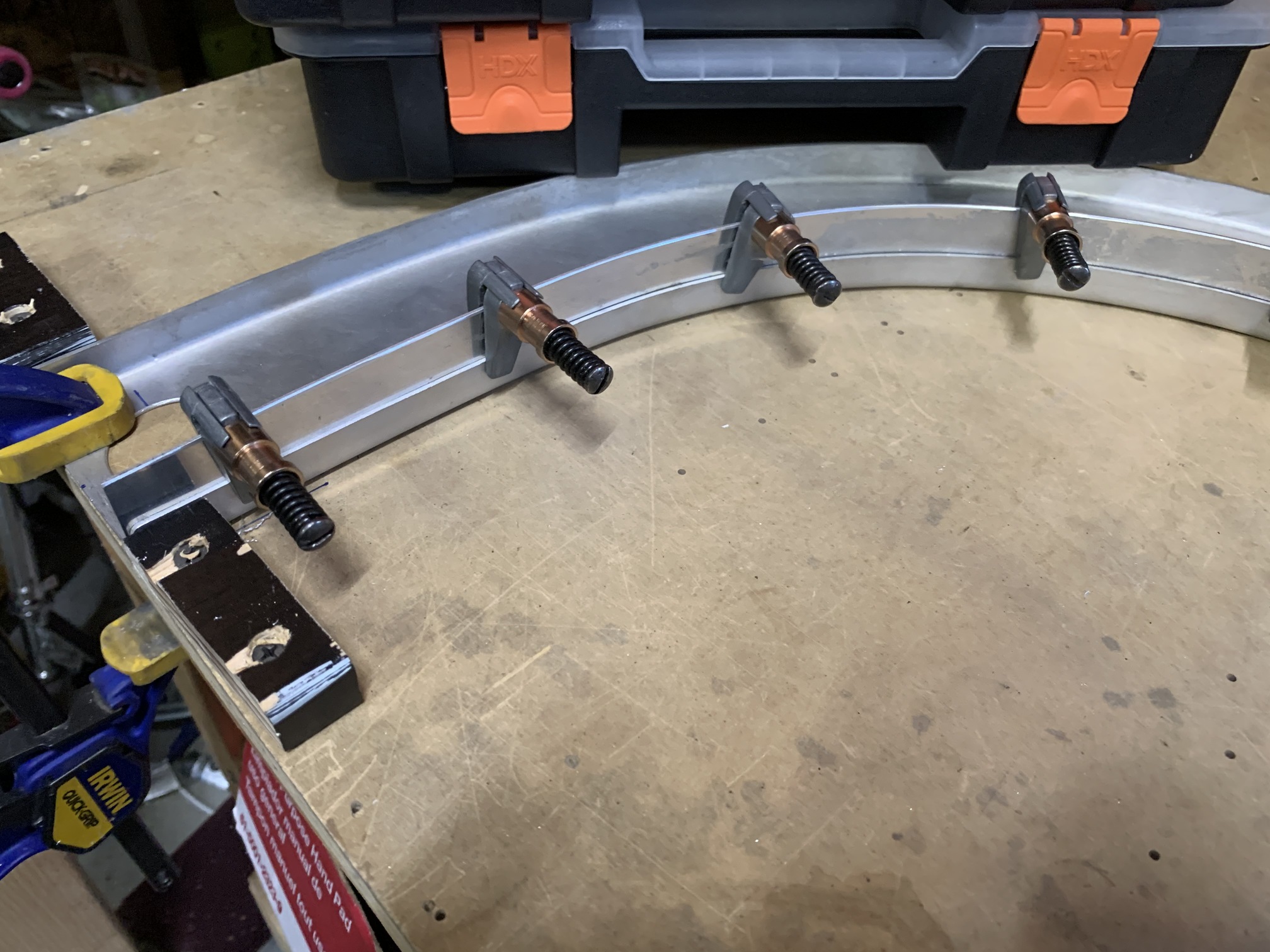

Then, I got the inner strap clamped into position.

Next, I started drilling, using a 12" 1/8" bit.

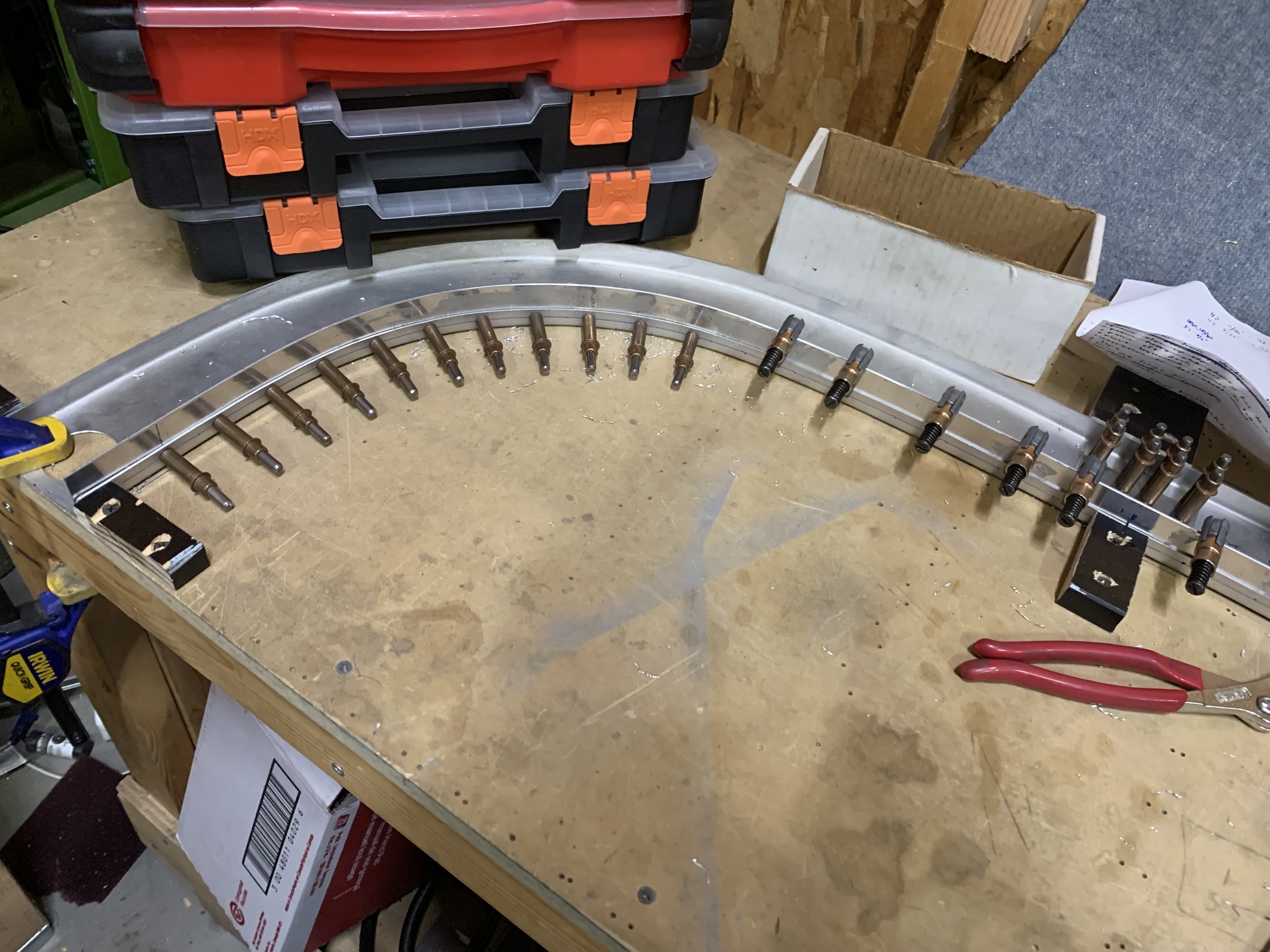

It took a while to do, slowly drilling, reclamping, measuring.

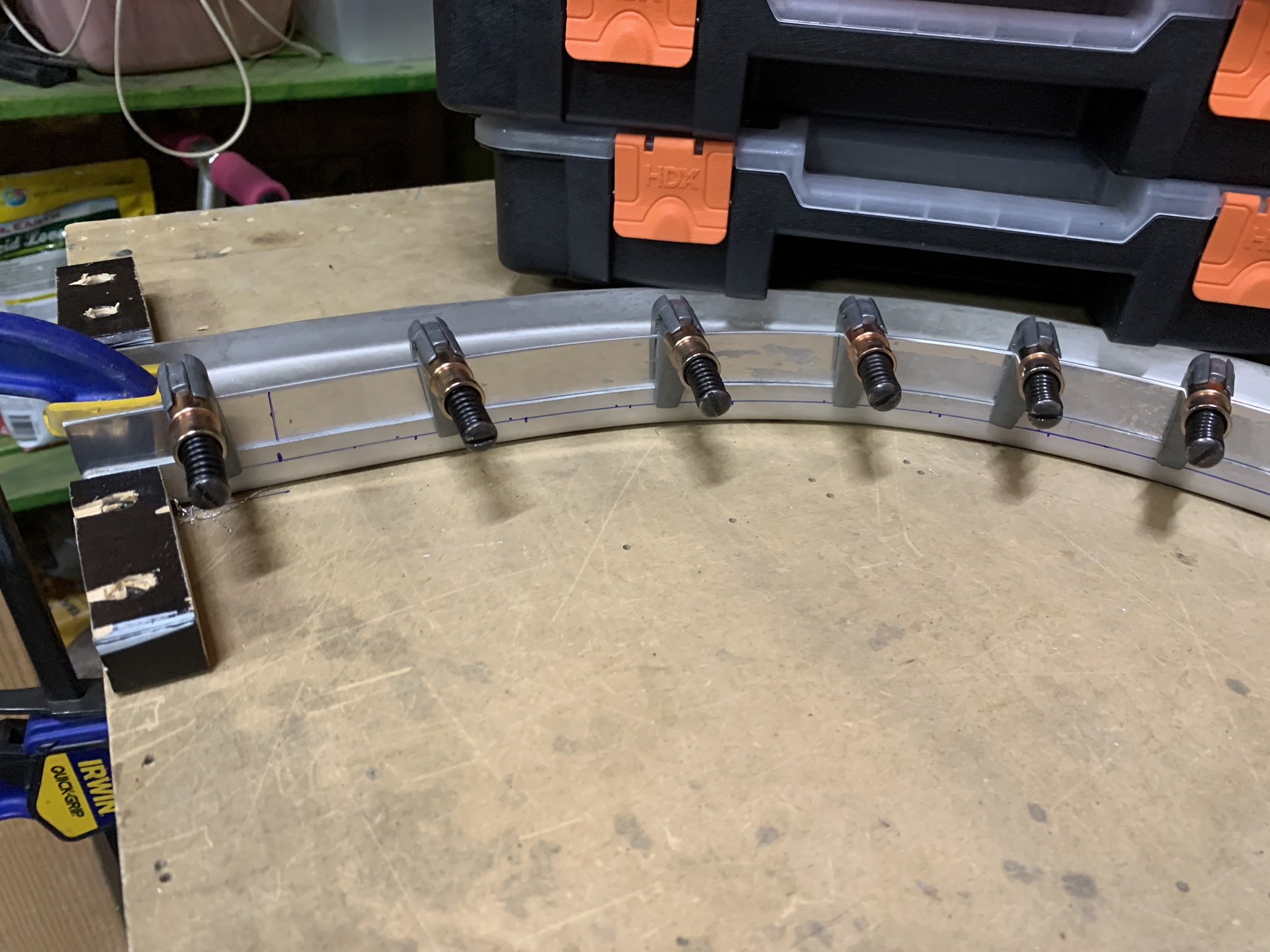

I finished half of the inner flange of the aft channels (so 1/8 of the flange drilling).

Looks good so far.
