Sunday April 18, 2021
Forward Deck Angle Fabrication, Drilling (Forward Deck)
3.8 Hours

Previous - Index - Next

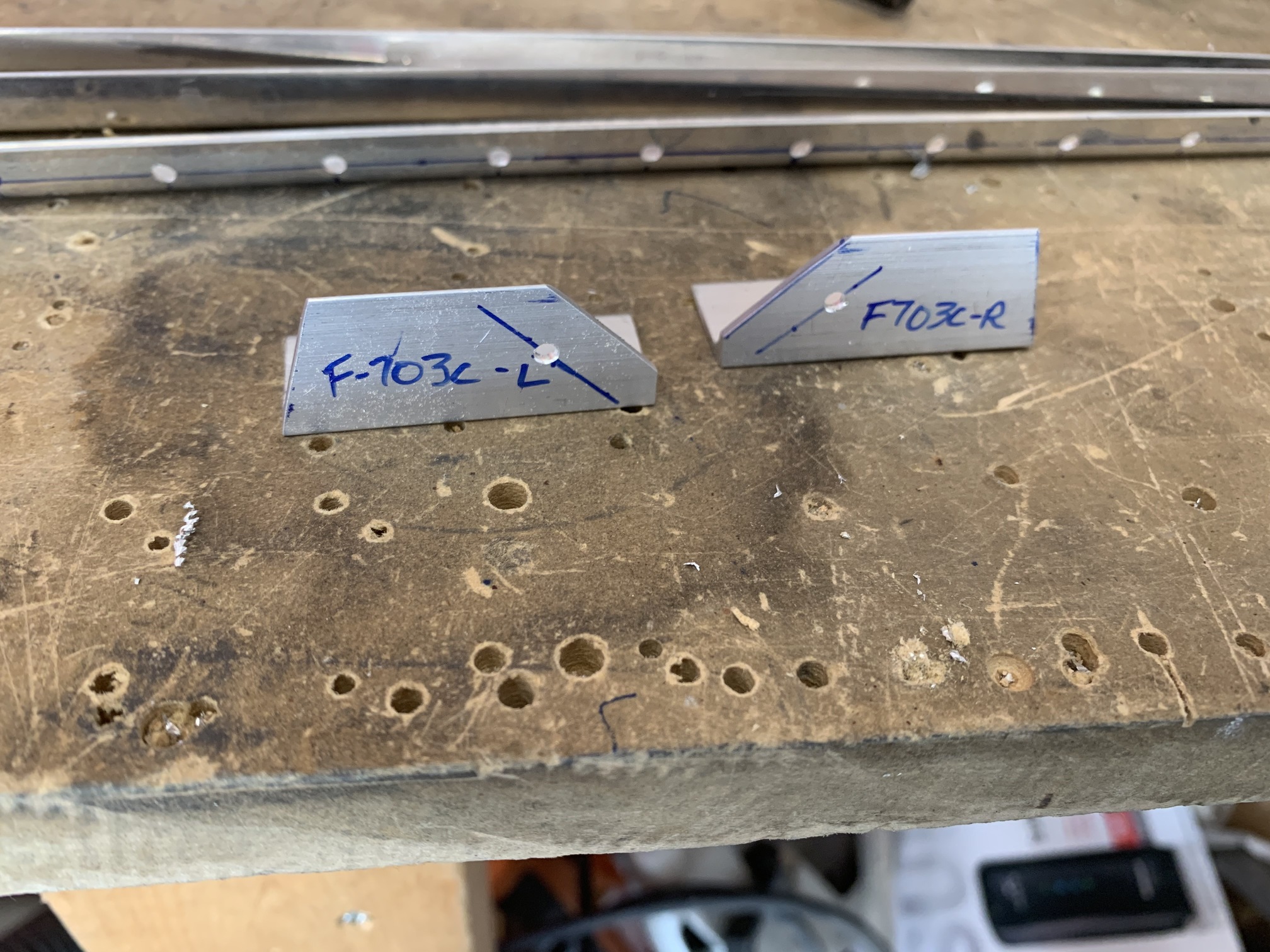

I started today by fabricating another couple of angles for the forward deck.

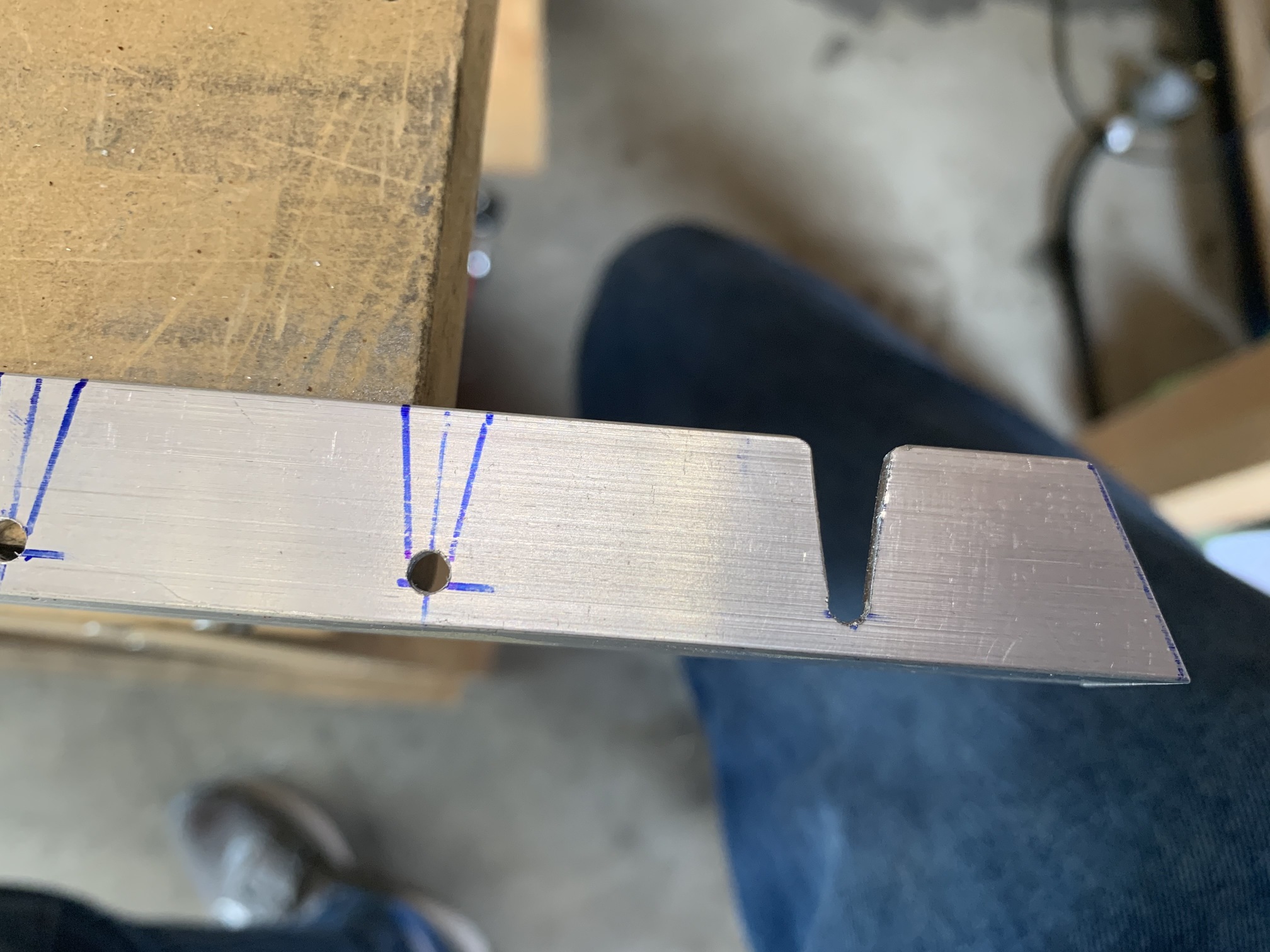

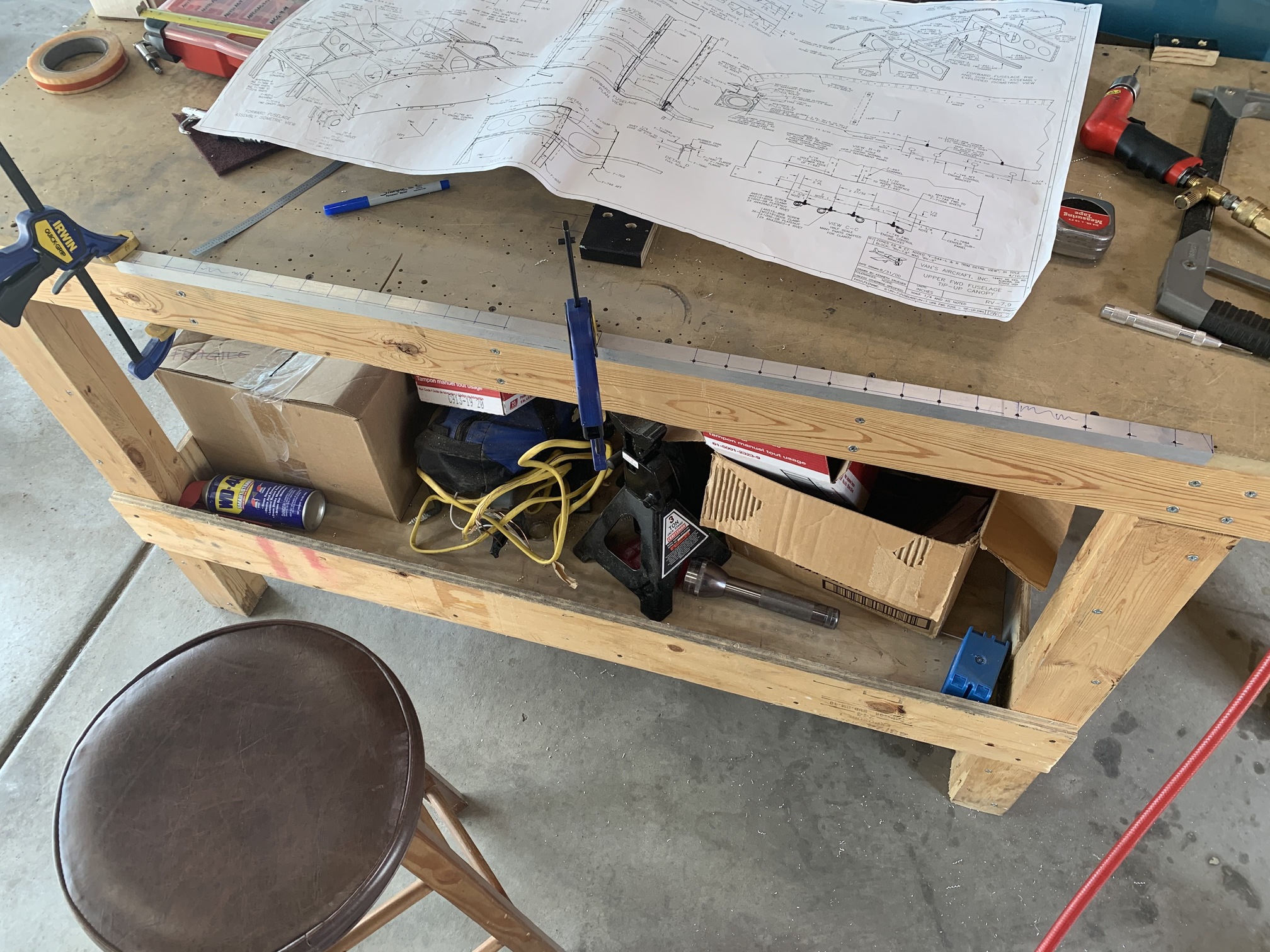

Then I got to work on the F703B angle, which serves as a stiffener for the top edge of the instrument panel. Because it's curved, it requires a whole bunch of cut outs to allow the angle to bend. I started by carefully measuring and marking. Then, I drilled 1/8" holes to serve as the apex of each cut-out.

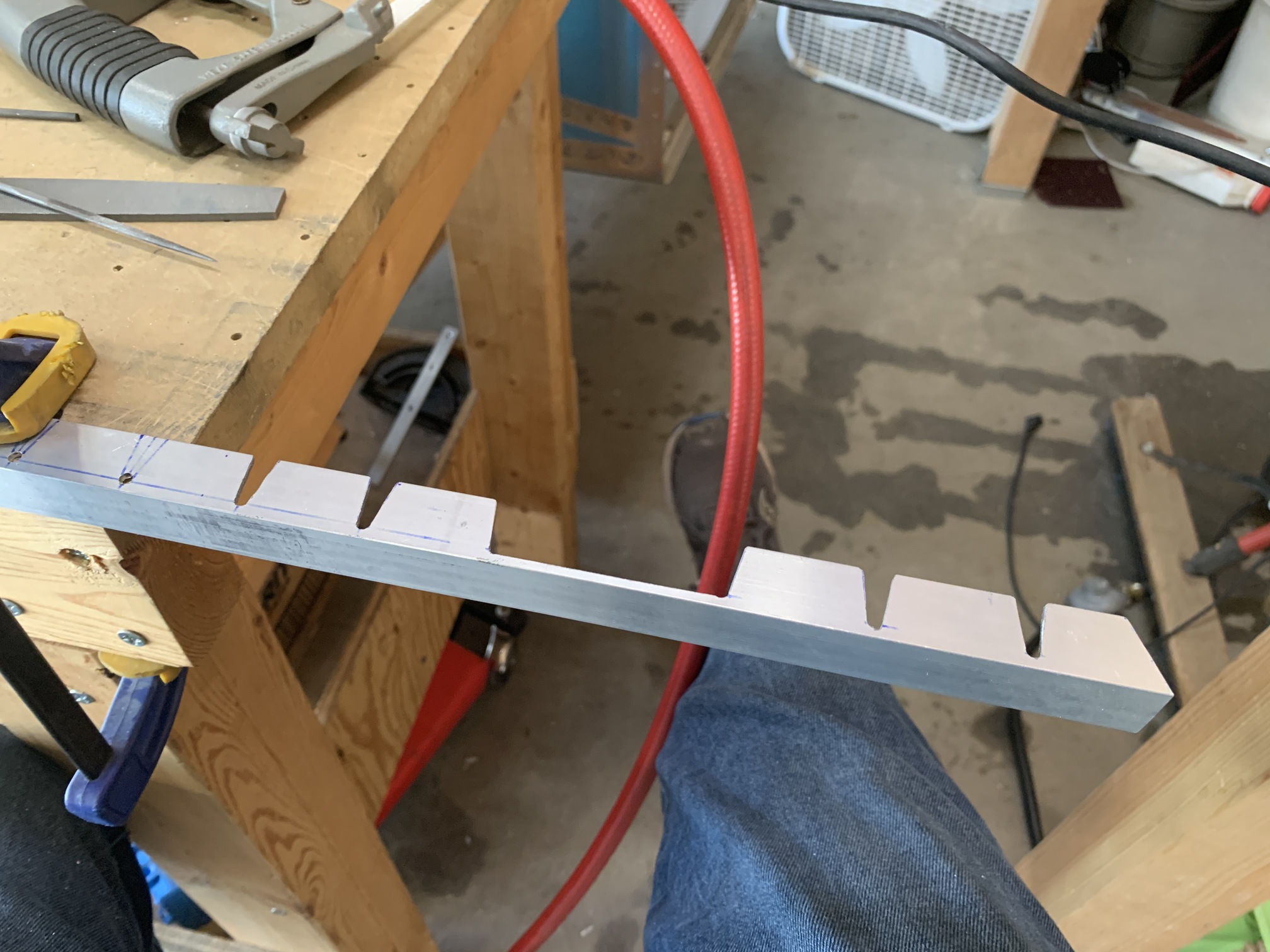

Next, I started cutting out the little angled sections per the plan. This took careful work with a die grinder and a cutoff wheel.

There's a longer section on either side that is cut out completely.

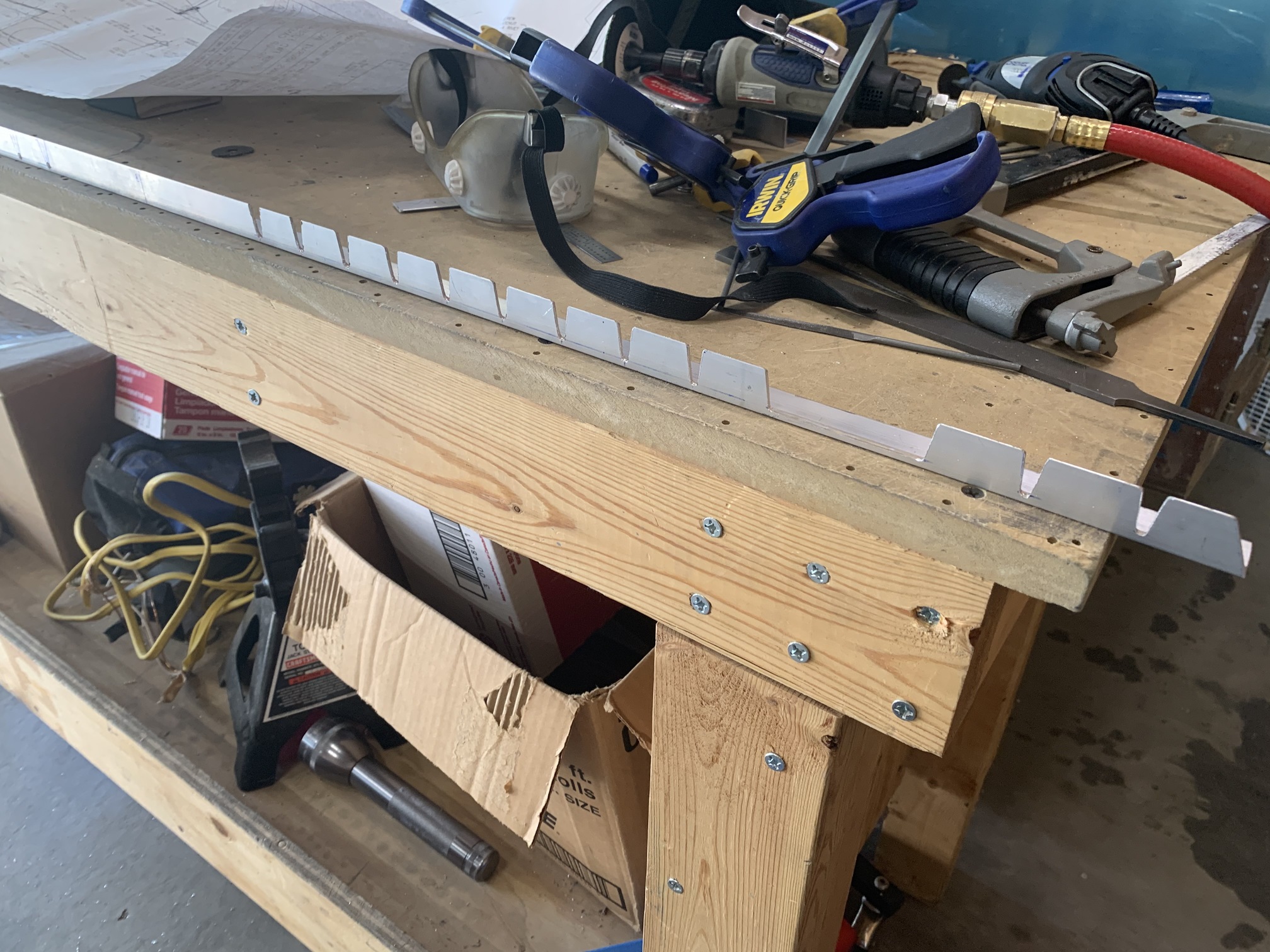

Here's the right side completed.

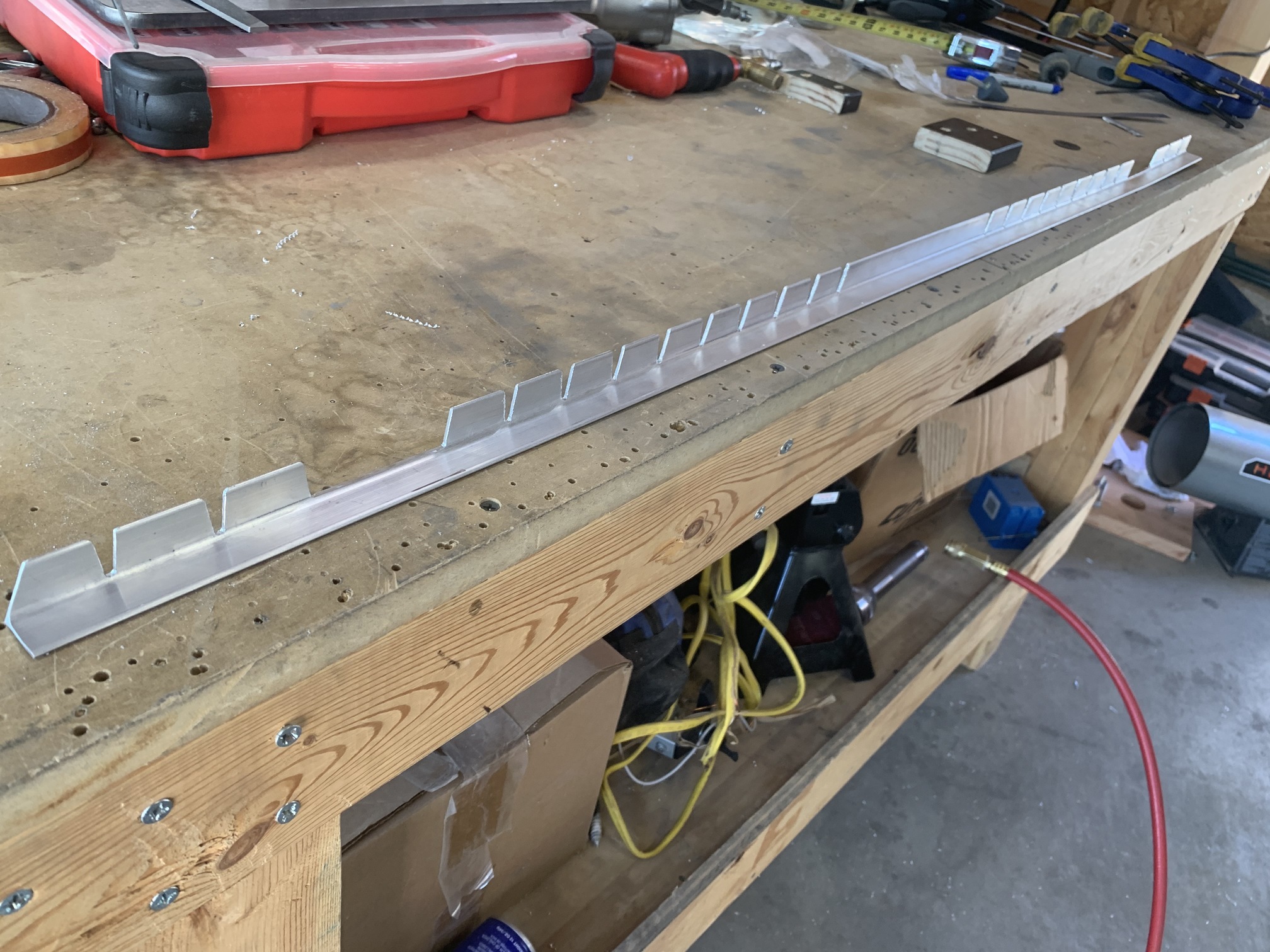

And the left side.

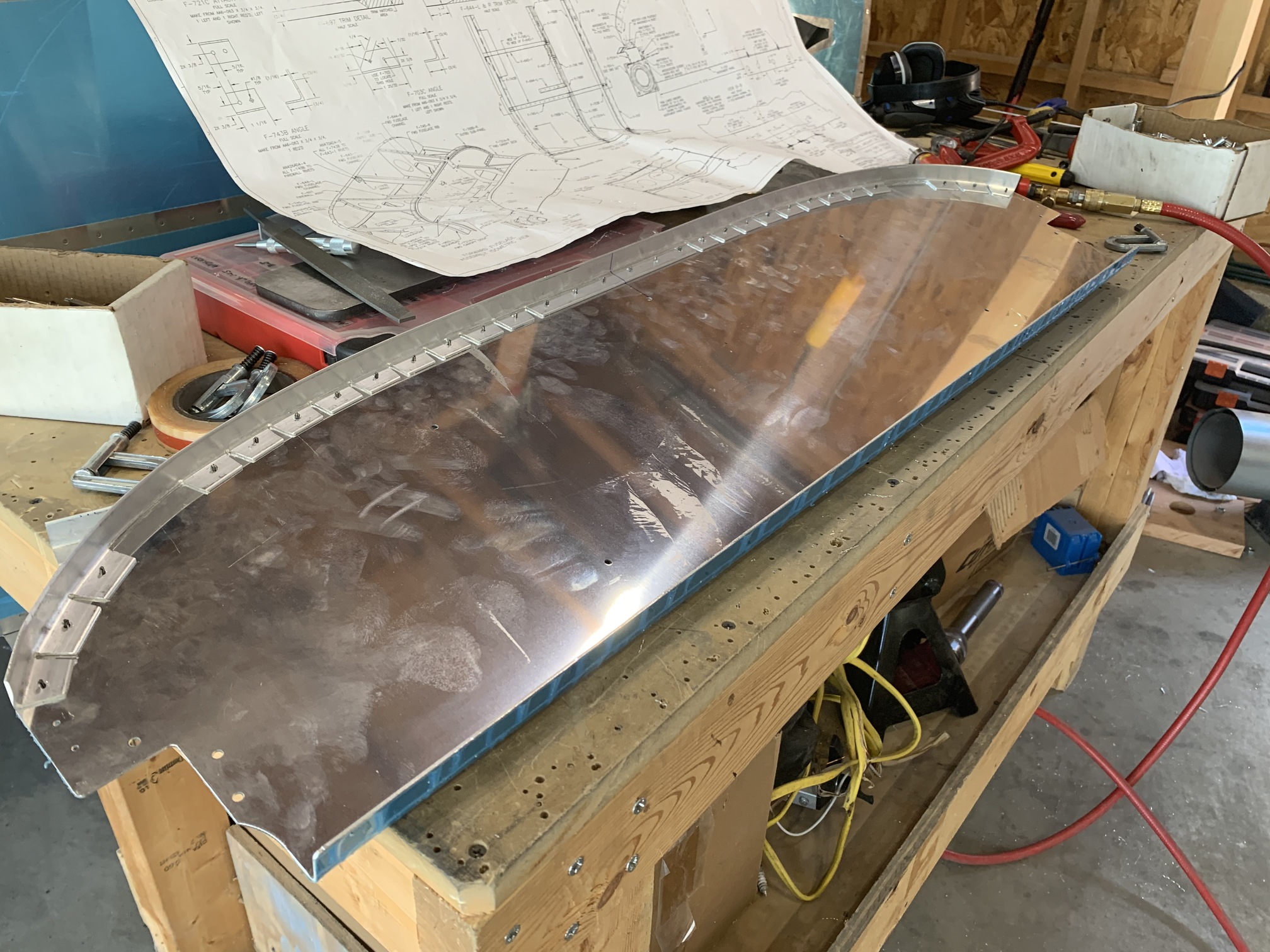

Next, I drilled the angle to the back side of the instrument panel. This took a while, moving the clamp after every hole, to ensure the angle conformed to the angle of the instrument panel. It came out nicely.

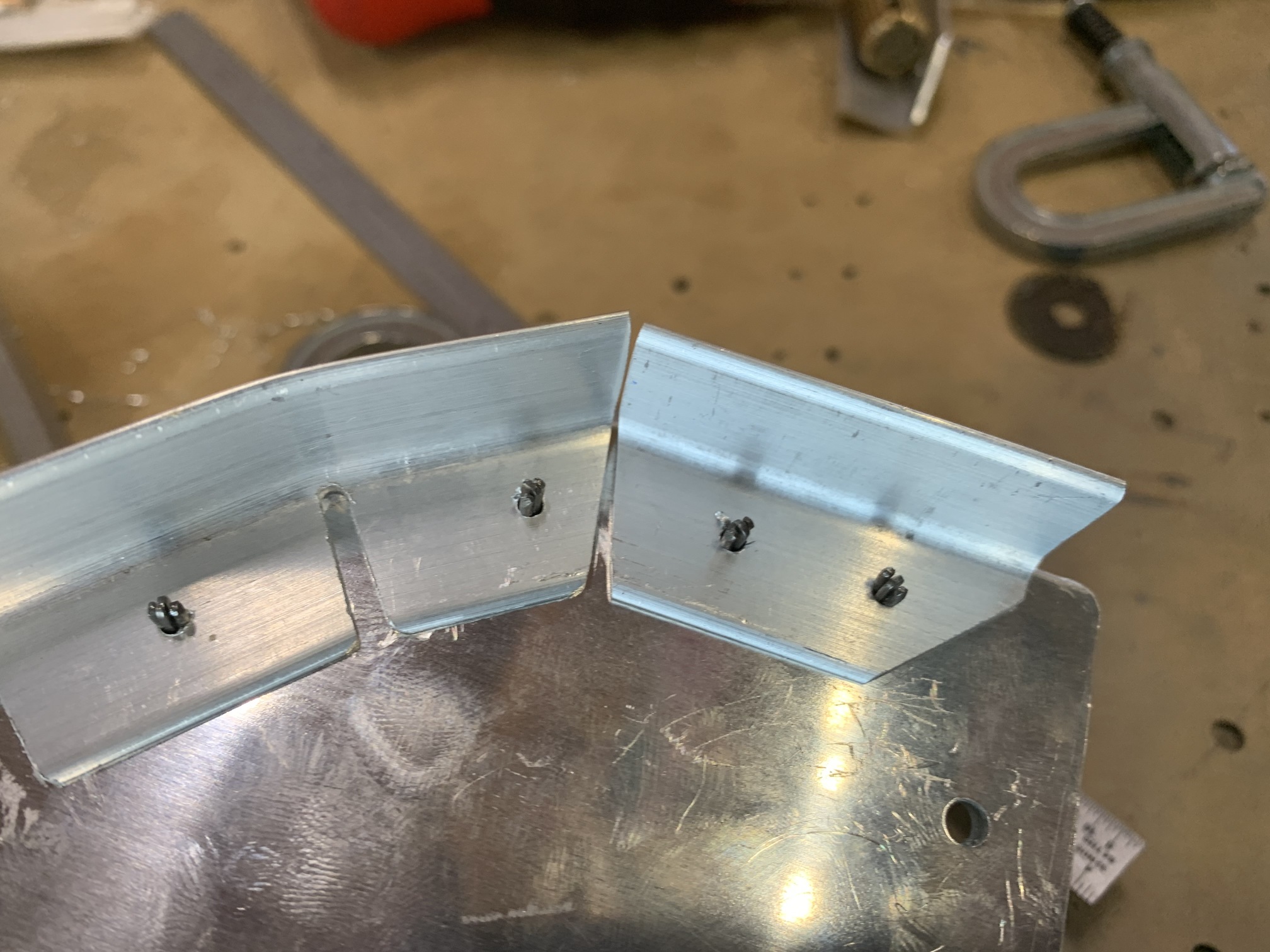

Finally, I fit the F703C-L angle that I fabricated at the beginning of the session. I need to trim a little material from F703B right here.

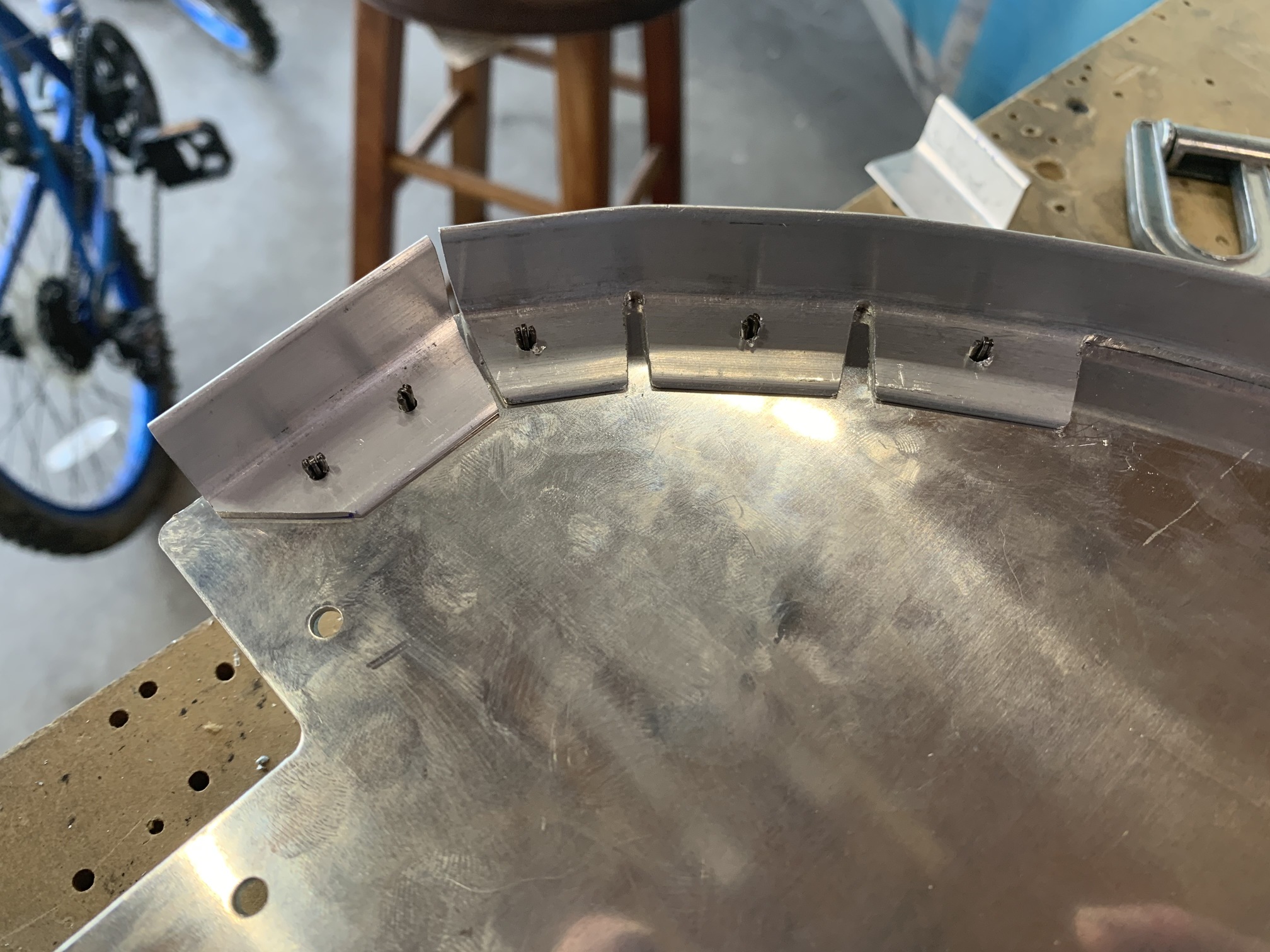

And the F703C-R.
