Saturday October 9, 2021
Left Wingtip Rib, Nutplates (Wing Tips)
1.8 Hours

Previous - Index - Next

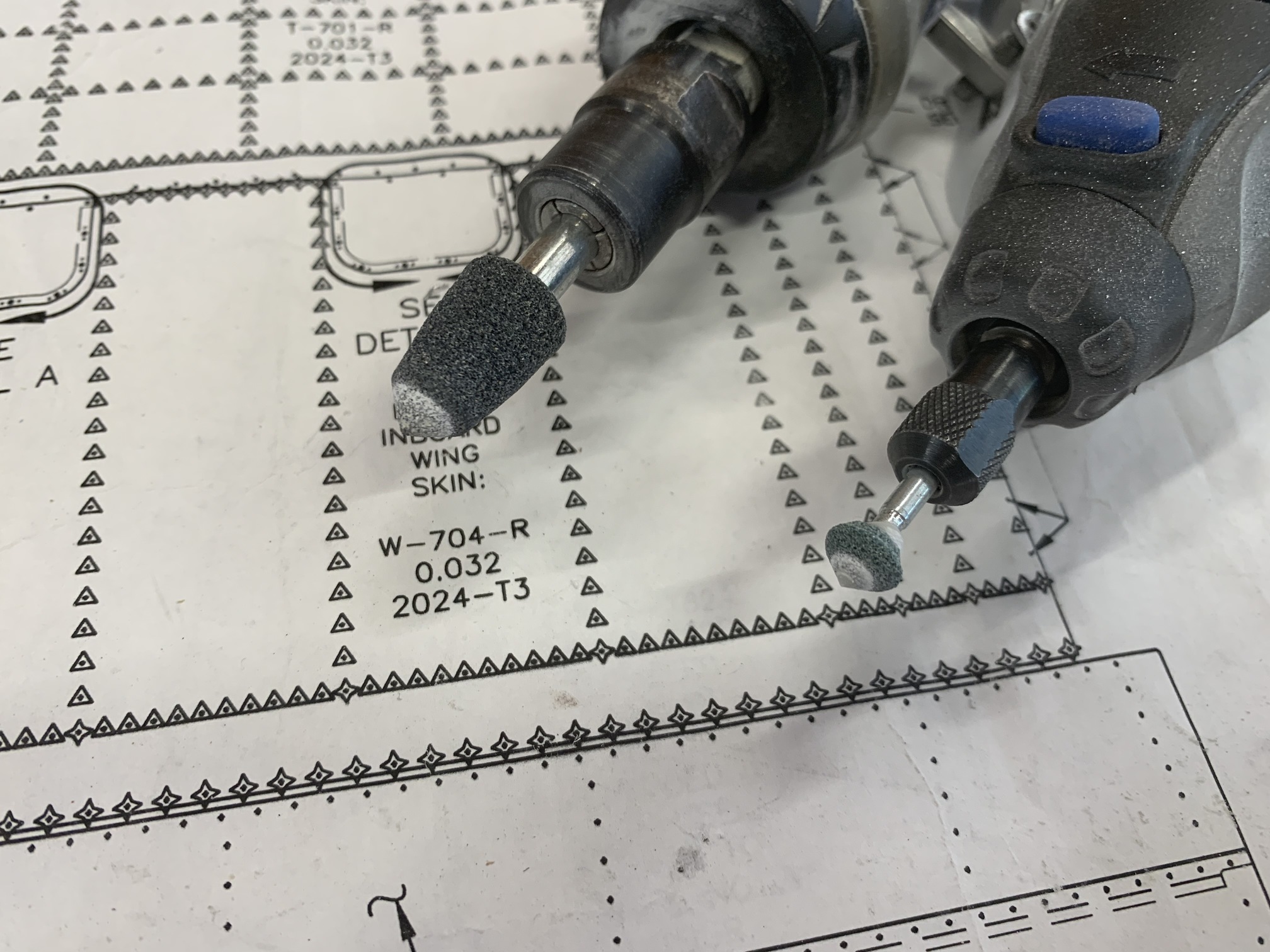

I shaped a couple of rock grinding bits for the shape of a countersink hole, so I don't have to dull up my countersink bits on the fiberglass.

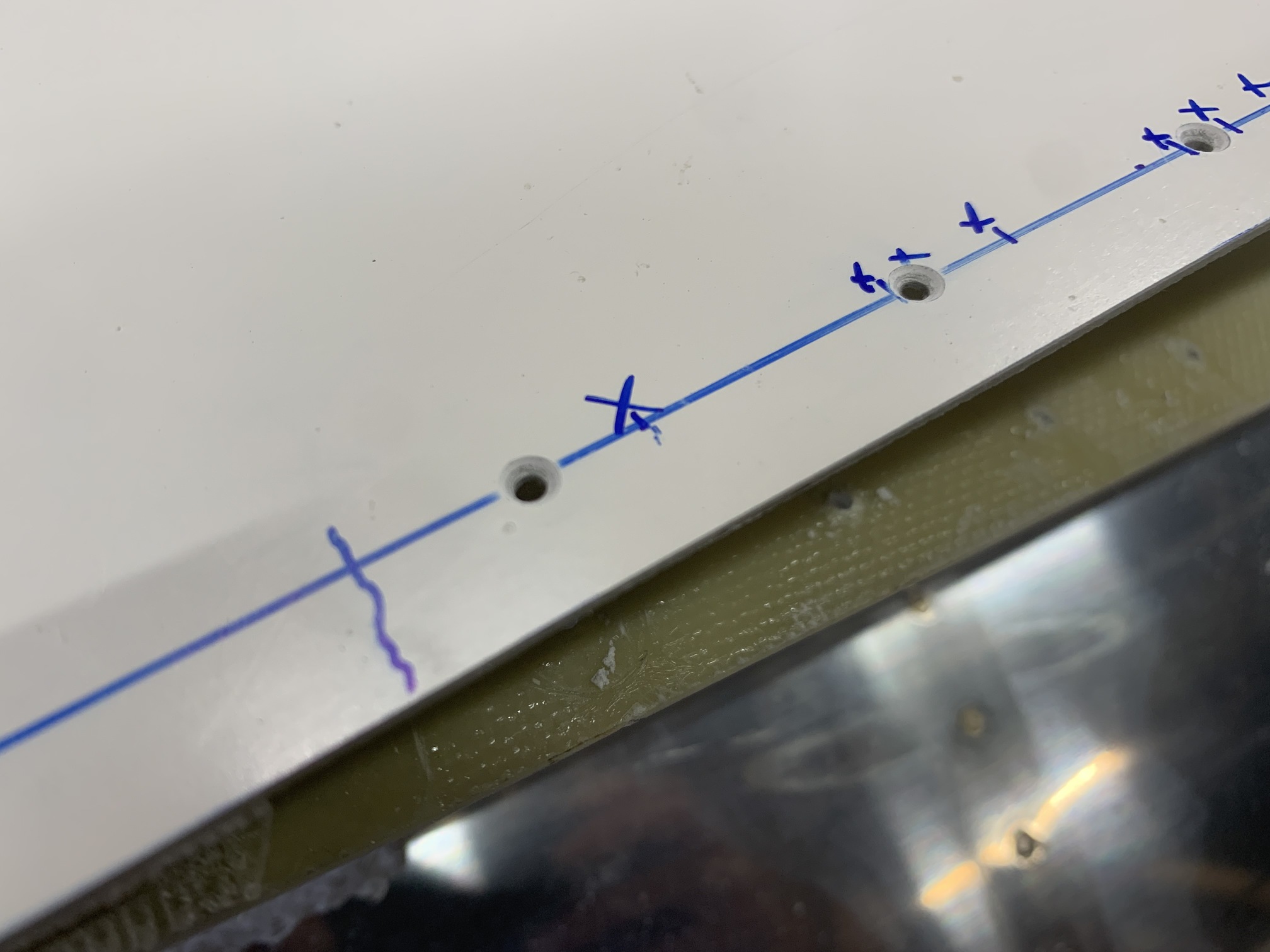

I countersunk the holes for the rib rivets.

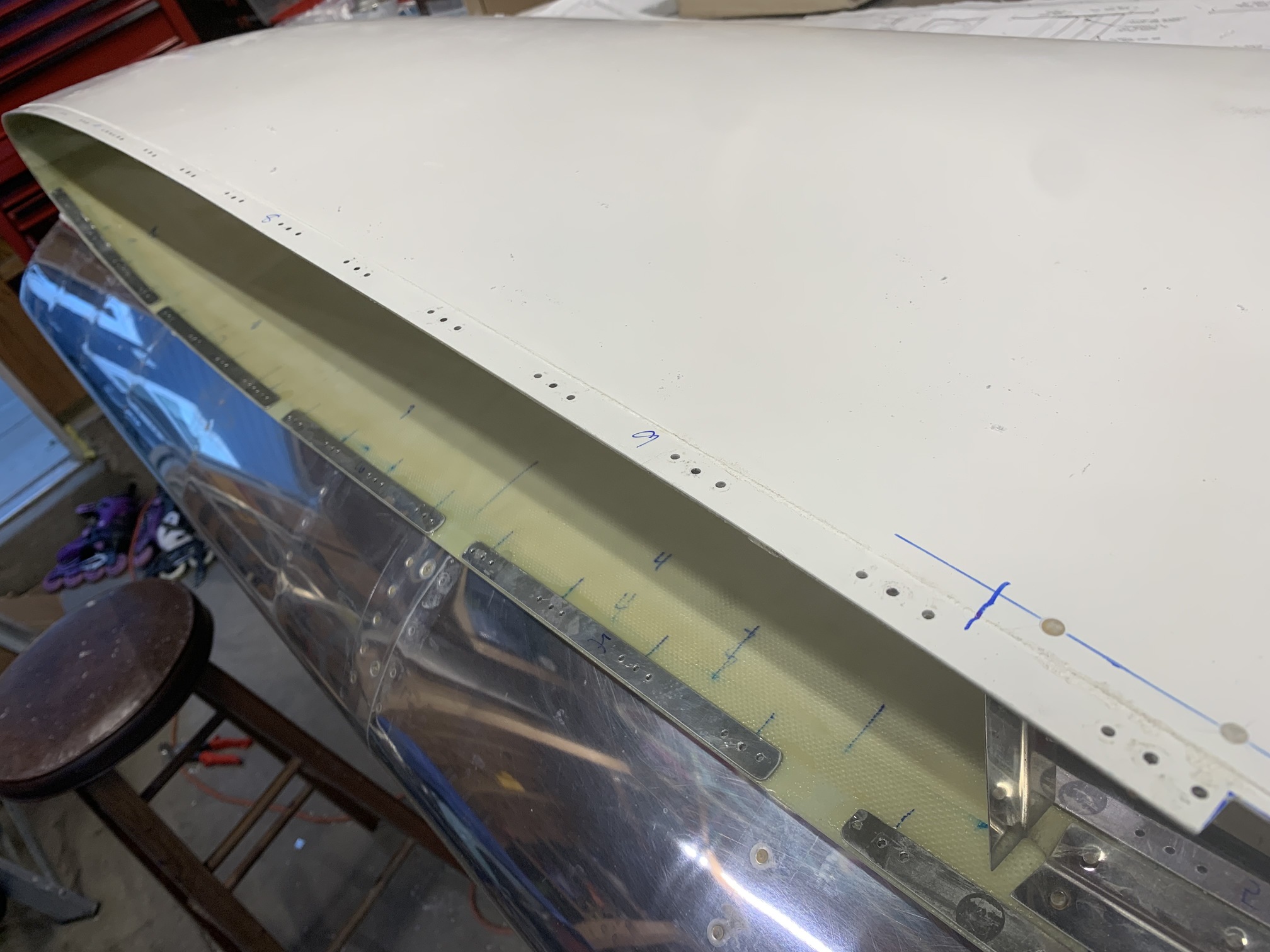

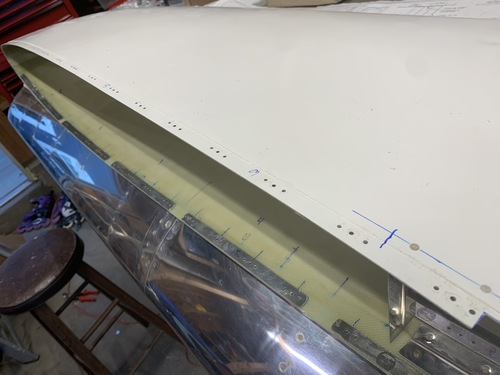

Then I riveted the rib in place. This caused some small cracks in the gel coat. Will have to fix later.

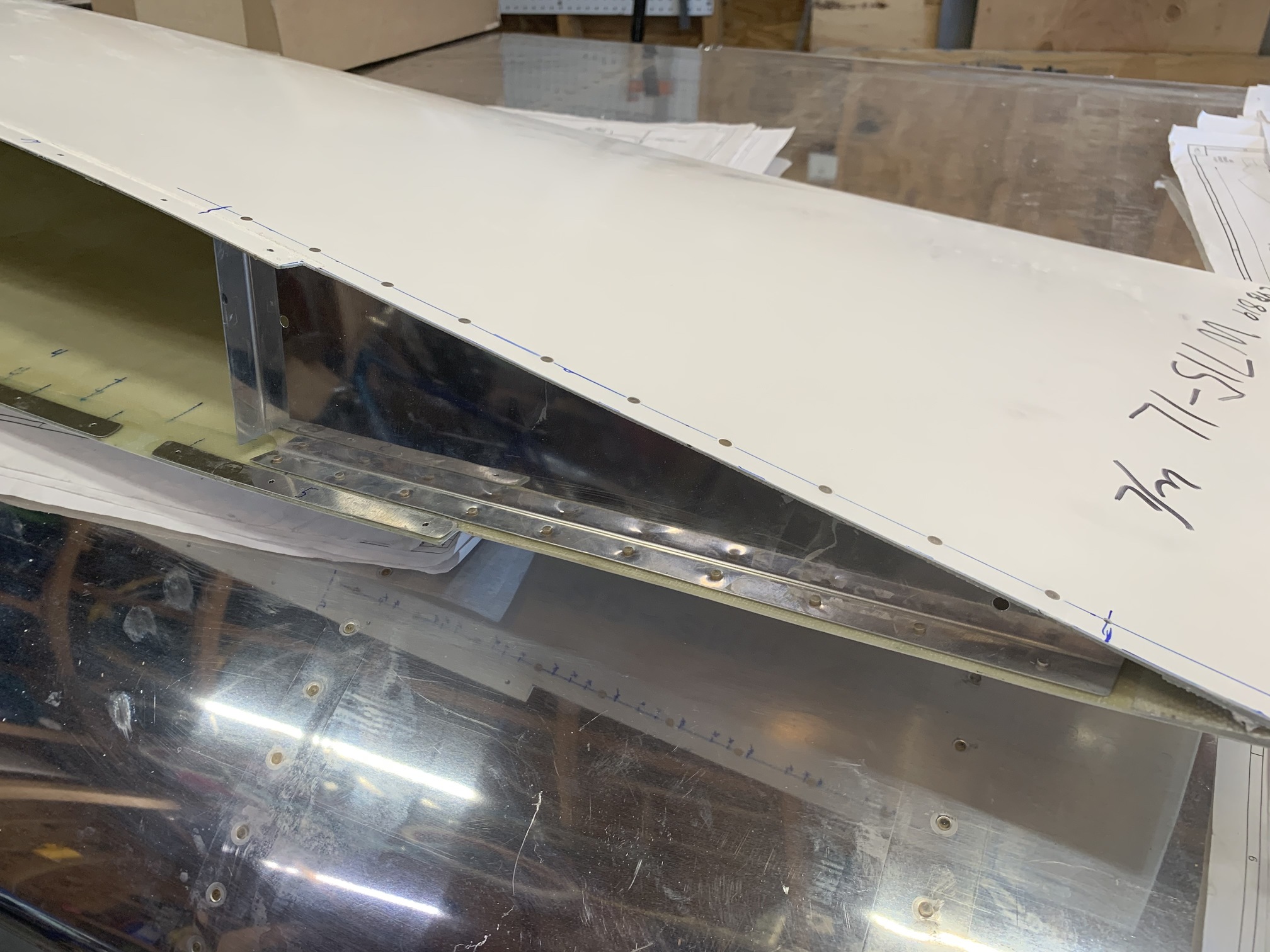

Then, I drilled all of the nutplate attach holes.
