Tuesday October 12, 2021
ELT Tray Installation (Aft Fuselage)
1.5 Hours

Previous - Index - Next

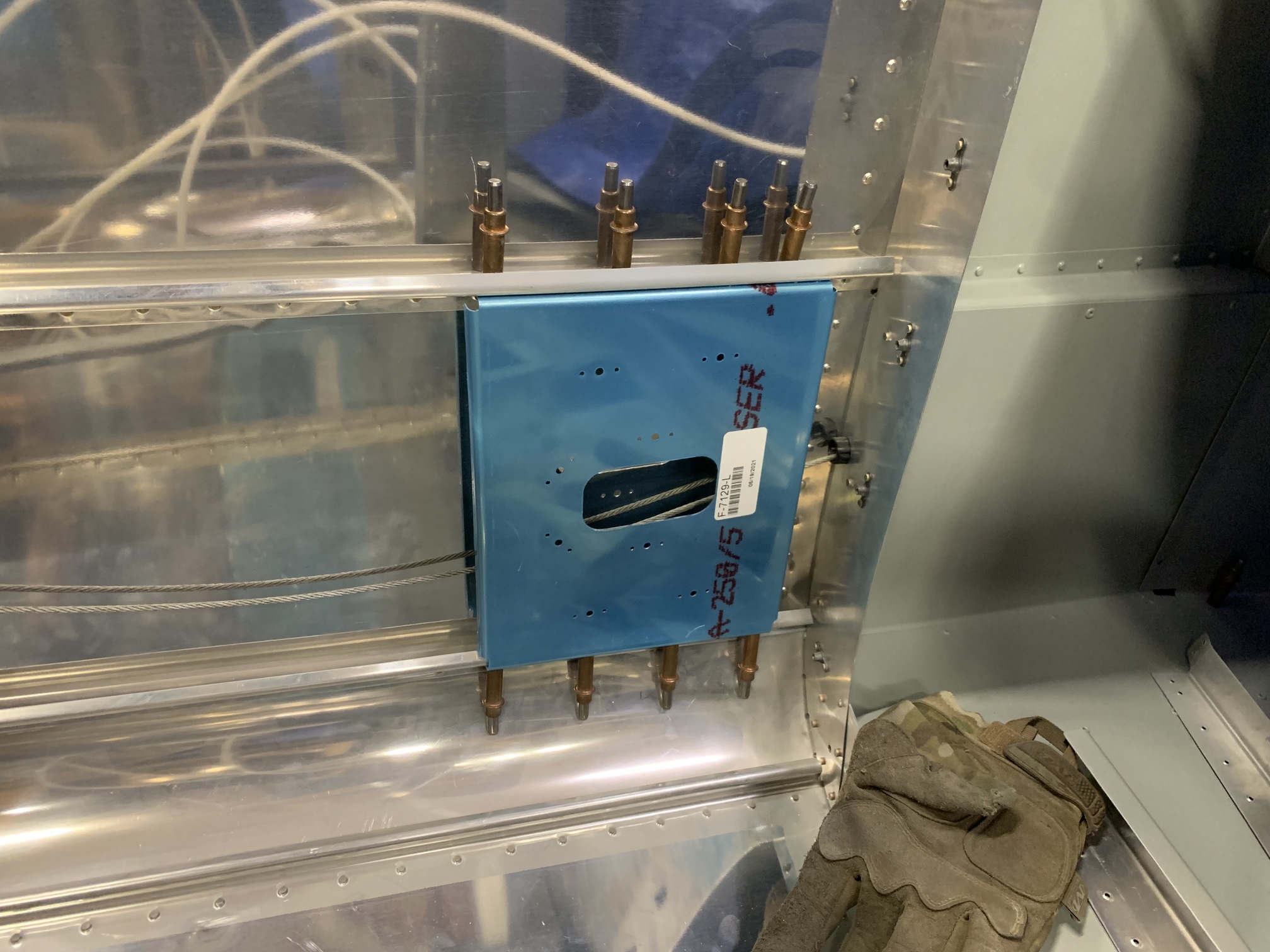

I bought the optional ELT tray kit from Van's for mounting the ELT later on. I drilled it to the stringers on the left side of the fuselage just aft of the baggage compartment. These are a little bit awkward to get to with everything riveted together.

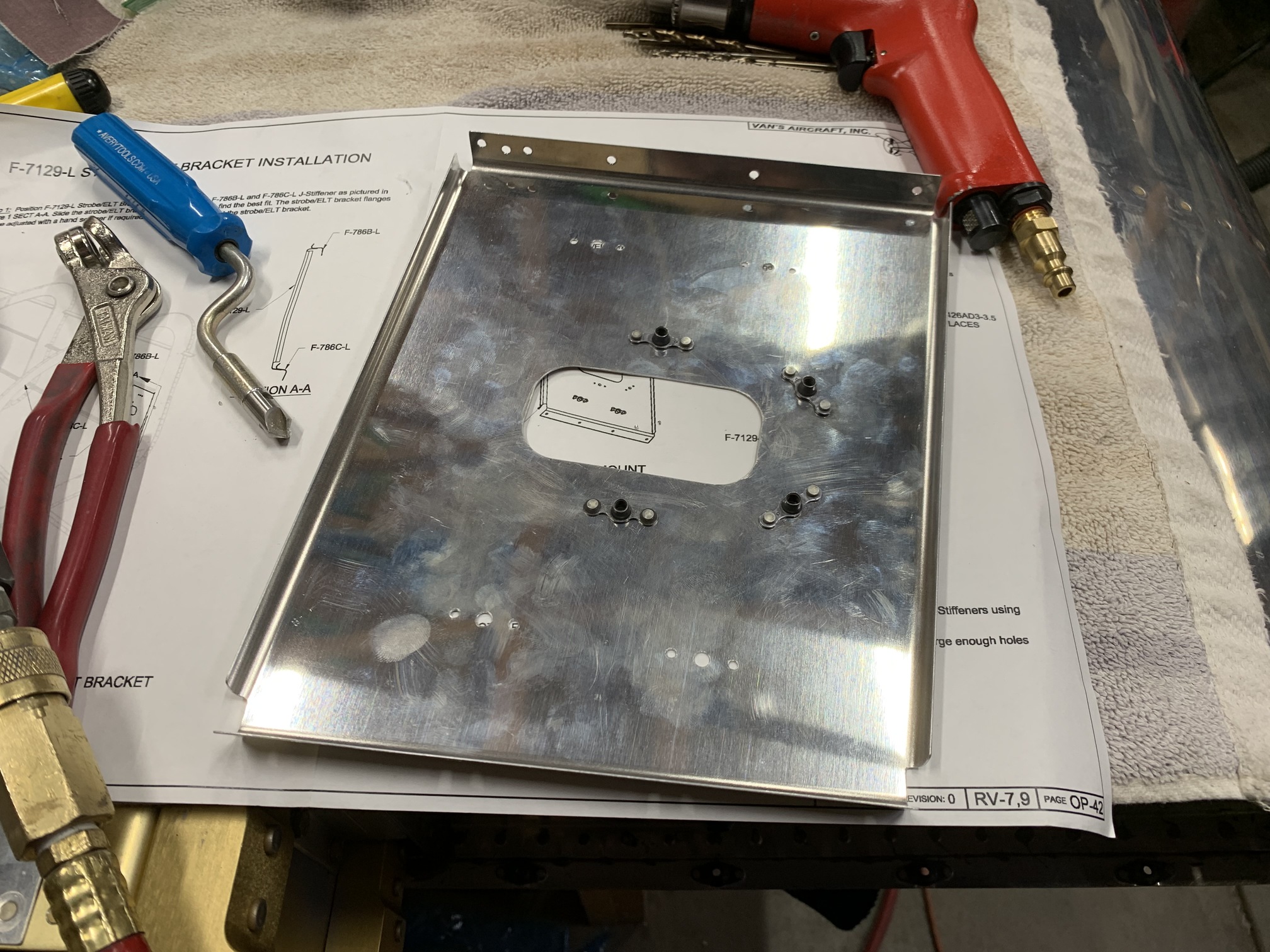

Then I deburred and installed the nutplates.

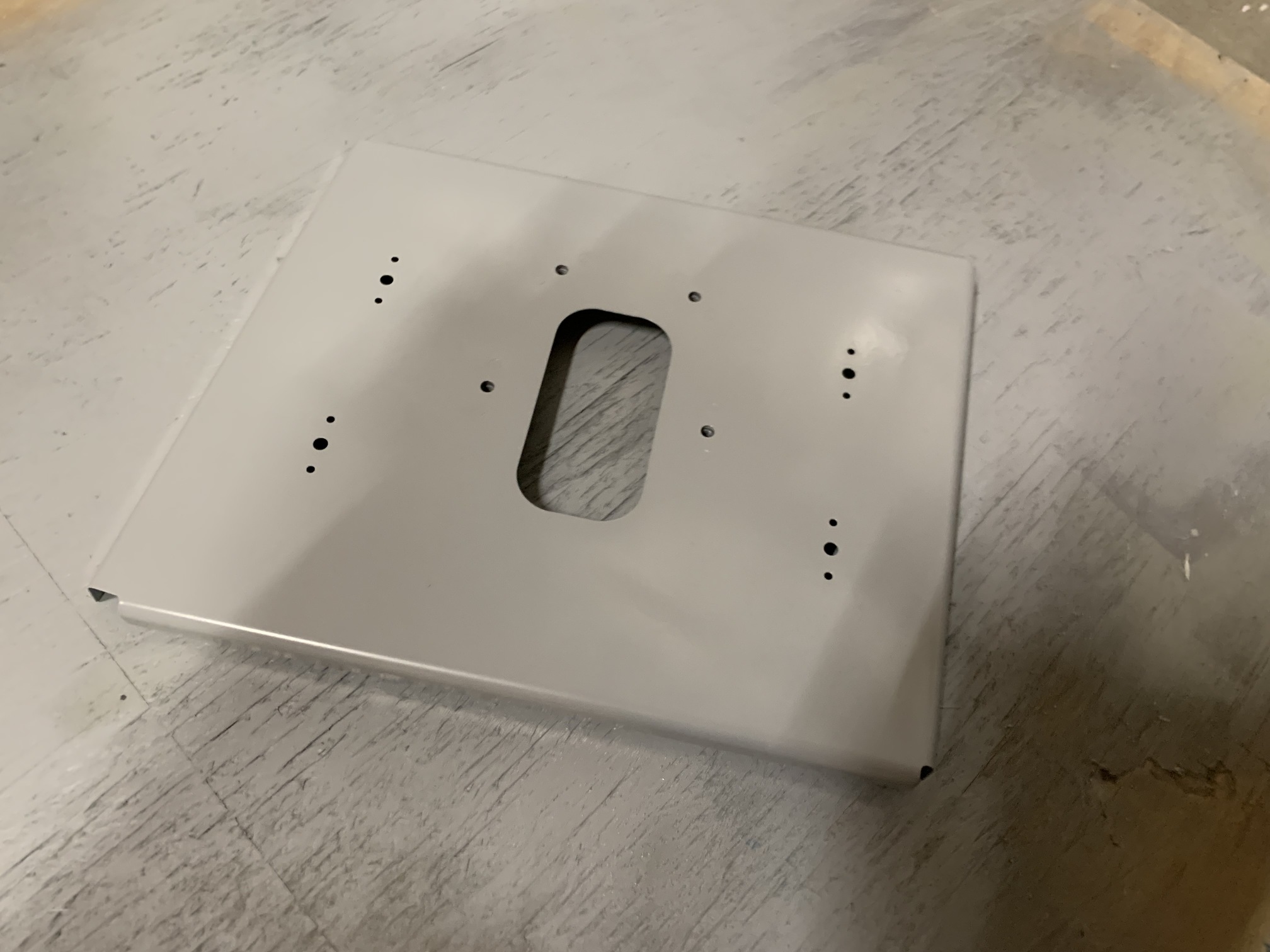

I prepped and primed.

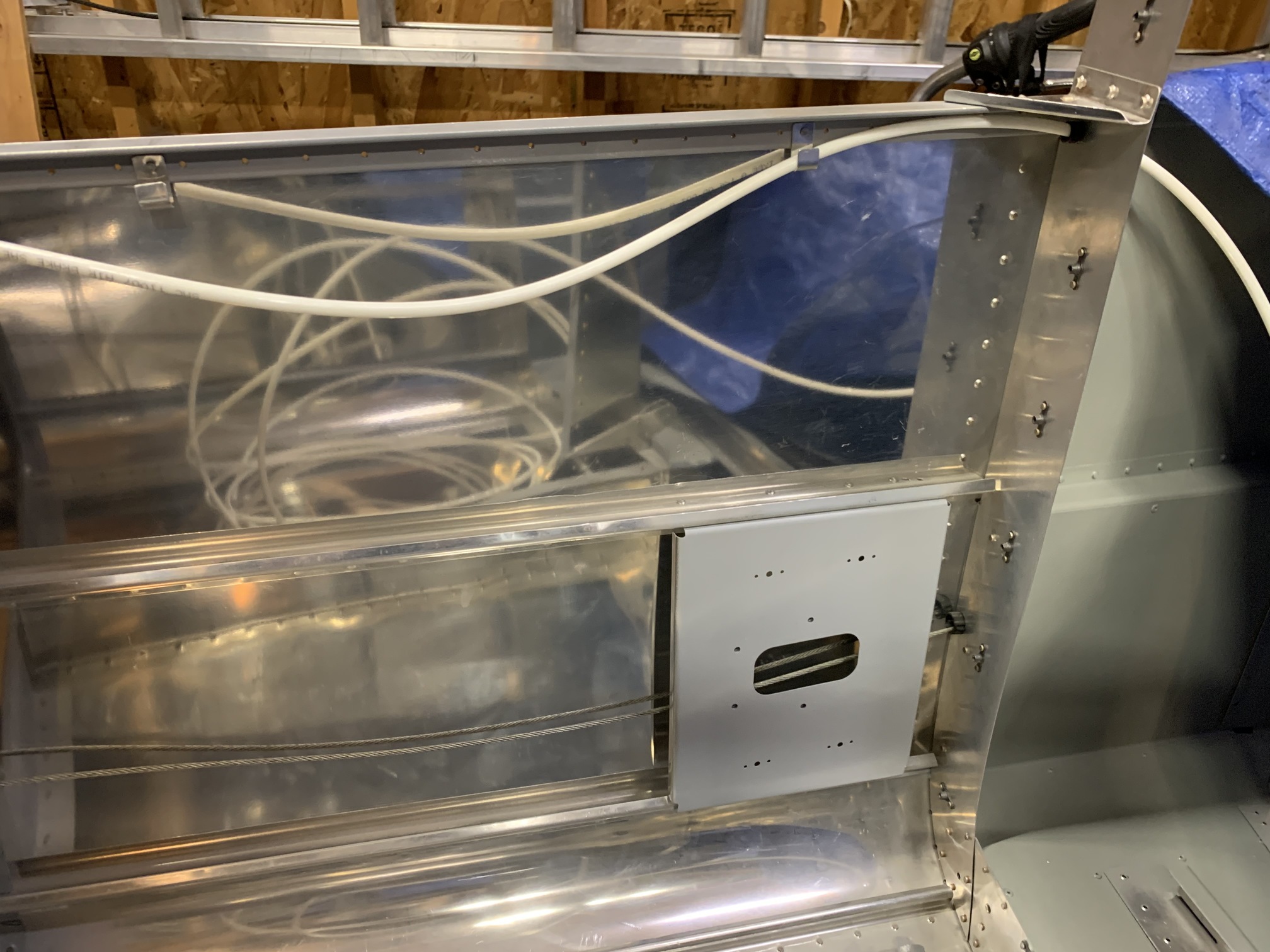

Then I riveted it in place with the supplied blind rivets. These are very difficult to set given the space constraints, but it came out just fine.

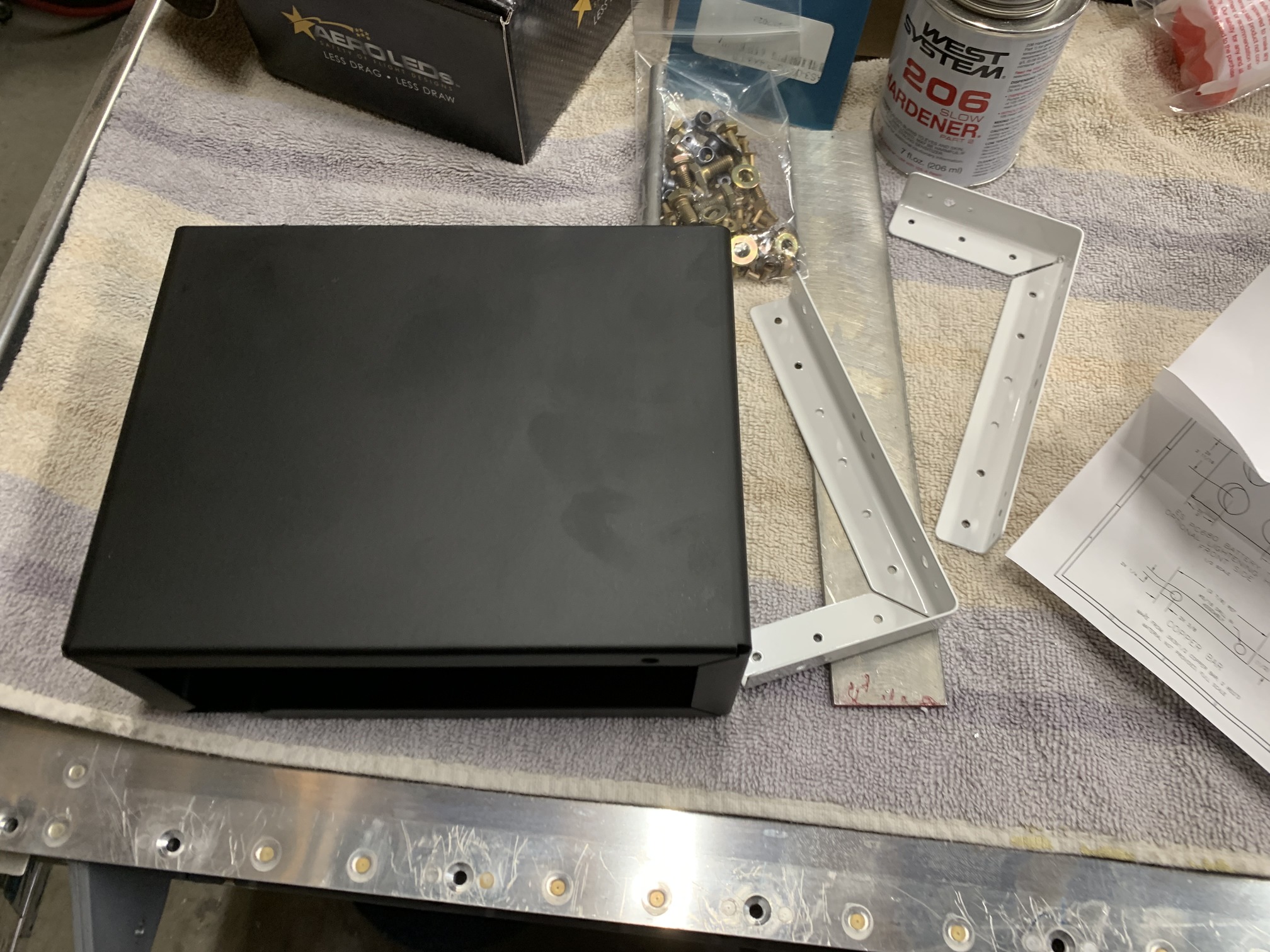

Finally, I unpacked the battery box and started to look at the instructions for installation. This usually comes with the firewall forward kit, but I got it early for something to work on while I wait on the finish kit.
