Sunday October 17, 2021
Boost Pump Kit (Center Fuselage)
2.5 Hours

Previous - Index - Next

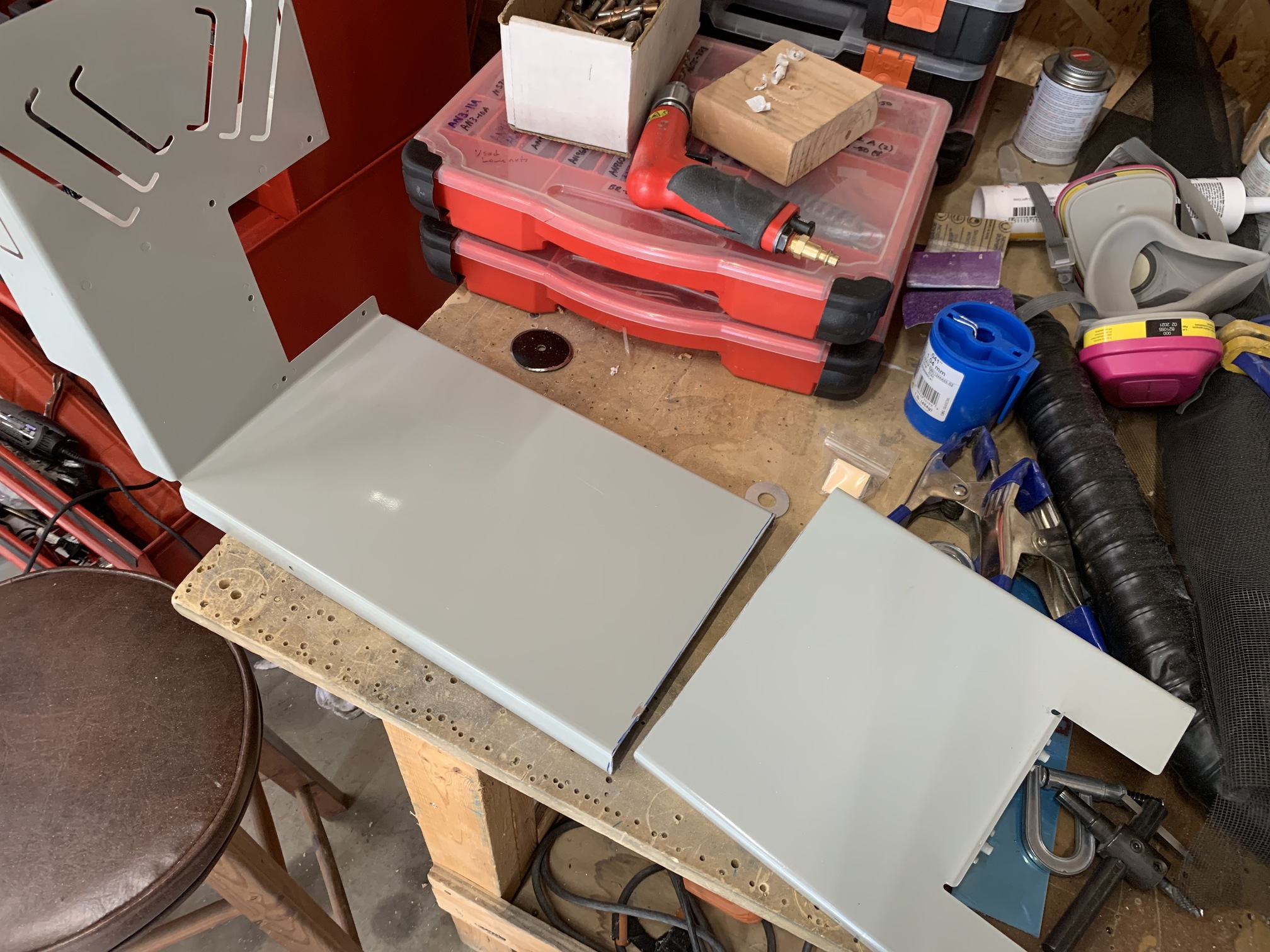

Today, I started working on the boost pump installation. The first step is to trim F-782C tunnel cover, so I measured and did that.

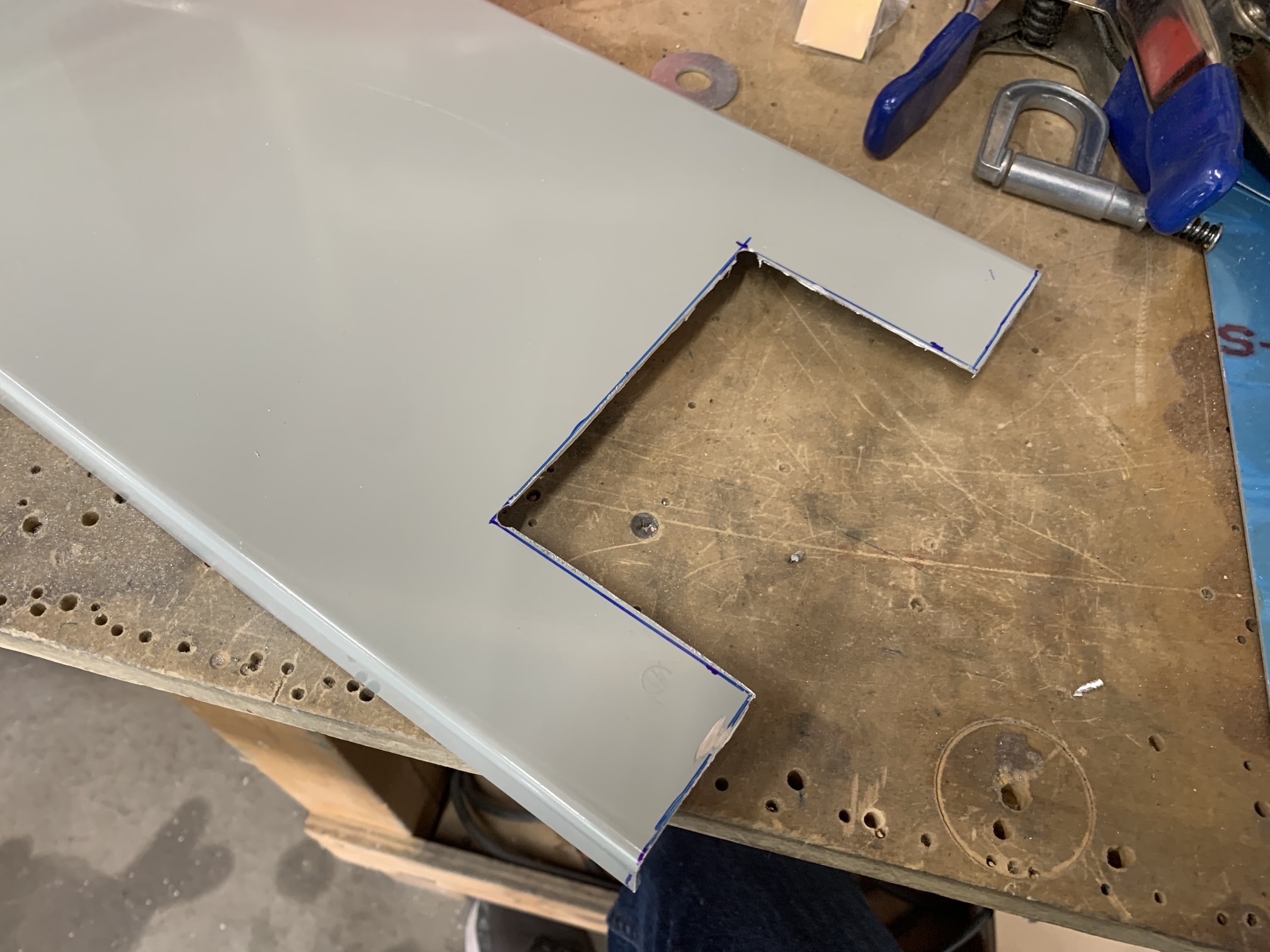

Then I cut out the specified area in the tunnel cover (to make space for tubing later).

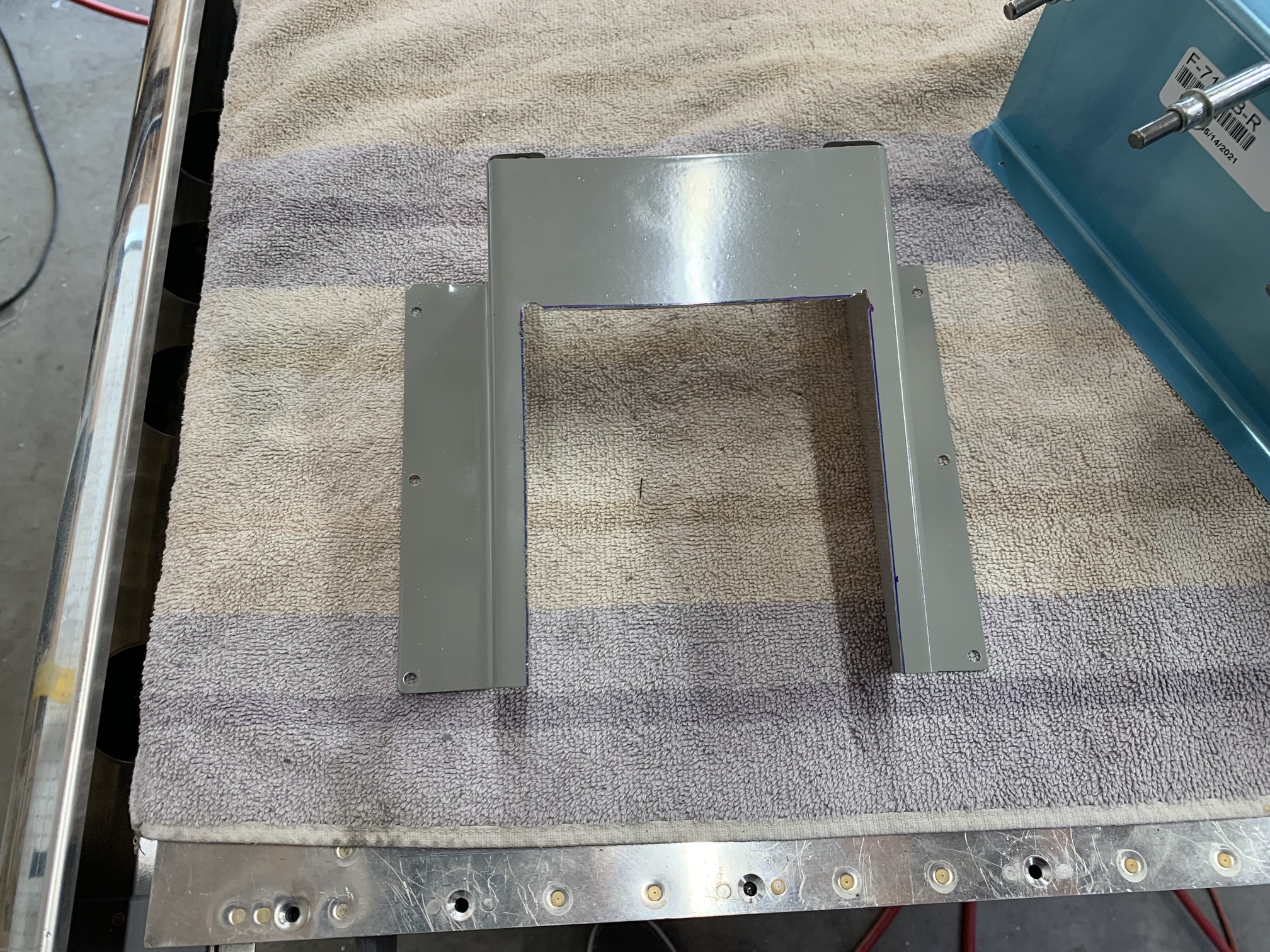

I also trimmed the F-983C fuel valve cover as specified.

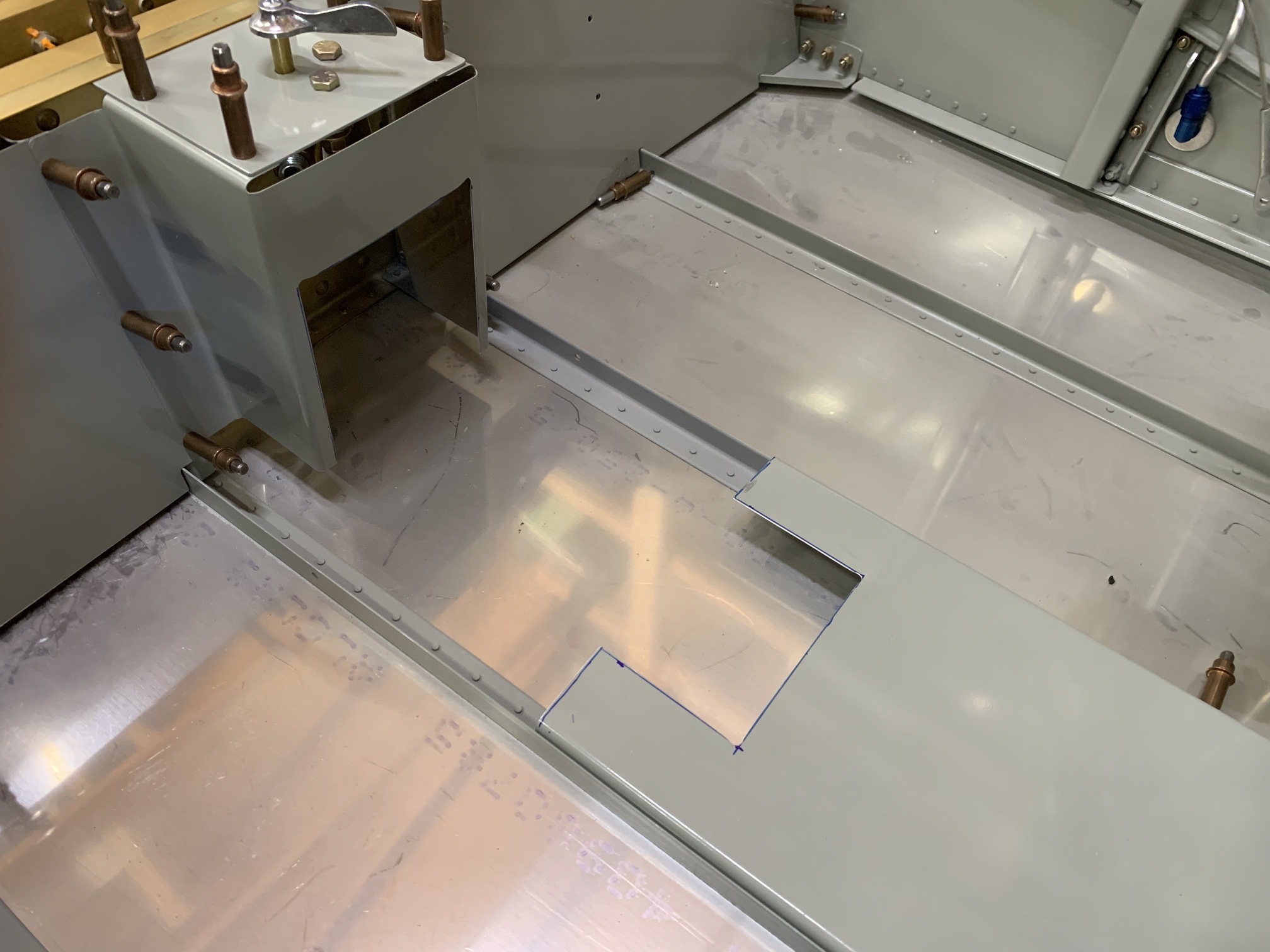

Here they are cleco'd back in place.

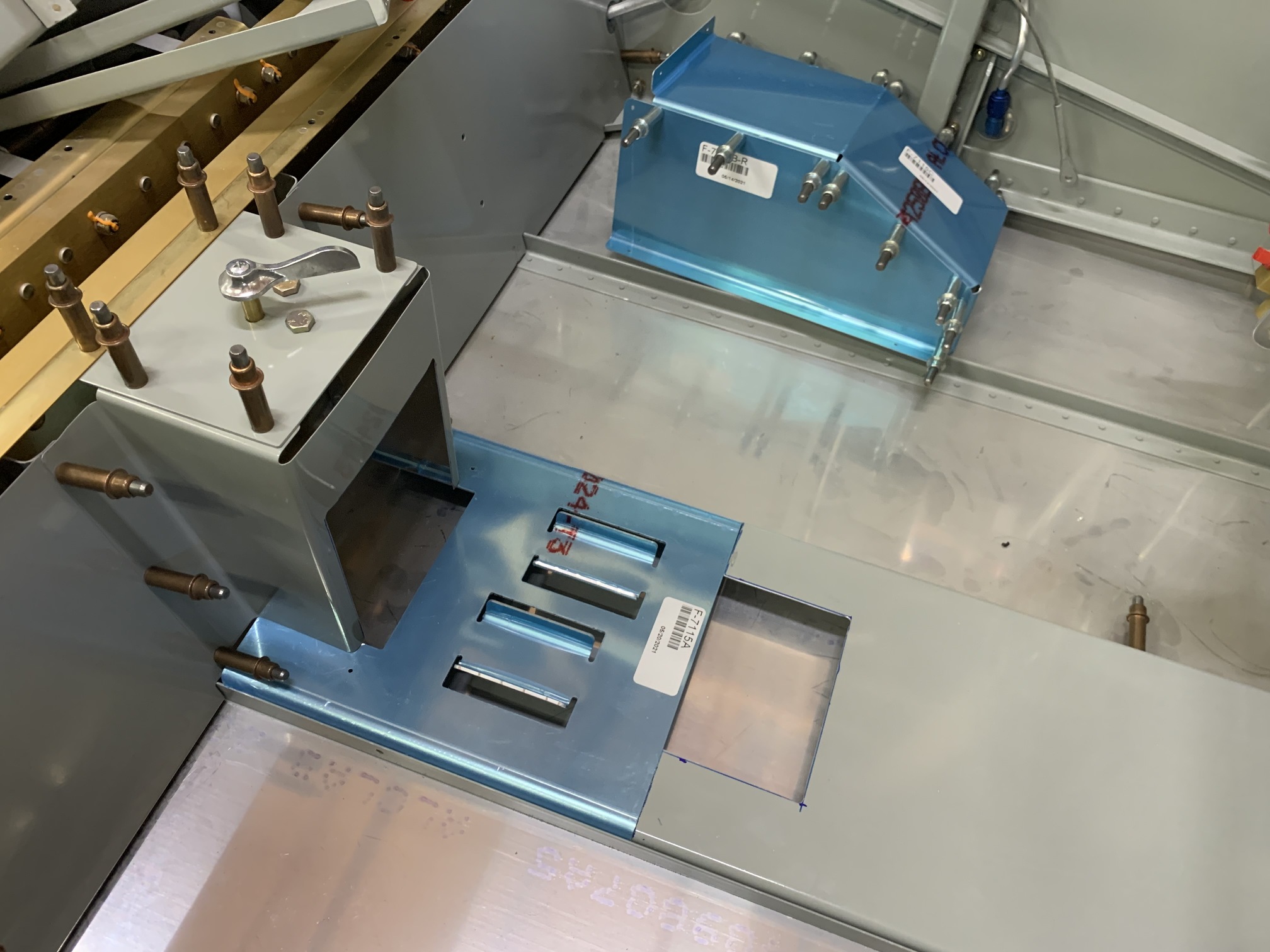

Then with the F-7115A bottom cover (on which the fuel filter and pump will sit) in place.

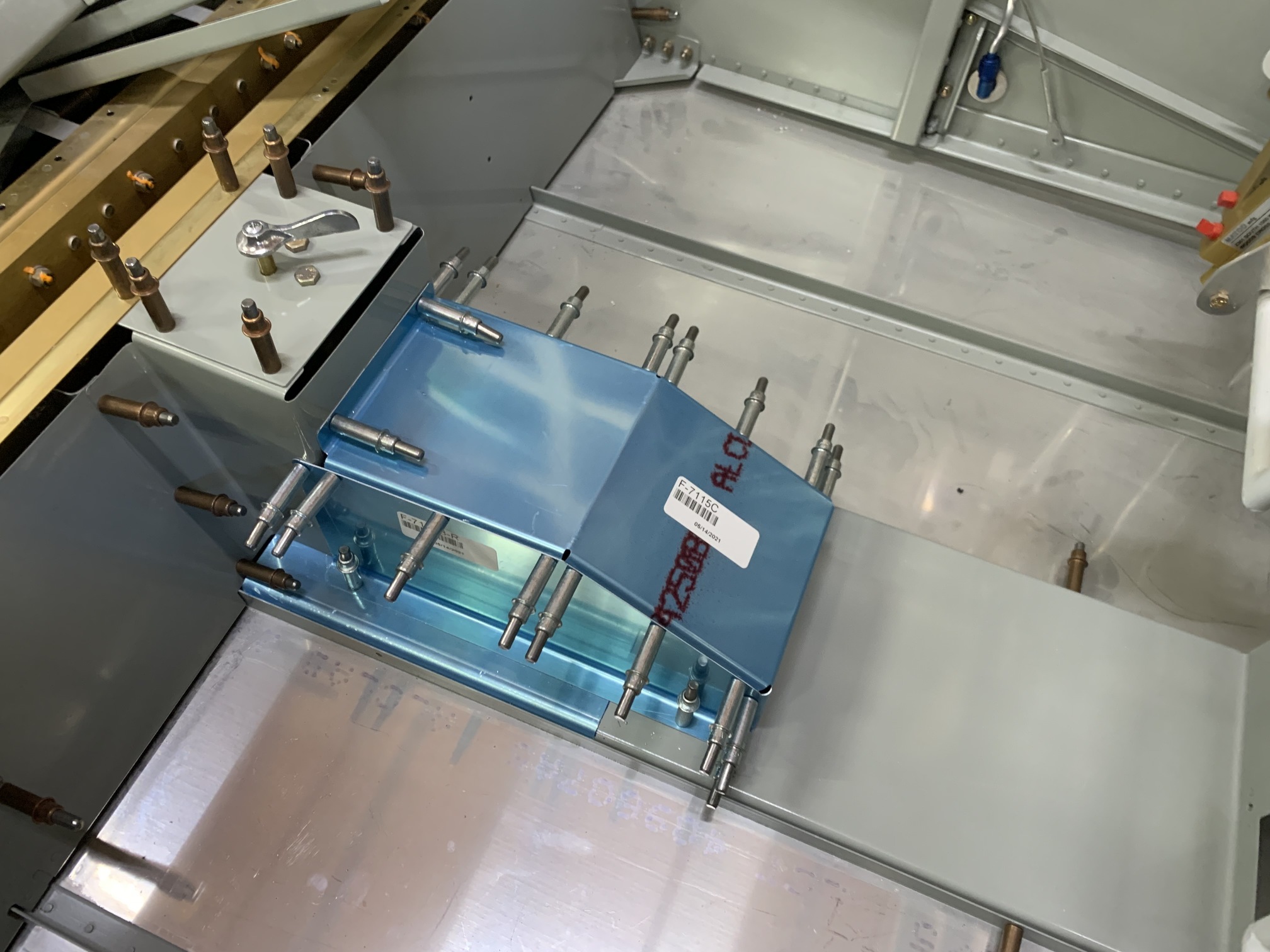

And finally with the F7115B/C cover cleco'd in place and various holes match drilled.

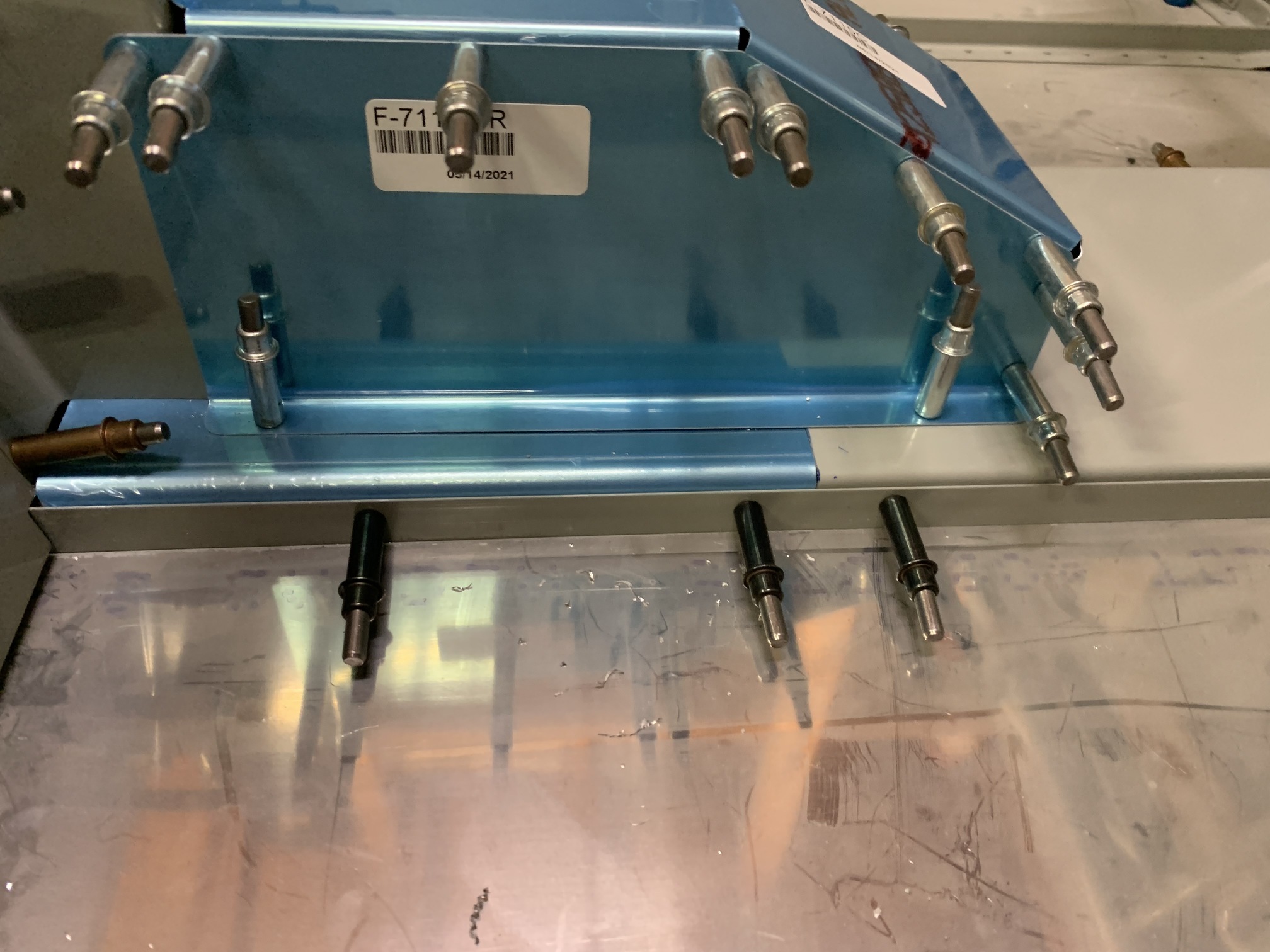

Then I drilled the additional holes through the angle into the various parts.

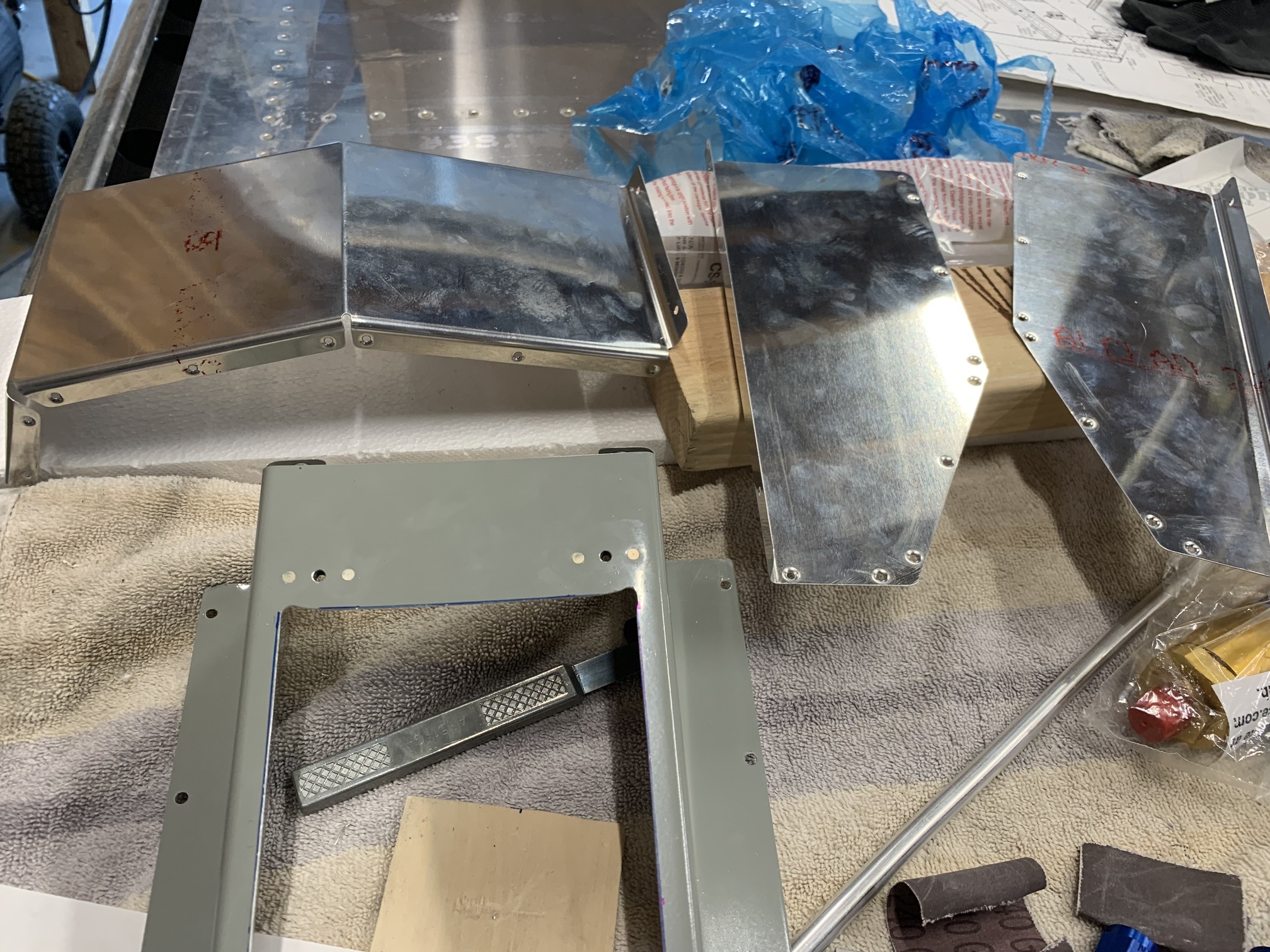

Then, disassembled, deburred, installed nutplates, and dimpled.

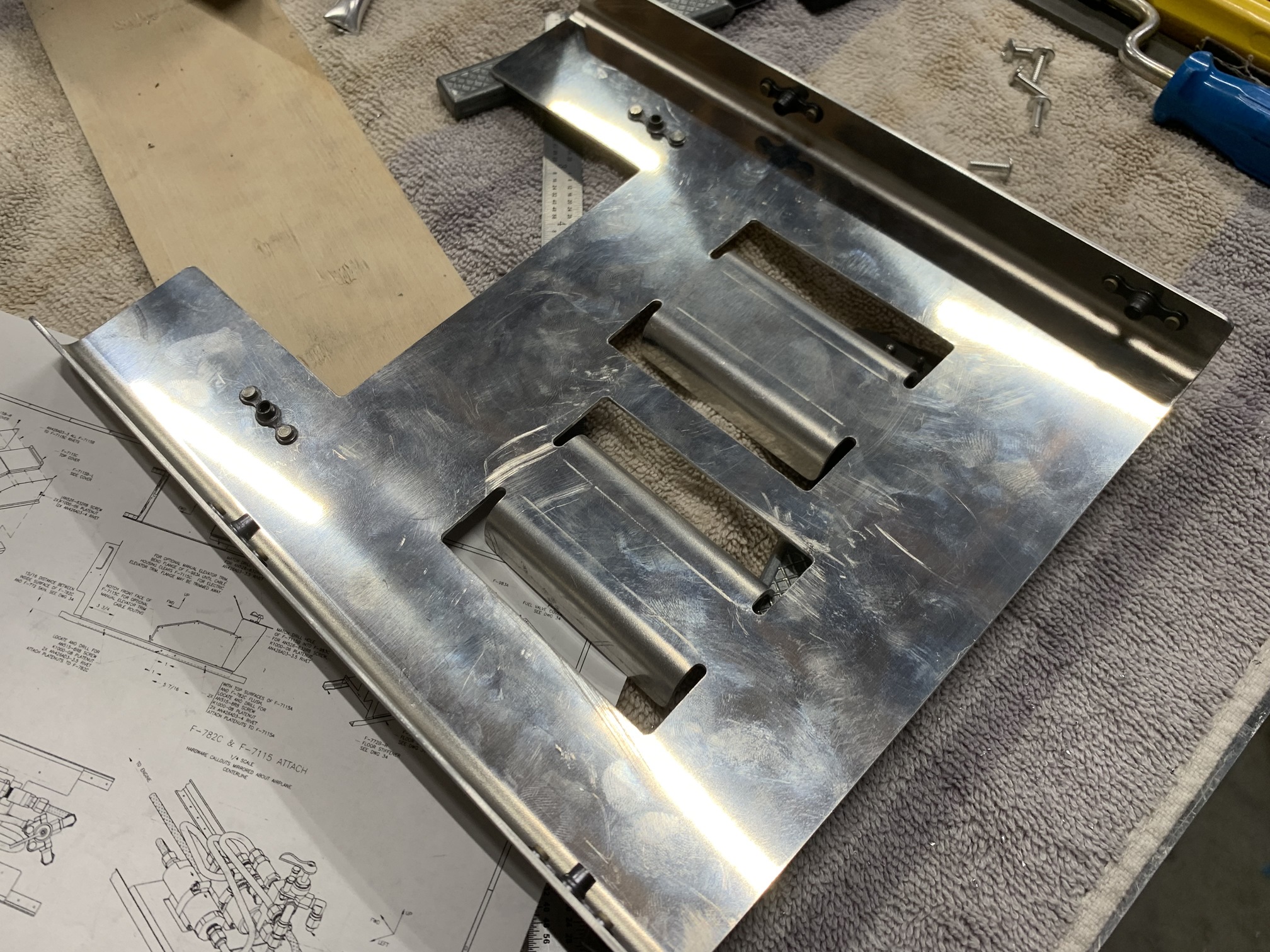

And on the F-7115A bottom cover.

Next will be to prime/paint these parts and then work on plumbing the filter and pump.
