Firewall Fuel Passthrough and Contactor Nutplates (Firewall)
2.0 Hours

Previous - Index - Next

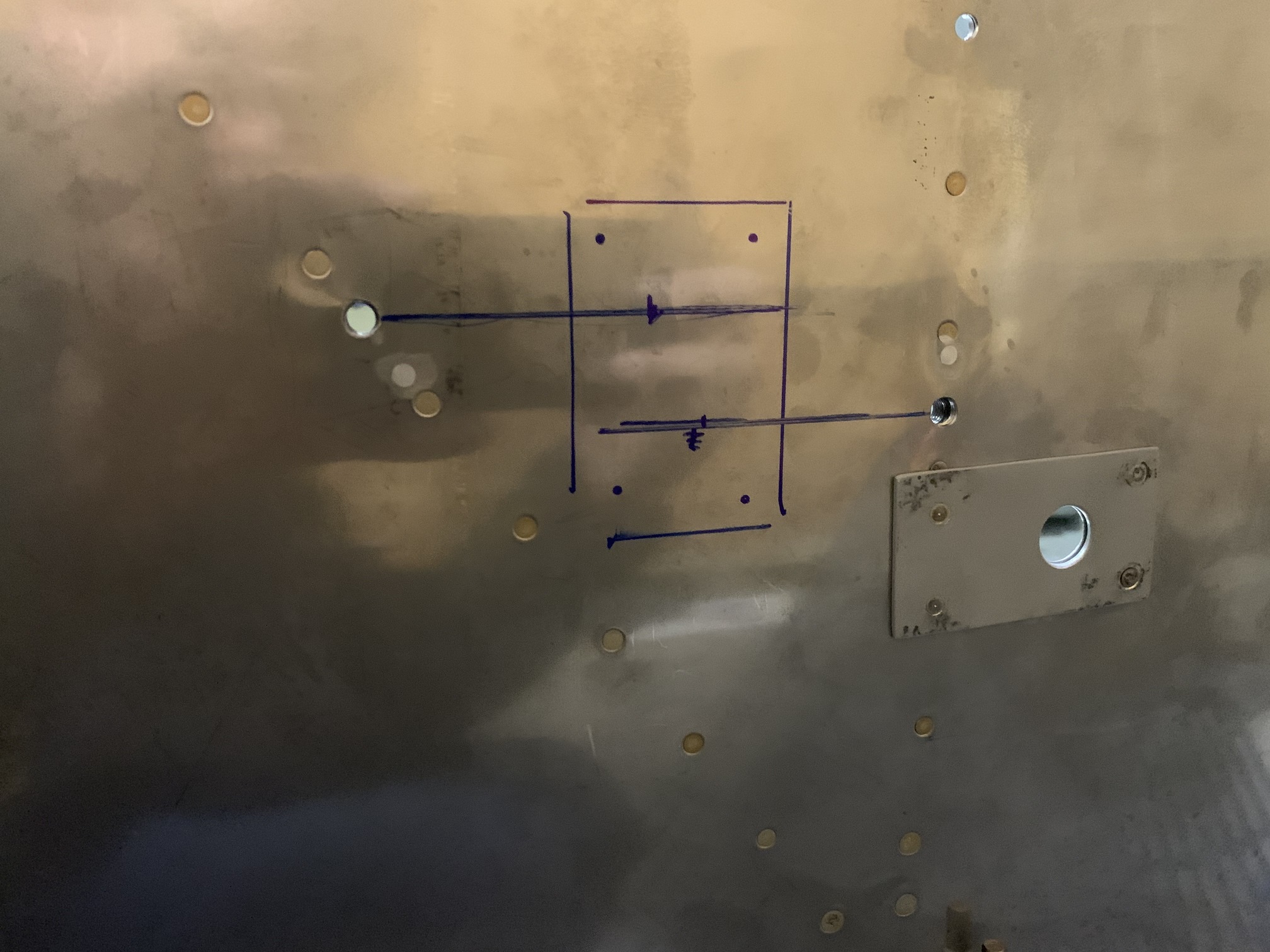

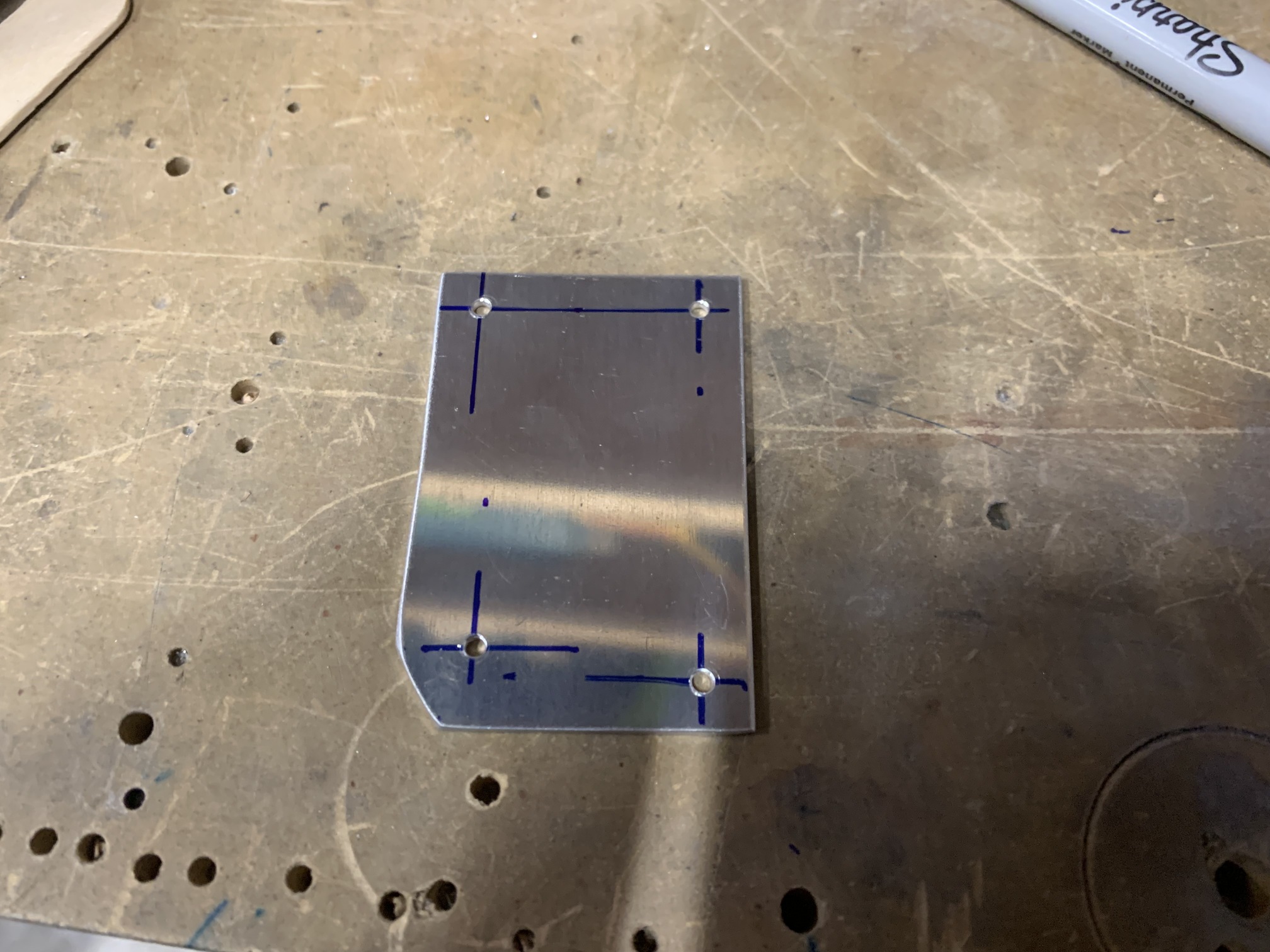

First thing tonight I fabricated this little doubler that goes on the firewall to support the battery and starter contactors.

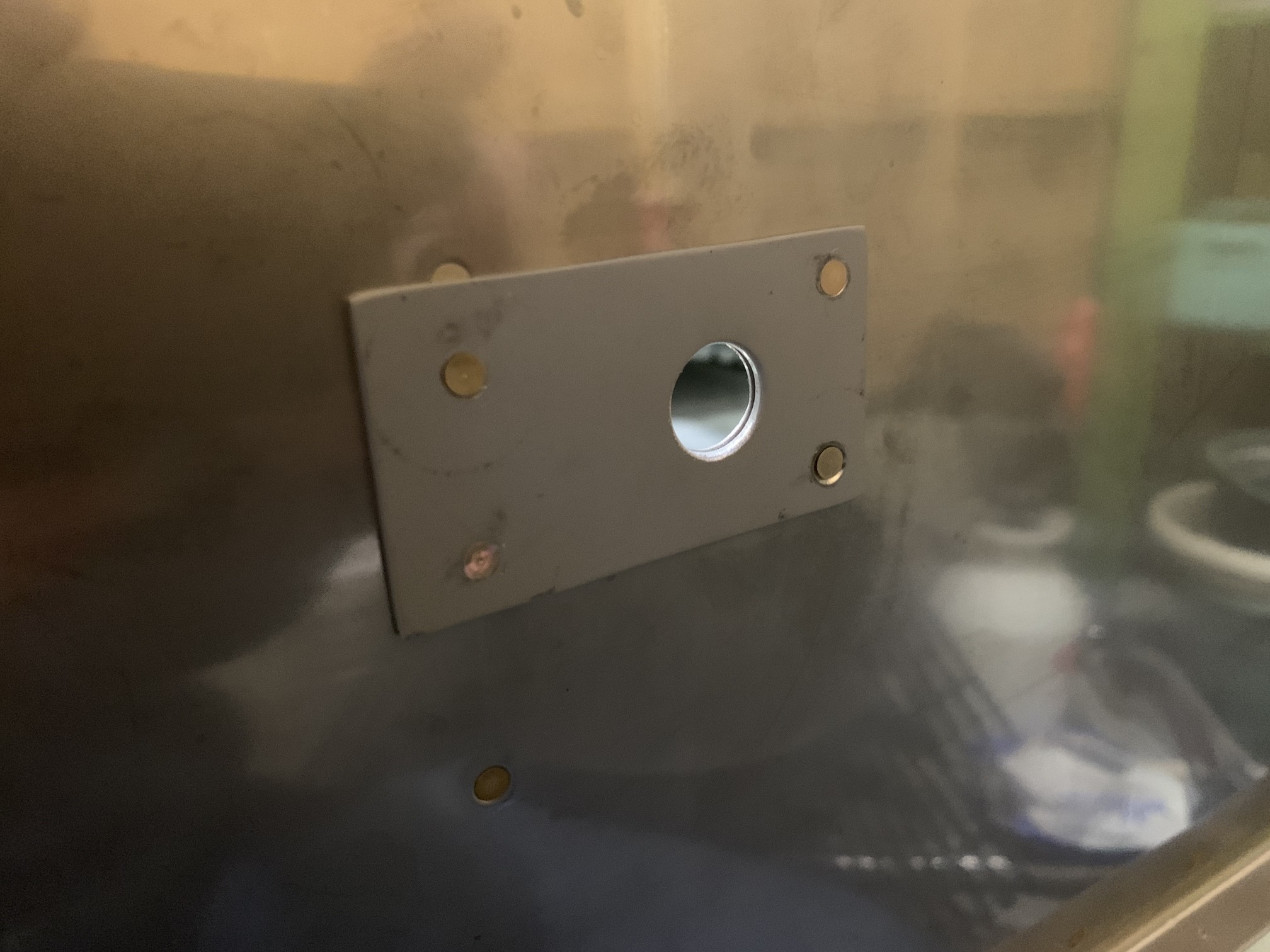

Then, I riveted on fuel passthrough doubler, but as soon as I did it, I realized I needed to get to one of the rivets behind it to mount a nutplate for the contactors.

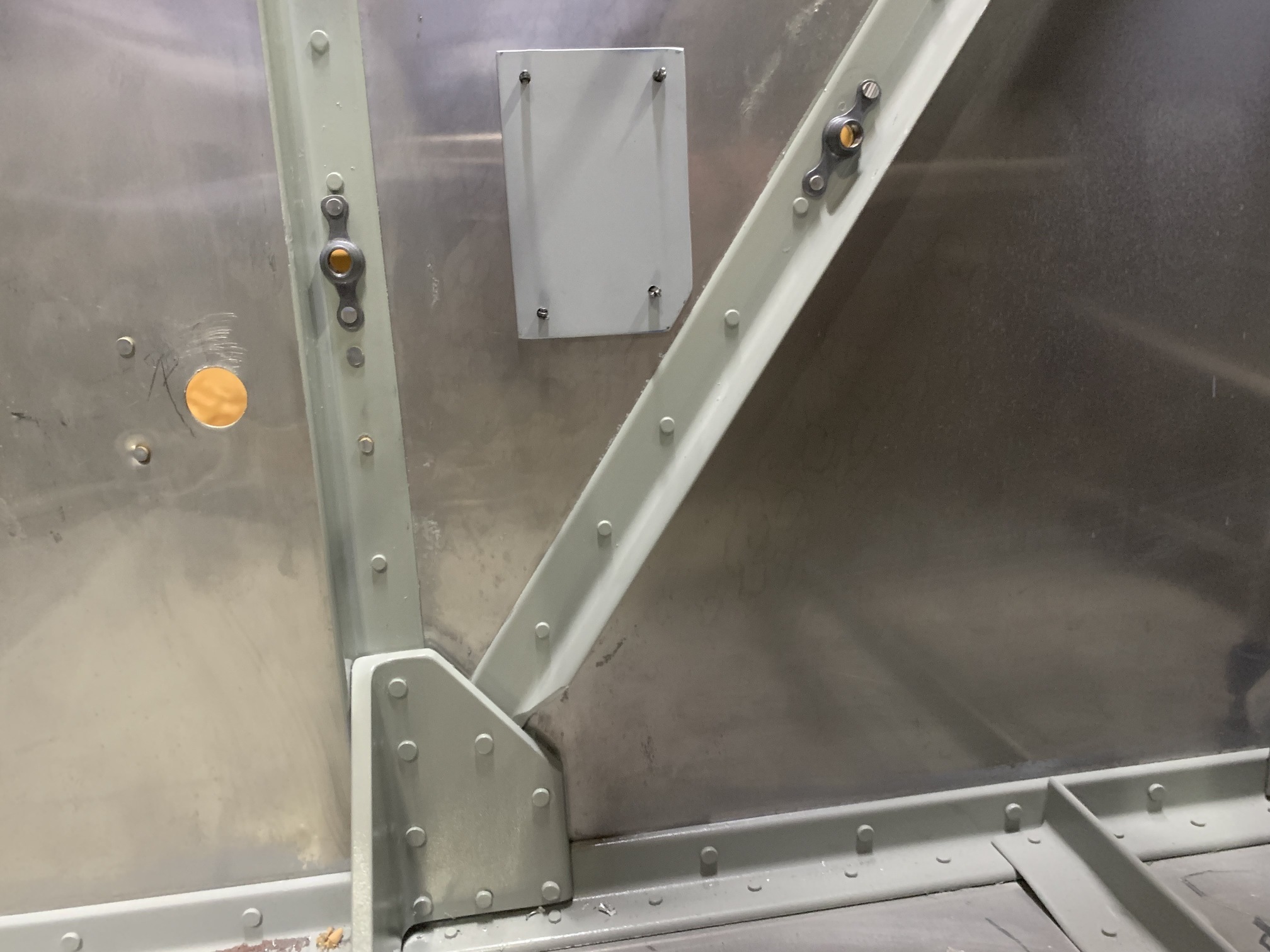

I drilled it out and installed the two -4 nutplates as specified in the plans. Then, I riveted the doubler back in place.

Finally, I drilled the doubler to the firewall.

This all took longer than it should, but it was a bit of a process to determine the right order of steps. In the end, it worked nicely.
