Sunday January 9, 2022
Canopy Reinforcement Fitting & Drilling (Canopy)
2.5 Hours

Previous - Index - Next

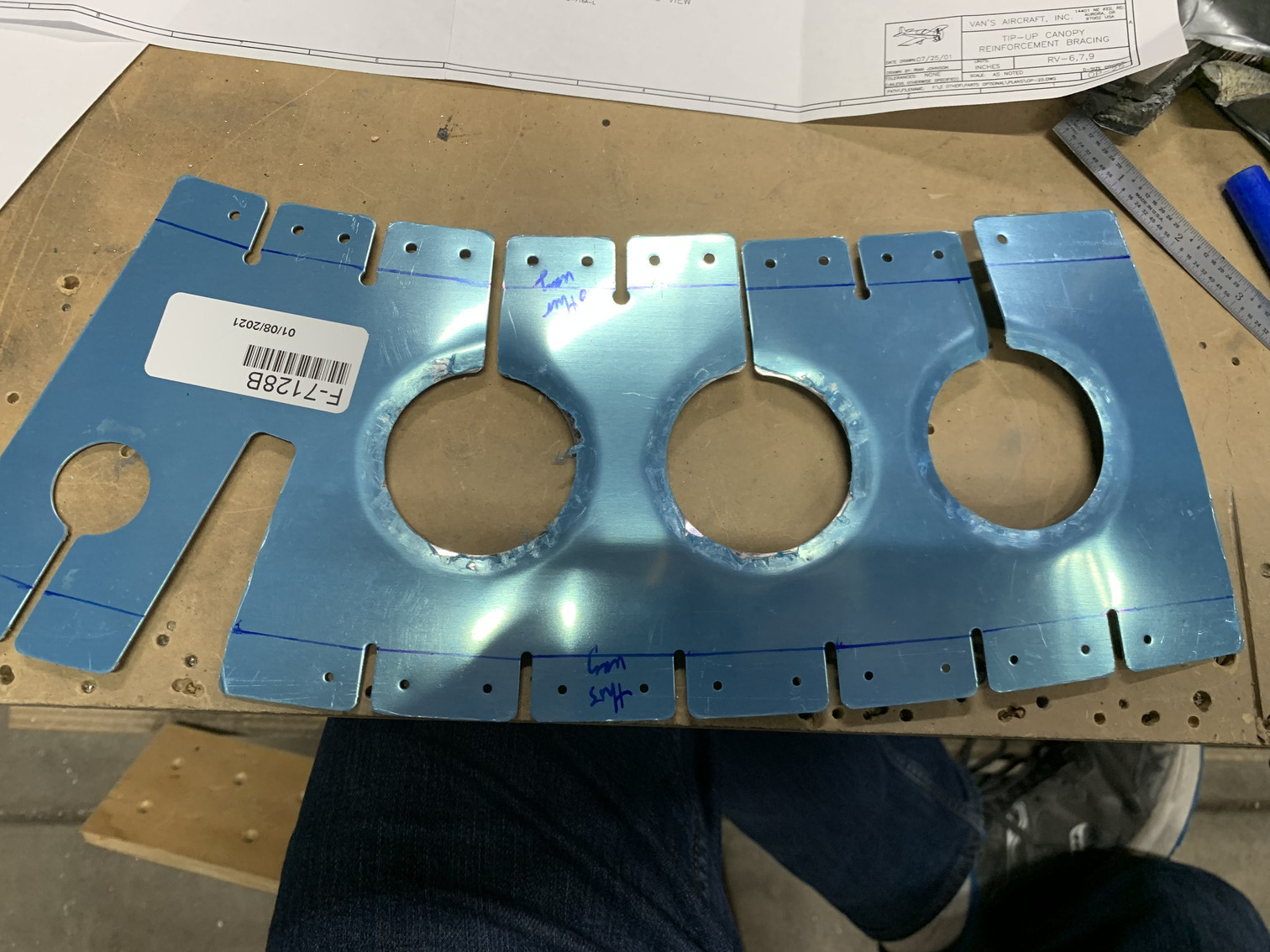

I continued with the reinforcement braces today. First I marked the tabs at 5/8".

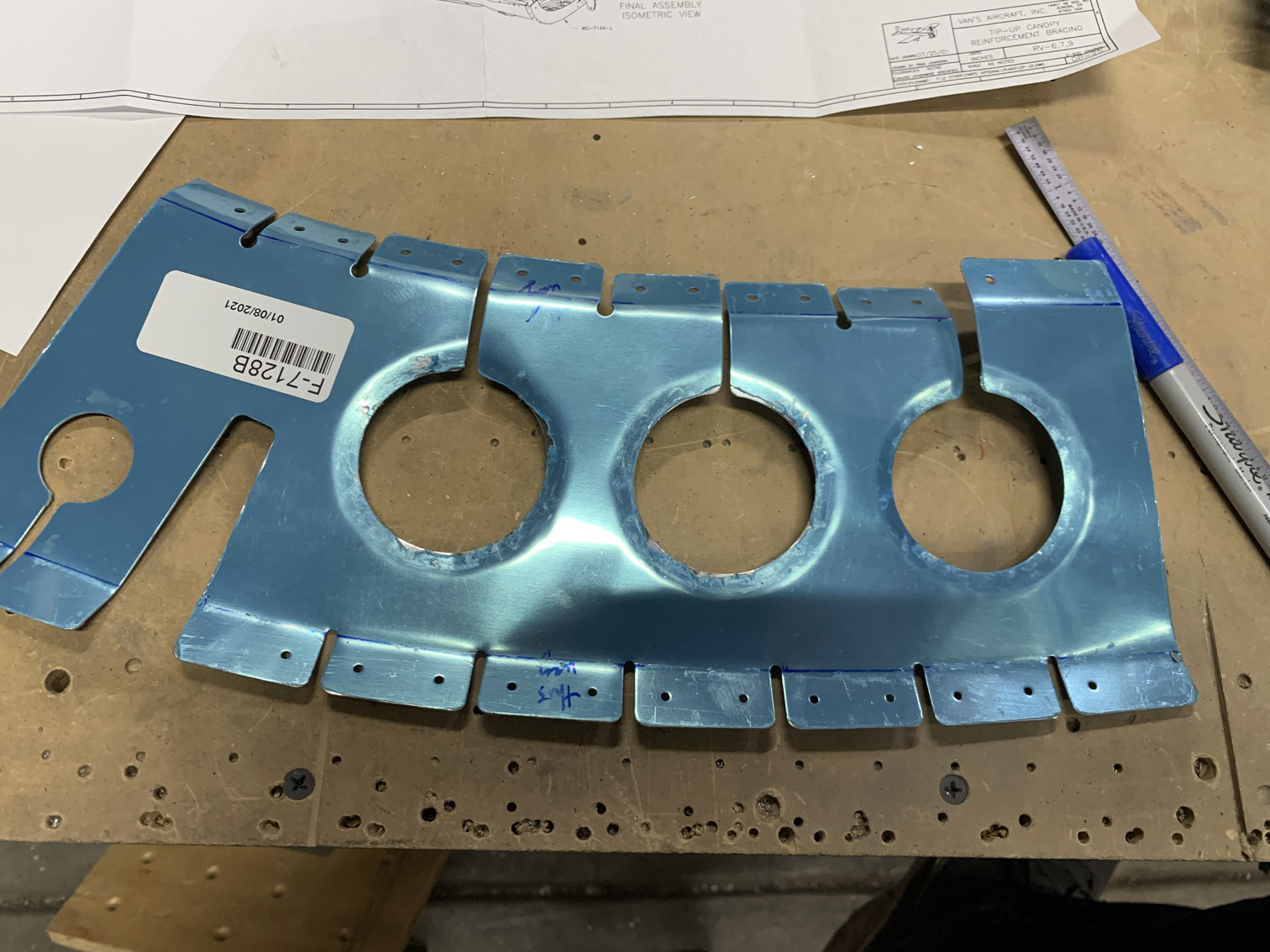

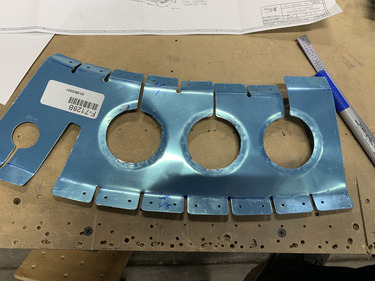

Then I bent them along the lines I had marked.

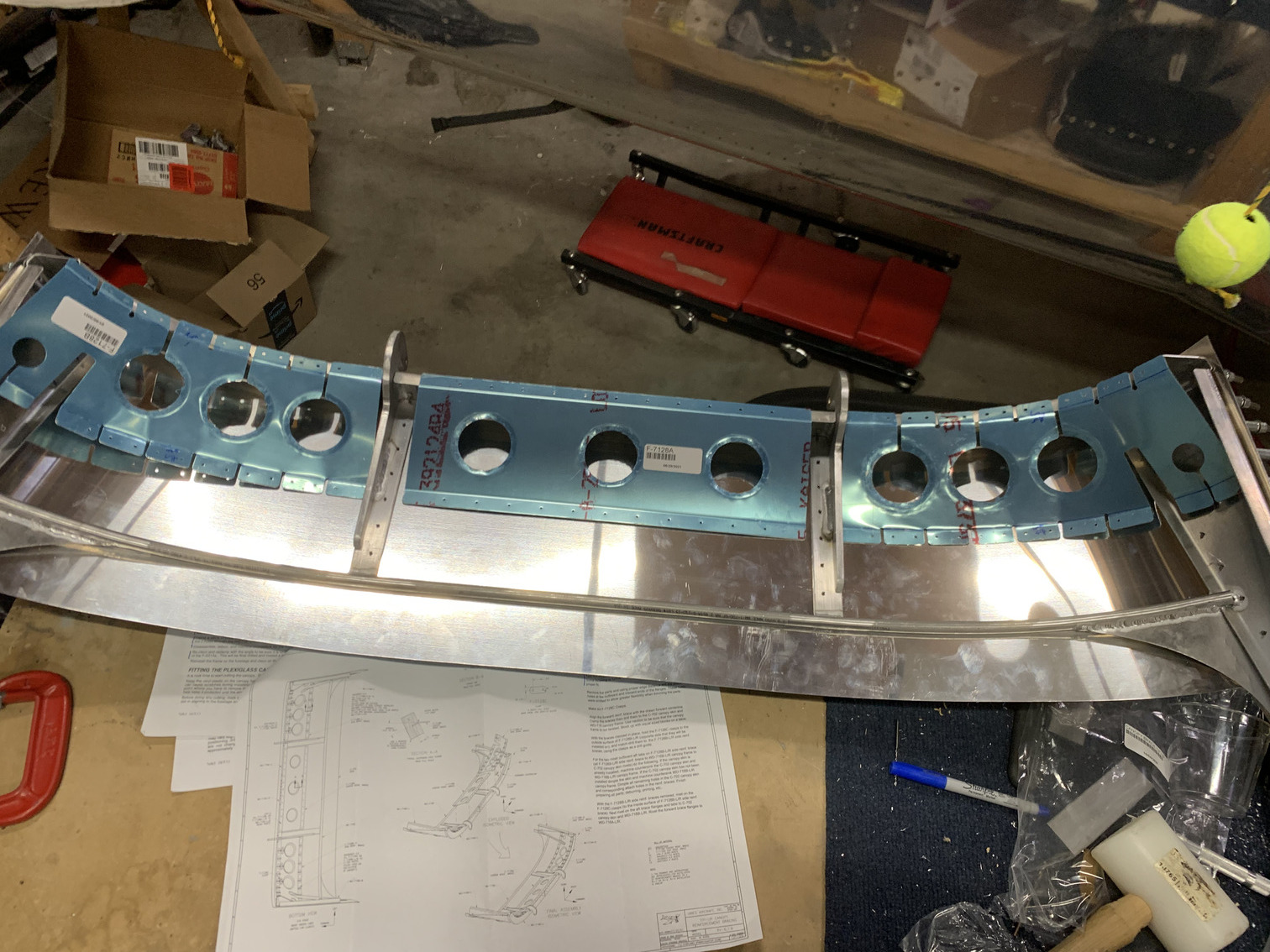

I loosely fit them in their spots.

And then started drilling them to the WD-725 frame.

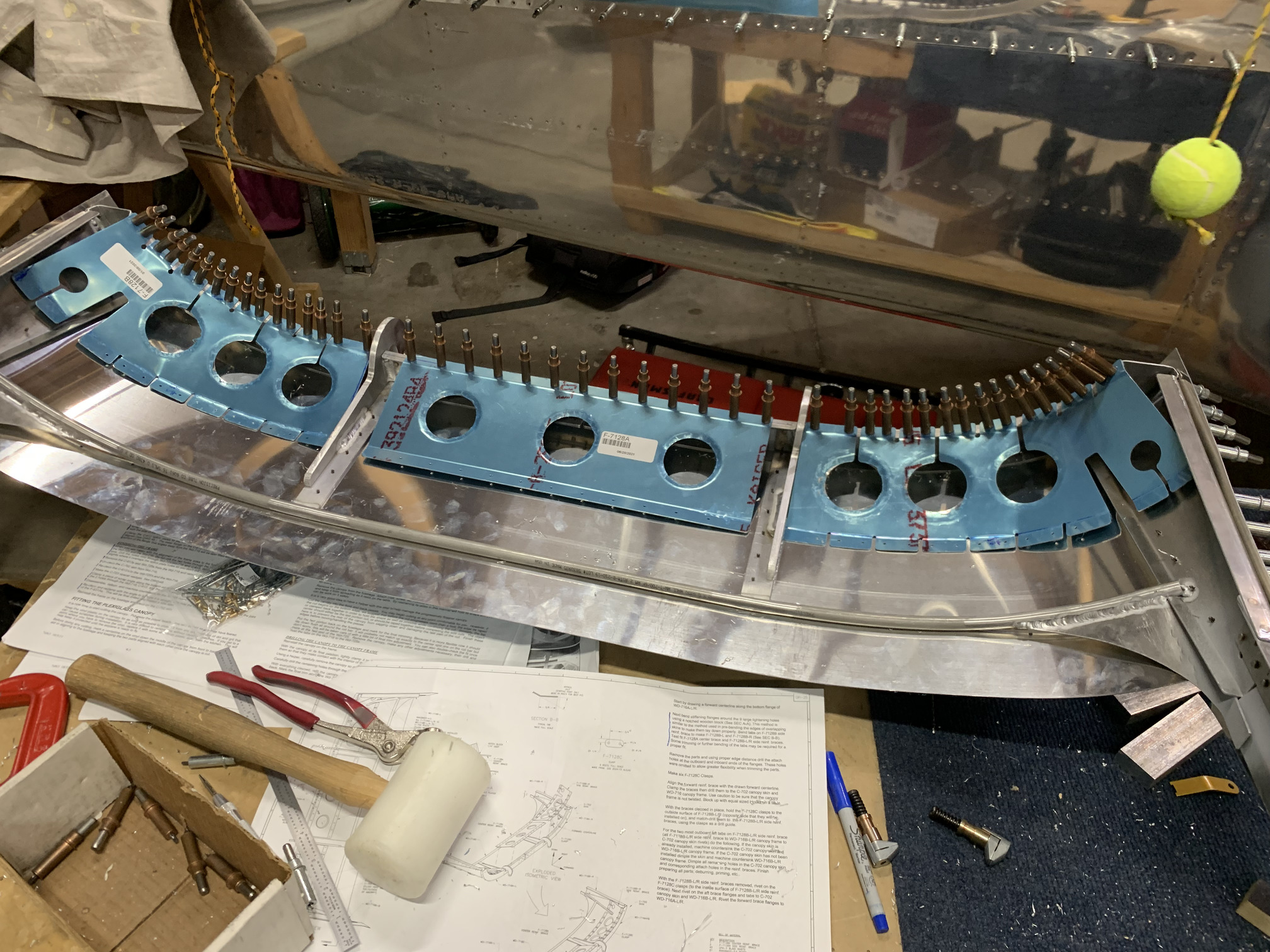

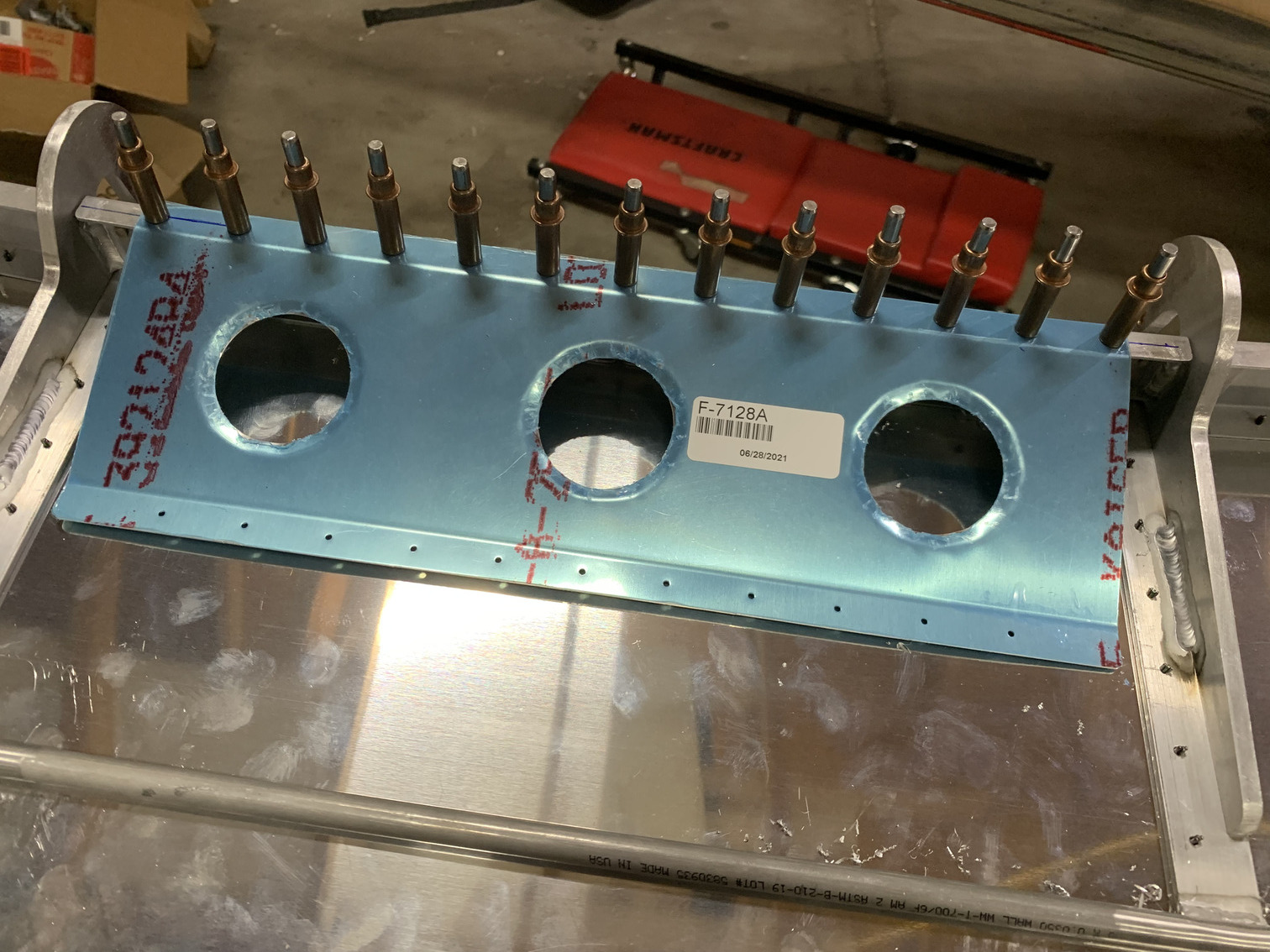

Here they are all drilled to the frame. I also did some trimming of the ends of the curved pieces to clear the WD-725 structure.

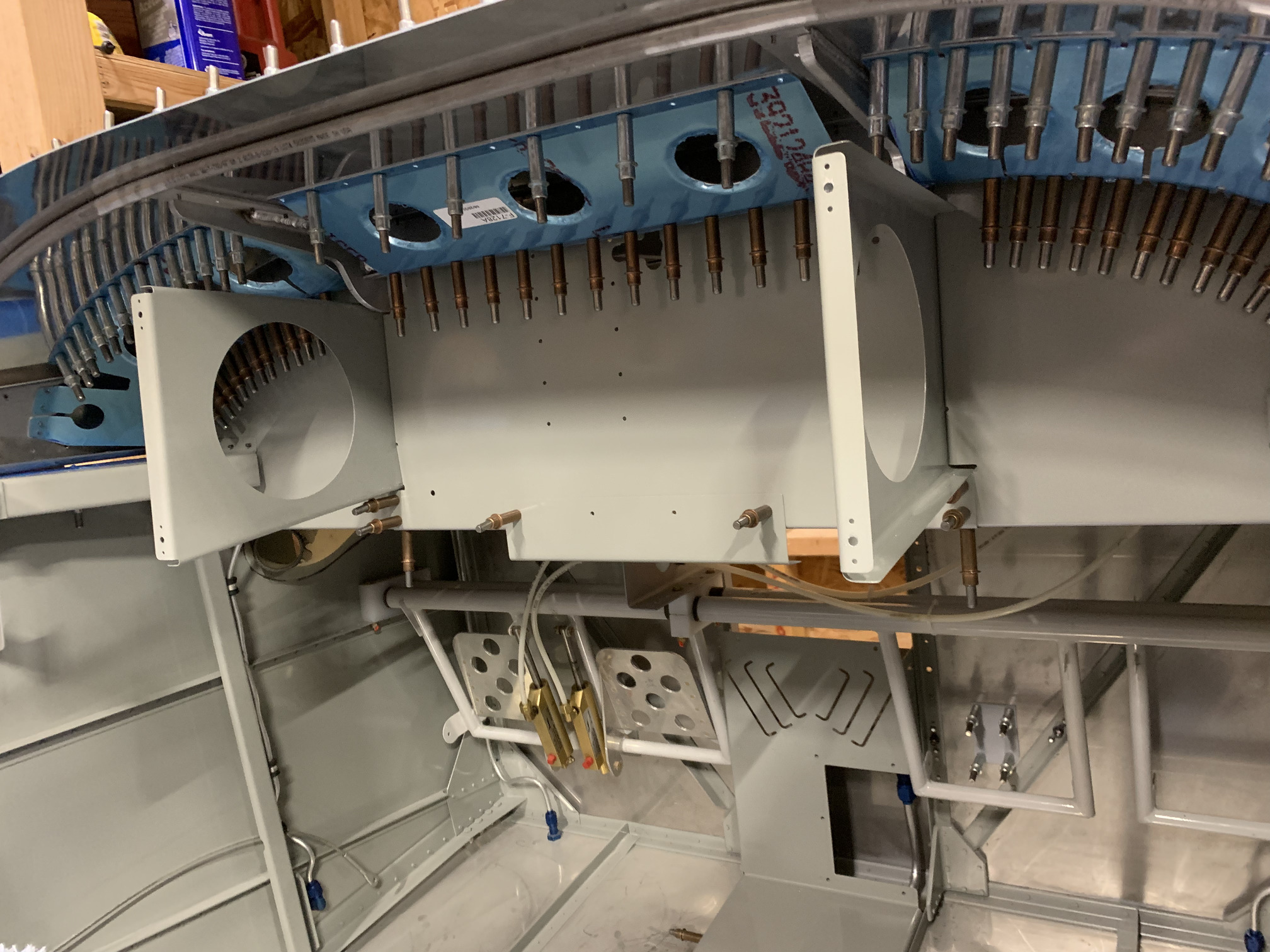

Then I mounted the frame/skin/braces in place on the fuselage and drilled the braces to the skin.

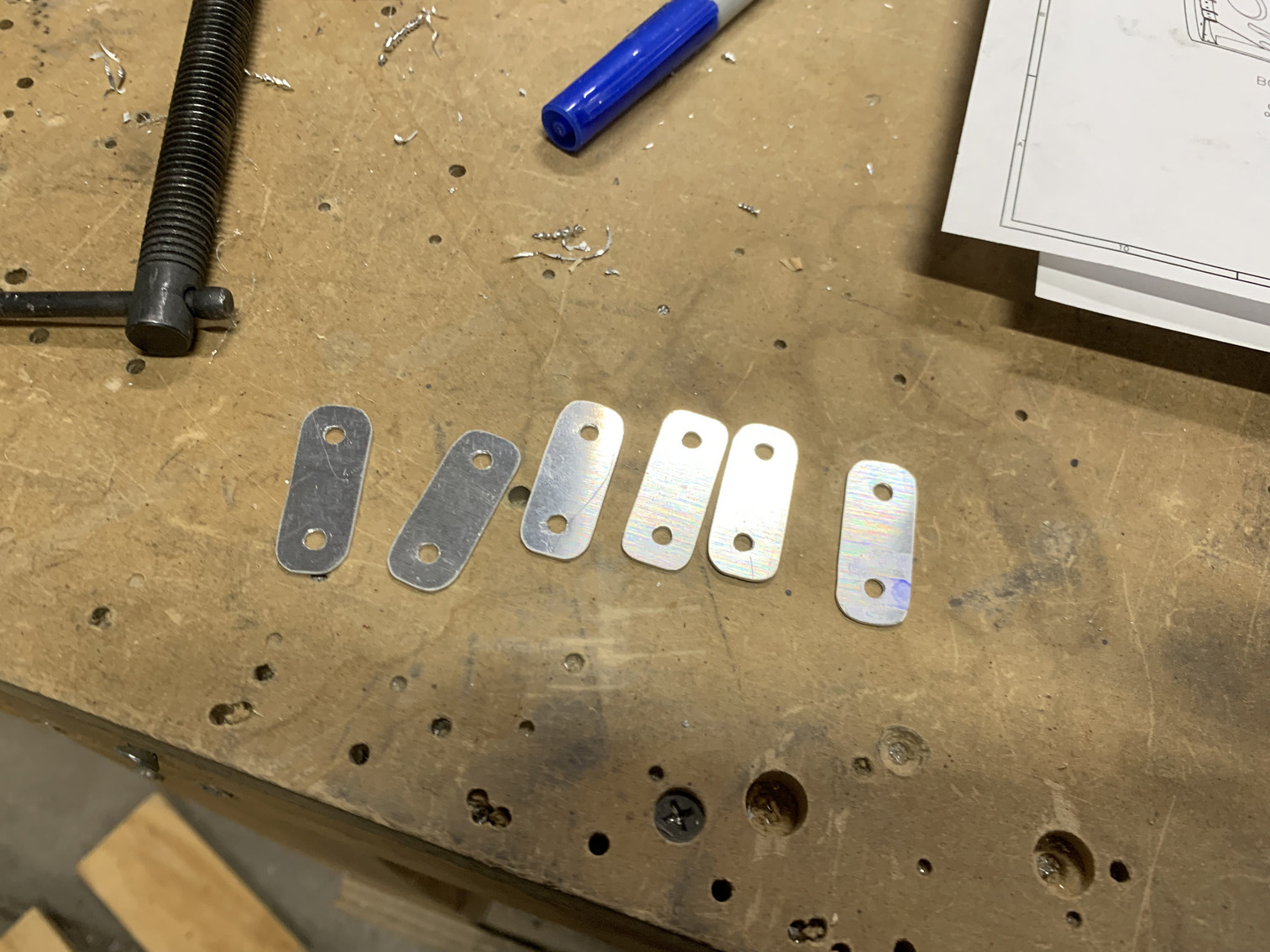

Next I fabricated the six clasps from 0.032" sheet per the instructions. These will provide structure to the stiffening holes.
