Wednesday January 12, 2022
Canopy Misc (Canopy)
2.0 Hours

Previous - Index - Next

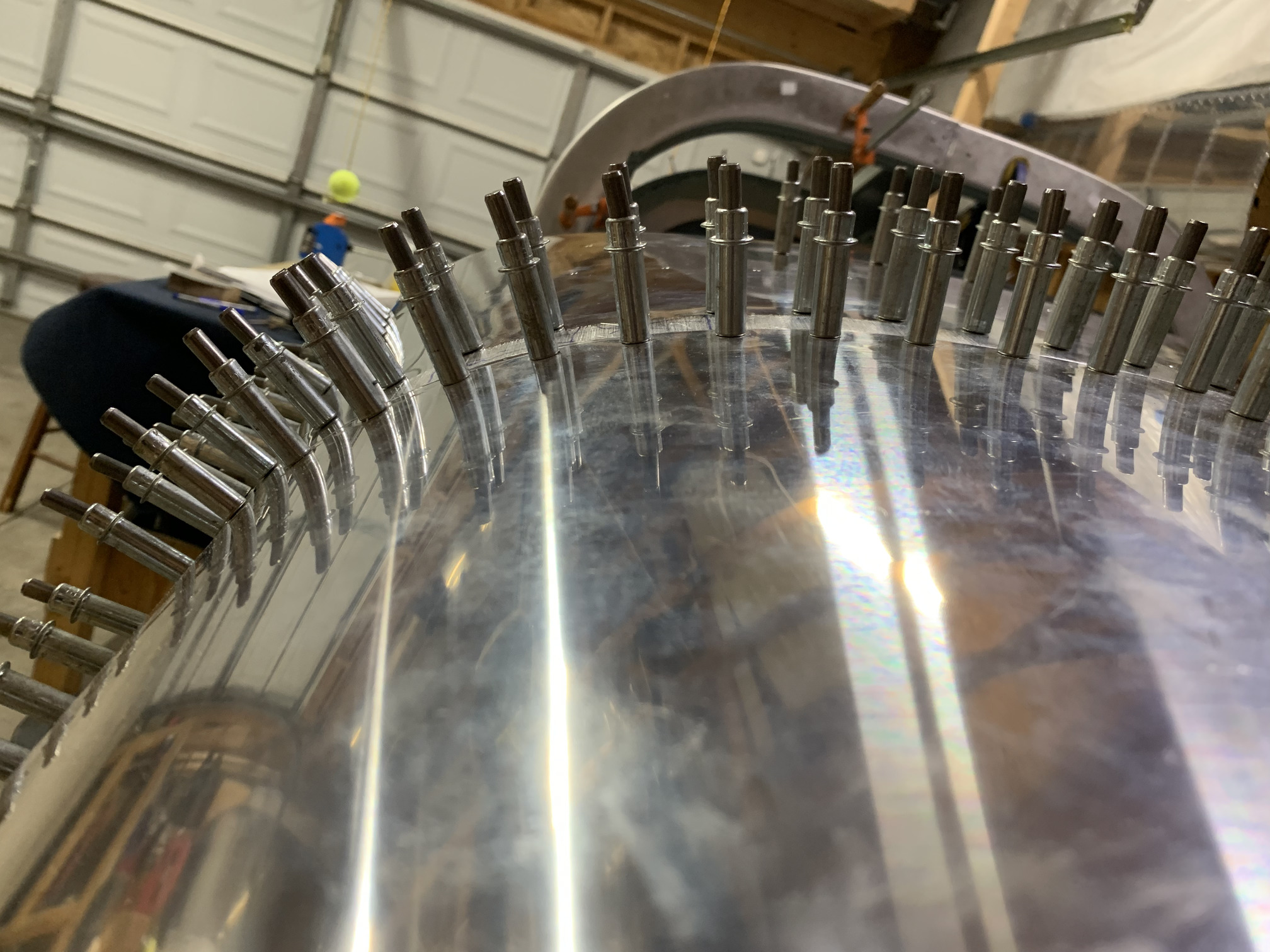

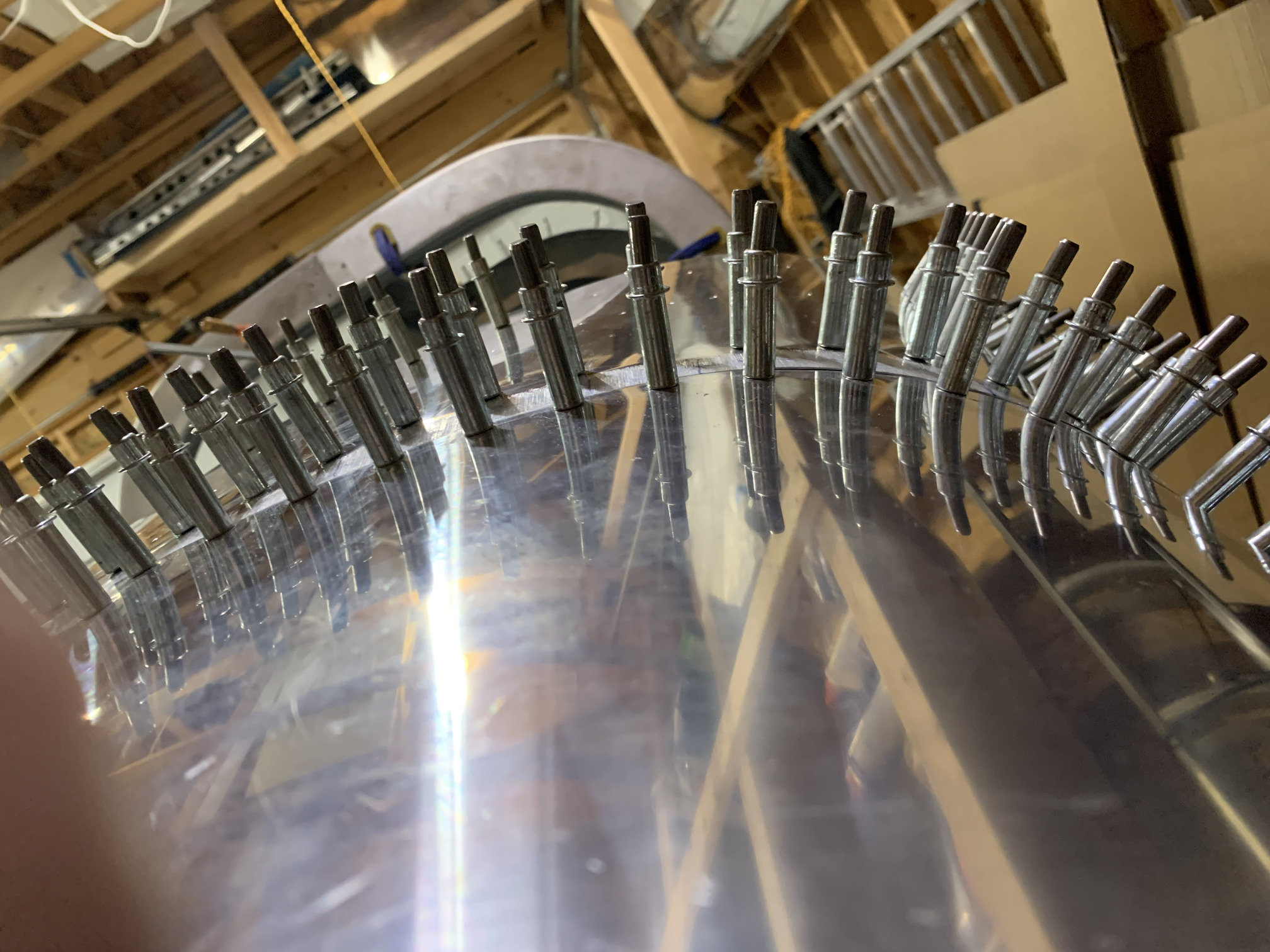

I did another round of shrinking to improve the fit of the front skins. Very close.

I will probably leave these like this until I am finished with fit and see how things come together in the end.

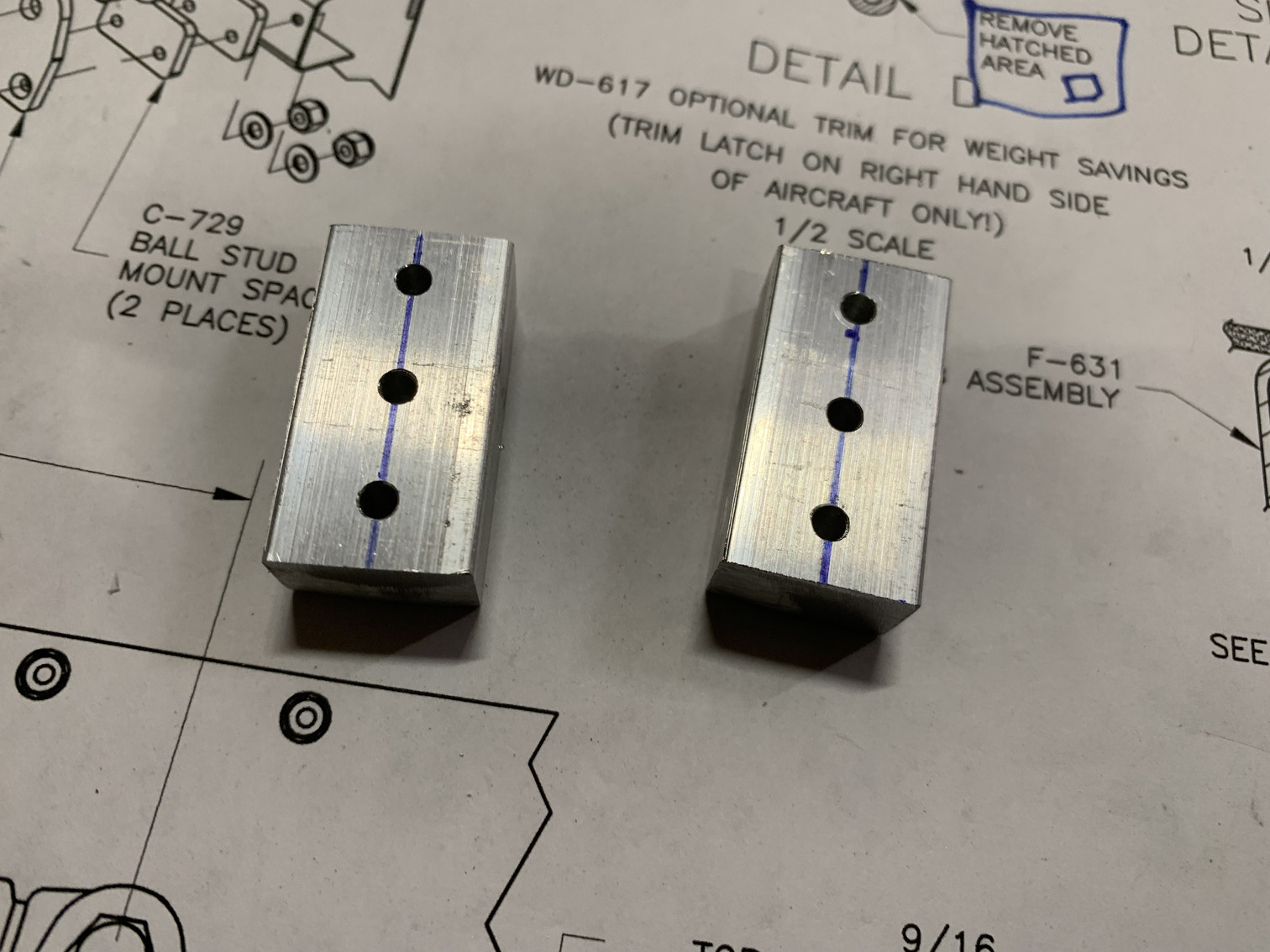

I made these little attachment pieces for the struts. After I took this pic, I drilled the middle holes to 1/4" and tapped for the mounting bolts.

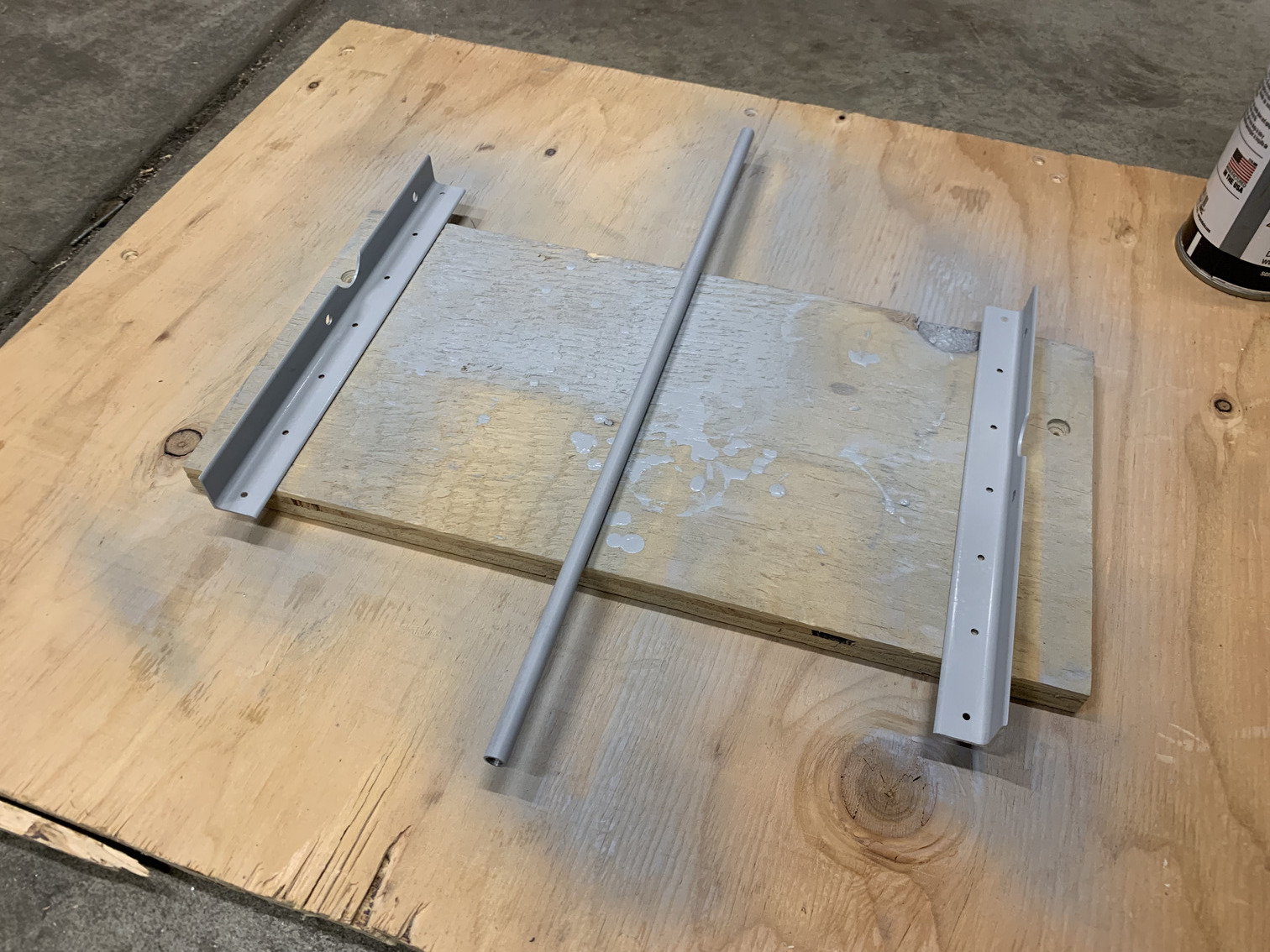

I took apart the latch mechanism and primed/painted some of the pieces.

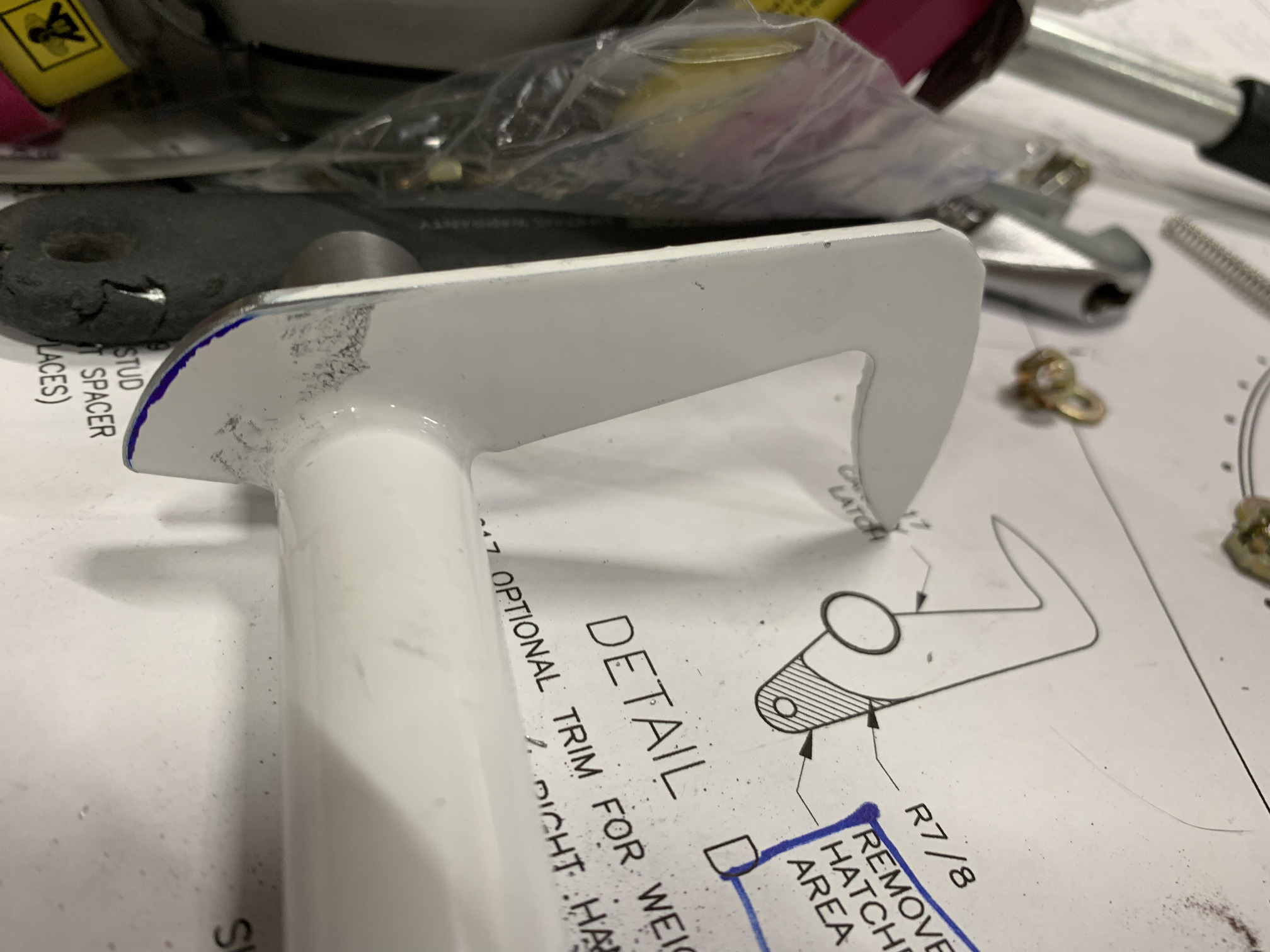

I trimmed this optional removal from the right side of the latch weldment.

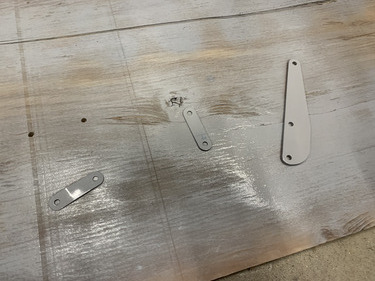

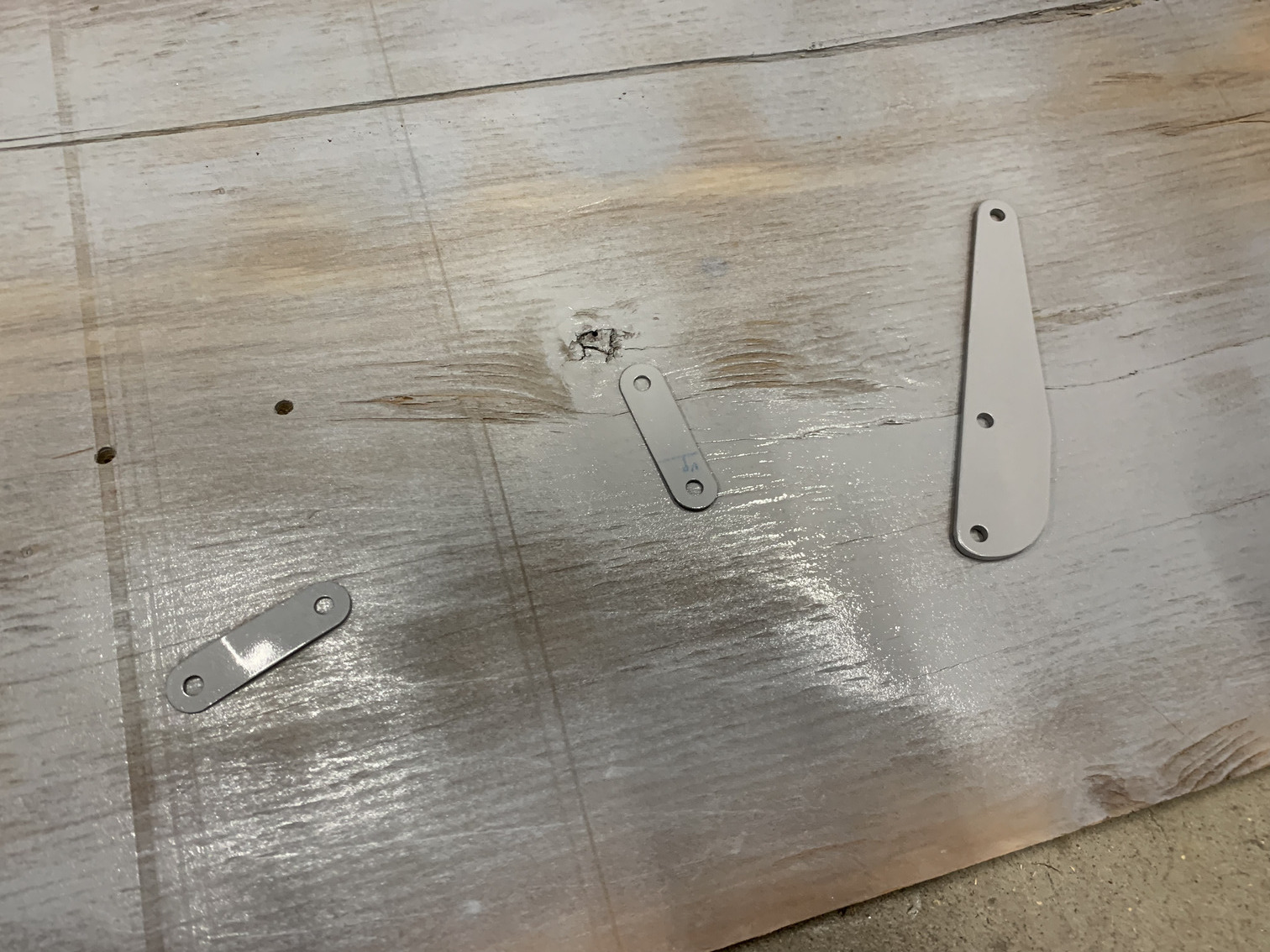

I primed and painted some more parts of the latch mechanism.
