Sunday January 23, 2022
Gear Leg Installation (Landing Gear)
2.0 Hours

Previous - Index - Next

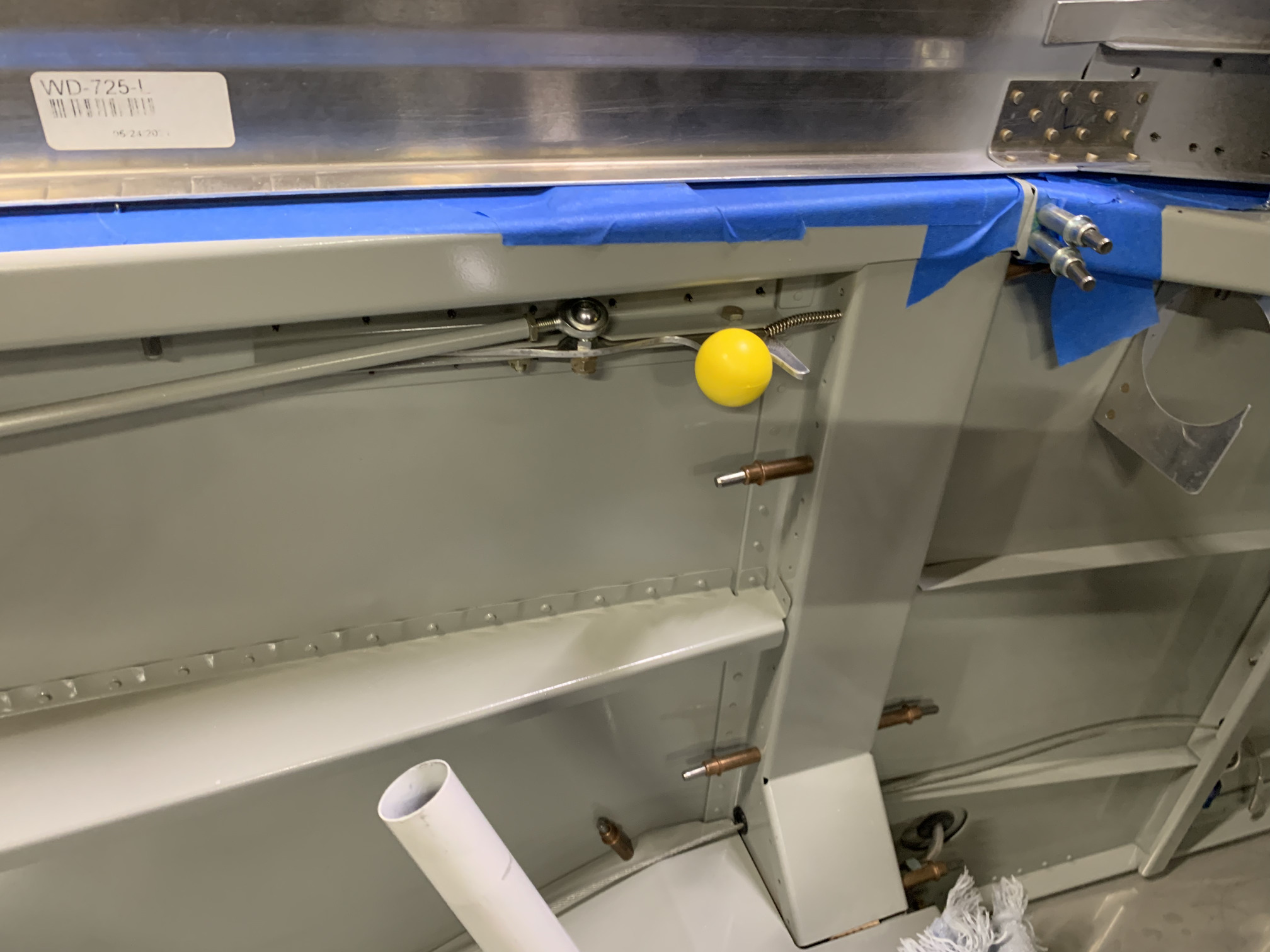

I got and installed the little ball handle for the latch mechanism.

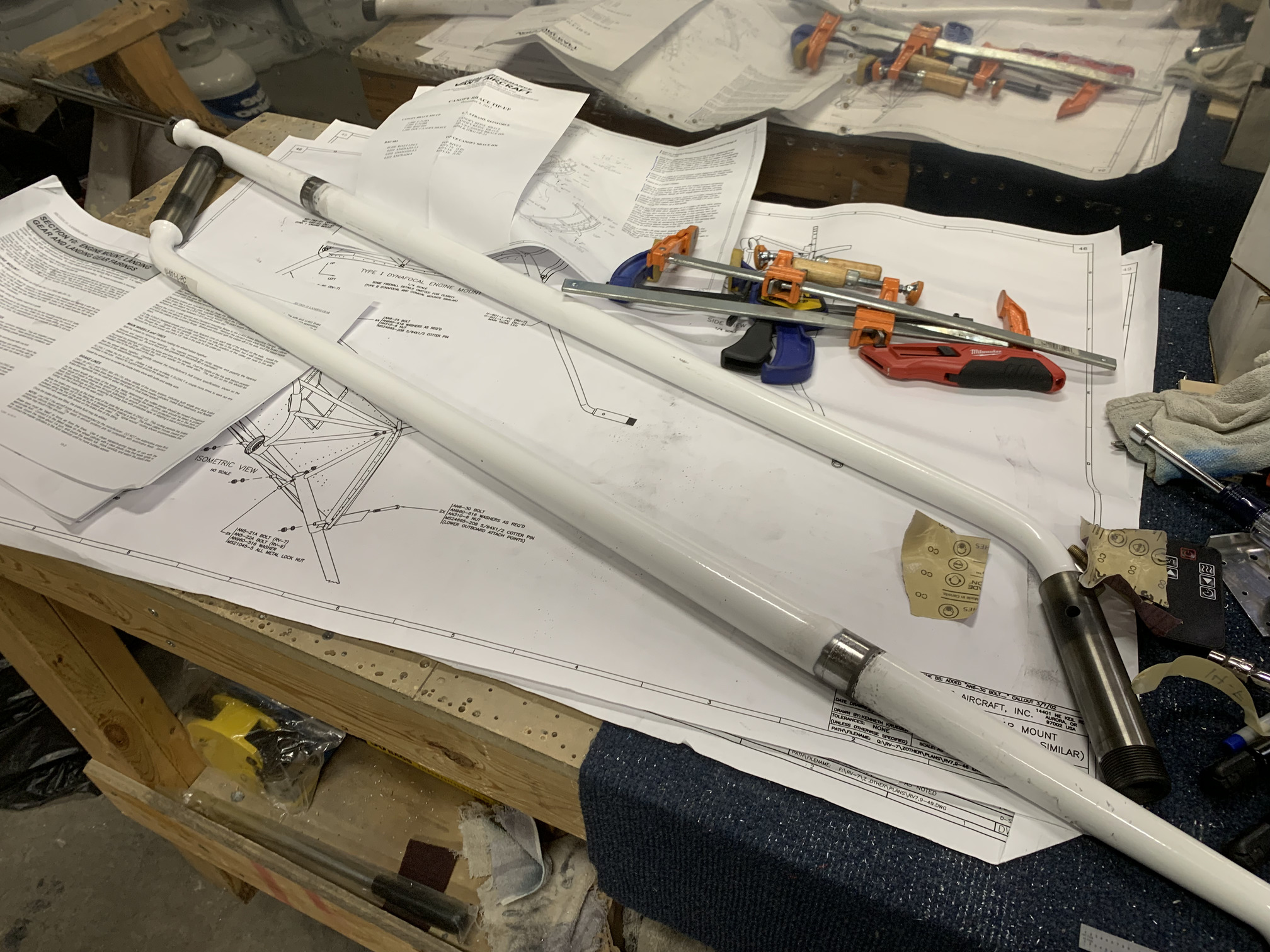

I spent the rest of the time trying to get the landing gear legs installed. This took a lot of work. I ended up having to sand some of the powder coat off to get them to slide in. I also had to drill the bolt holes out to full size to get the bolt through the right leg. I haven't quite got the left leg all the way into the engine mount. It doesn't want to slide up the last 1/16" or so. I will have to keep working on it.
