Sunday May 29, 2022
Canopy Fit (Canopy)
0.9 Hours

Previous - Index - Next

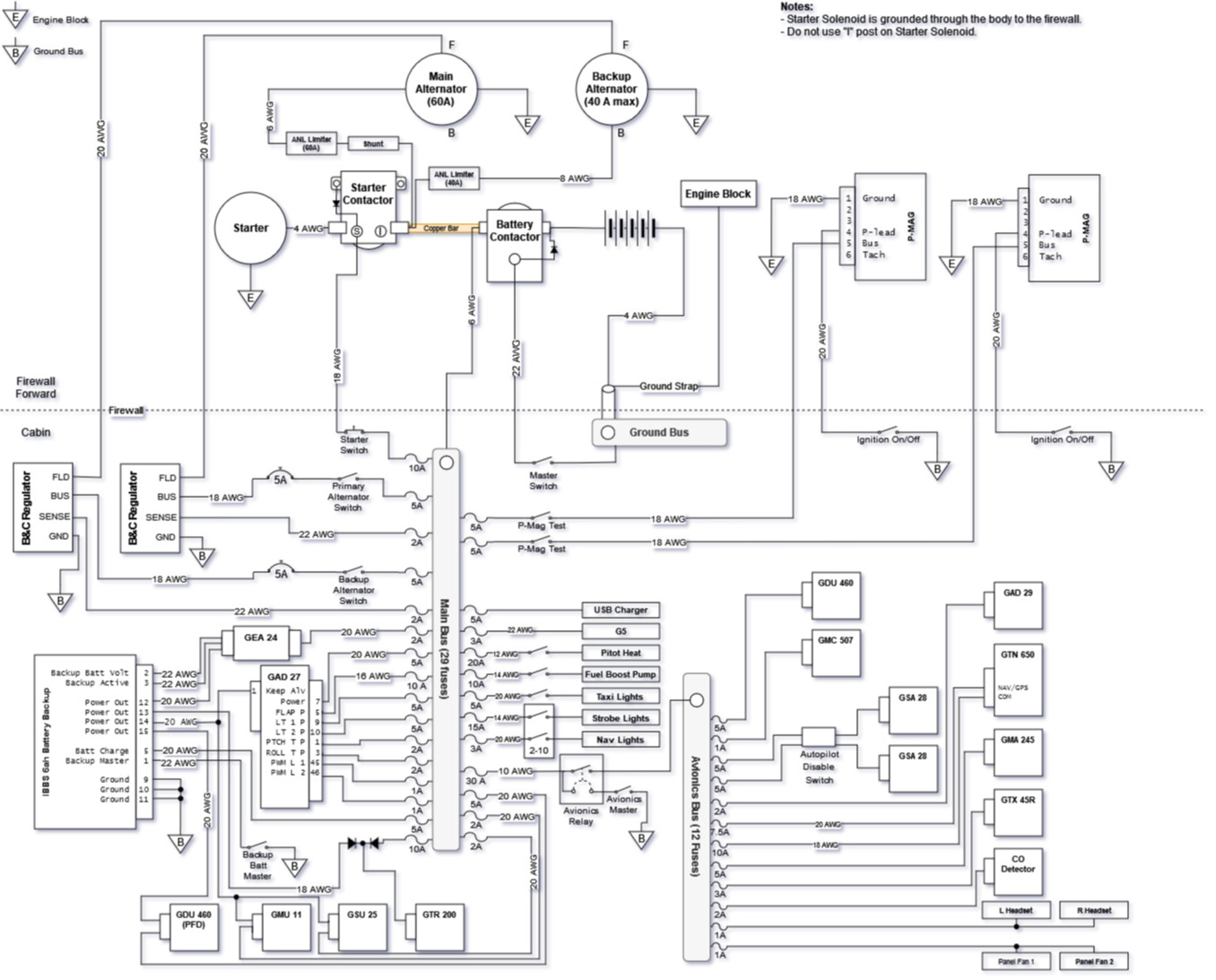

I had a lot of "sitting around" time at work lately, so I started to dive into electrical system planning in a big way. Here's my first stab at the power plan. Two alternators, one main battery, one TCW backup battery, two PMAGs, and a bunch of cool avionics that I can't afford yet.

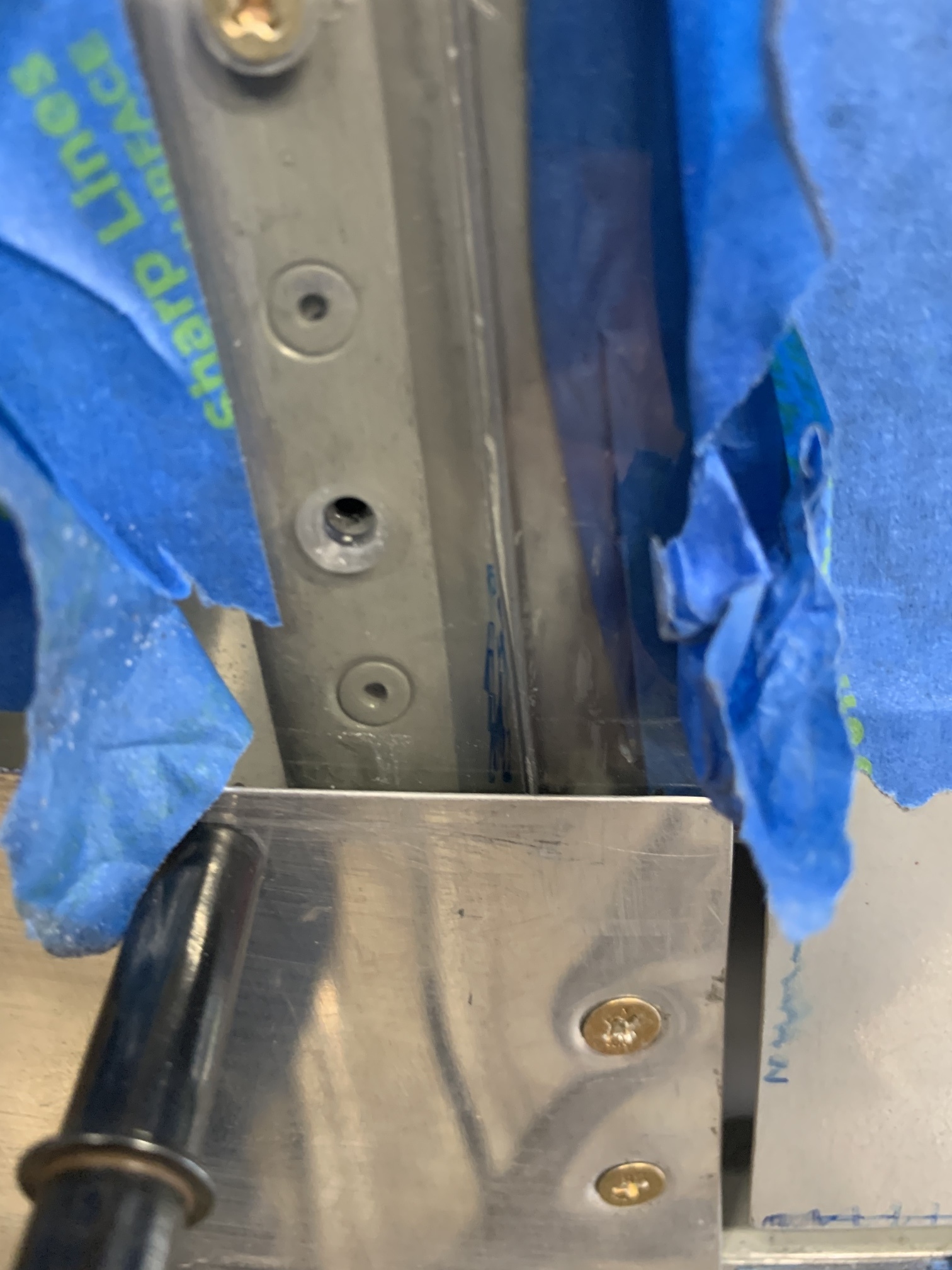

I installed the new longer screws on the canopy handle. Their tails now stick out past the nut the required distance.

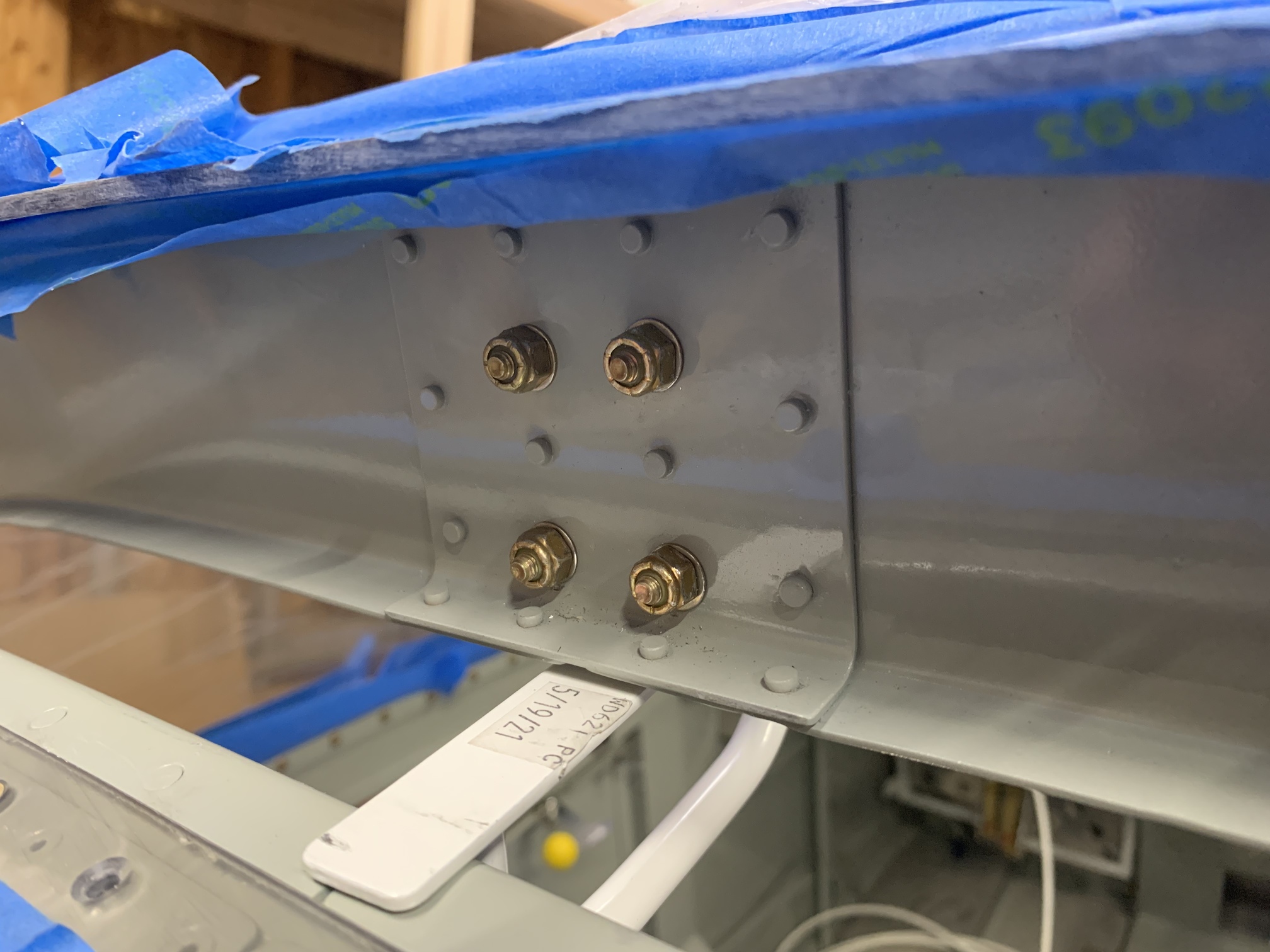

I spent the rest of my short work session today working on fit between the aft window and the canopy. This will be slow and iterative to get the gap to where I want it.
