Saturday July 30, 2022
Canopy Fans (Canopy)
1.9 Hours

Previous - Index - Next

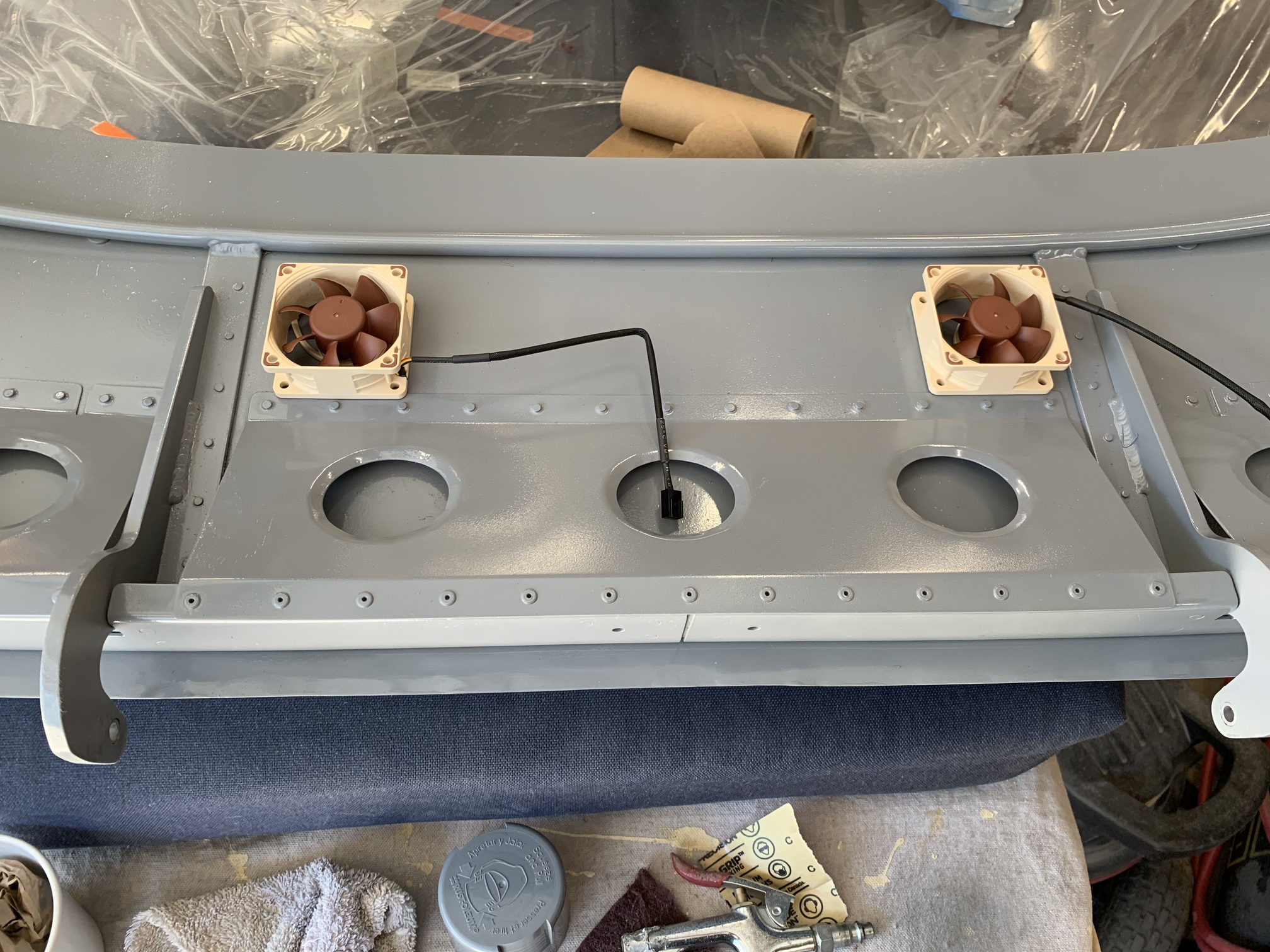

I ordered these Noctua 60mm computer case fans a while back. Here's the general layout I was aiming for.

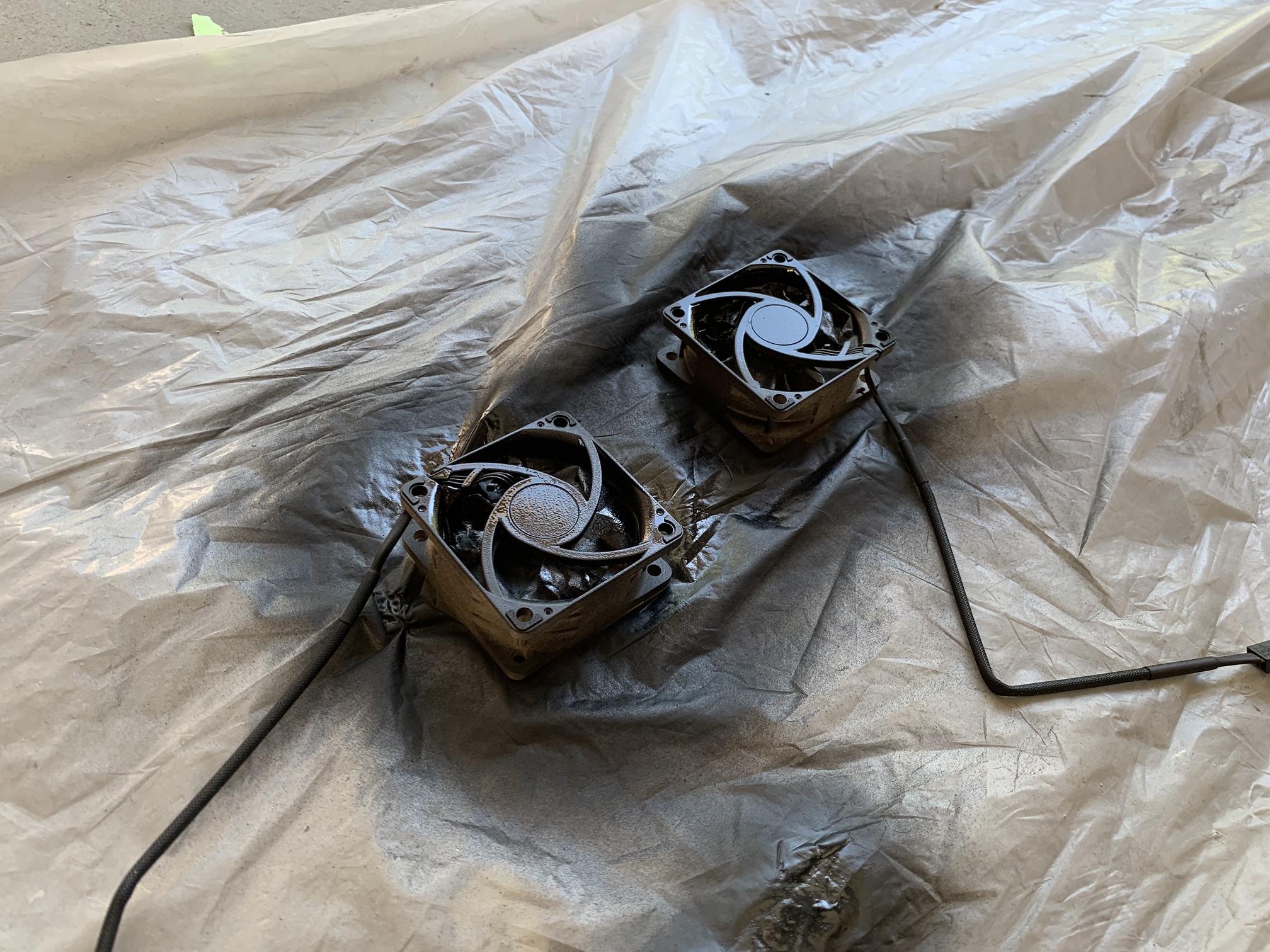

I covered the fan (brown) part with paper and painted them black.

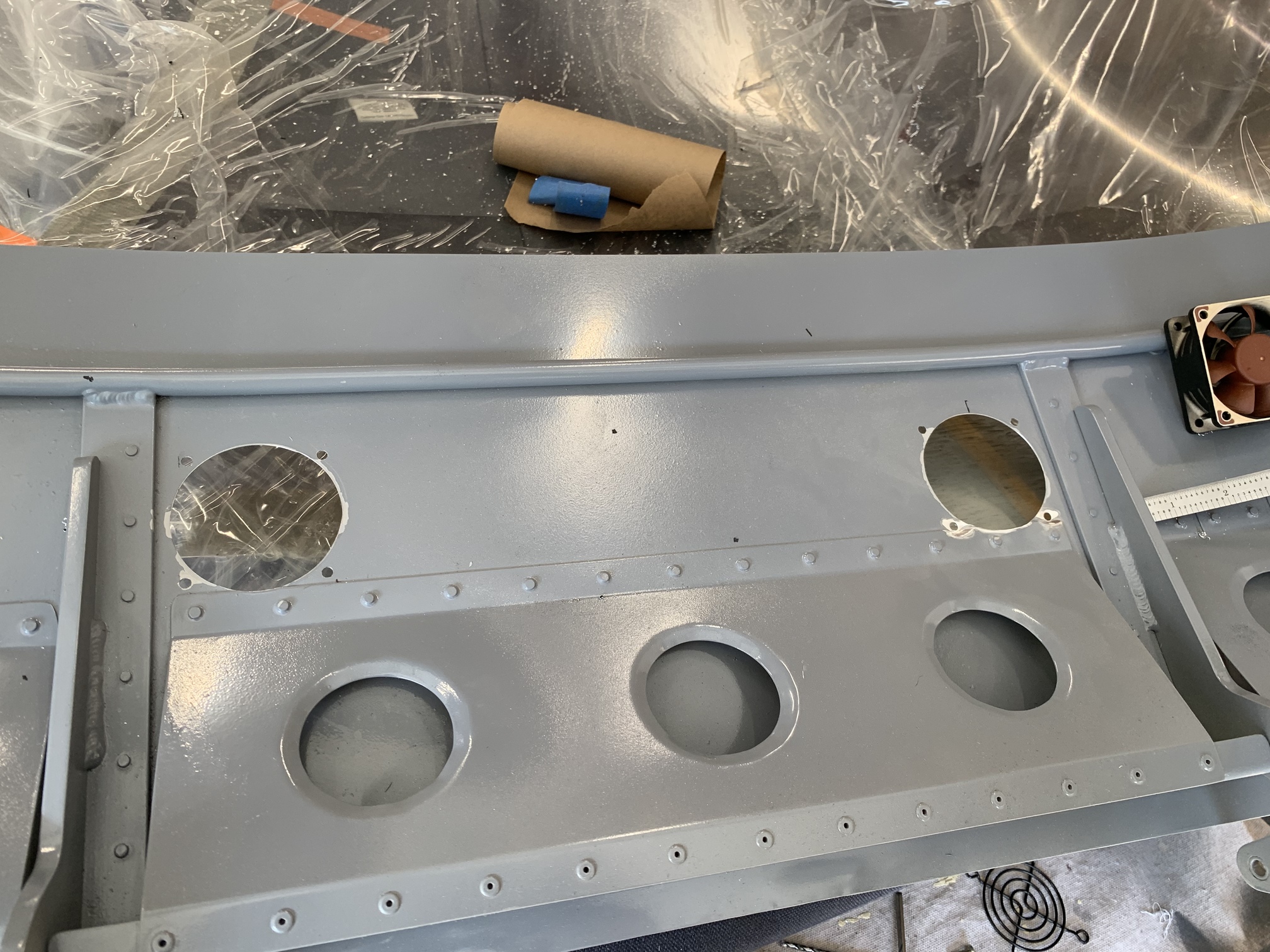

I bought some hole punches and used those to create these holes. Nice and clean. I drilled #19 holes in the corners for screws.

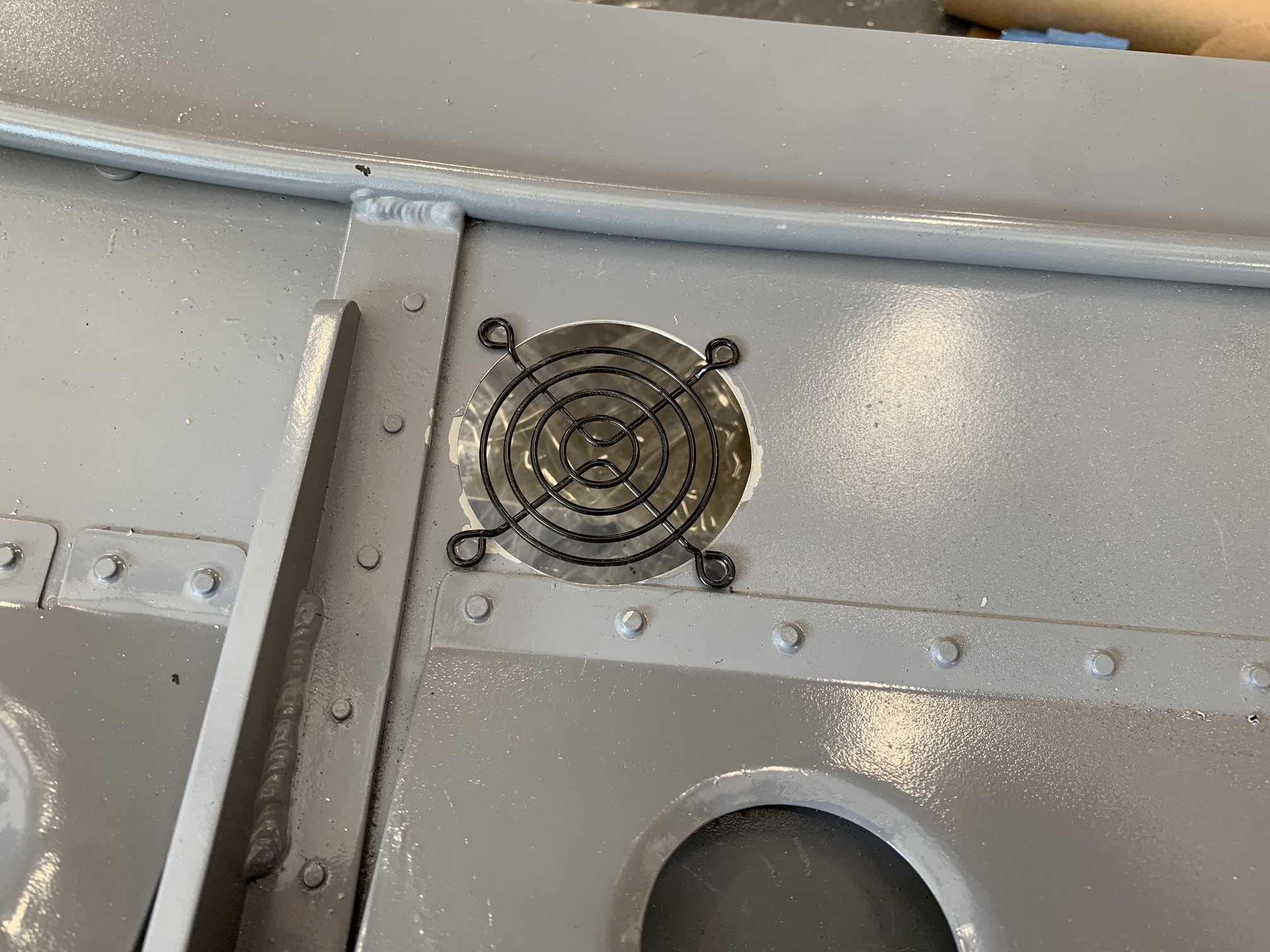

I also found some fan covers for these. They go in the hole first and actually stick through it slightly.

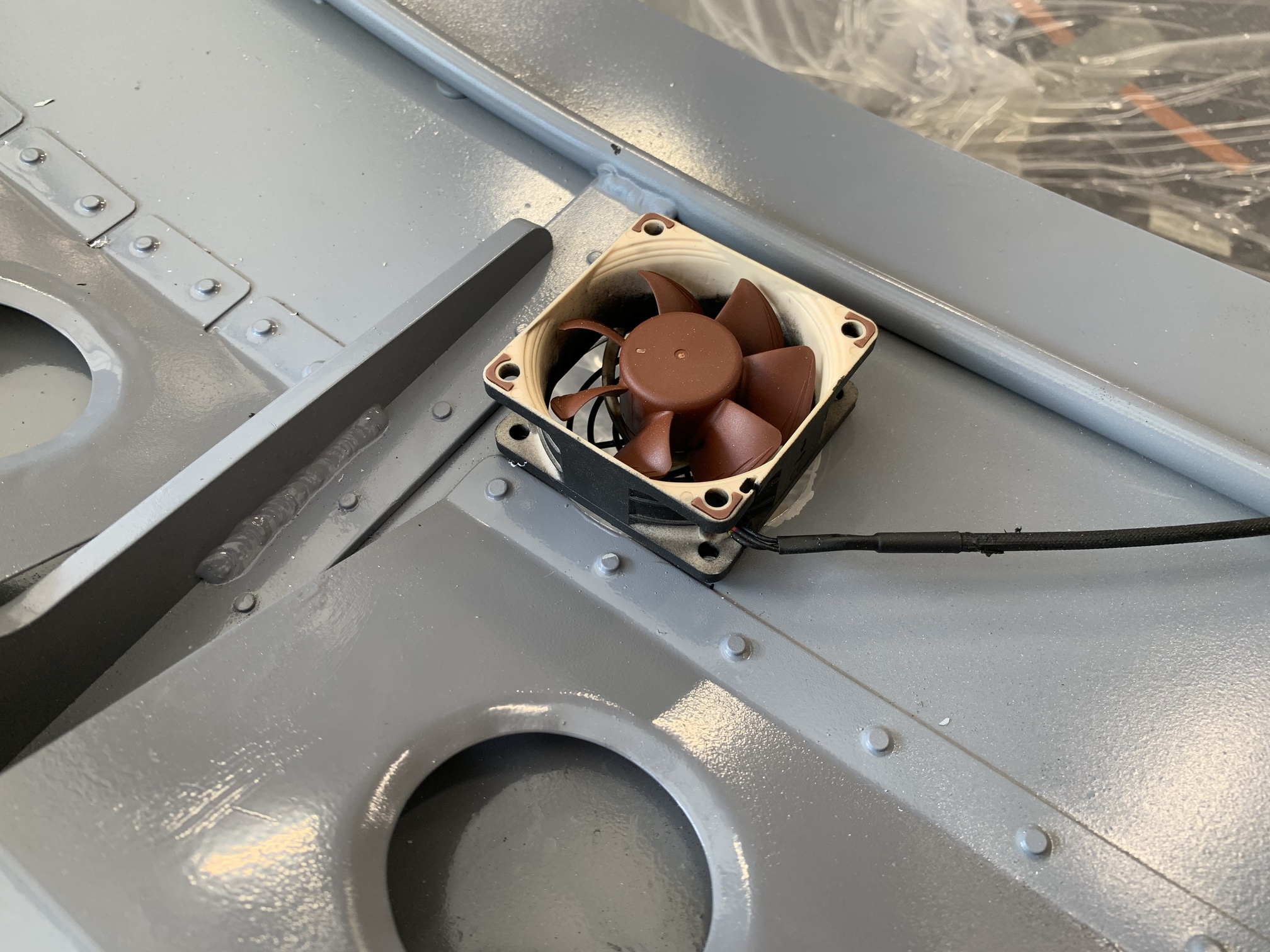

Then the fan sits on top of them.

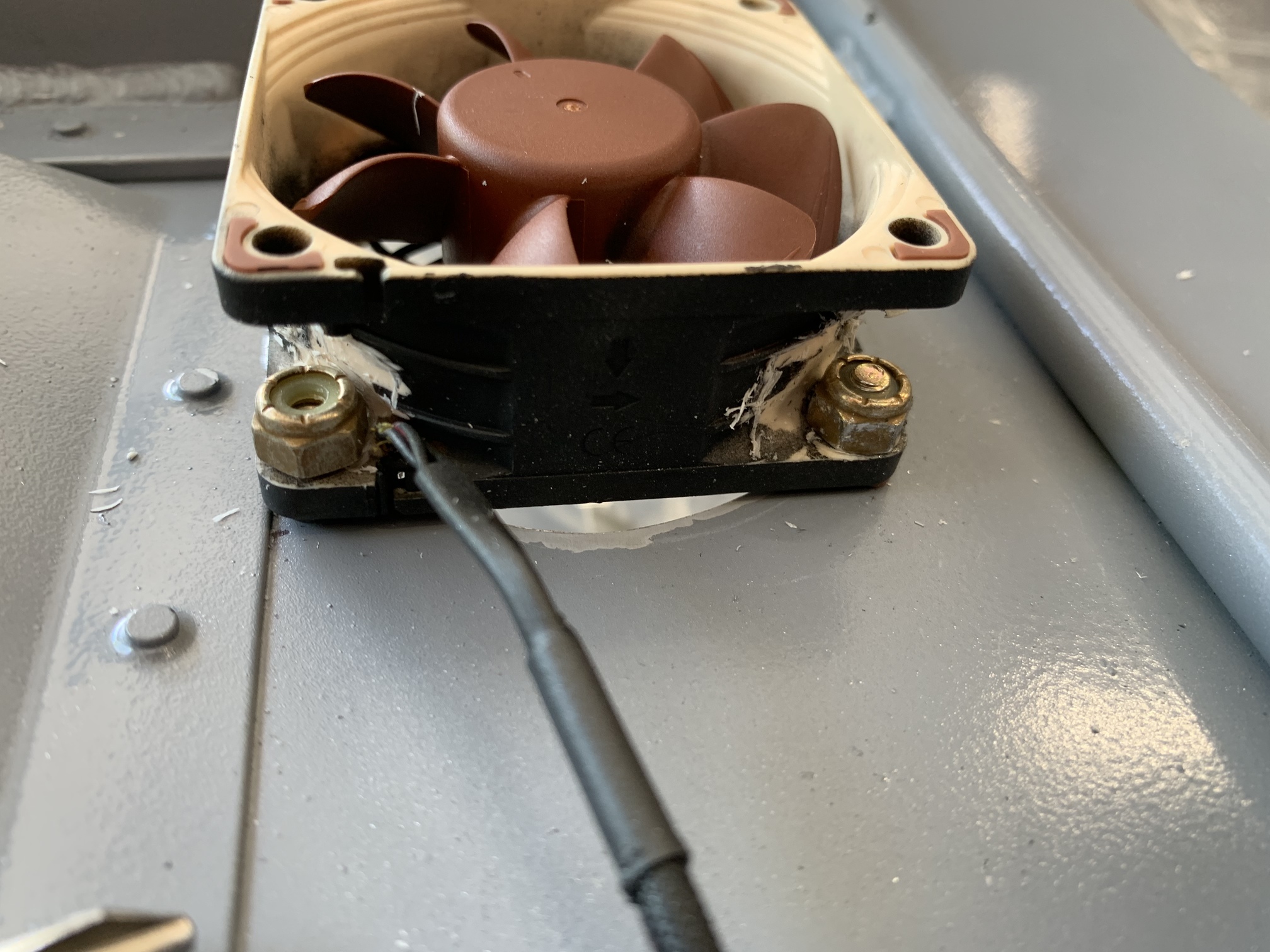

I had to grind down the sides of the fan a bit to make space for the nut on the screw. There is a little bit of a gap on the sides that I will probably cover with some tinted epoxy.

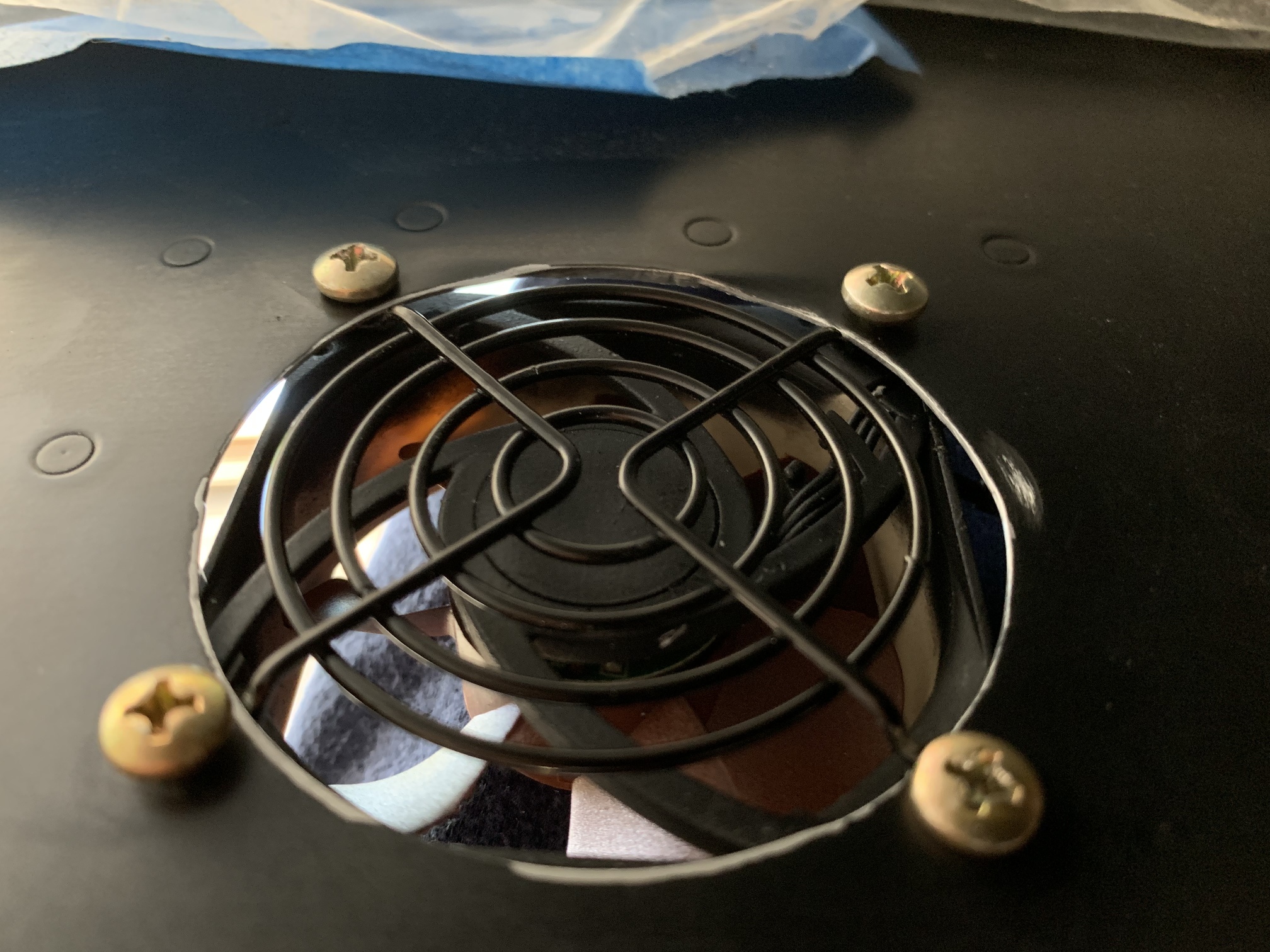

Looks pretty good.

I touched up the paint on the canopy skin and the fans and then called it a day.
