Sunday August 20, 2023
Right Wing Tip Nutplates, Countersinking (Wing Tips)
1.8 Hours

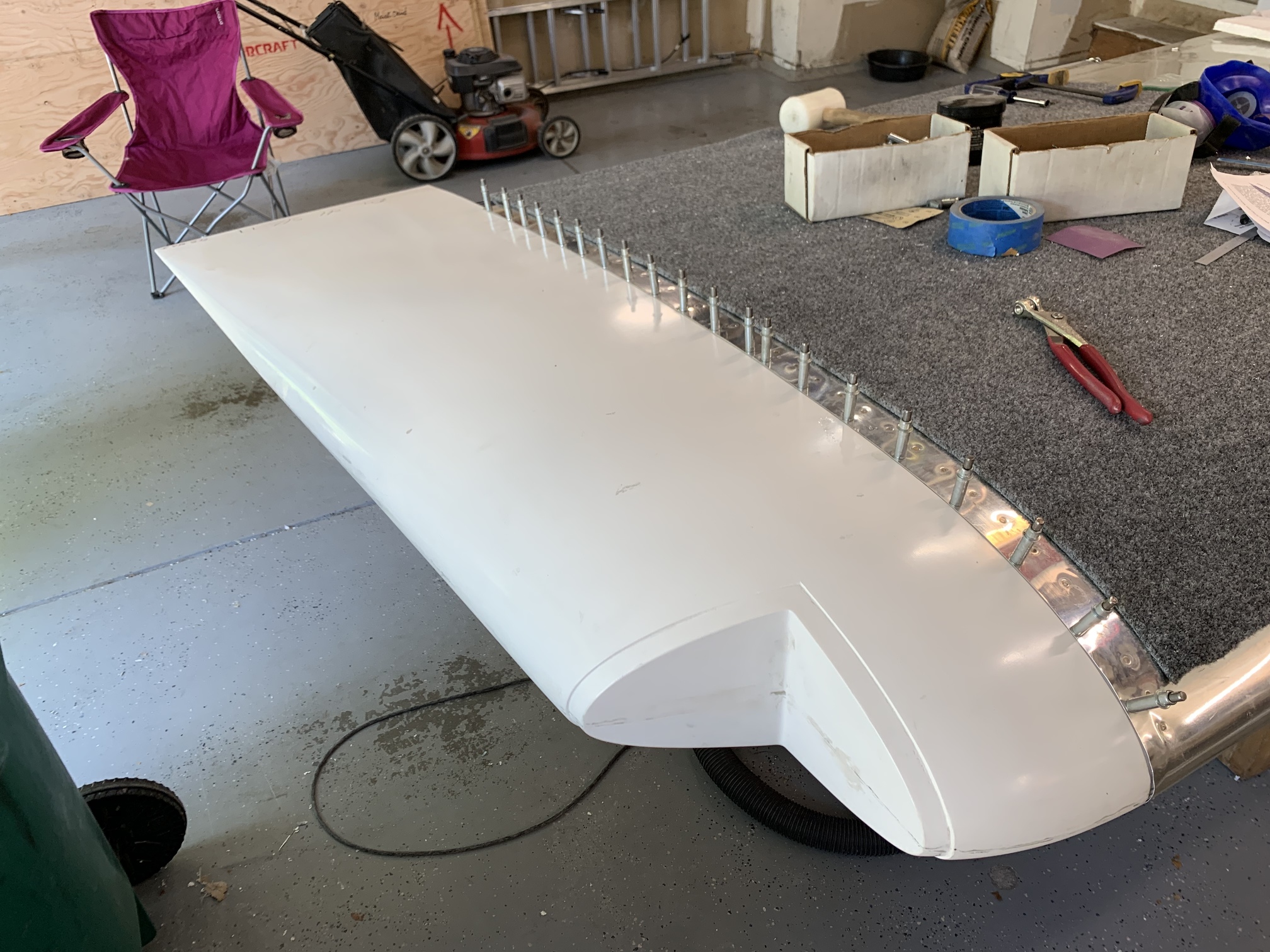

Today I countersunk all of the holes in the wing tip and riveted the nut plates in place. Then I drilled the holes in the wing skin to #27 and countersunk those for the #6 screws. Here's the wing cleco'd in place.

And here it is screwed in place.

The deformation of this tip is much better than the left on the top...I don't think I'll have to do much filling. The bottom has a definitely dip, but I don't know that I need to fill it.
