Thursday December 21, 2023
Firewall Forward Misc (Firewall Forward)
1.8 Hours

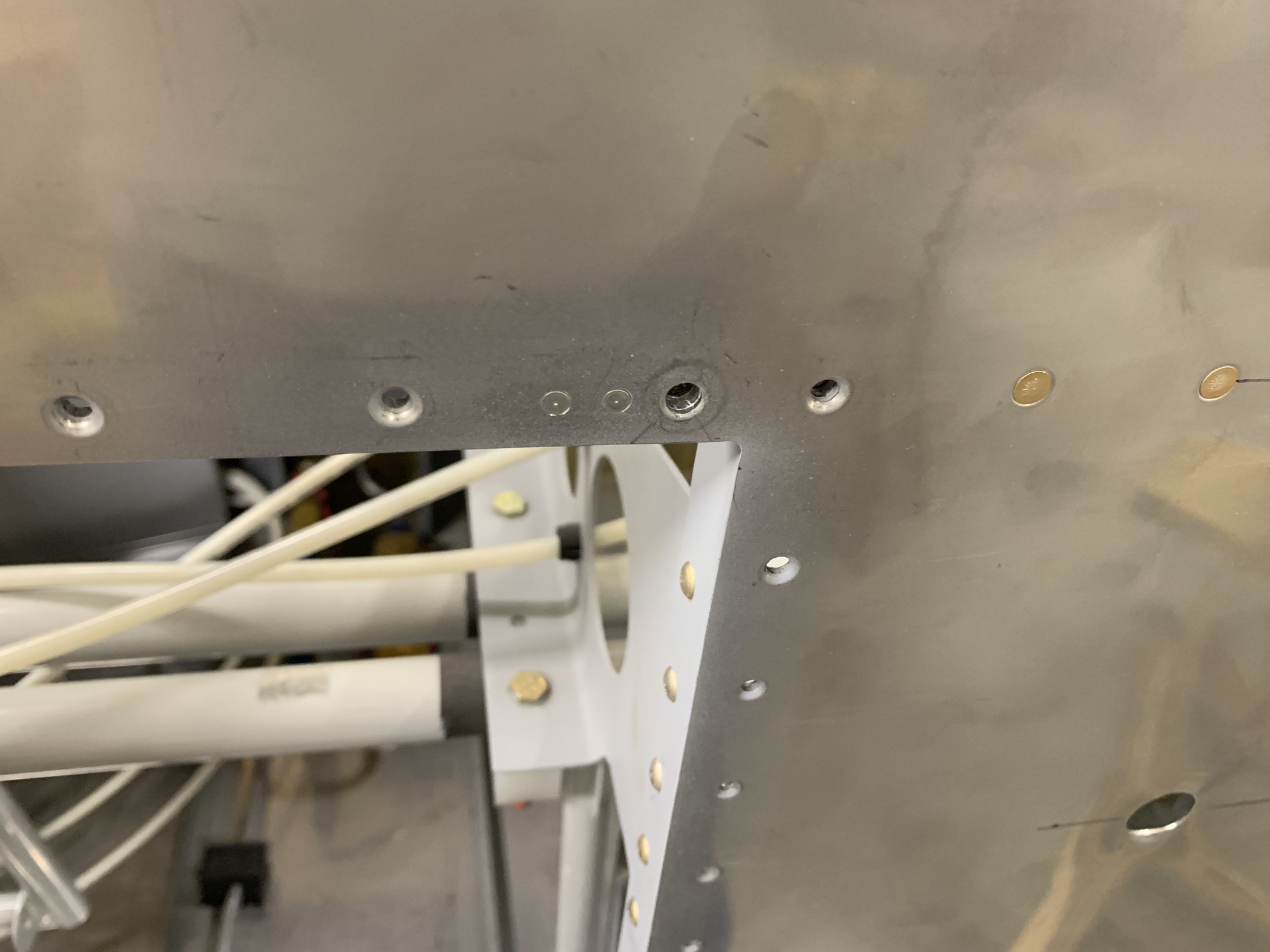

I installed these two one legged nutplates along the top of the firewall recess.

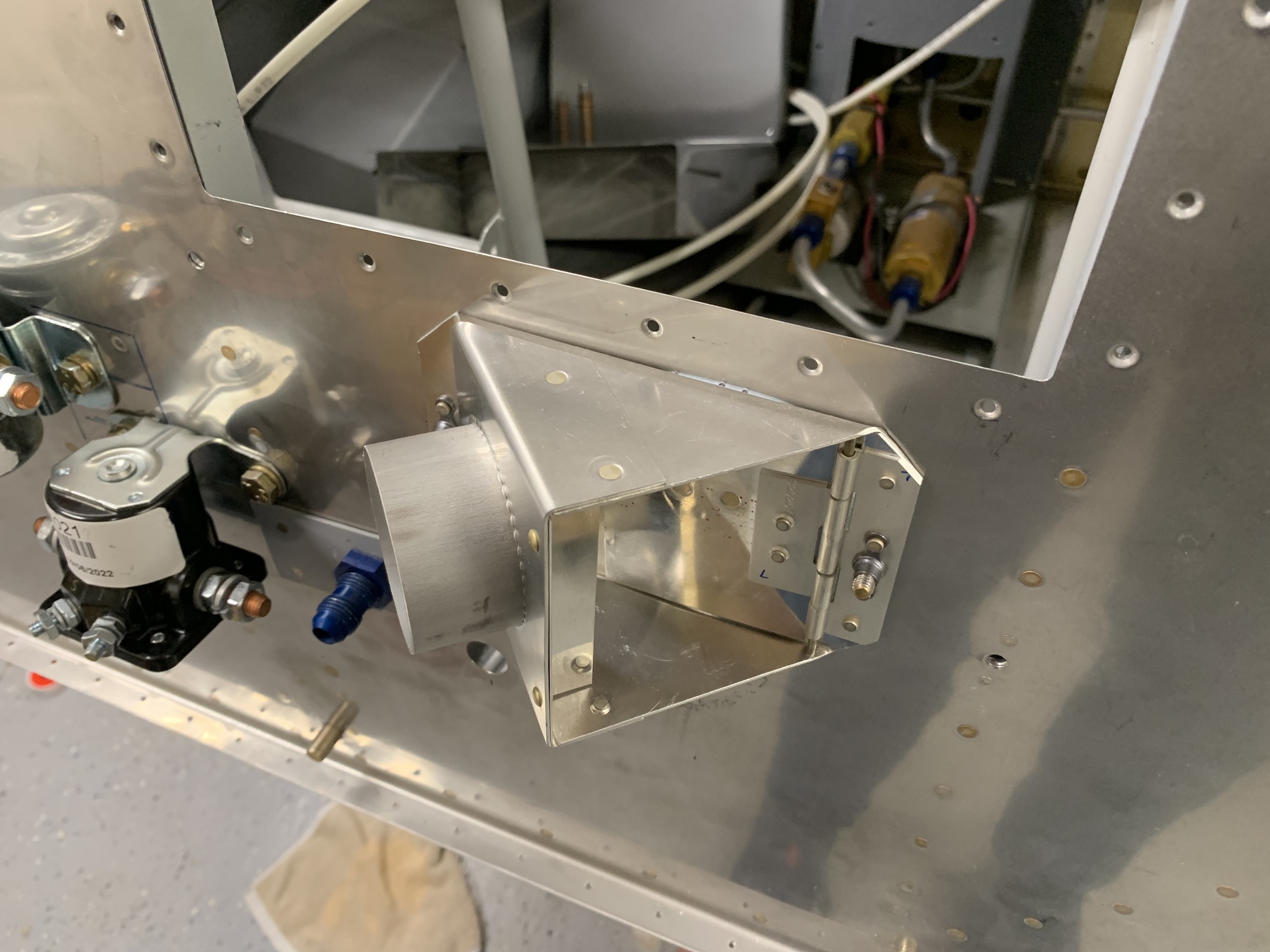

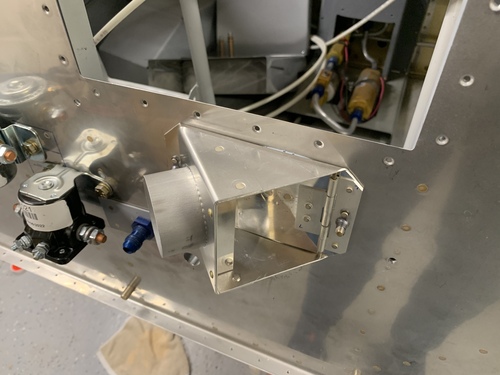

Then I installed the cabin heat pass-through with fire barrier sealant.

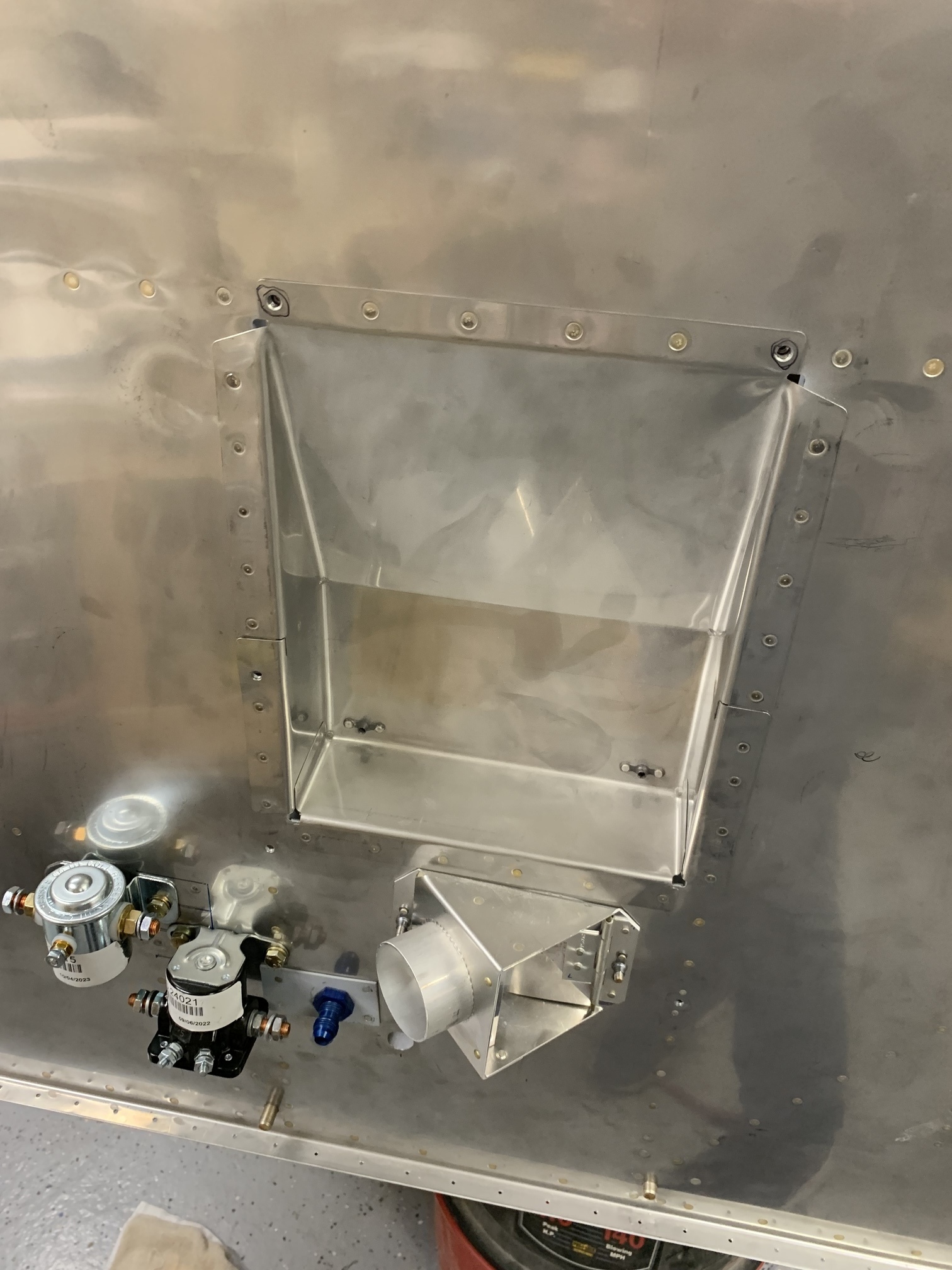

I riveted the firewall recess in place. I managed to drop my bucking bar and cause a ding on the floor of the cabin. Ugh. Fortunately it won't ever be seen by anyone.

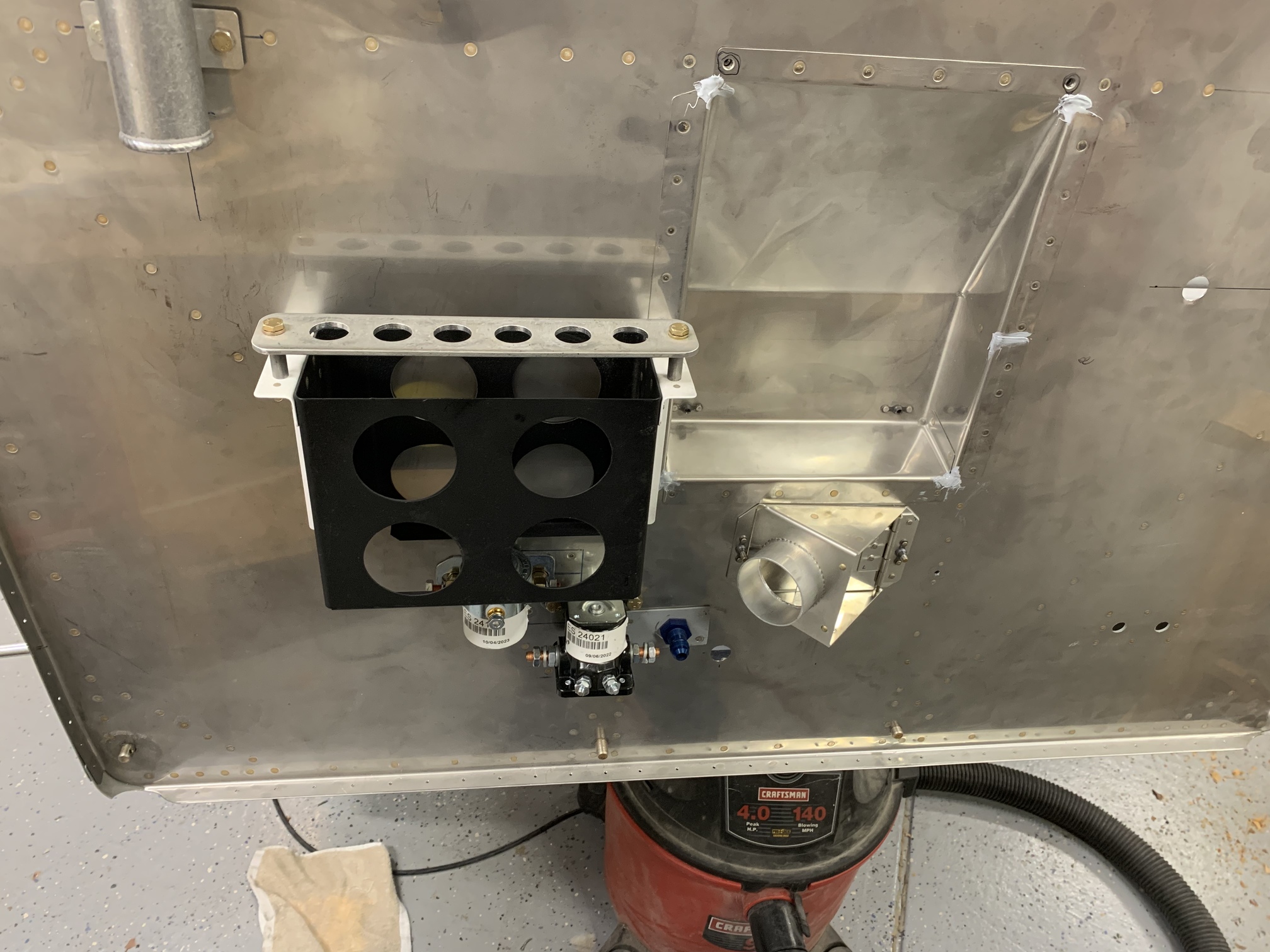

I filled the holes in the recess with sealant and bolted the battery box in place.

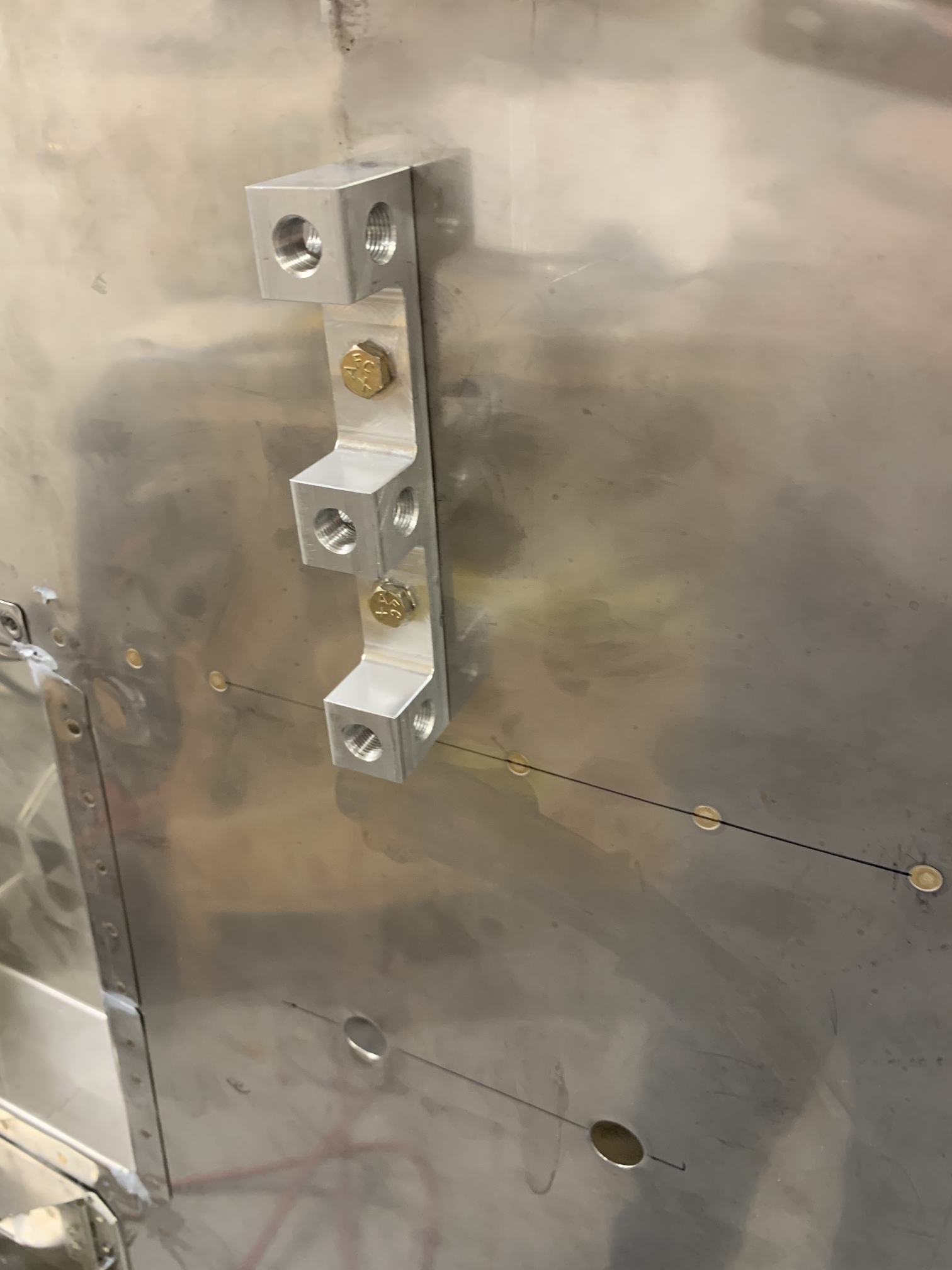

I drilled and bolted this manifold for various pressure measurements.
