Saturday April 20, 2024
Firewall Electrical Misc, Headset Jacks
(0.5 Hours Electrical, 1.0 Hours Firewall Forward)
1.5 Hours Total

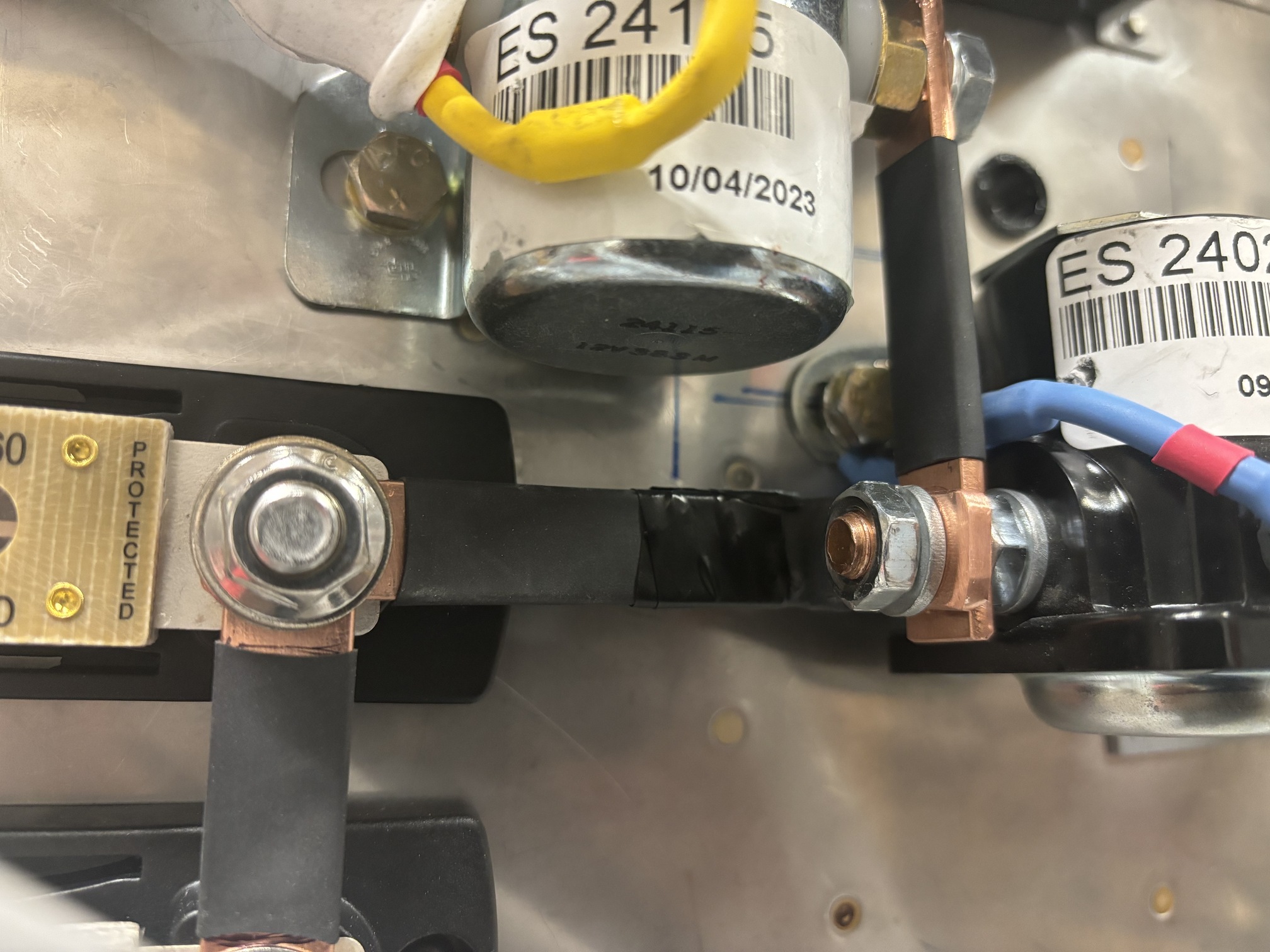

I added some heat shrink to the copper bars and reinstalled them.

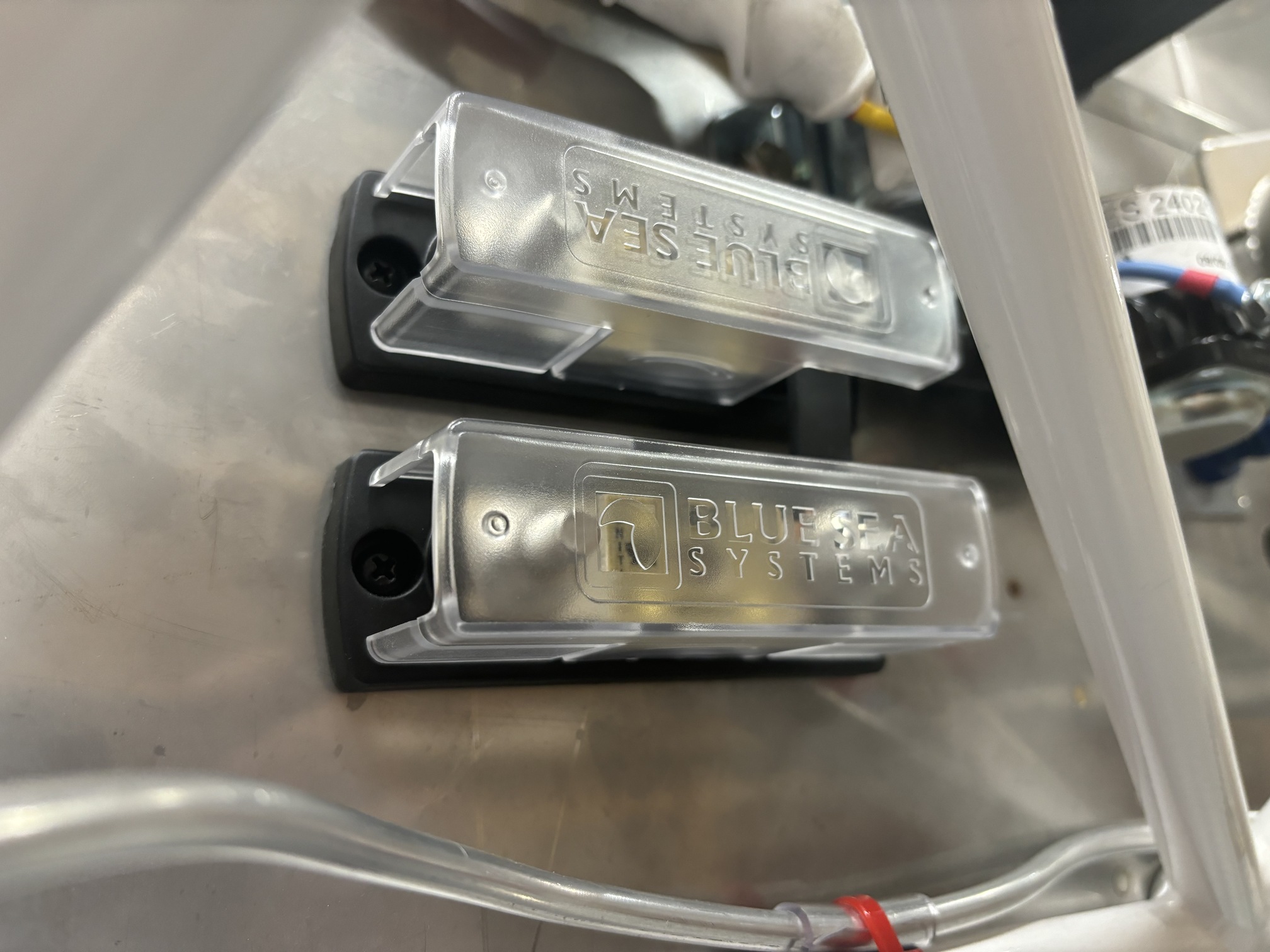

The ANL fuse holders came with covers that I installed.

Also for fun, I used my cordless drill battery to test the battery solenoid and it clicks away perfectly.

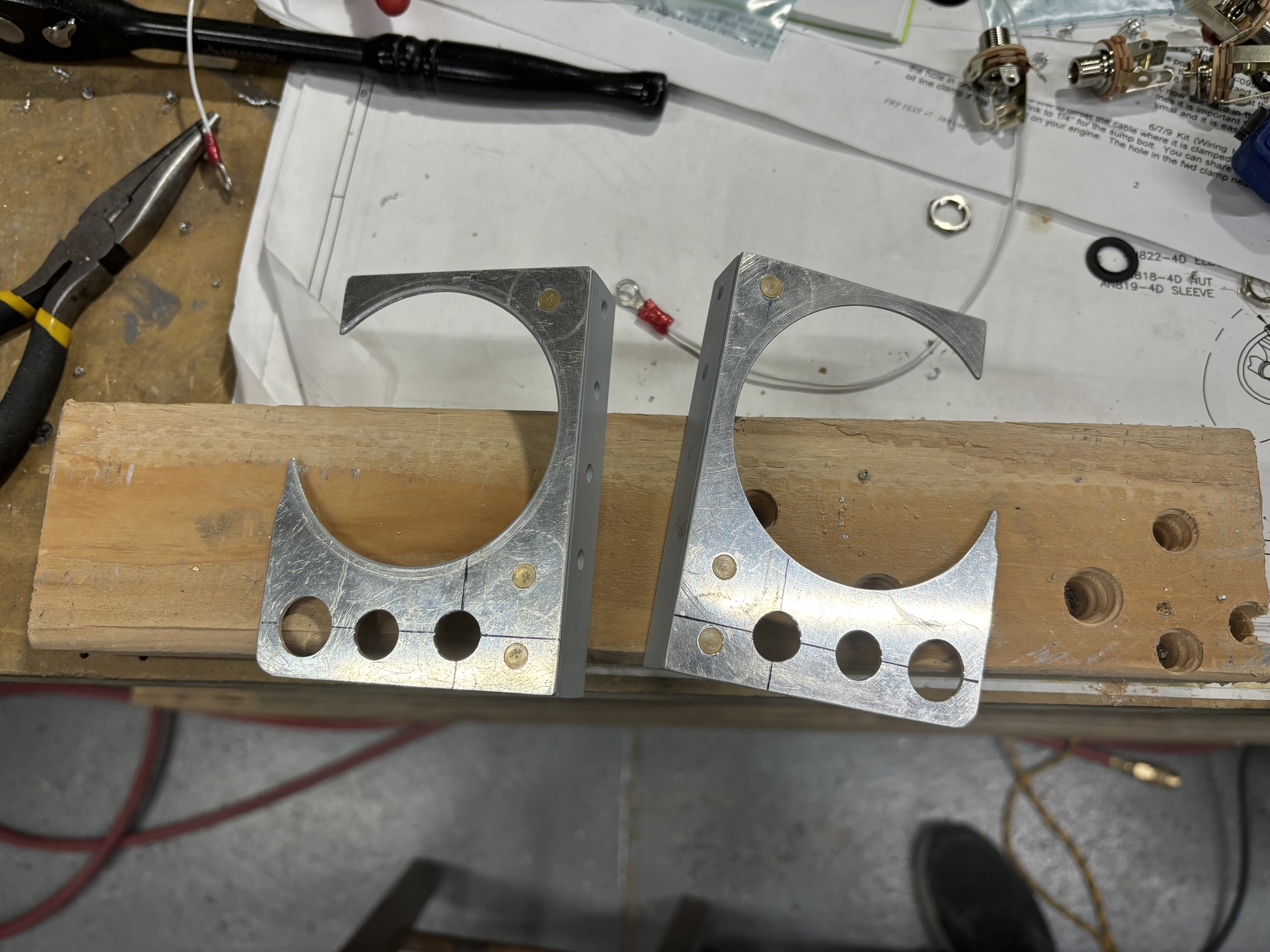

Then I got out the custom cabin vent brackets I had made a few years ago. At the time, I had left extra space on the bottom of them for headset jacks and I got to work making holes for those.

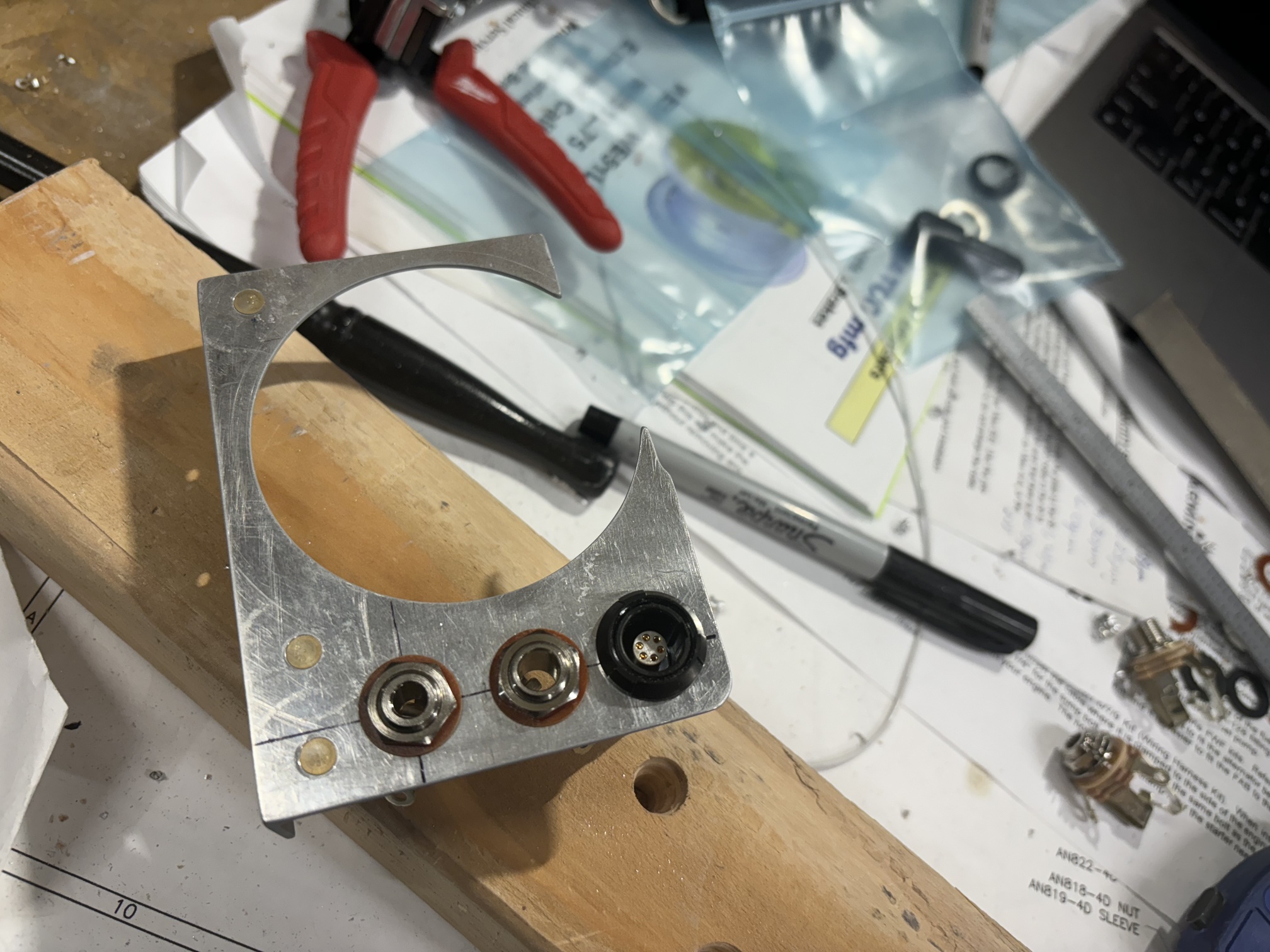

The black one is a LEMO jack (a Bose 6-pin connector that supplies audio, mic, and power in one connector) and the two others are standard aviation mic and headset jacks. I will wire them all together so each side can use either one.

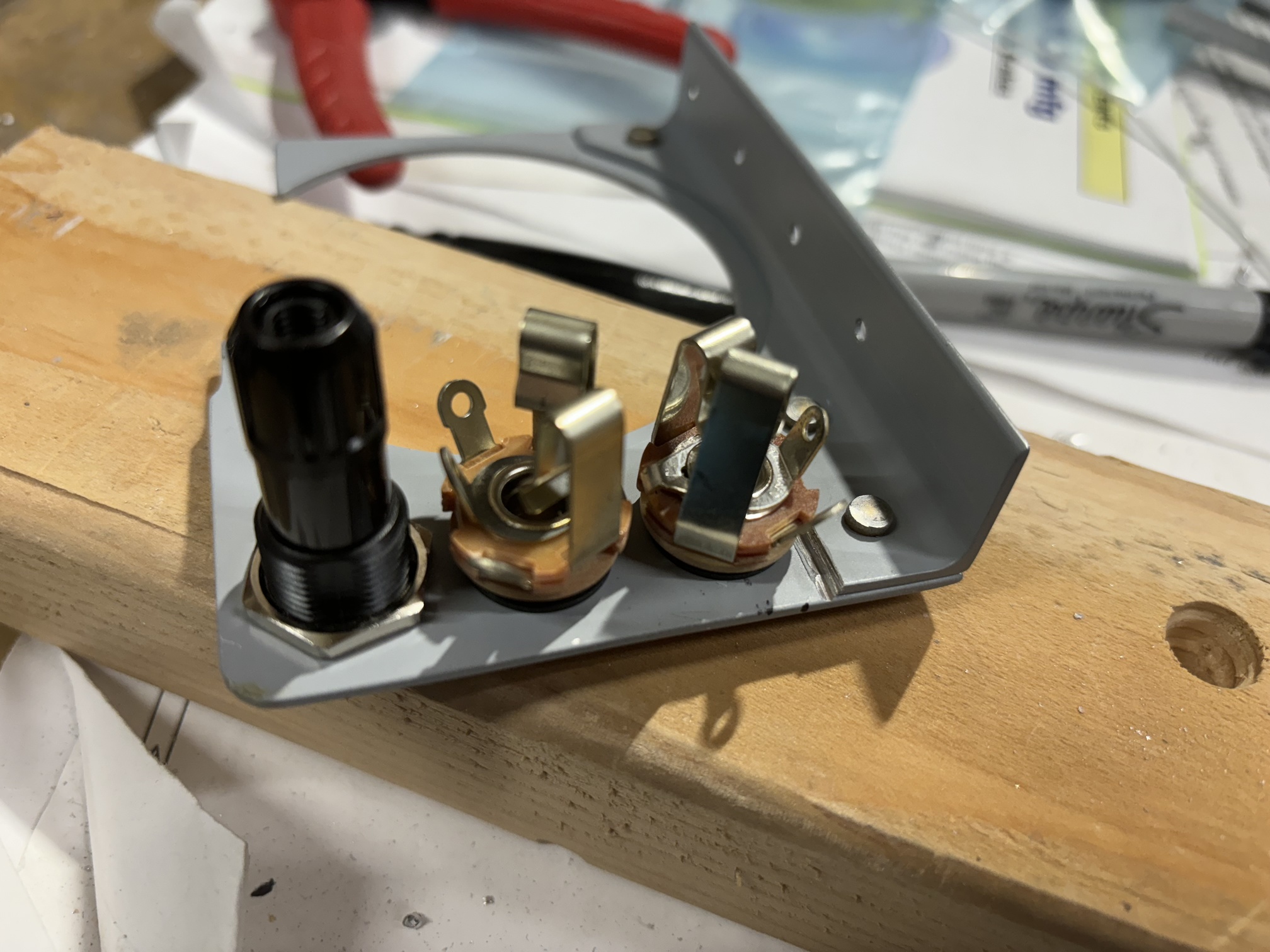

It's a little bit of a tight fit, but it works. I used the fiber washers to give ground isolation between the jacks and the brackets.

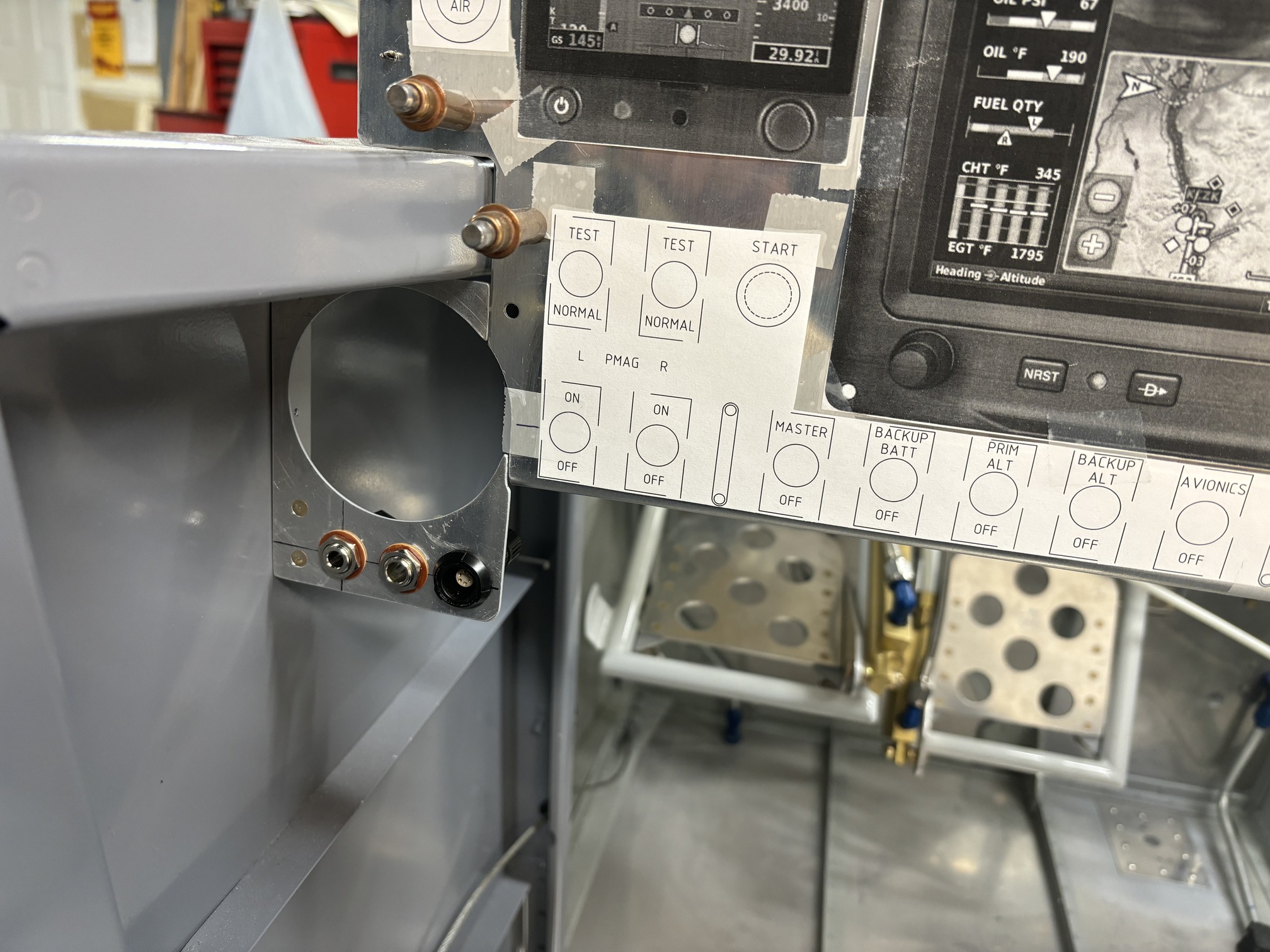

And here's the pilot's side bracket in place in the cockpit.
