Monday April 29, 2024
Instrument Panel Drilling, Measuring (Forward Fuselage)
1.0 Hours

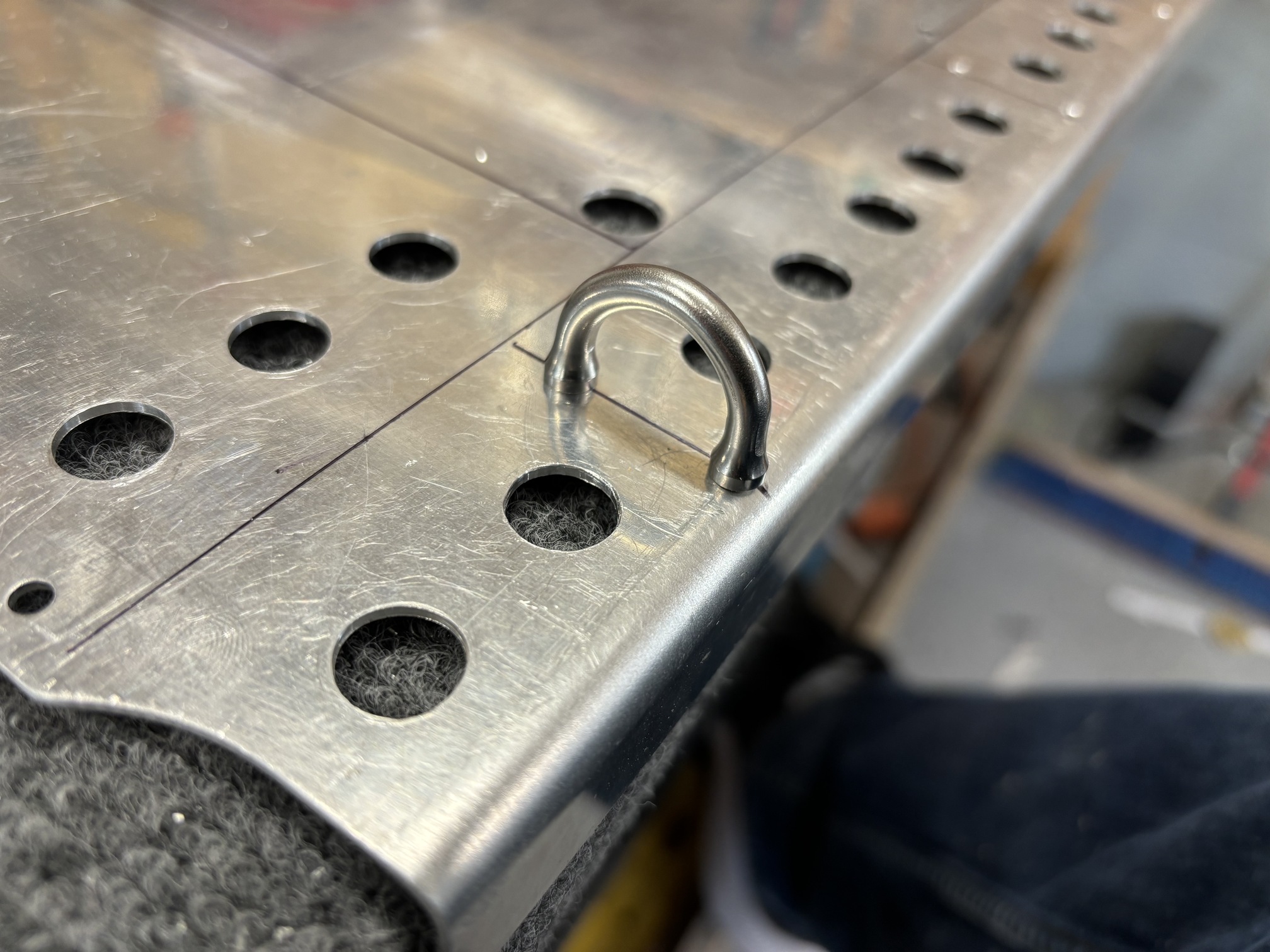

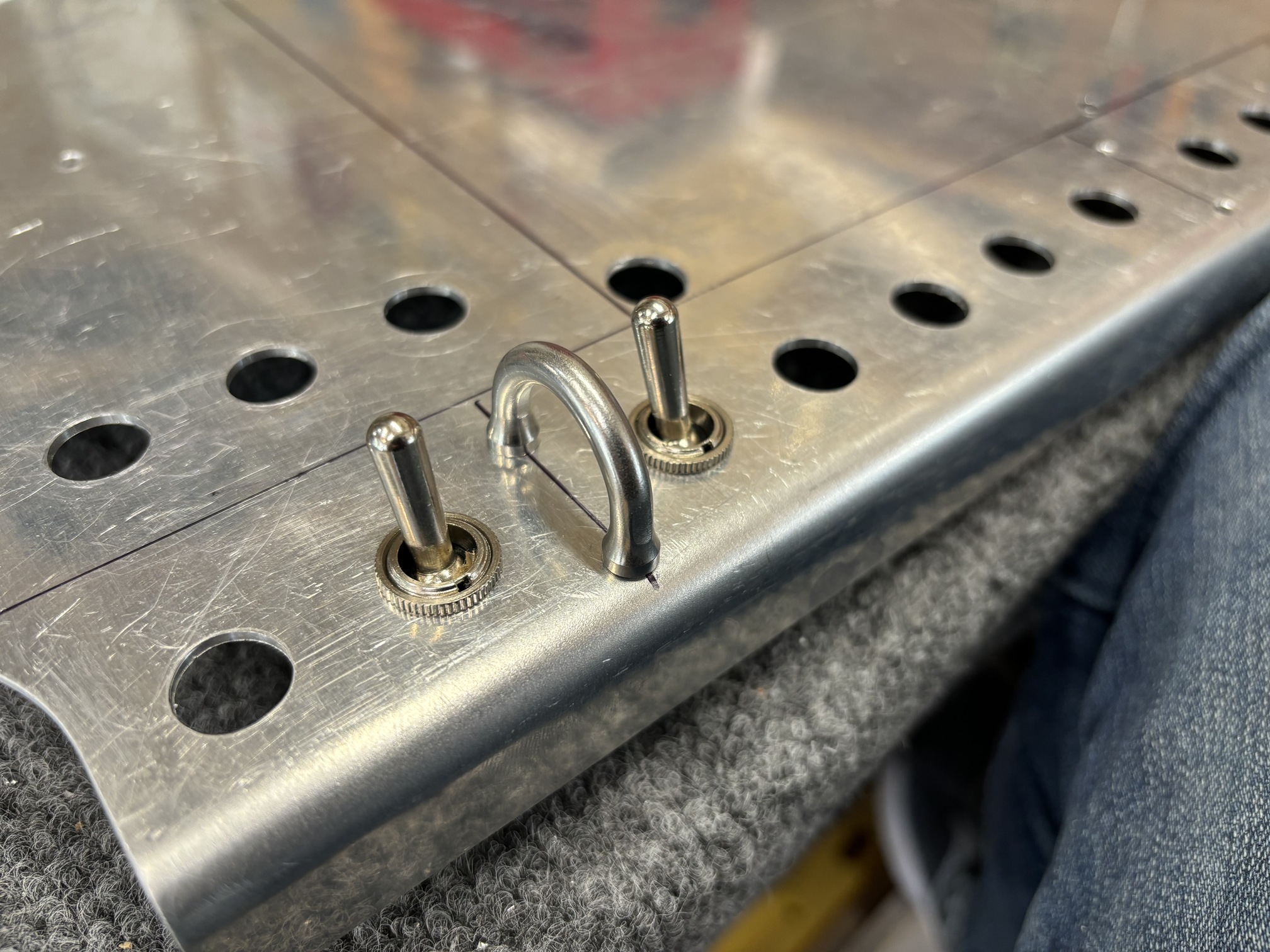

I plan to put these switch guards between logical groups of switches on the panel, so I drilled the holes for these to attach. I made a little template and they all came out nicely.

This will be nice.

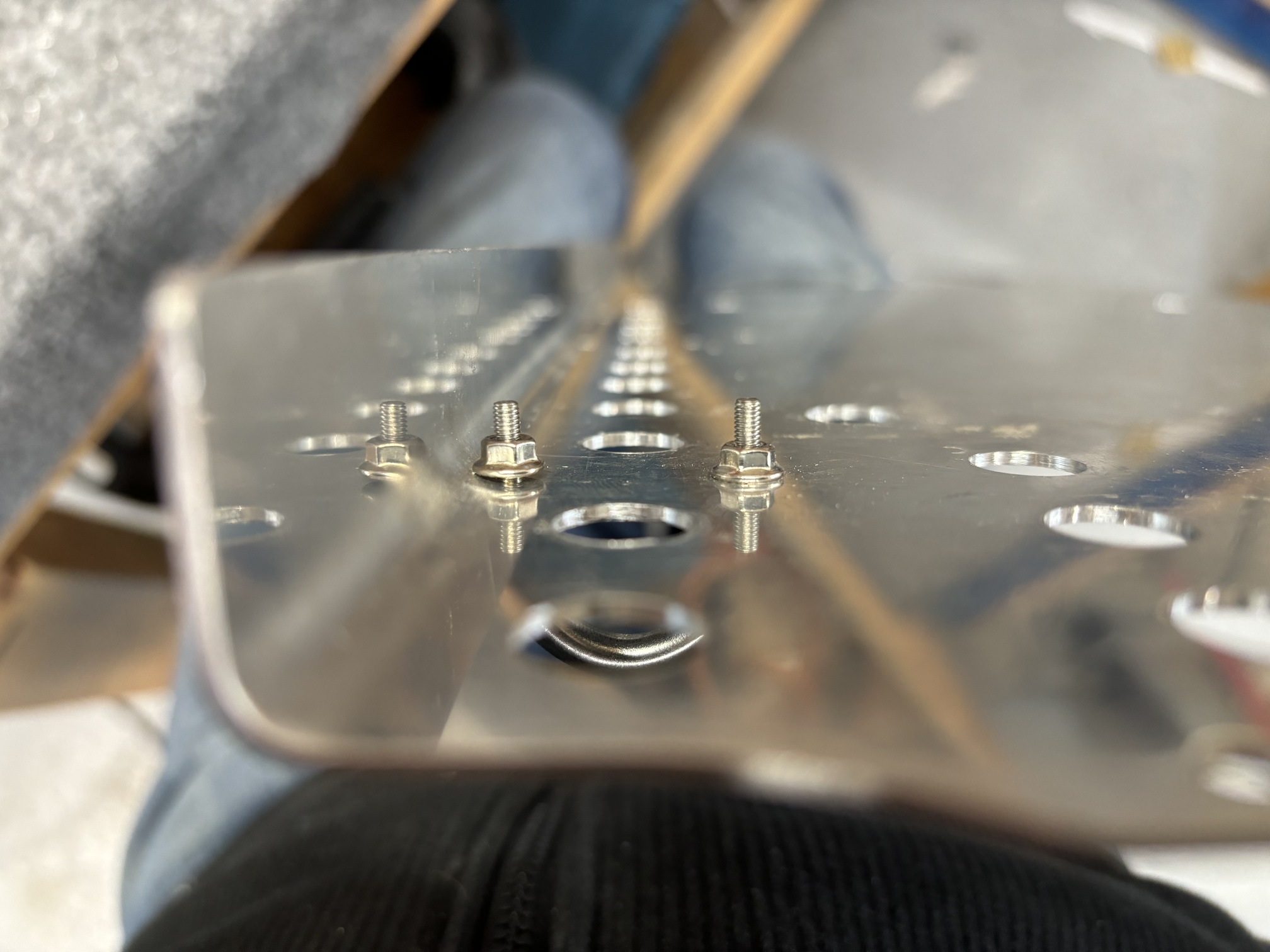

The only issue is that due to how low my switches are on the panel, the lower attachment on these guards ends up in the curved part of the bottom of the panel. I will need to make little spacers or something for these.

I also spent a lot of time confirming that the lines for the MFD cut-outs were straight and square.
