Sunday June 16, 2024
Cowl Reflective Tape, More New Rudder Work
(1.0 Hours Firewall Forward, 4.3 Hours Rudder)
5.3 Hours Total

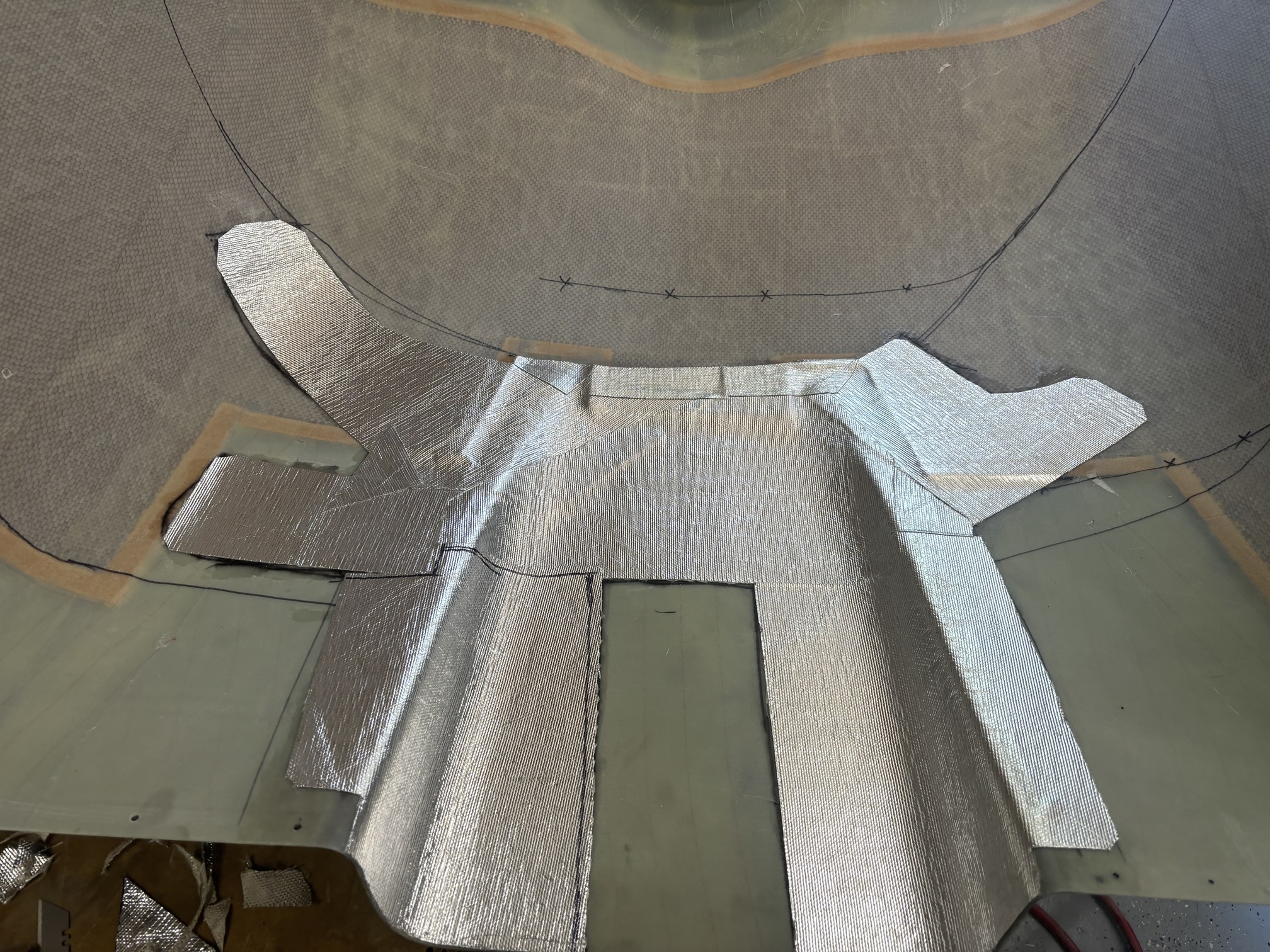

Today I applied the heat insulation to the bottom cowl where it's close to the exhaust.

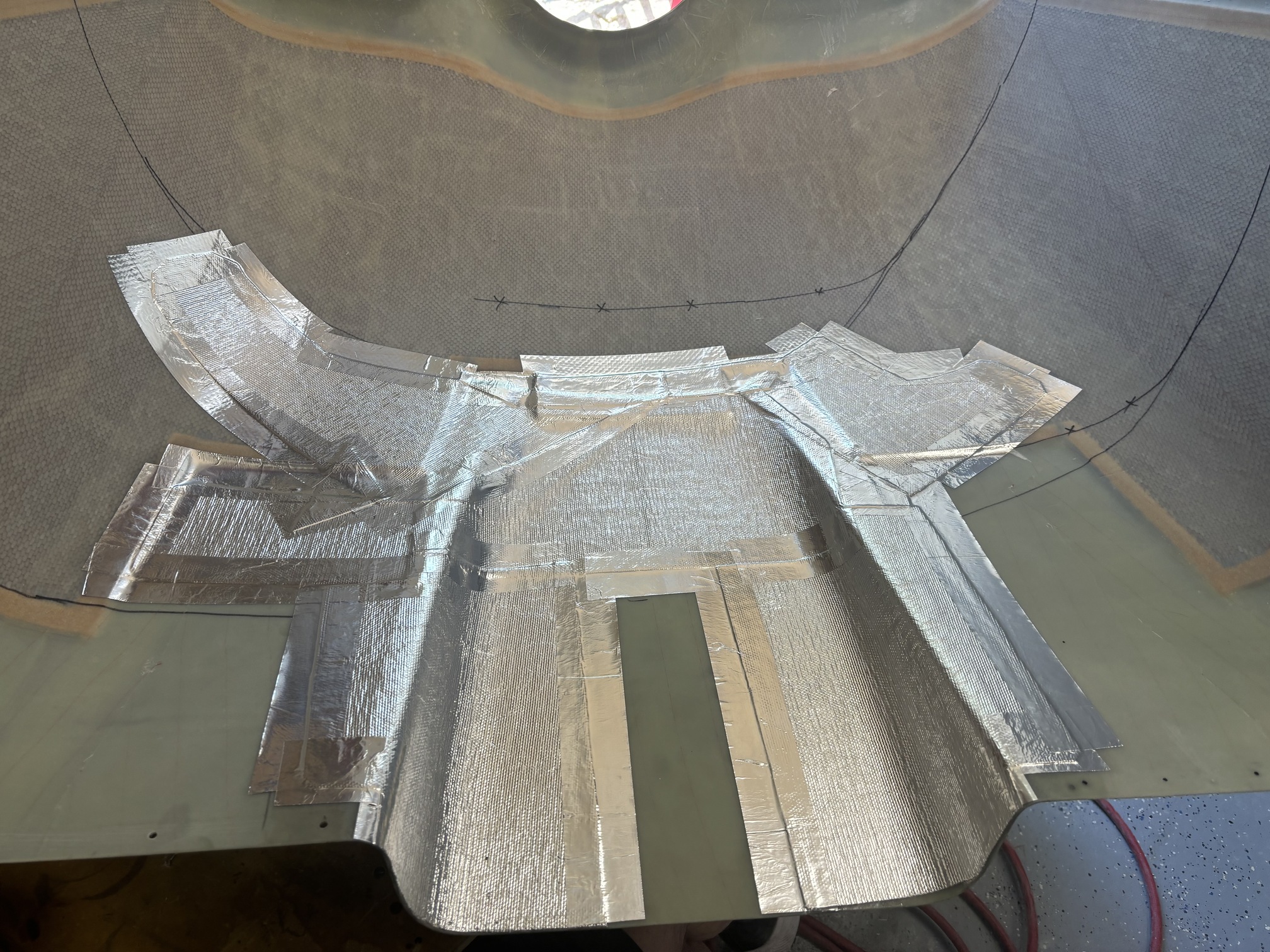

Then I applied reflective silver tape to the edges to keep it from peeling over time.

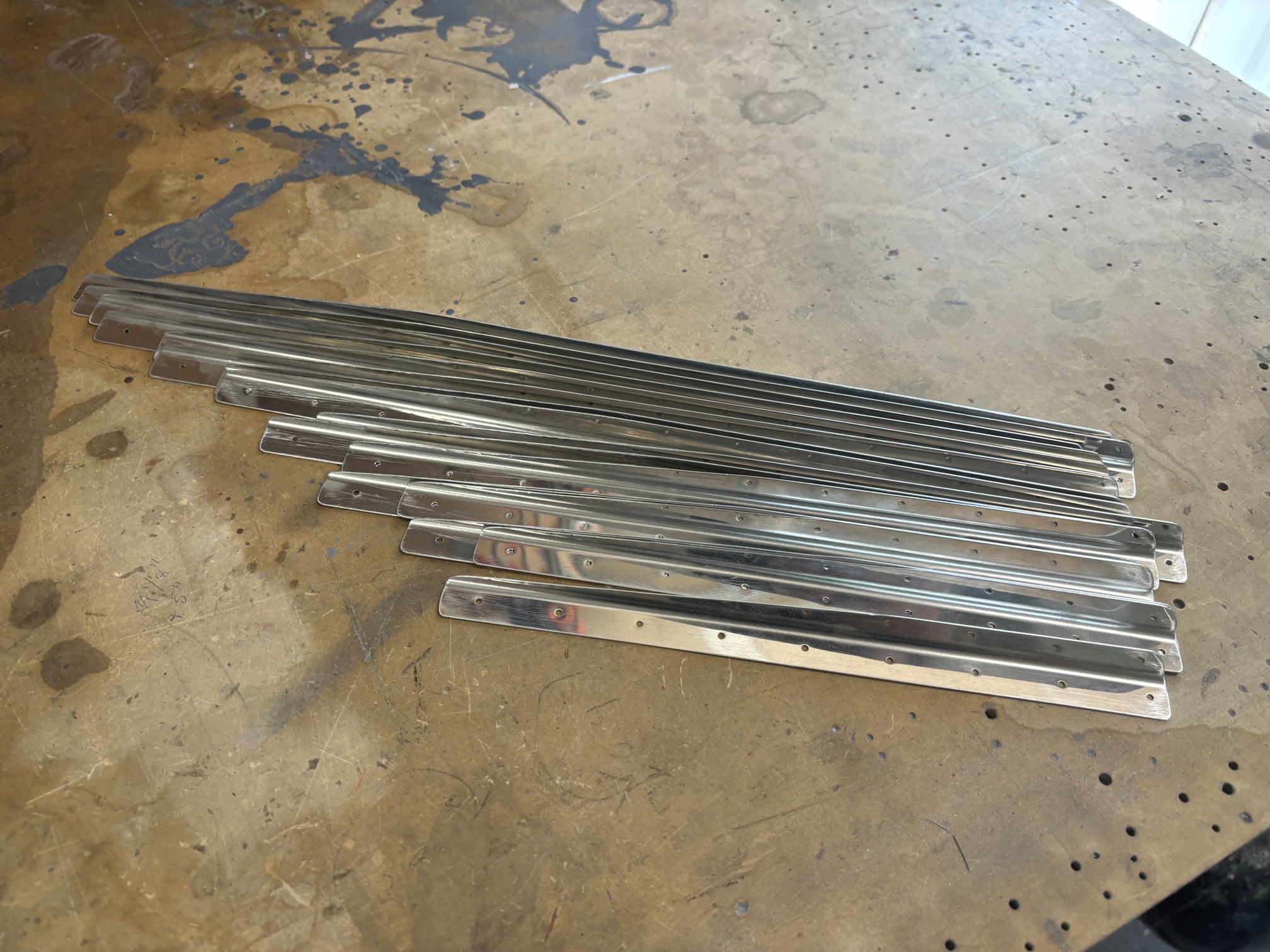

I got all of the rudder stiffeners polished up on the trim lines.

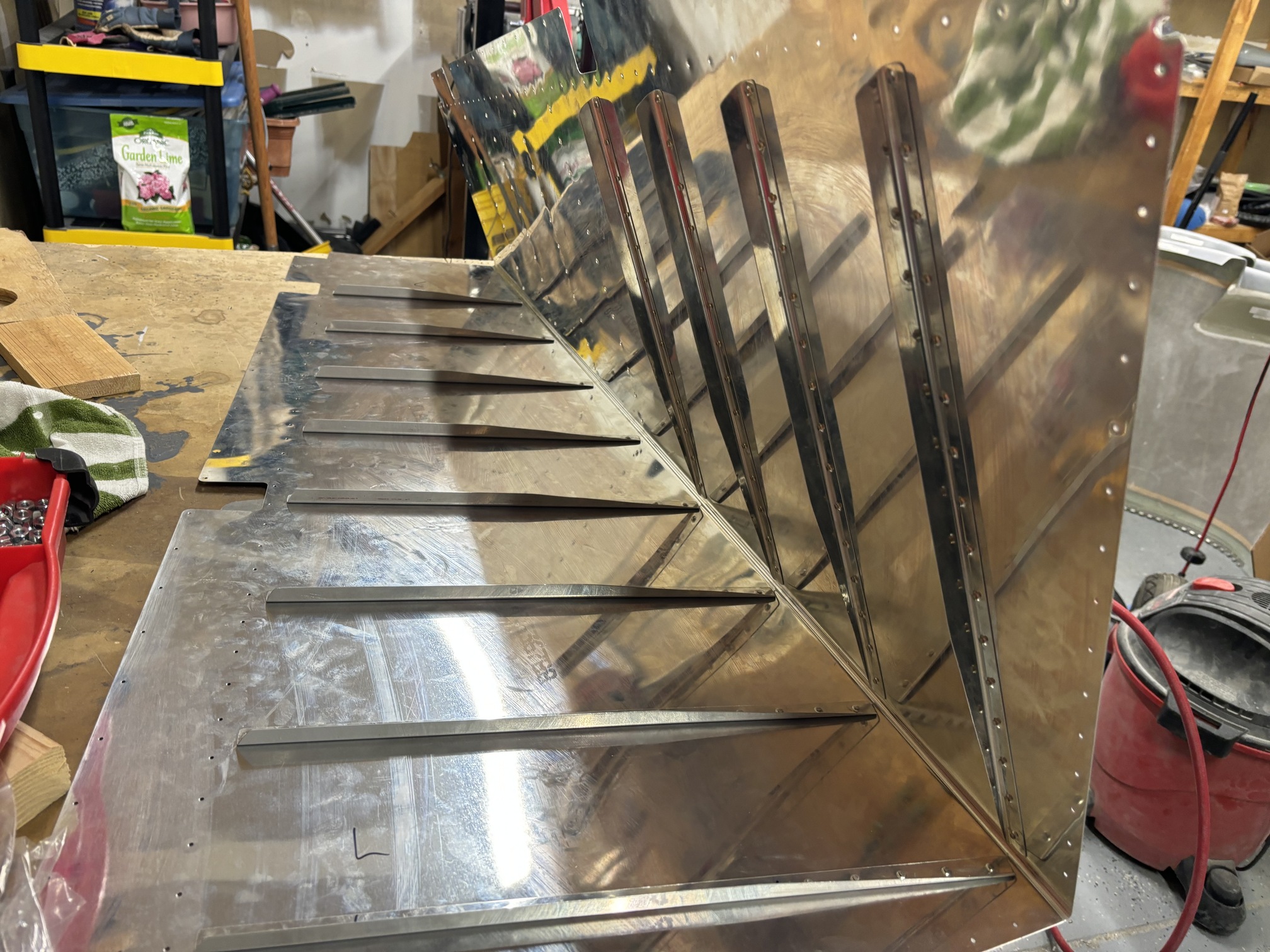

Then I drilled, deburred, and dimpled all of the holes from stiffeners to skin. I primed the bottoms of the stiffeners. Finally, I riveted most of the stiffeners to the rudder skin. It's been a long time since I did any back riveting.
