Saturday June 22, 2024
Rudder Bending/Drilling, More Baffles
(2.0 Hours Firewall Forward, 1.0 Hours Rudder)
3.0 Hours Total

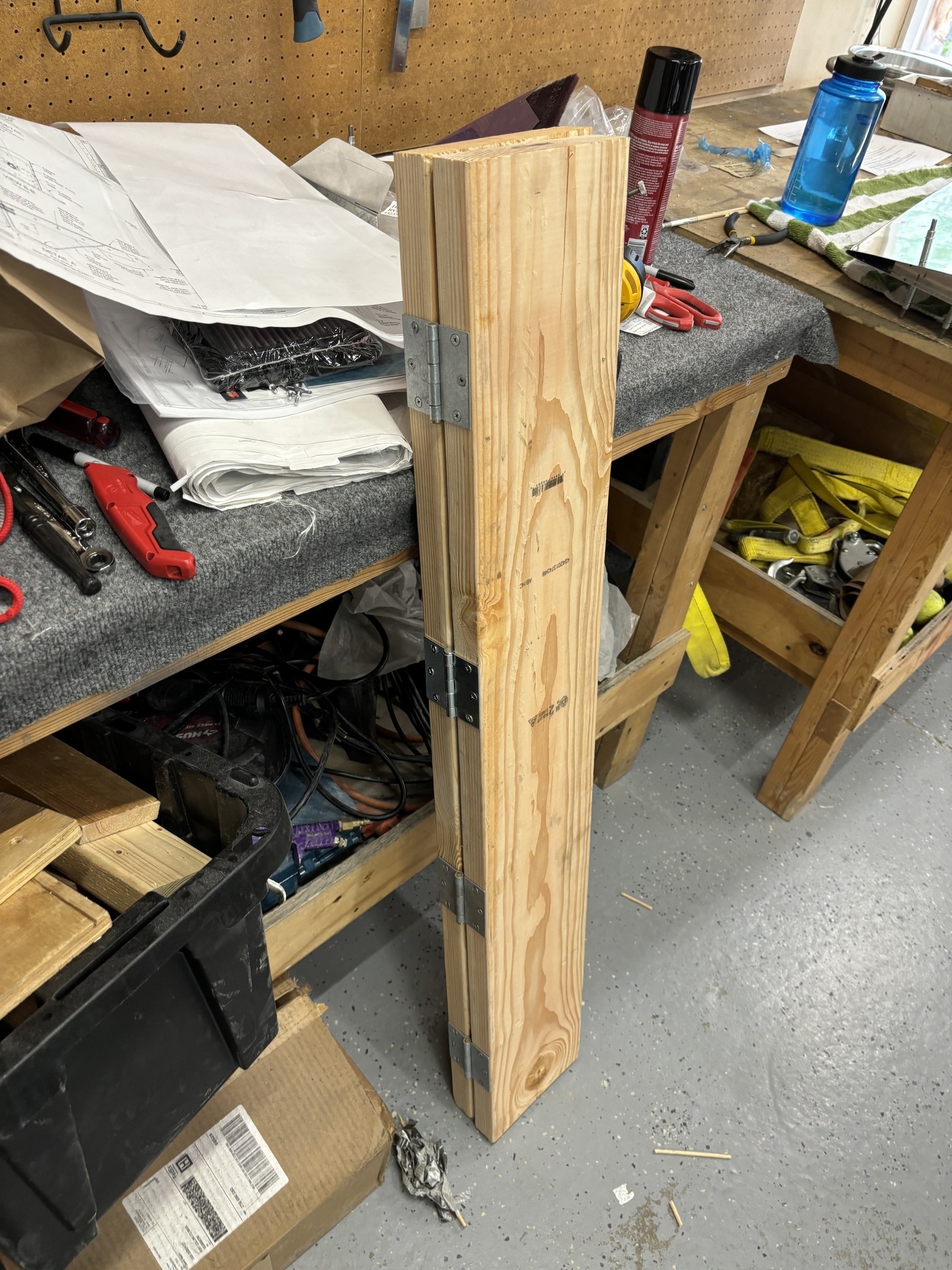

Today I built a new bending brake out of 2x8 lumber and bent the rudder skin.

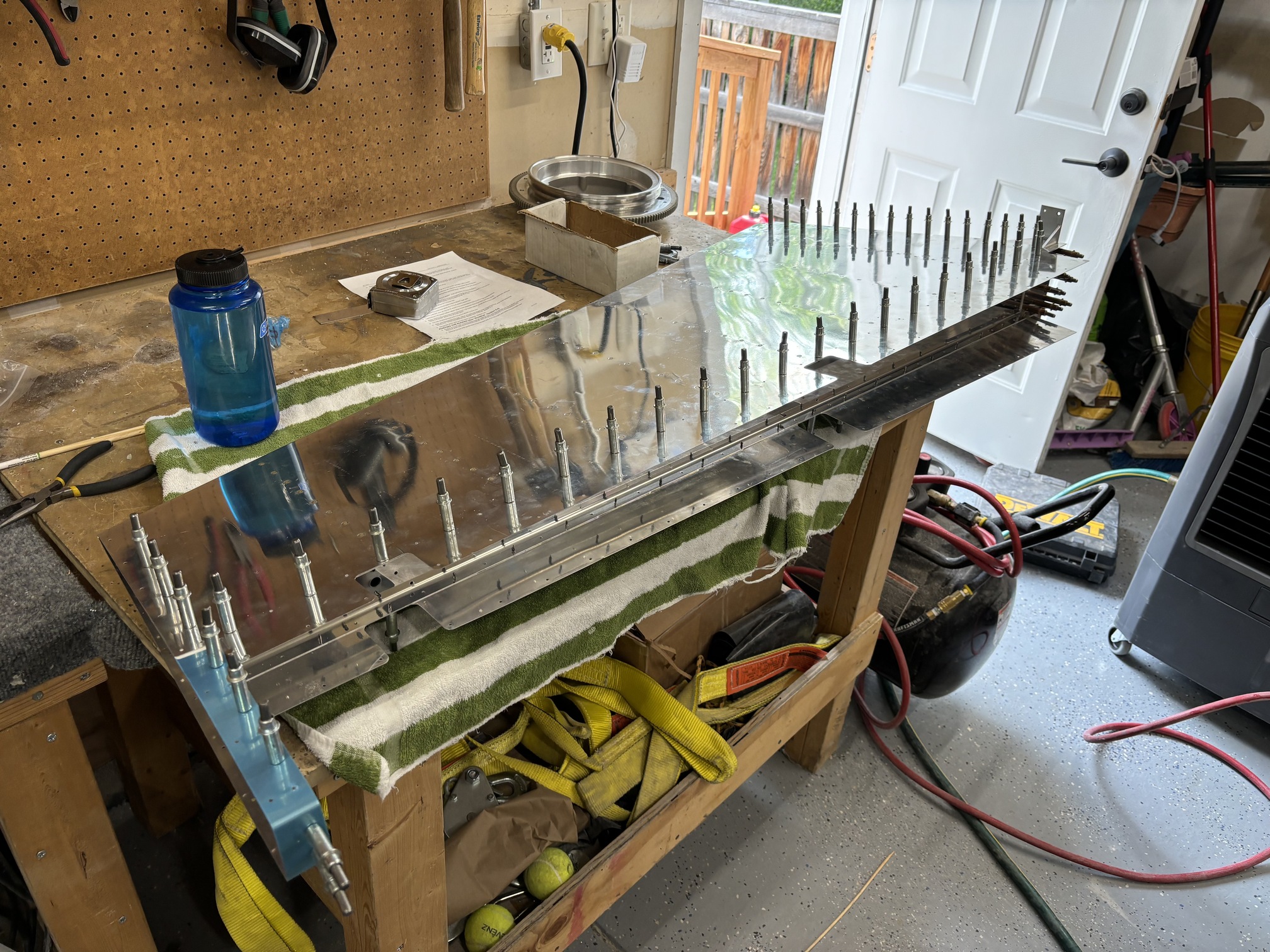

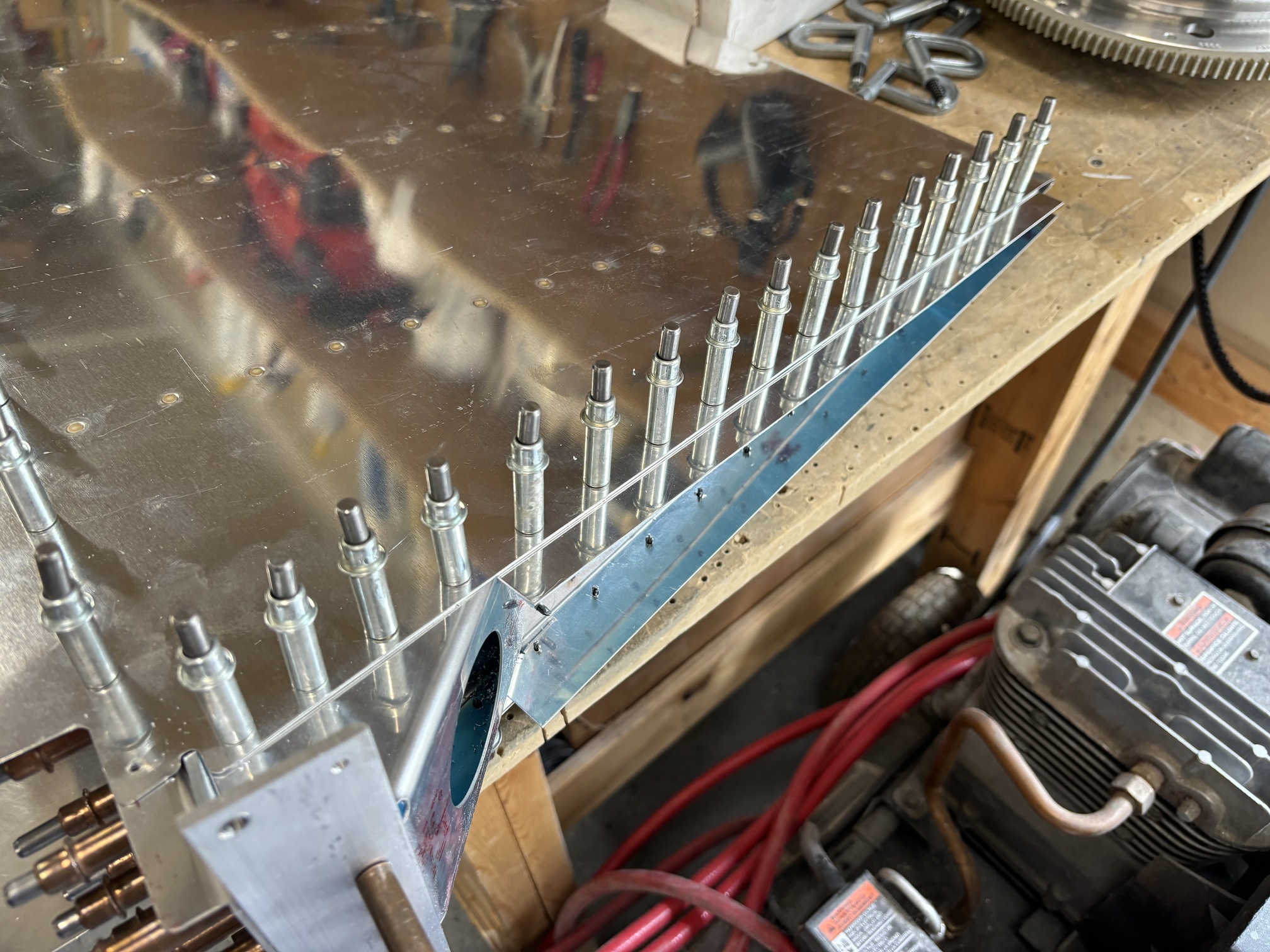

Then I cleco'd it to the skeleton and did all of the drilling.

I fit and drilled the bottom fairing attachment strips as well.

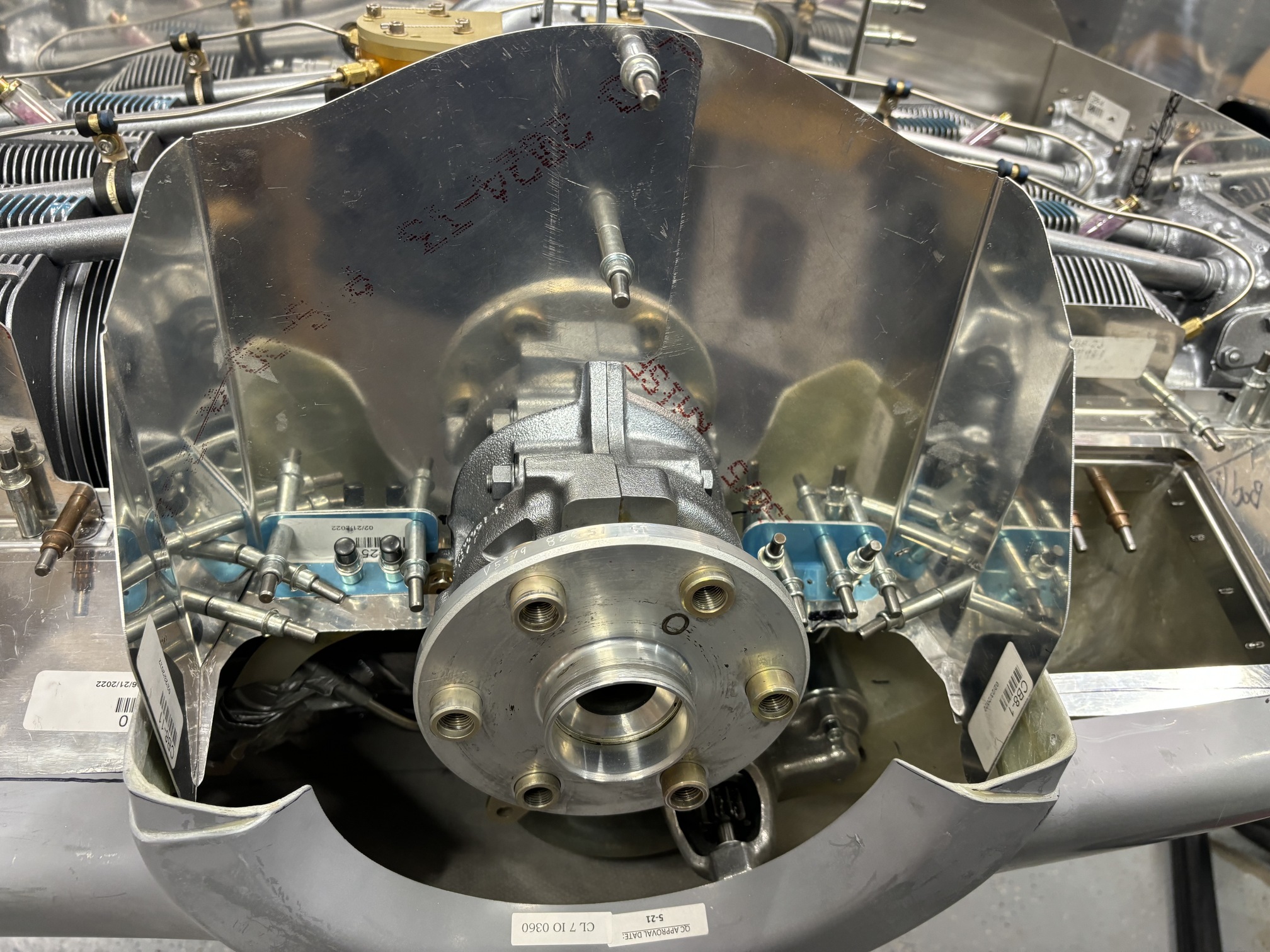

Then I spent a while trimming and drilling the center vertical baffle pieces to each other and the inlet floors.
