Thursday August 15, 2024
Misc Cowl Work (Firewall Forward)
2.8 Hours

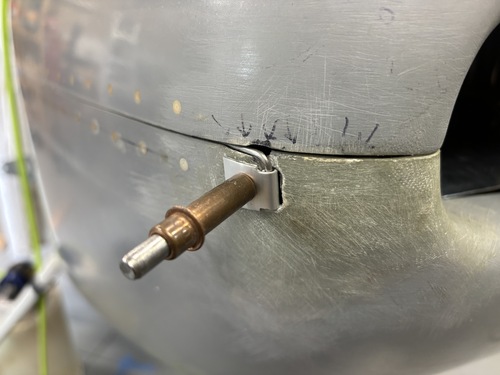

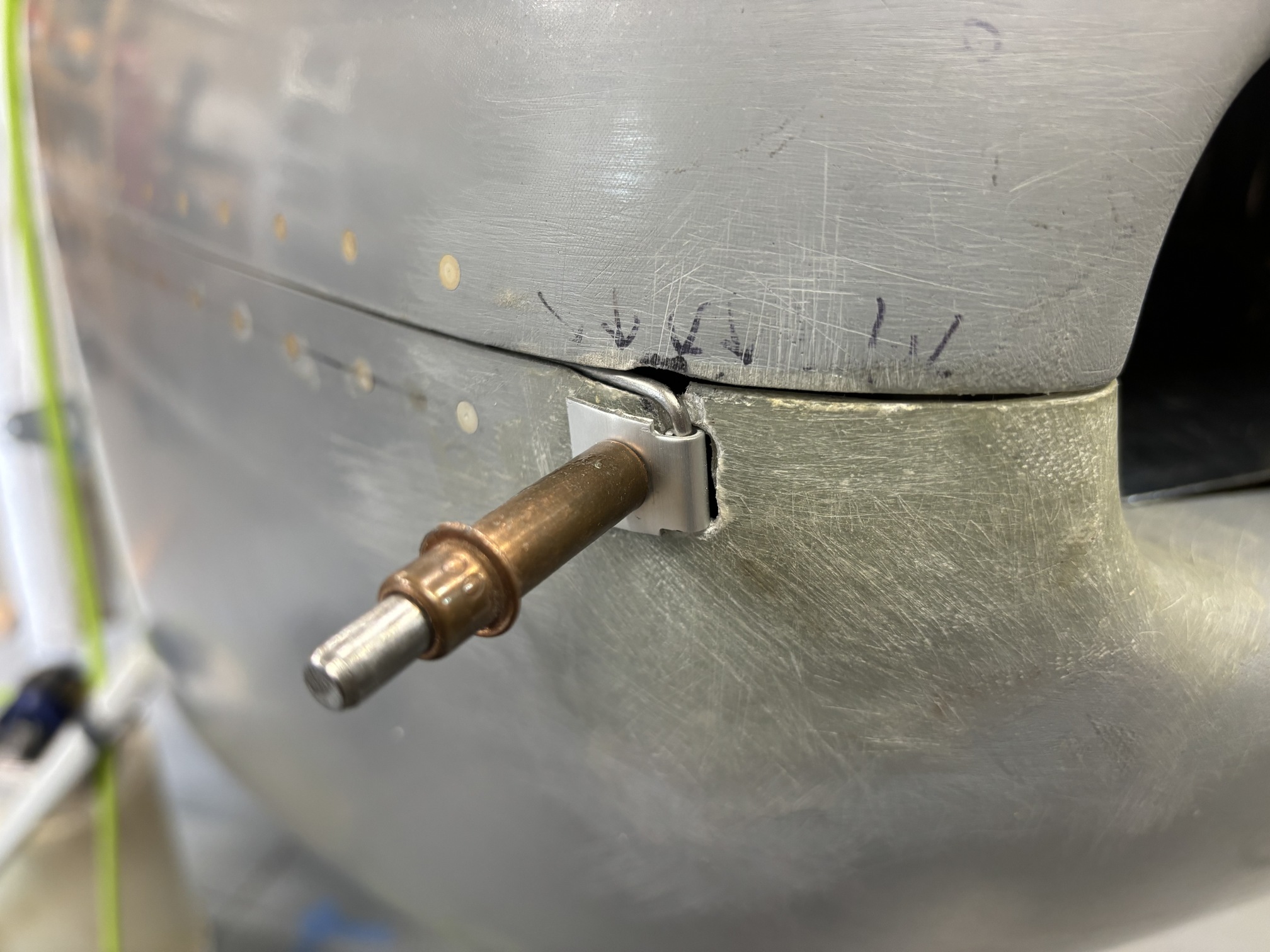

I worked on the little hinge segments that will anchor the hinge pins for the segments that join the two sections of cowl together. I need to do a little filling in this area of the cowl, too.

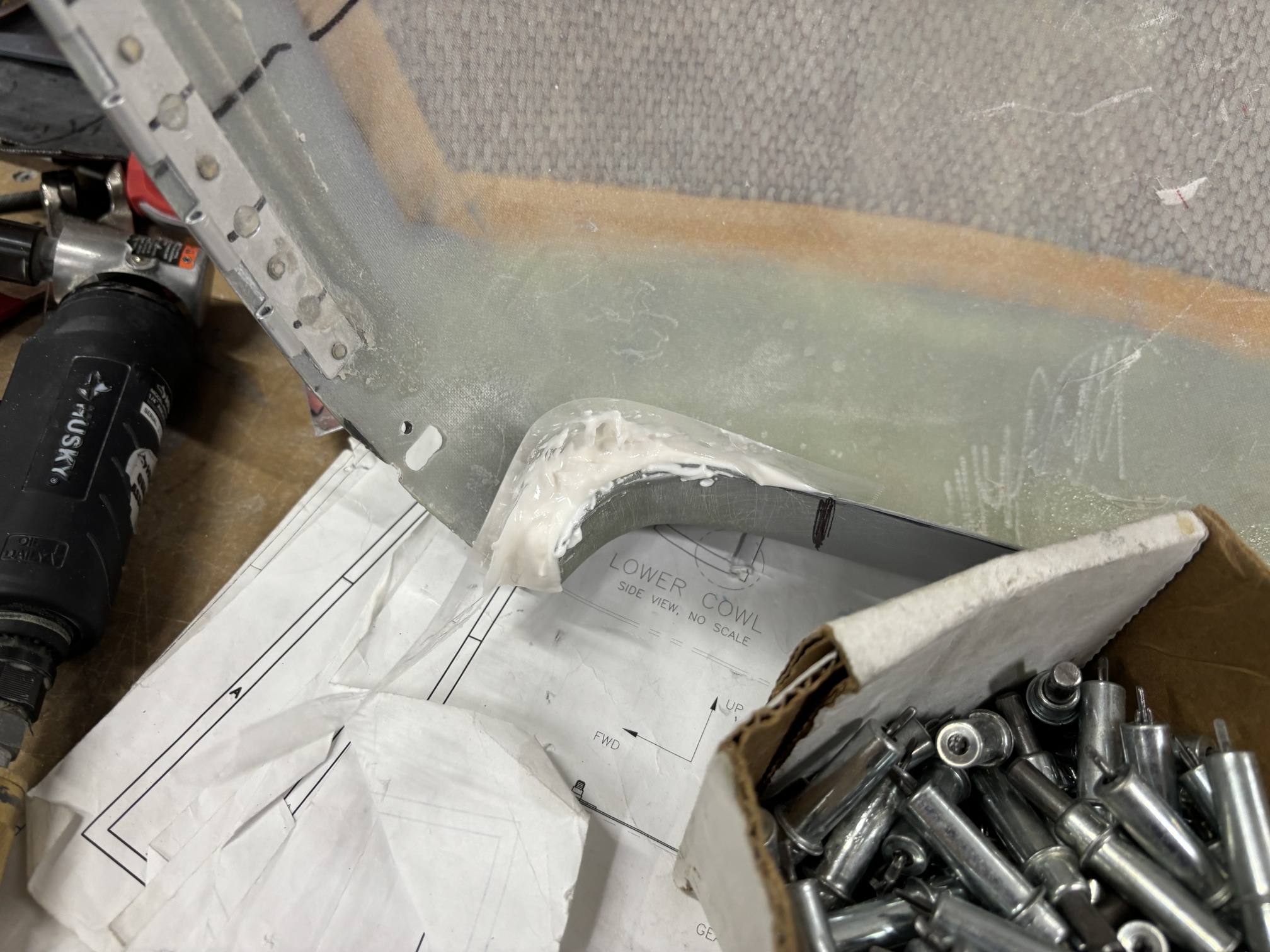

I built up some areas on the lower inlet on both sides with epoxy/micro. The air seal material will sit on top of this and this should make a better fit with the baffle.

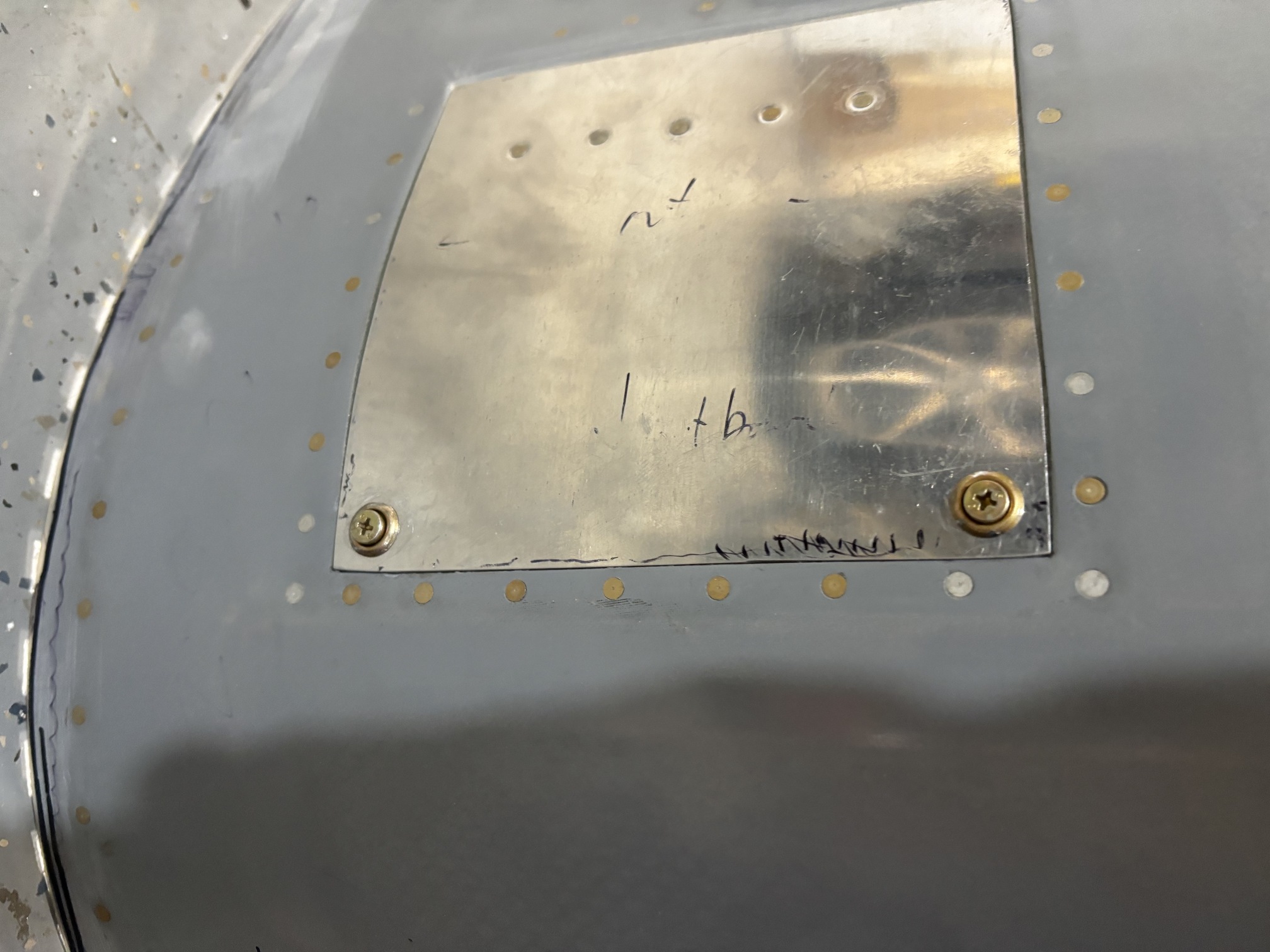

I also installed the cam-locs for the oil door. They stick out a little bit more than I'd like, so I ordered a size shorter to try out.
