Sunday December 1, 2024
Cowl Nutplates
(0.8 Hours Firewall Forward, 0.3 Hours Vertical Stabilizer)
1.1 Hours Total

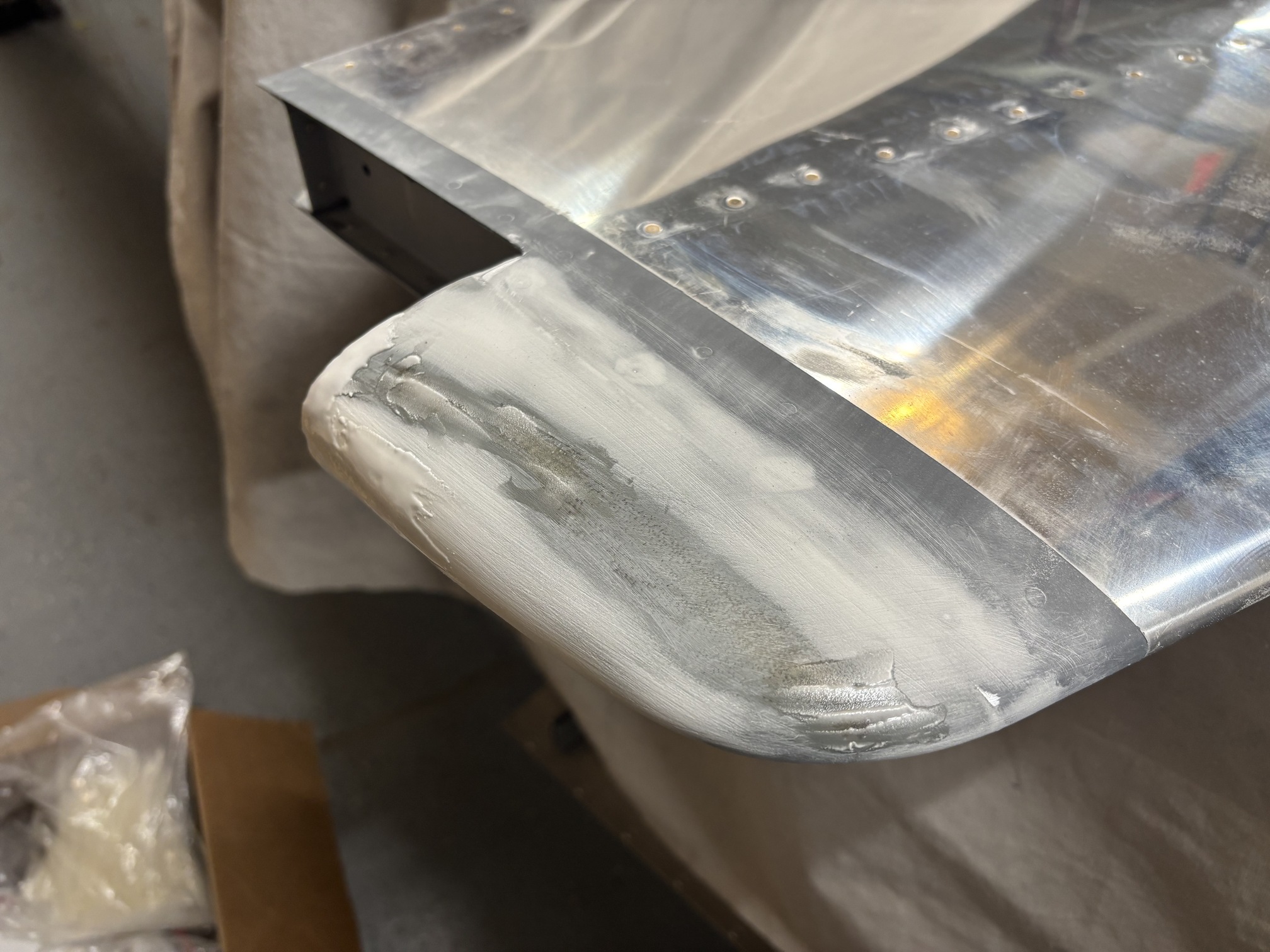

I put another touch-up coat of micro on the VS fairing.

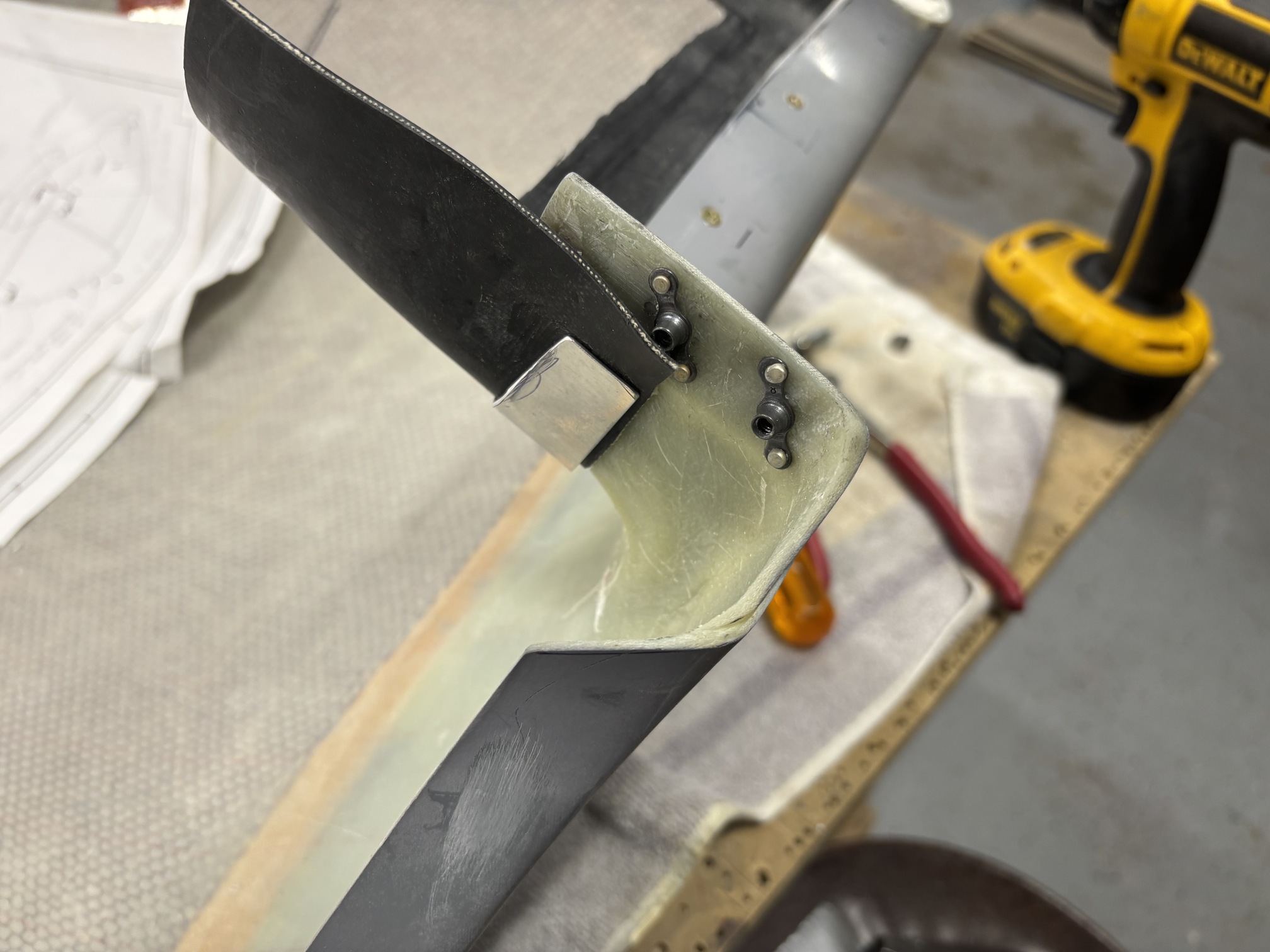

Then I installed the nutplates in the inlets of the lower cowl half.

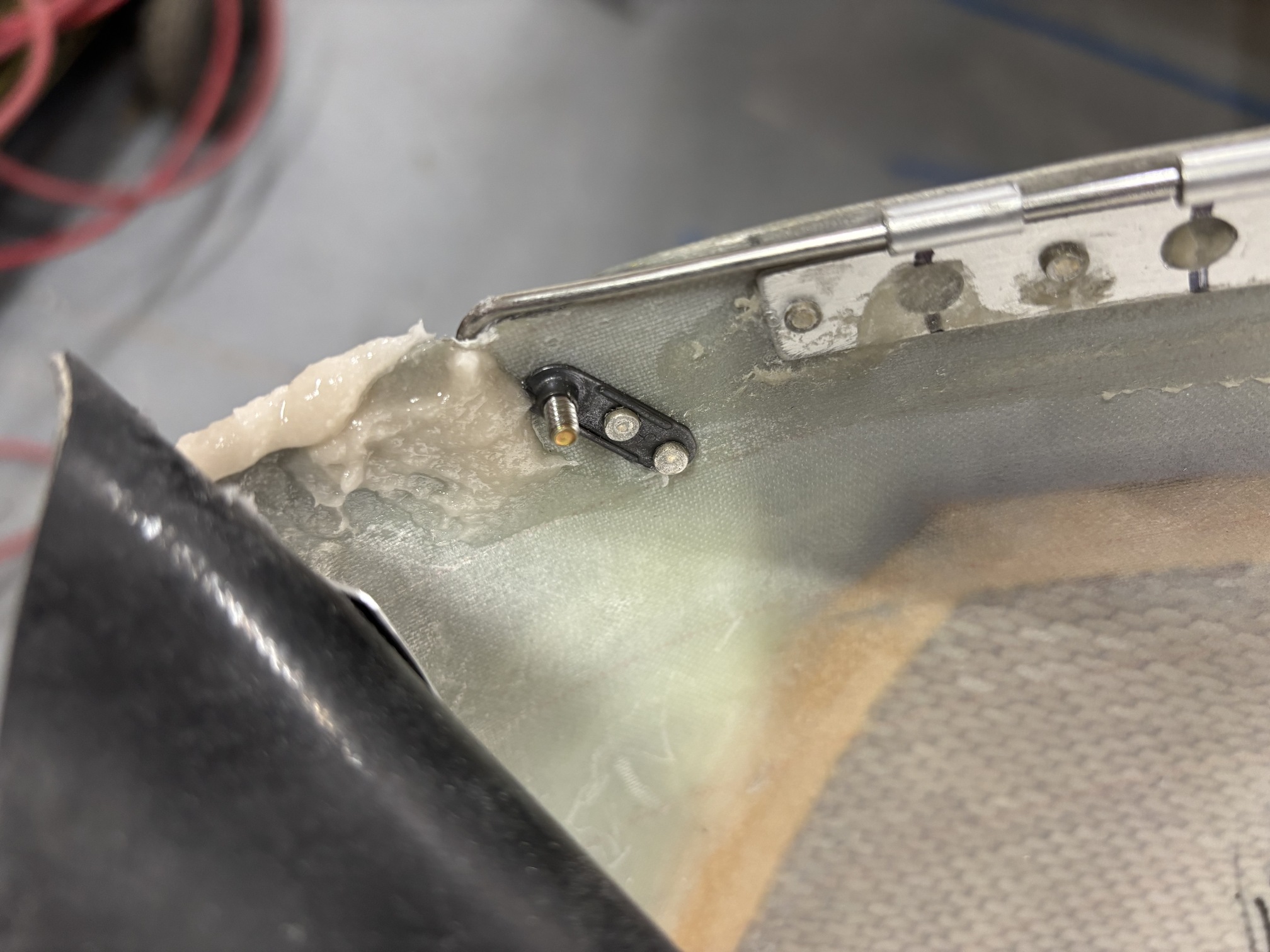

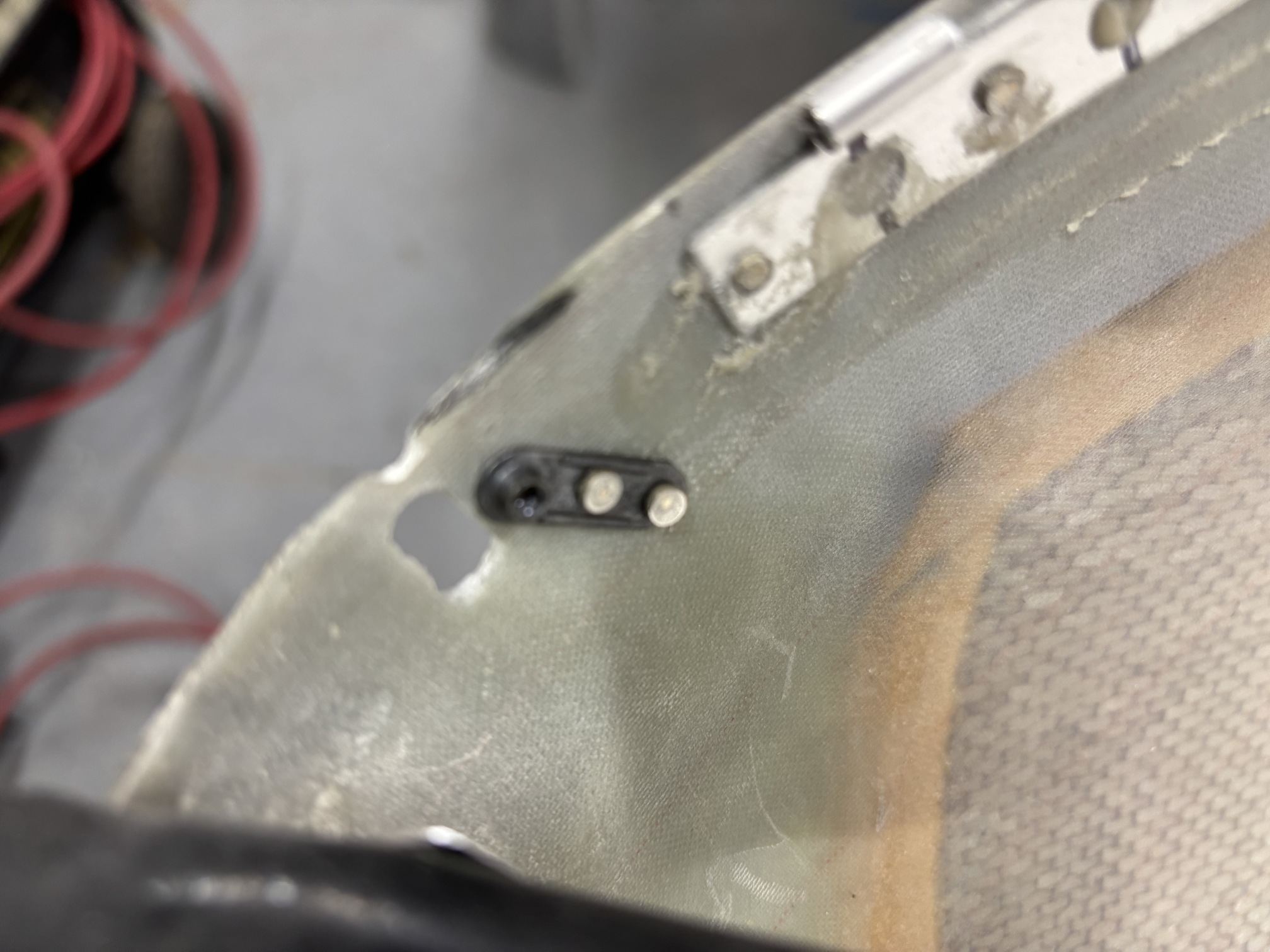

Finally, I installed the nutplates that hold the little hinge section to secure the front of the hinge pins that join the top and lower cowl halves.

Finally, I installed the hinge pins with the hinge section separated from the cowl with some packing tape and then gooped a little epoxy/flox in there to cover the hole.
