Sunday December 15, 2024
Misc Grounding Wires (Electrical)
1.5 Hours

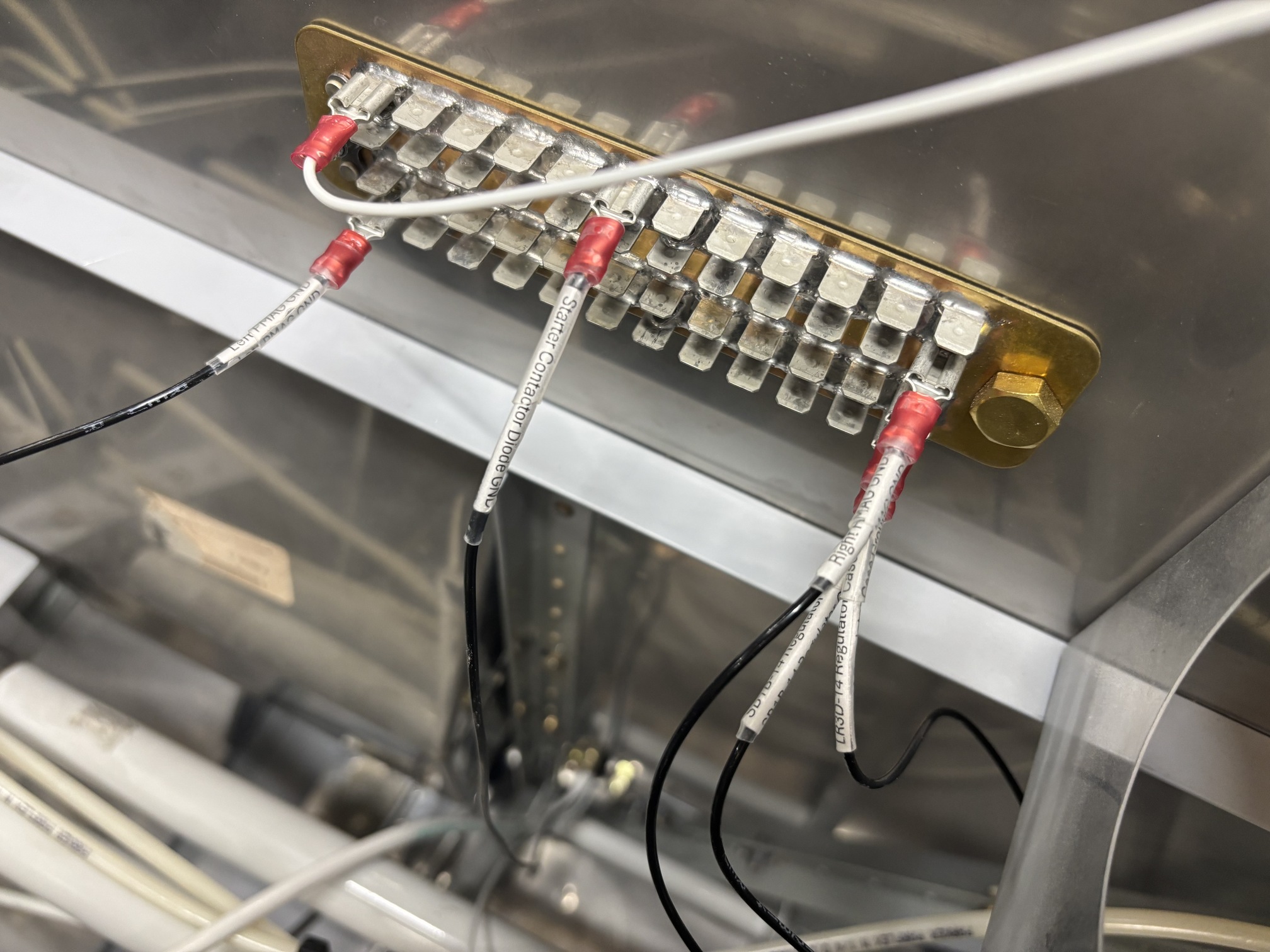

I removed the two alternator regulators and connected wires to the case ground nuts (difficult to get to while installed) and then ran the other ends to the grounding block on the firewall. I used laser printed labels and clear heat shrink to label them.

Then I also connected the grounding block side of the PMAG grounds and the starter contactor diode.

I enjoy wiring...I'm kind of looking forward to doing the avionics wiring.
