Sunday December 29, 2024
Fiberglass Sanding, EGT/CHT Temp Probe Wiring
(2.4 Hours Firewall Forward, 0.4 Hours Rudder, 0.2 Hours Vertical Stabilizer)
3.1 Hours Total

Today I wet sanded the VS/rudder fairings, the gear leg fairings, and the cowl halves. Then I patched a couple of spots with epoxy/micro. Another coat of primer tomorrow...

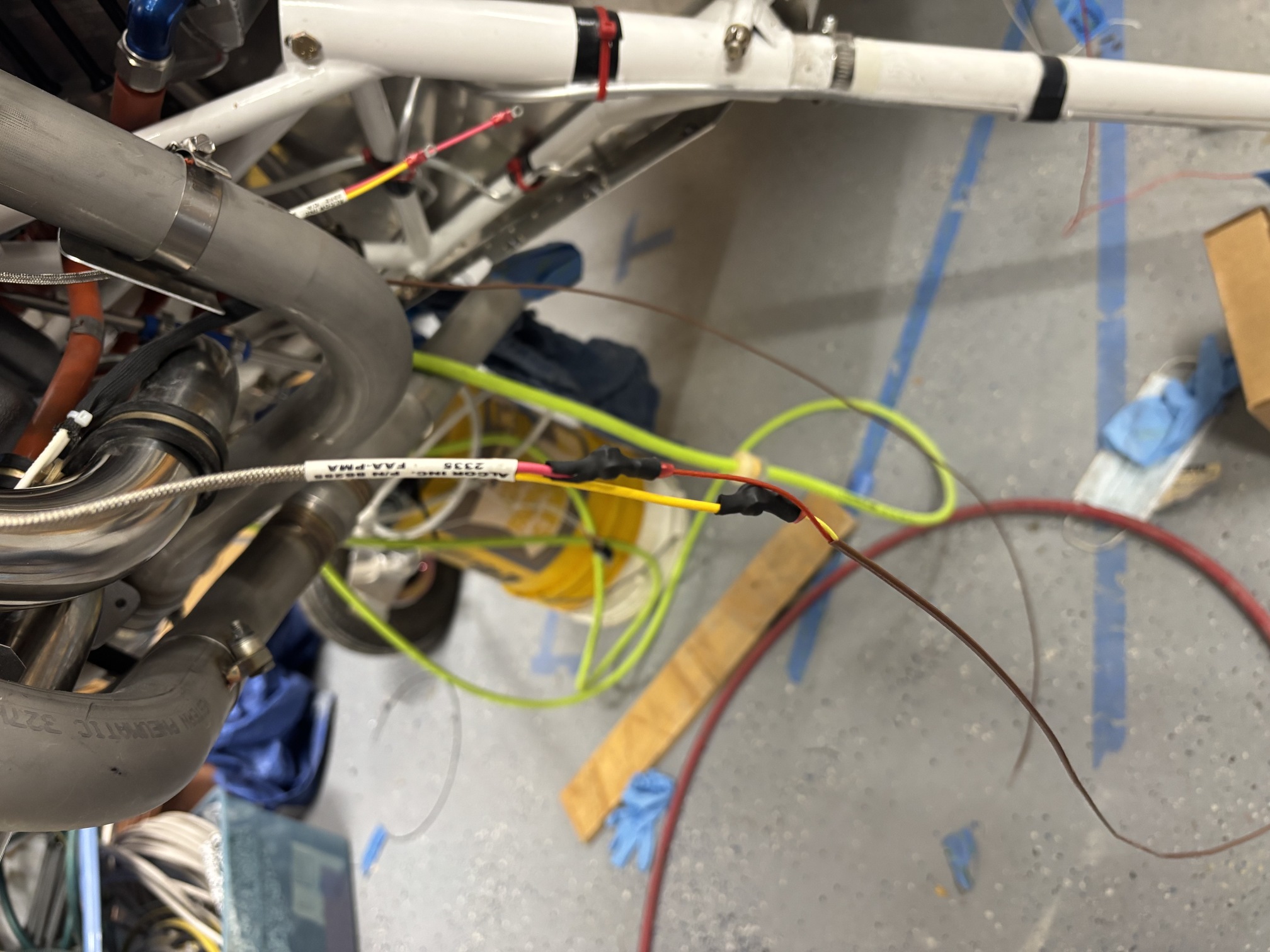

Then I spent a while splicing the EGT/CHT thermocouple wire ends to Type K thermocouple wire. They come with a screw, star washer, and nut for this purpose. I covered each splice joint with heat shrink.

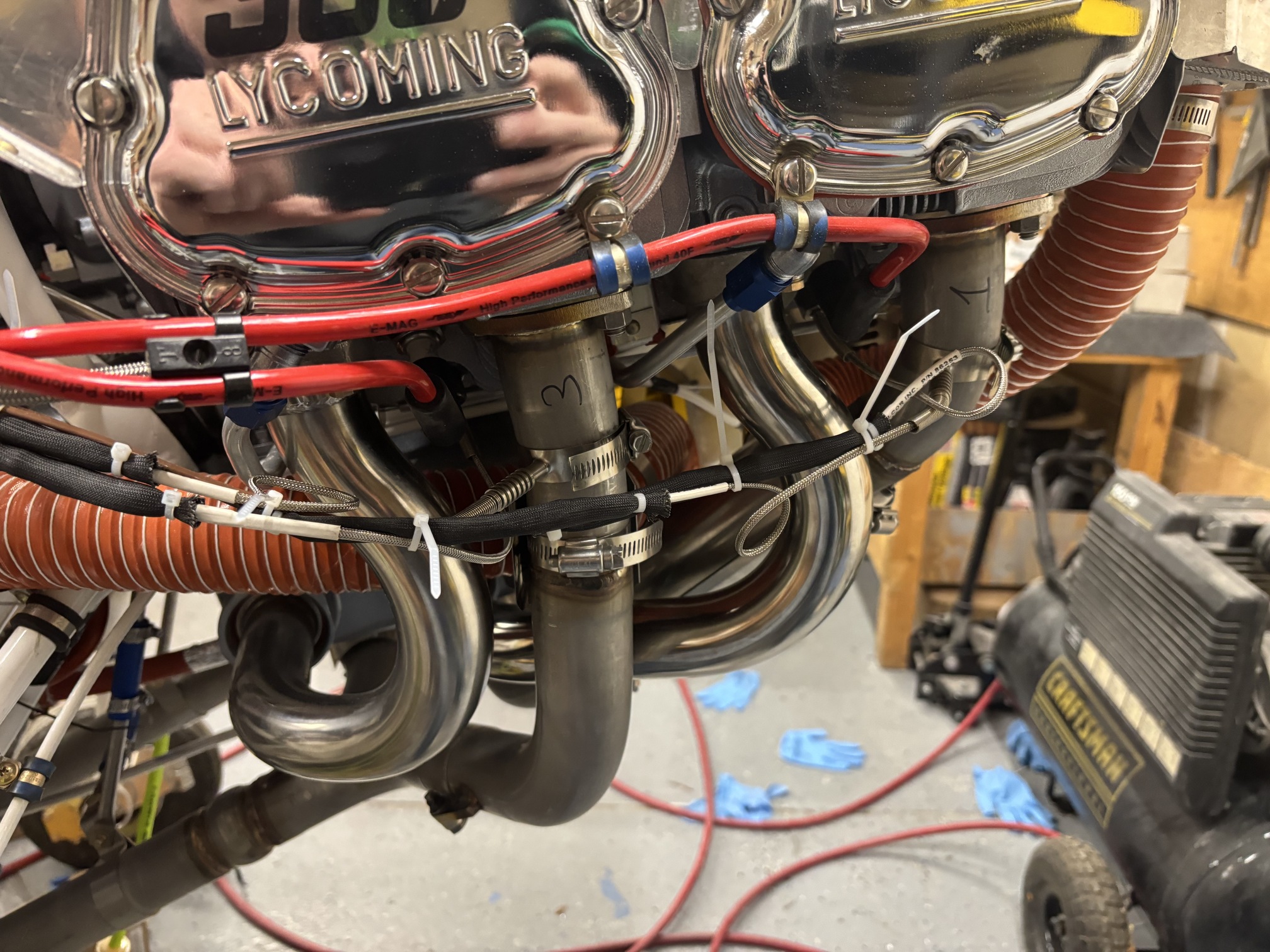

I then used the supplied sleeve material to cover the splices.

I made sure each one had enough length to reach the future home of the engine monitoring LRU in the subpanel area.
