Avionics Wiring Planning (Electrical)

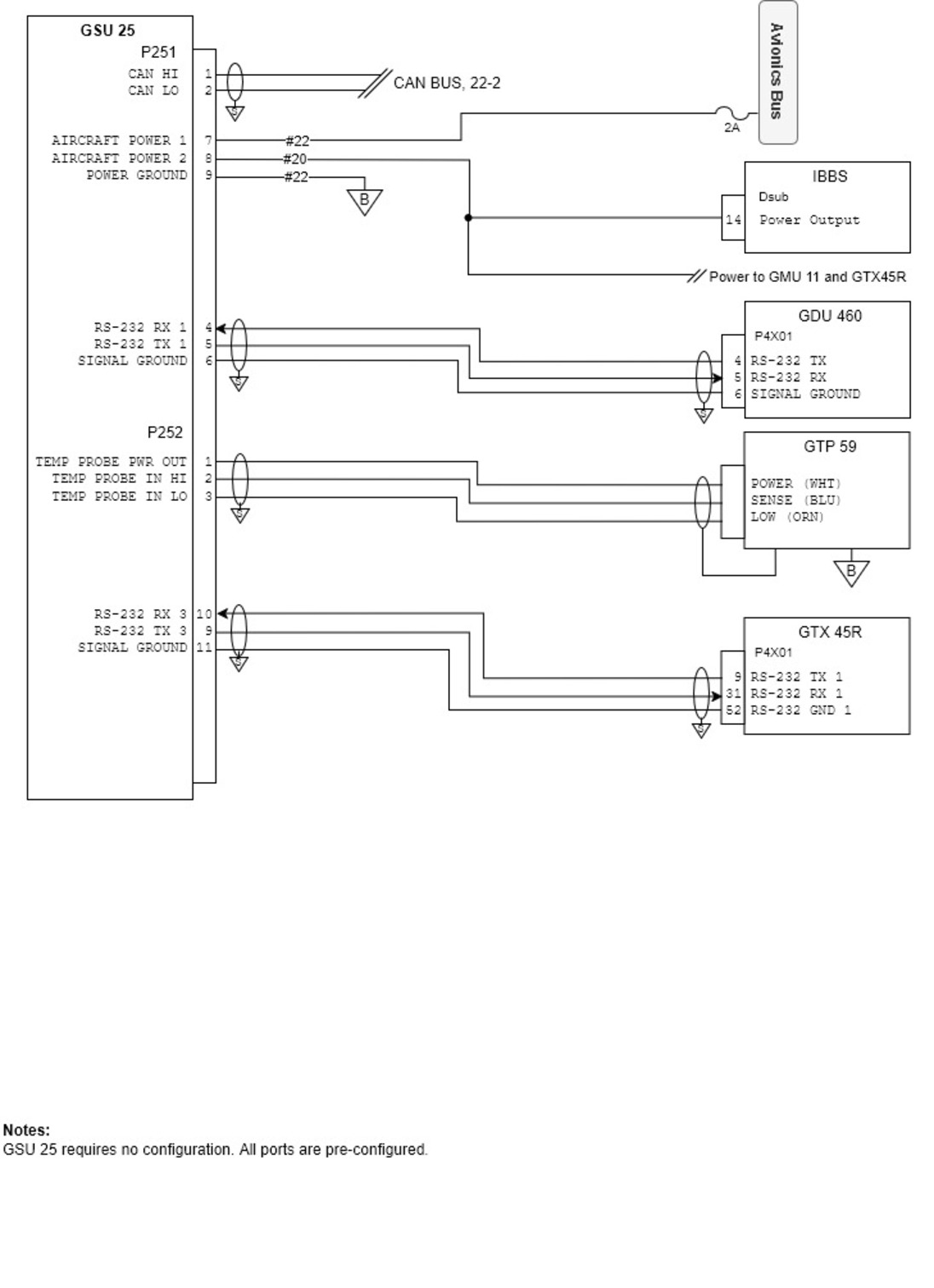

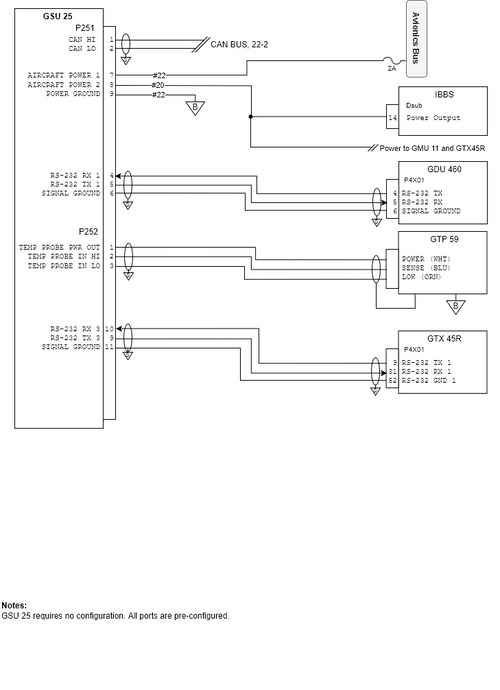

I spent many hours this week planning out my G3X avionics system. I now have complete wiring diagrams for the entire thing. See below for one example from the GSU 25.
