Friday April 18, 2025
More Panel Cutting, Radio Stack Rails (Electrical)
4.0 Hours

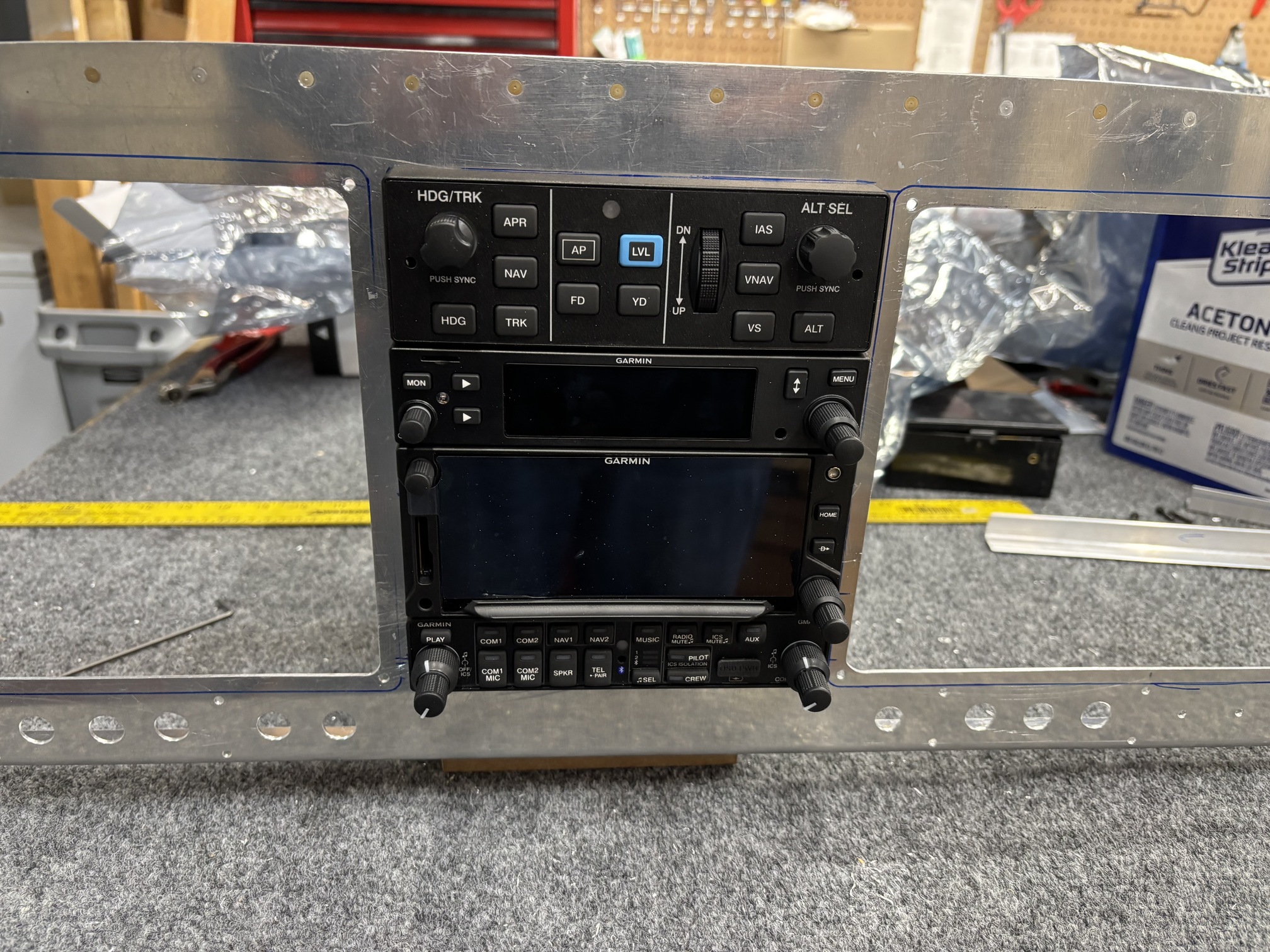

I finished cutting out the radio stack for the audio panel at the bottom.

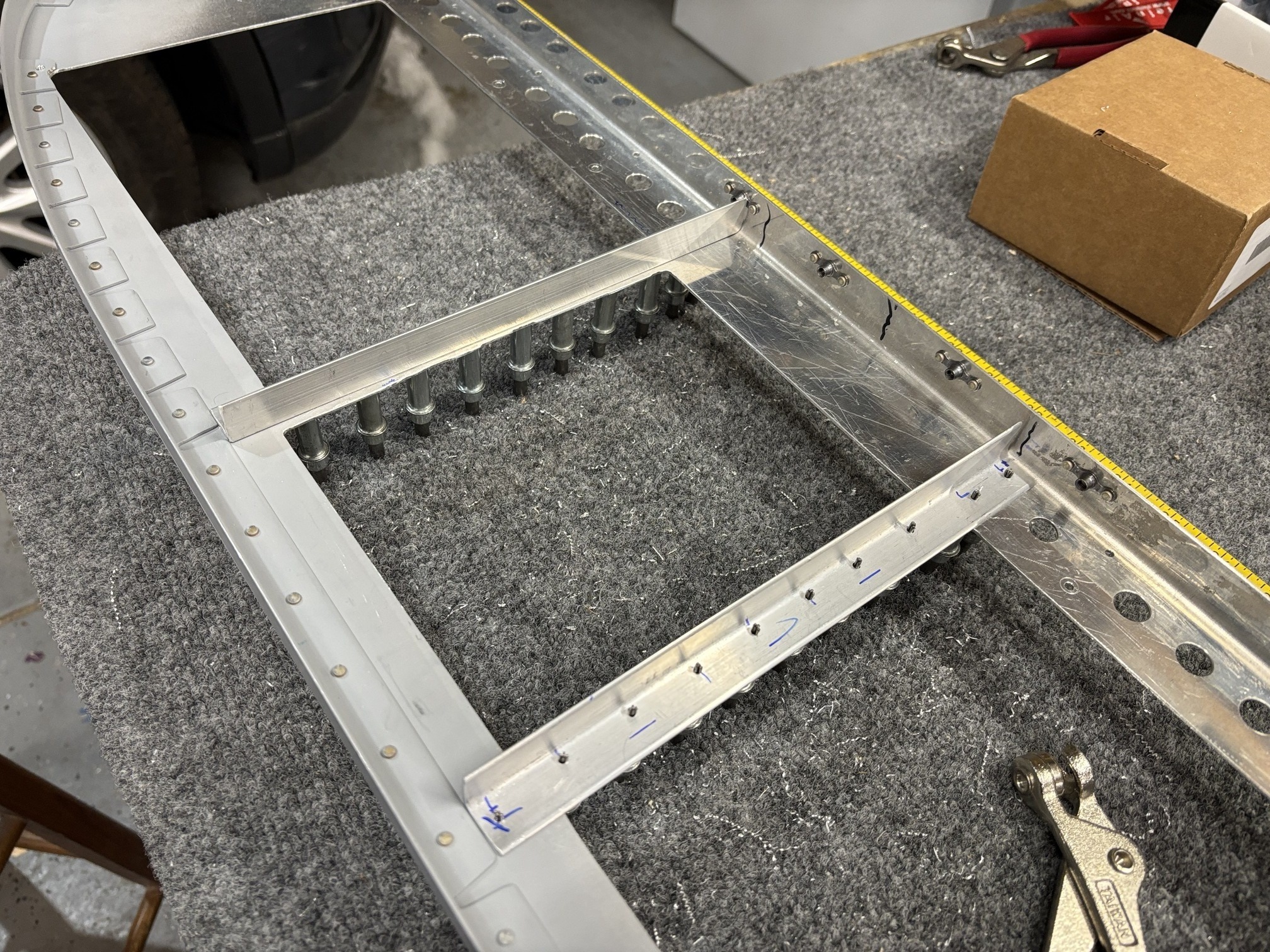

Then I started fabricating some side rails for the mounting racks to attach to. These are some lengths of 3/4"x3/4" aluminum angle. I clamped them carefully using the racksas spacers.

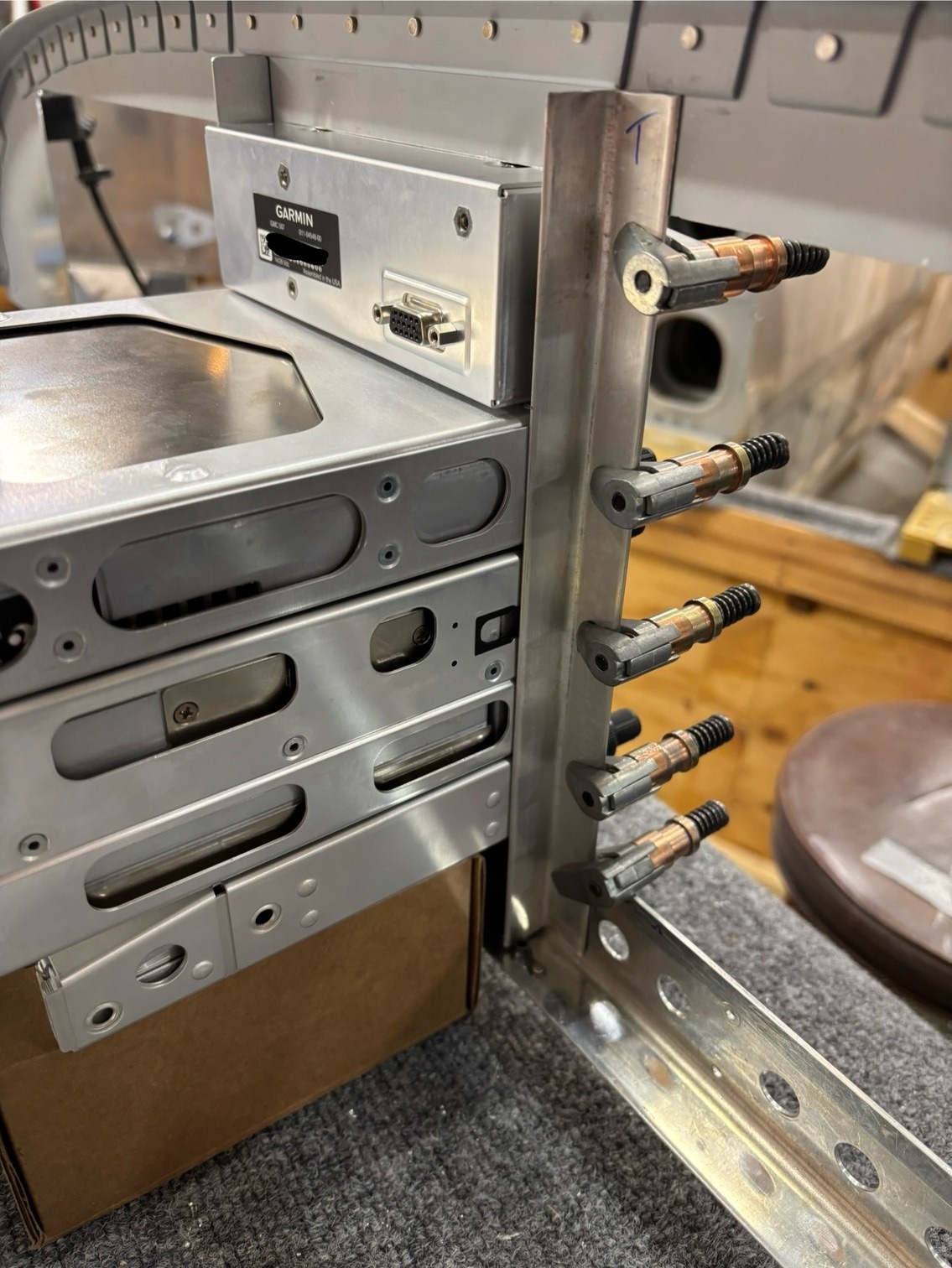

Then I removed the radios and racks and drilled the angles carefully to the panel. There is only a very narrow strip so I was careful with this.

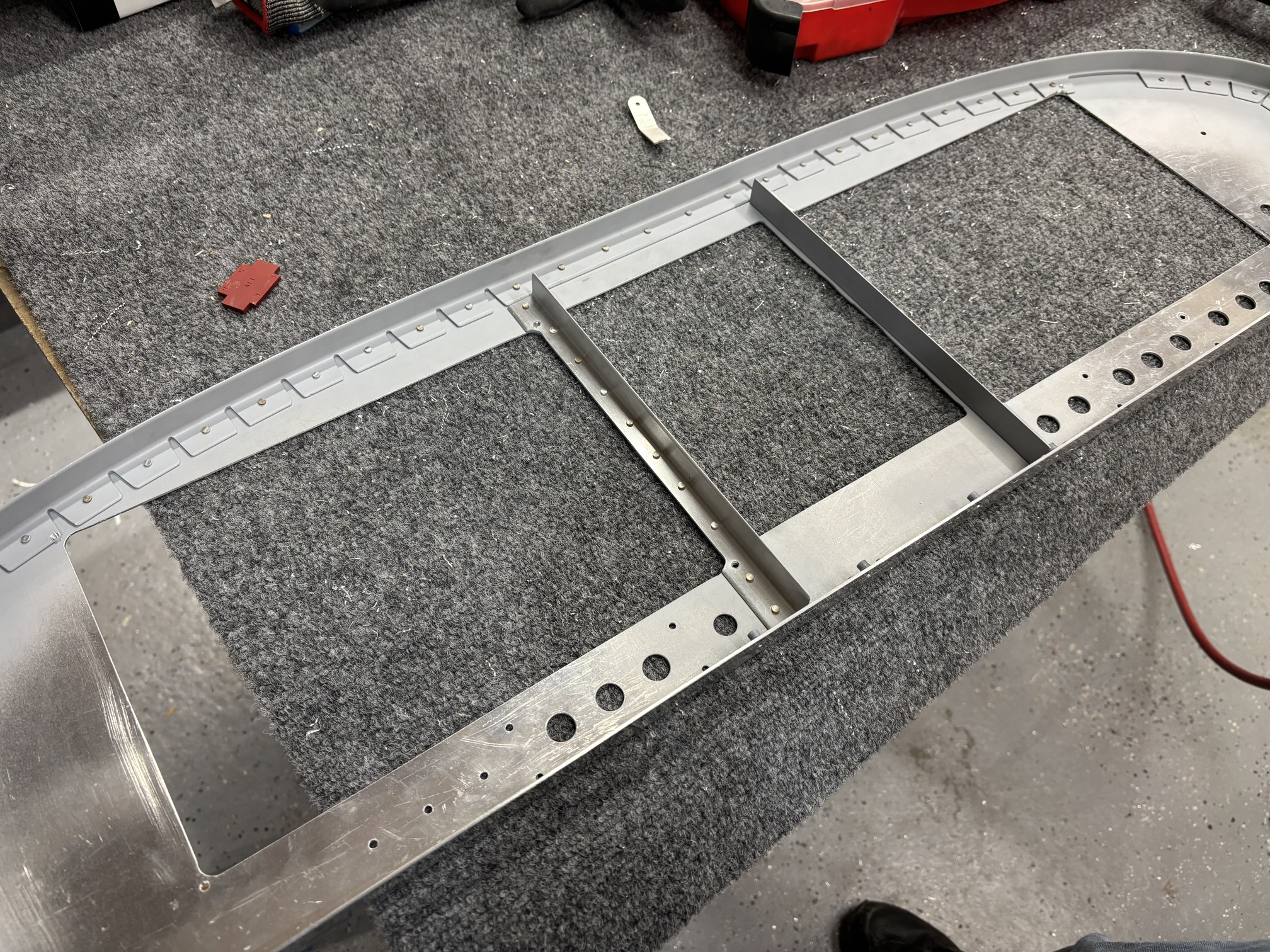

Then I trimmed the angle pieces where they overlapped with the G3X holes and riveted them to the panel. They make it very strong in this area.

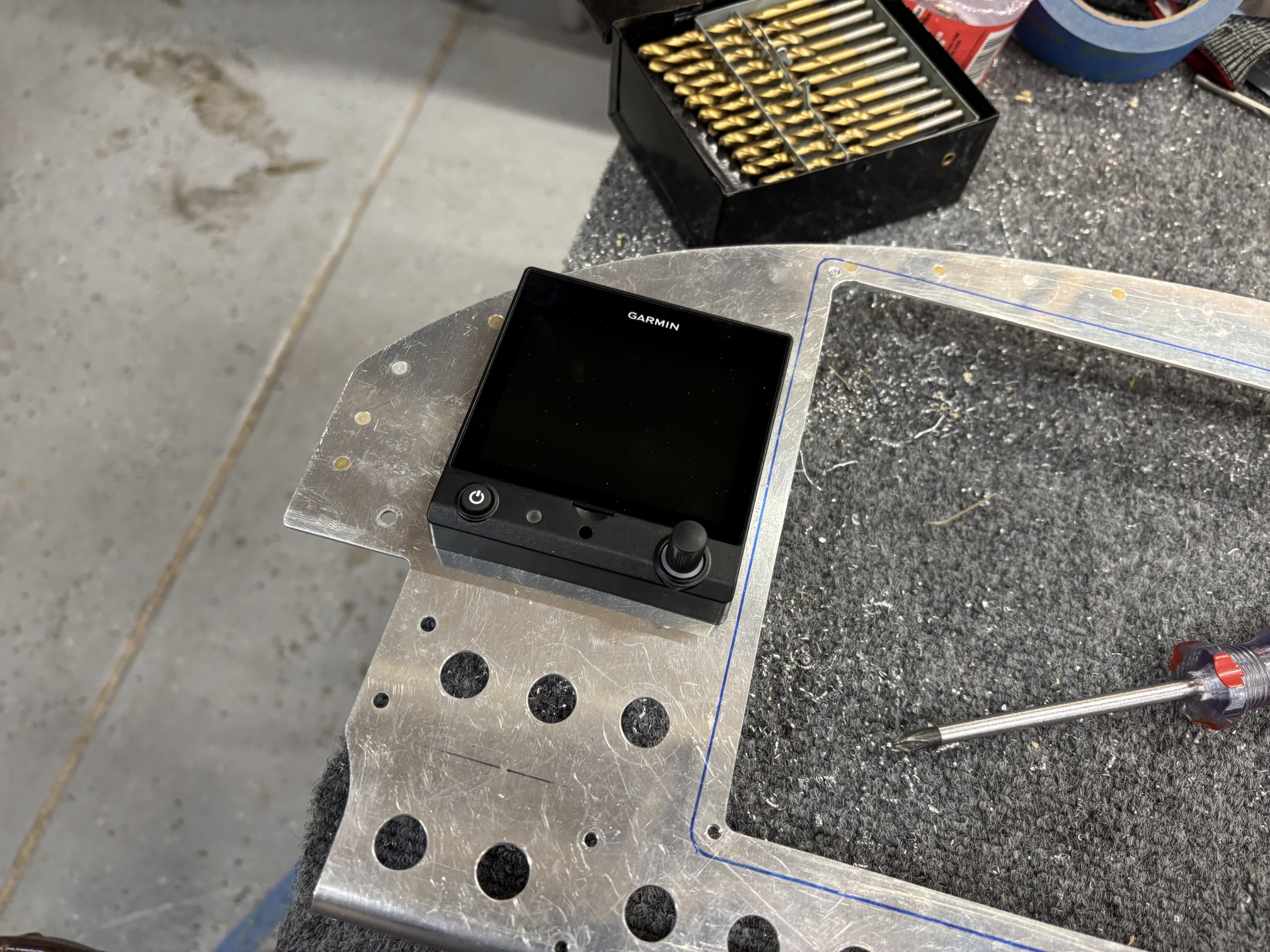

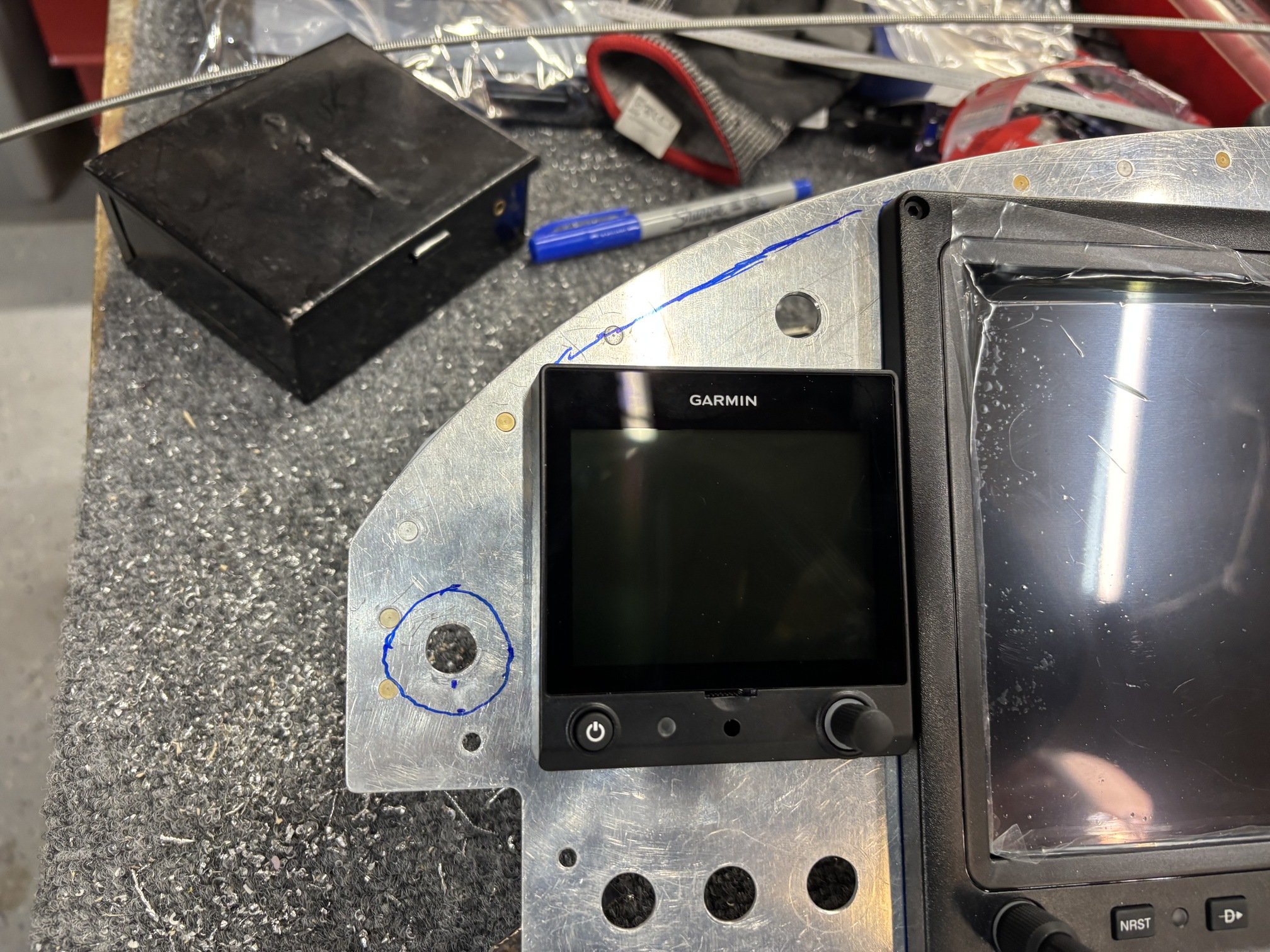

I made the hole for the G5 and installed its mounting bracket.

Then I drilled two holes for the alternate air and oil cooler butterfly valve controls.
