Monday April 21, 2025
More Panel Work (Electrical)
4.5 Hours

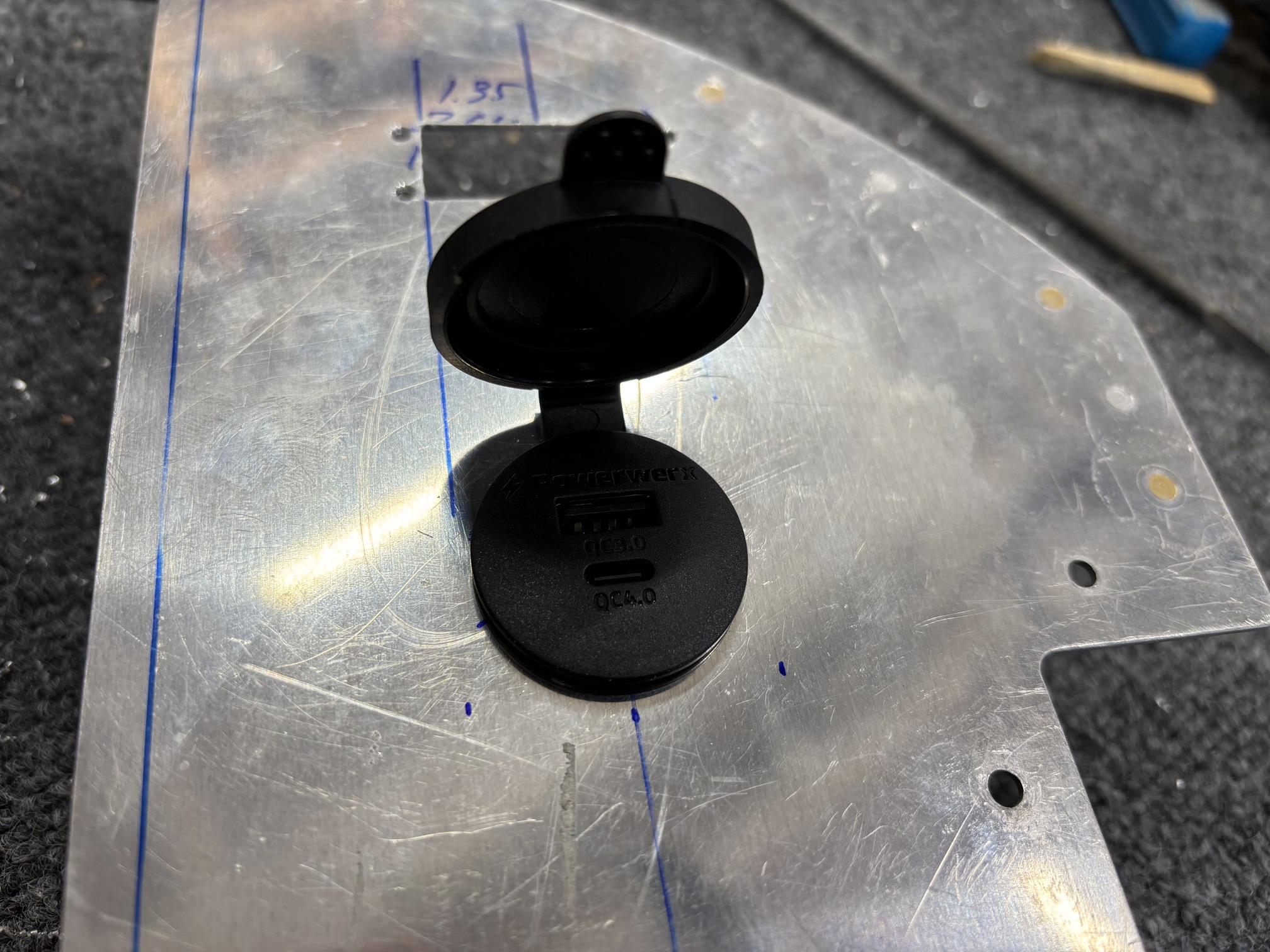

I finished sizing the usb adapter hole and test fit it.

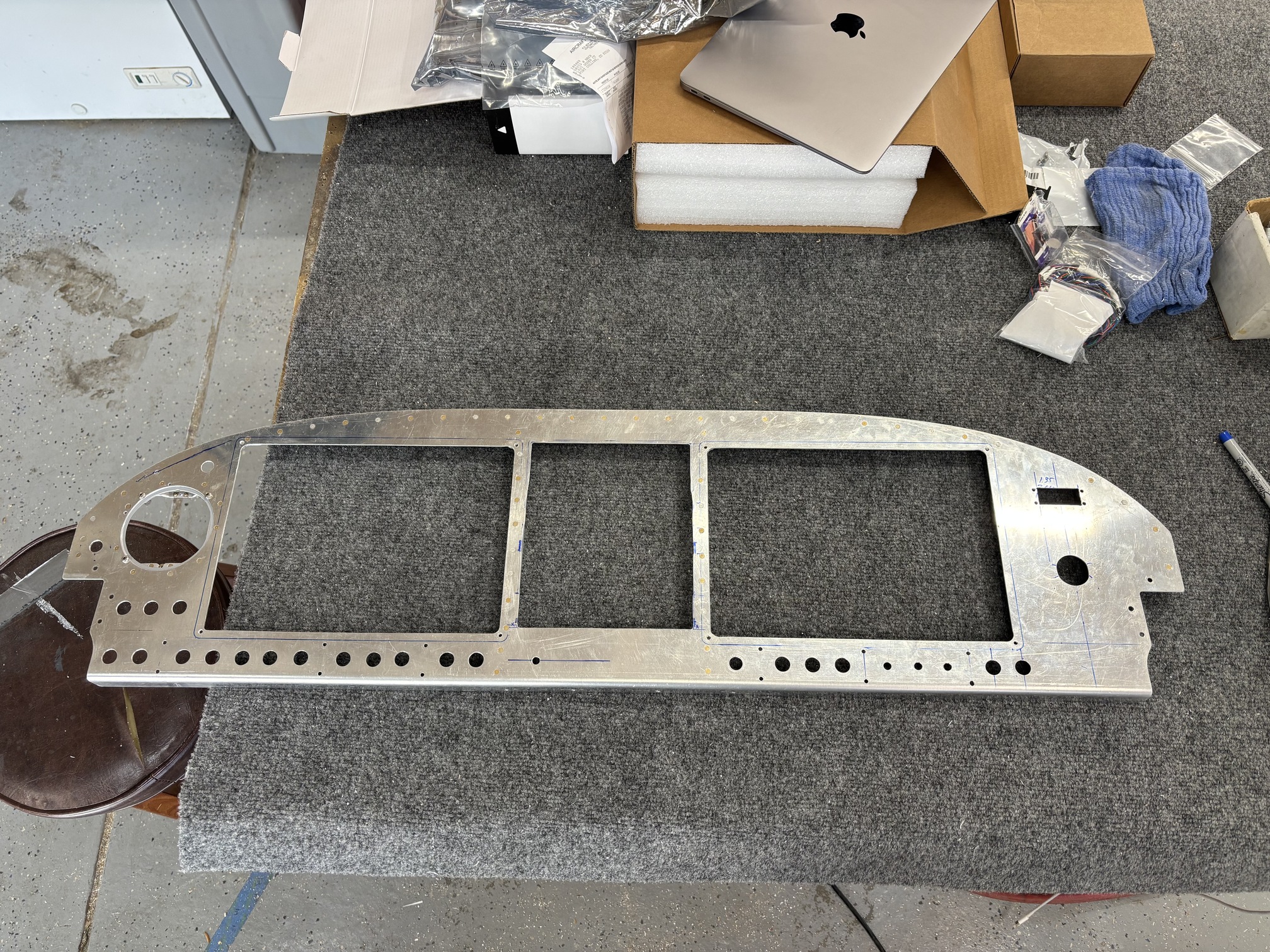

Then I final sized the three dimmer knob holes to 1/4". I think this is all of the cutting on the panel now done.

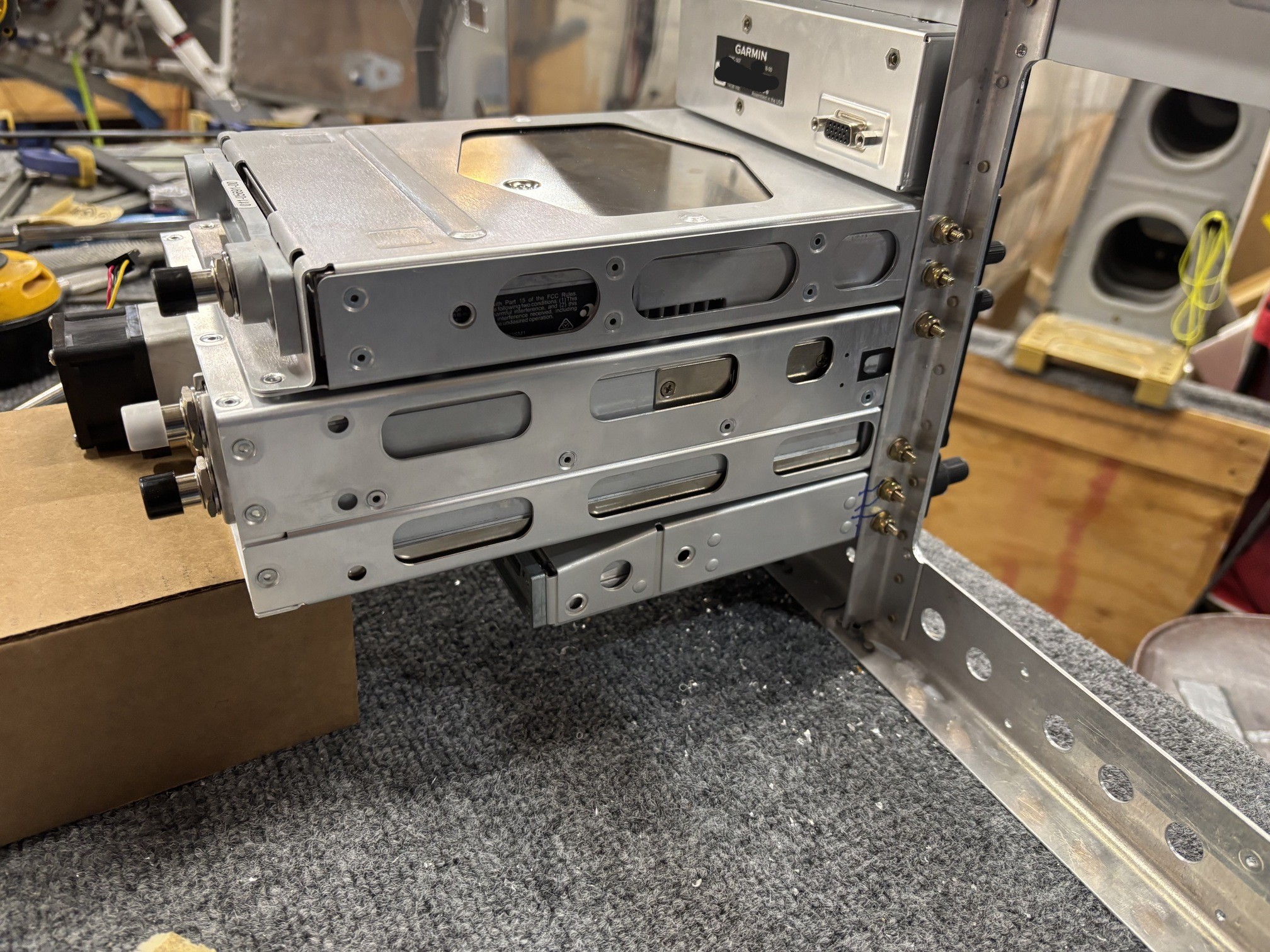

Then I very carefully drilled the holes from the radio mounts to the side rails.

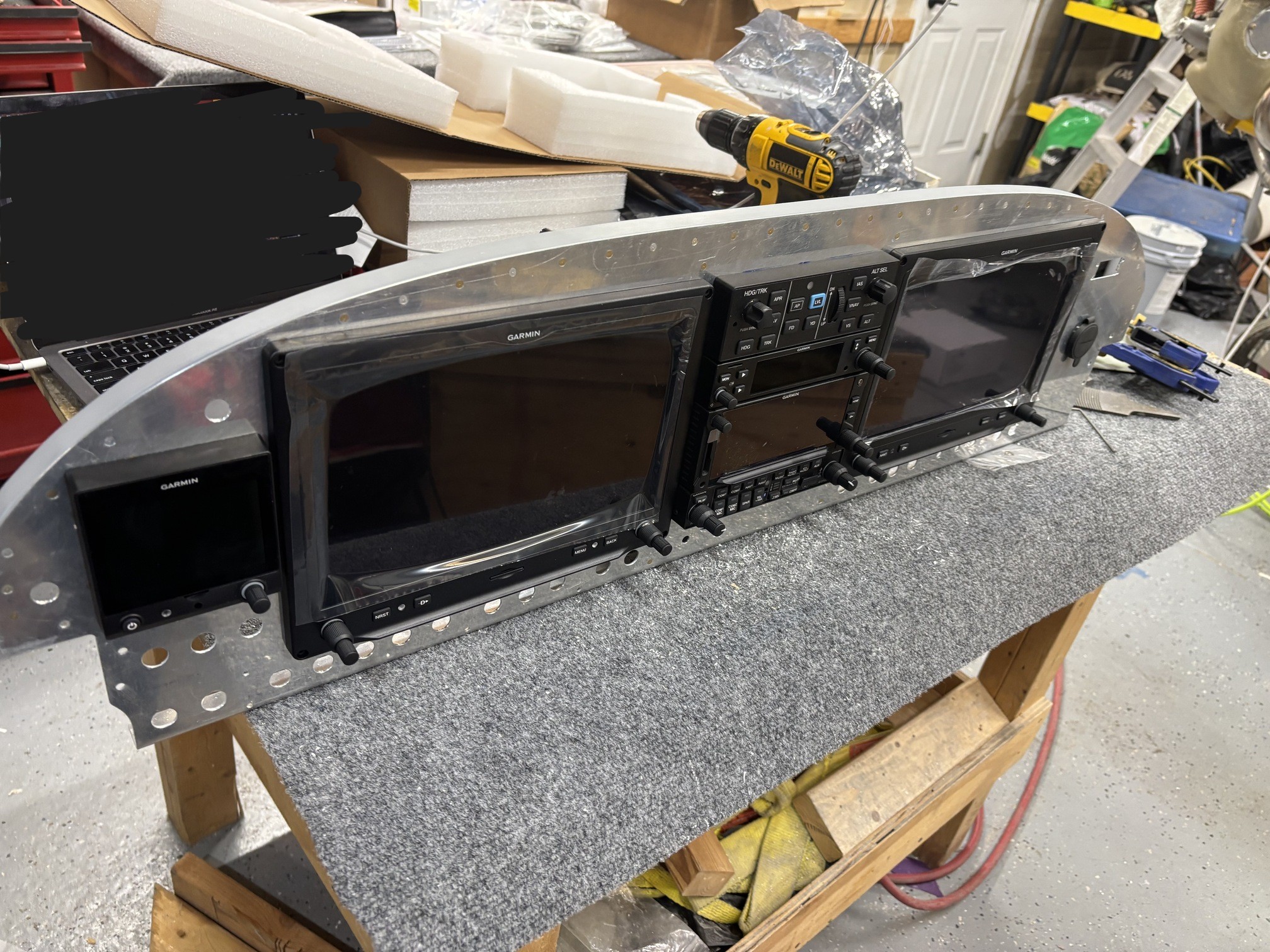

With all of the instruments installed. This thing is heavy!

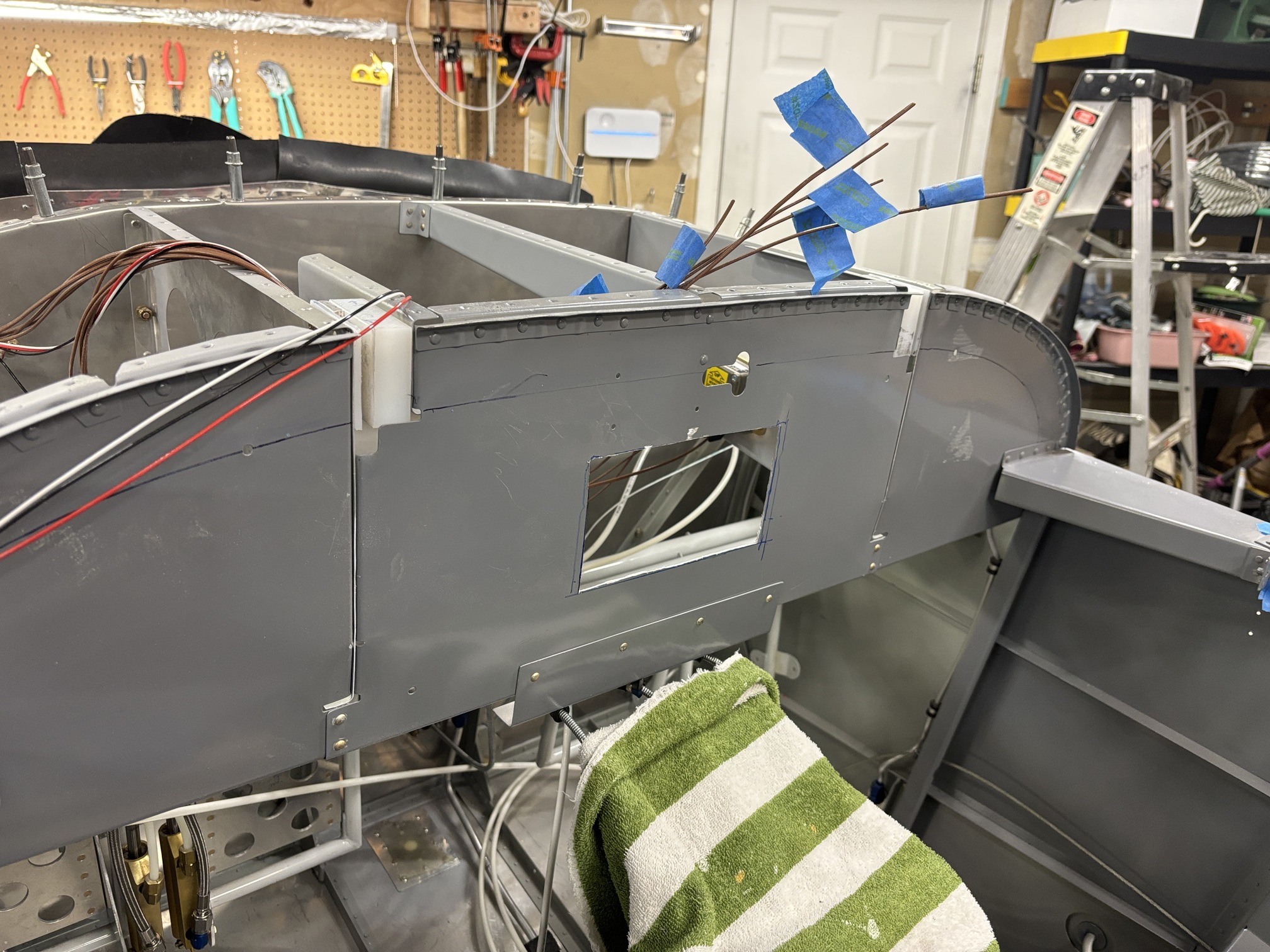

I made an initial rough cut through the sub panel to allow the two radios to stick through.

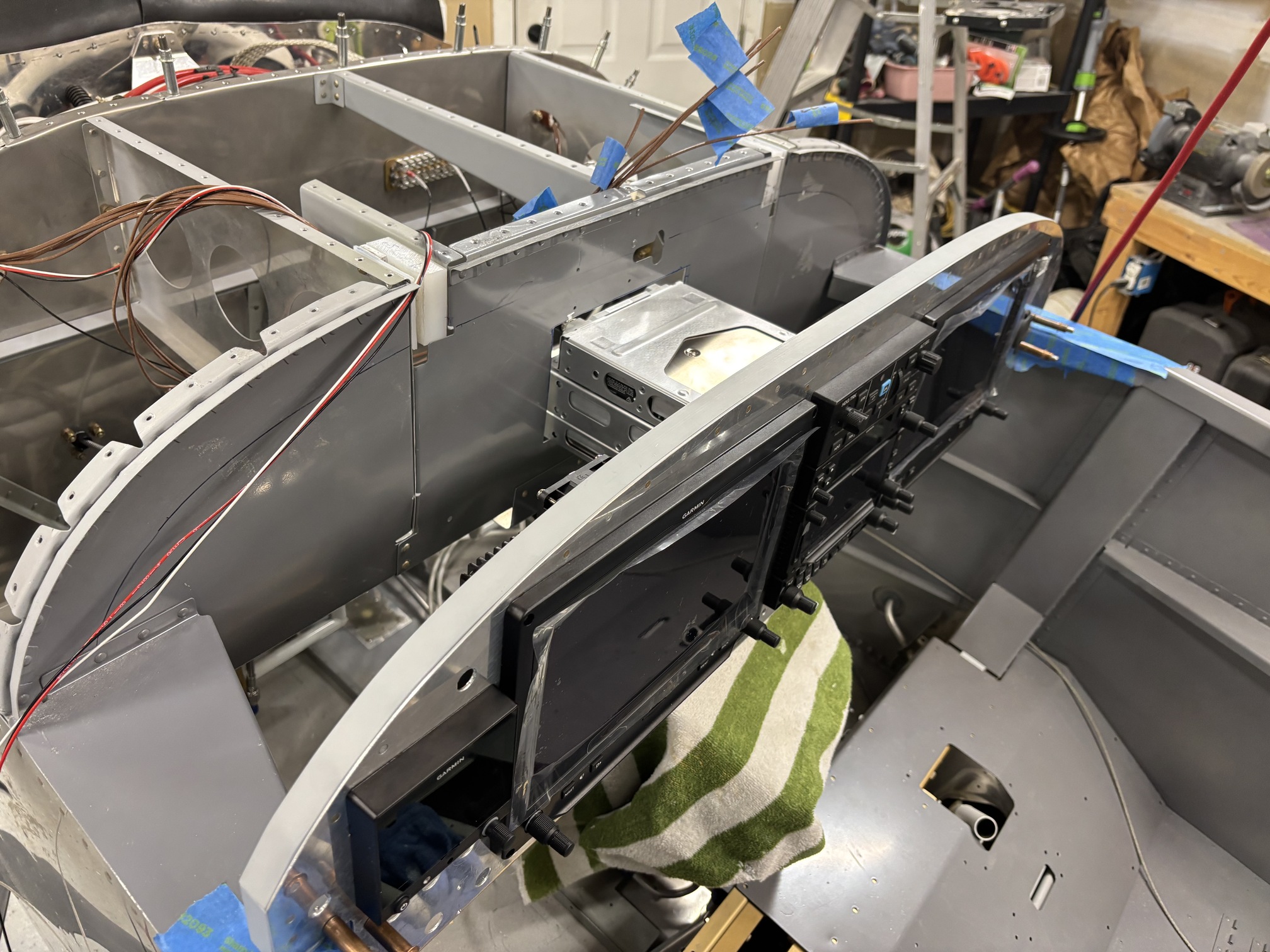

After some trimming, the fit is good.

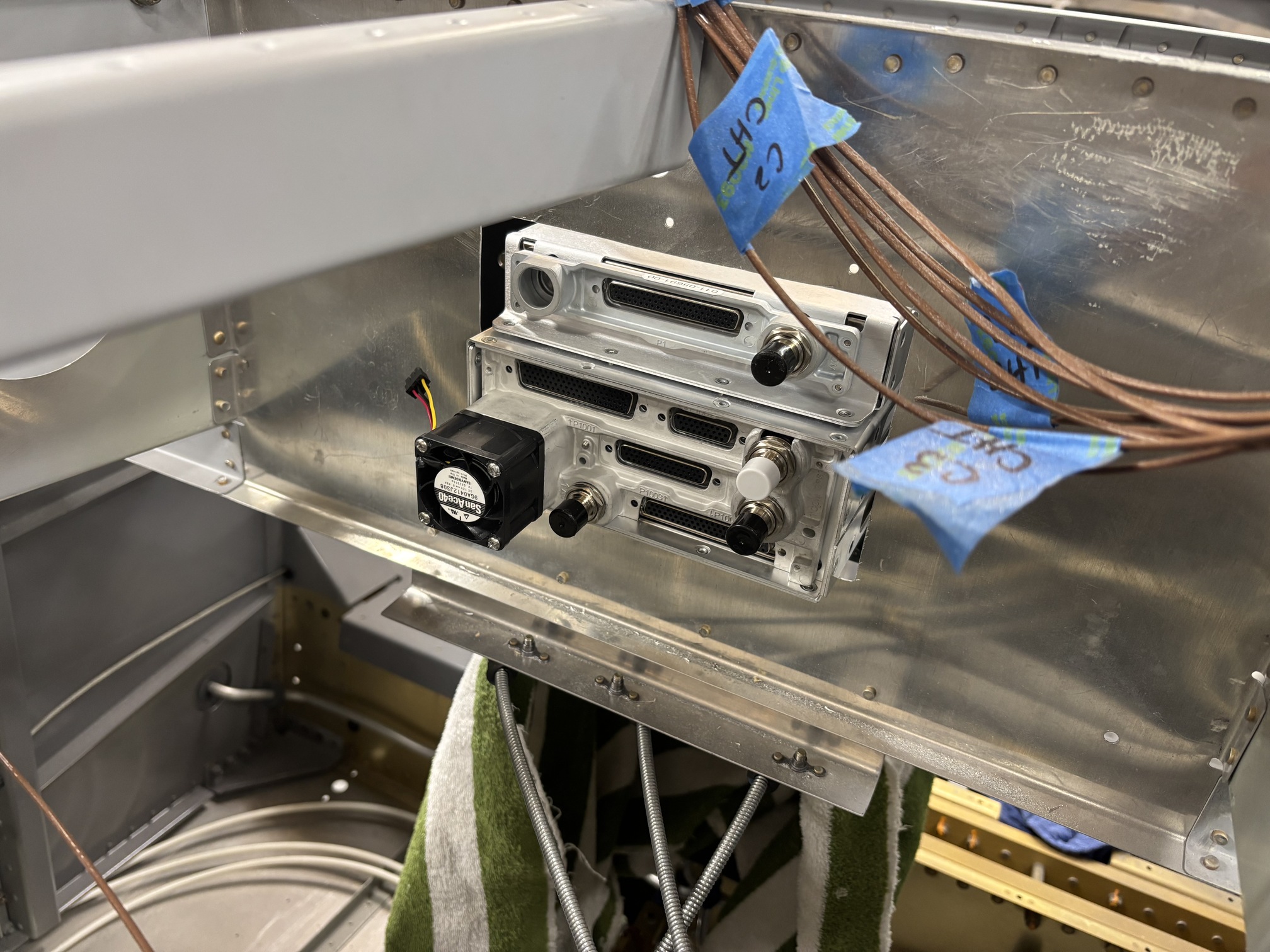

And the back. I will add reinforcement to this hole and tie the back of the racks to the sub-panel.
