Thursday May 8, 2025
GEA 24 Wiring (Electrical)
2.0 Hours

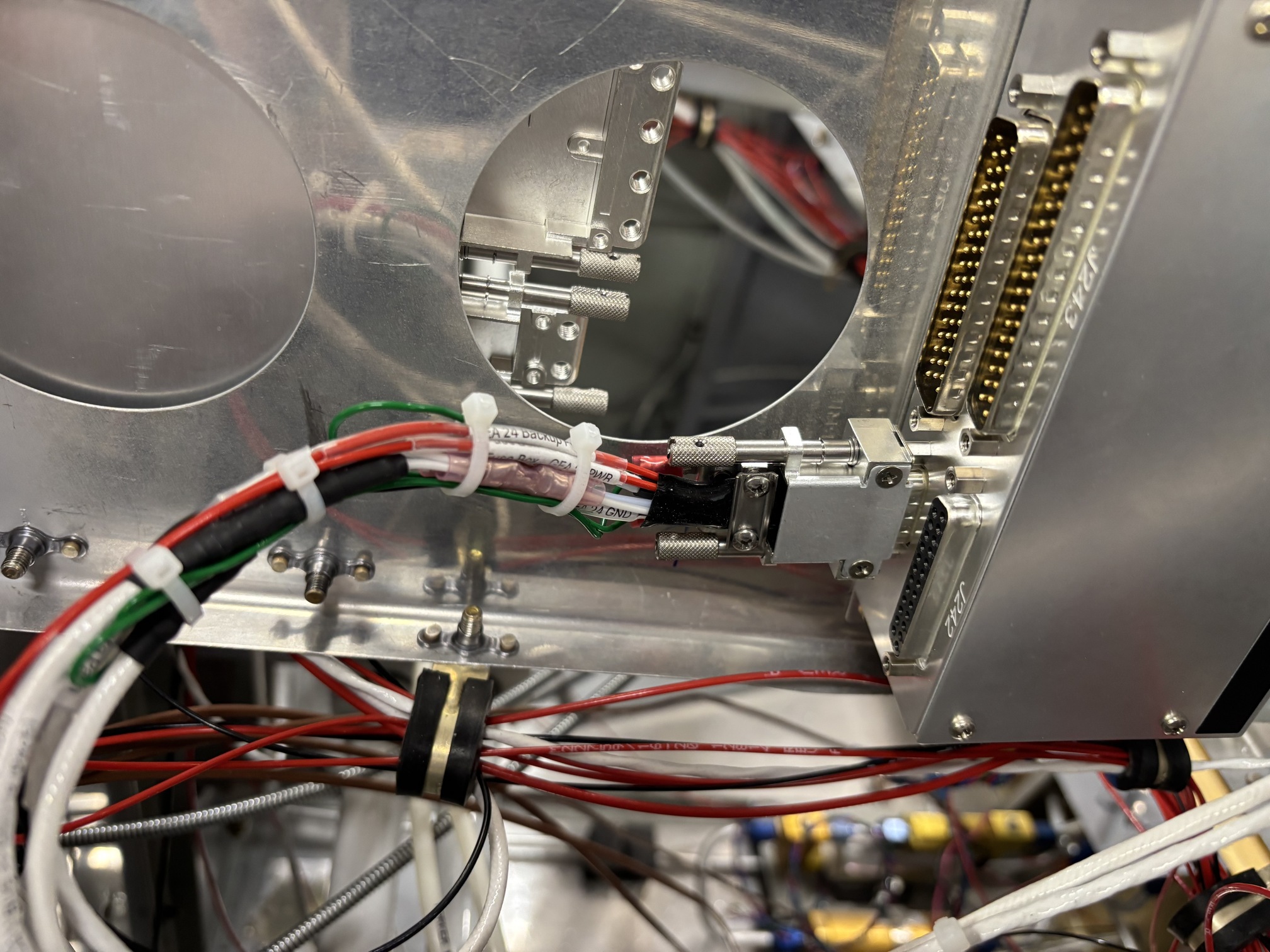

Today I wired the 9-pin connector on the GEA 24 engine monitor LRU. This involved running power, ground, CAN bus, and RS-232 lines from points elsewhere to the GEA-24 location under the top skin. I'm getting a bit faster at terminating the shields to the backshell, although the CAN bus splice and shield terminations are still quite complicated.
