Sunday May 18, 2025
GTN Wiring, GAD29 Wiring (Electrical)
7.0 Hours

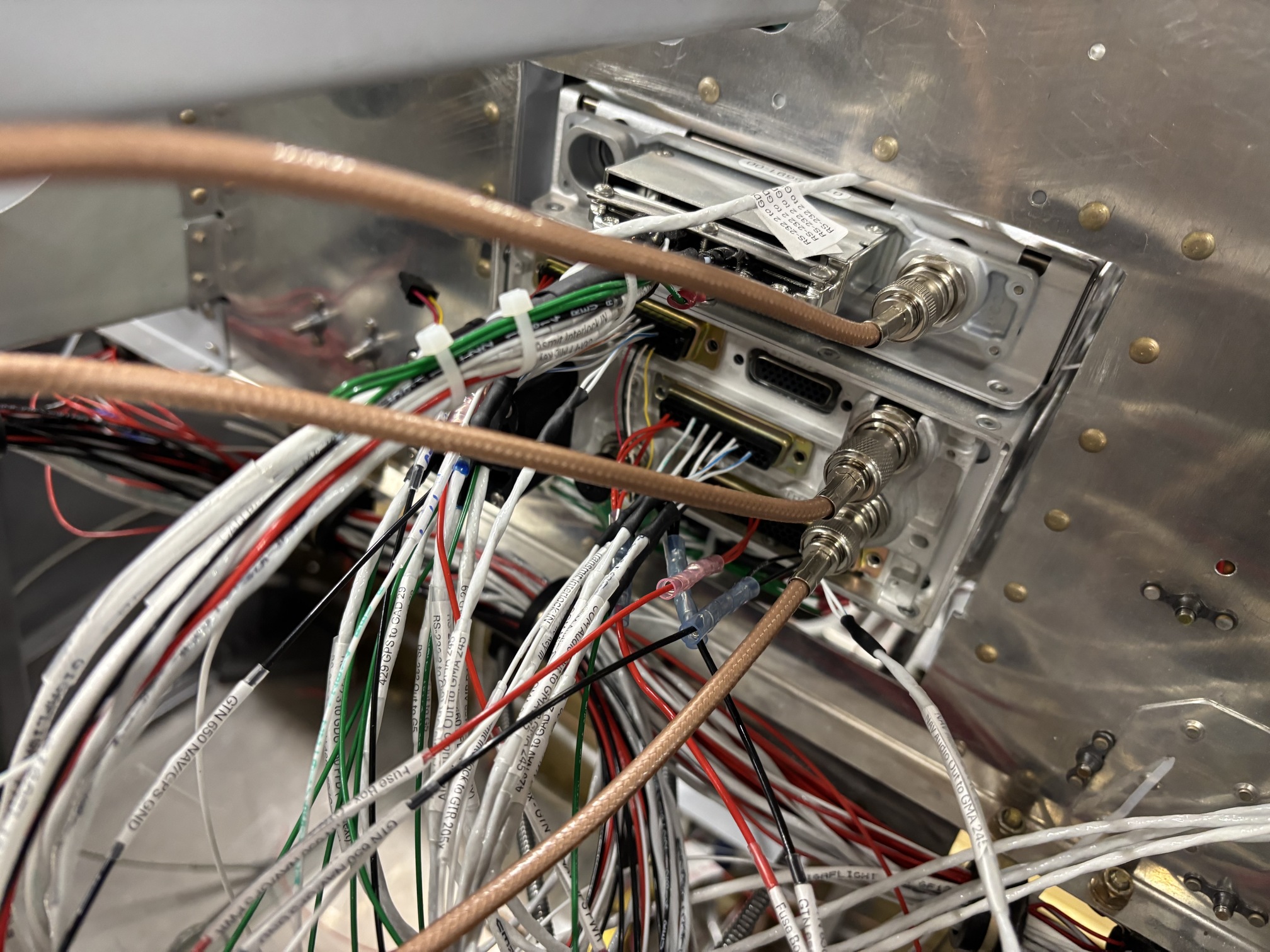

I started today by making the coax cables for COM and GPS for the GTN.

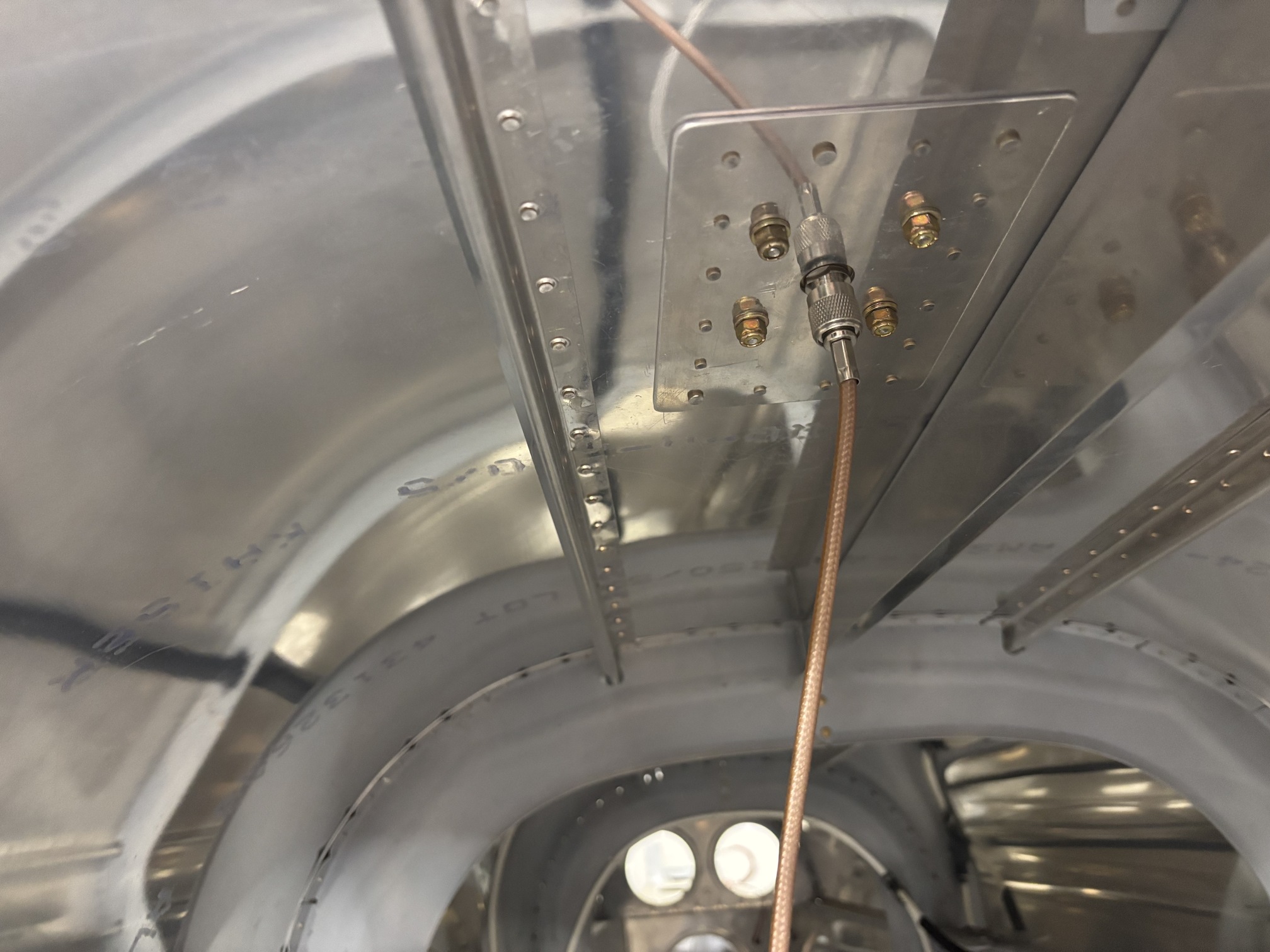

Here's the connection to the GPS antenna for the GTN. I will secure this with clamps.

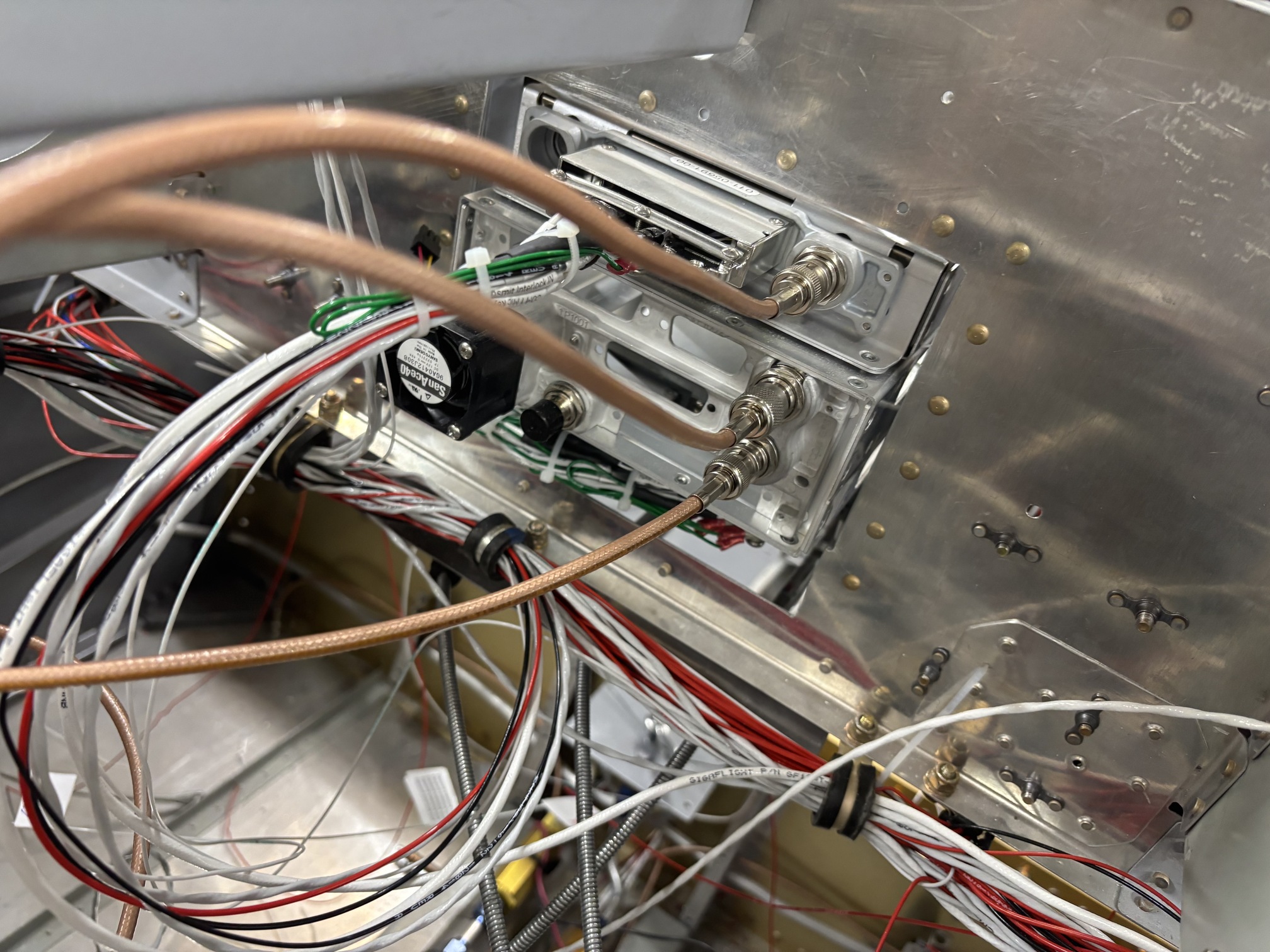

Then I wired 3 of the 4 connectors on the GTN. I am missing the connector for the fan and the screws to mount the backshells to the back plate, so I have to wait for those to get here from Stein.

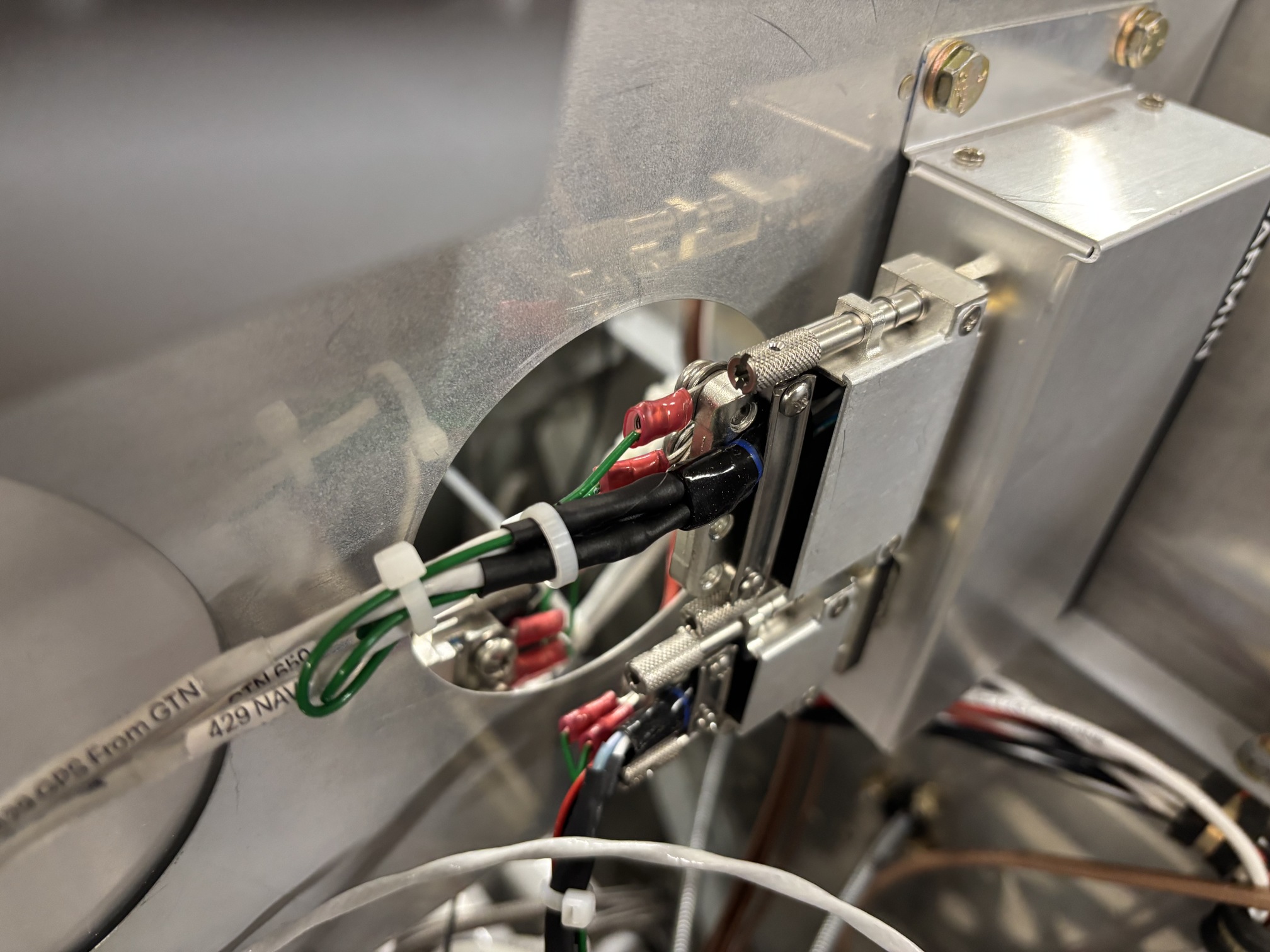

Then I wired the three ARINC 429 connections to the GAD 29, which is now finished.

I turned on the GTN briefly to verify it was working and was talking to the GAD 29.
