Wednesday May 21, 2025
Finished 3/4 GTN 650xi connectors, Finished GDU 460 PFD connector (Electrical)
3.0 Hours

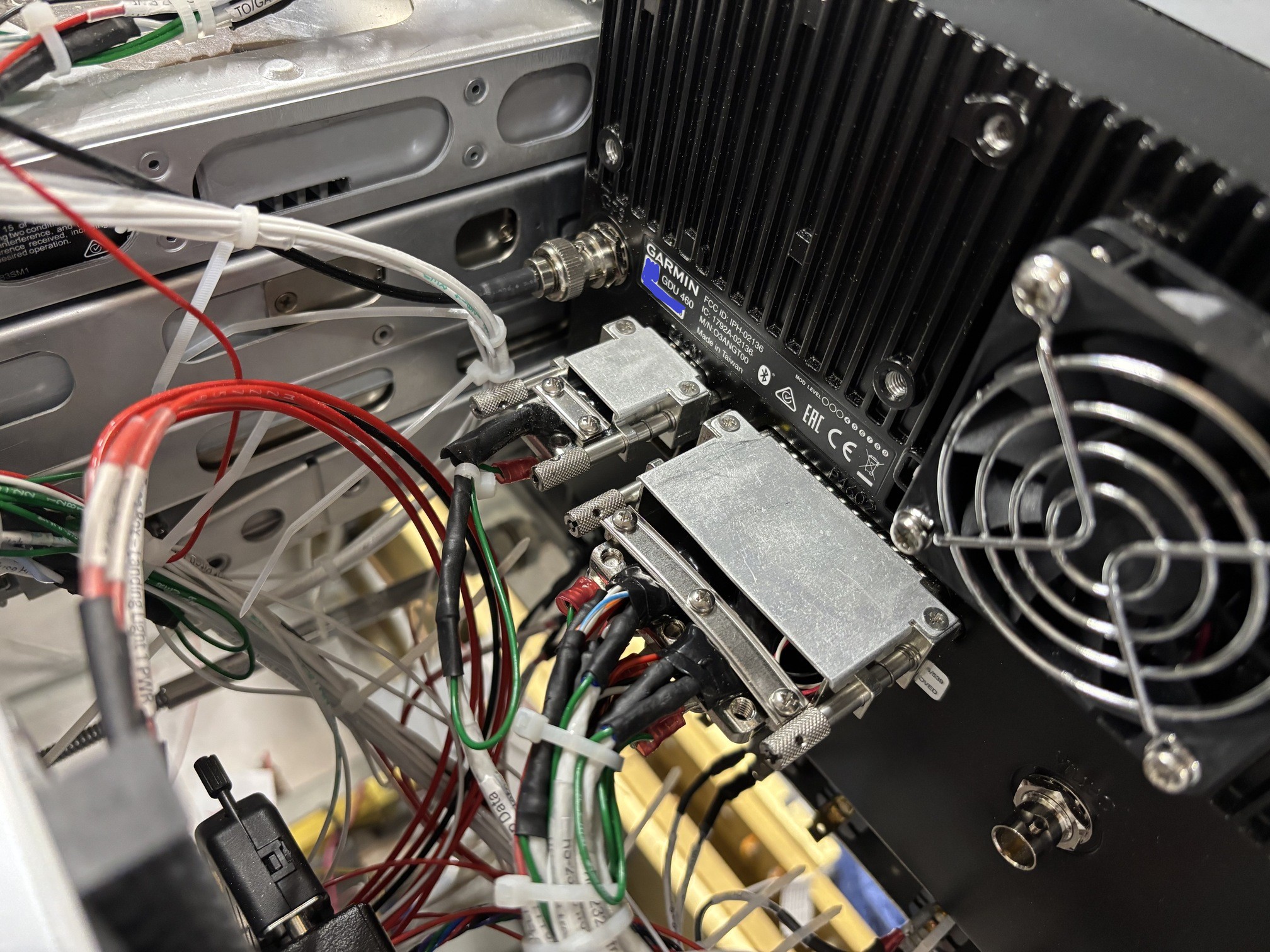

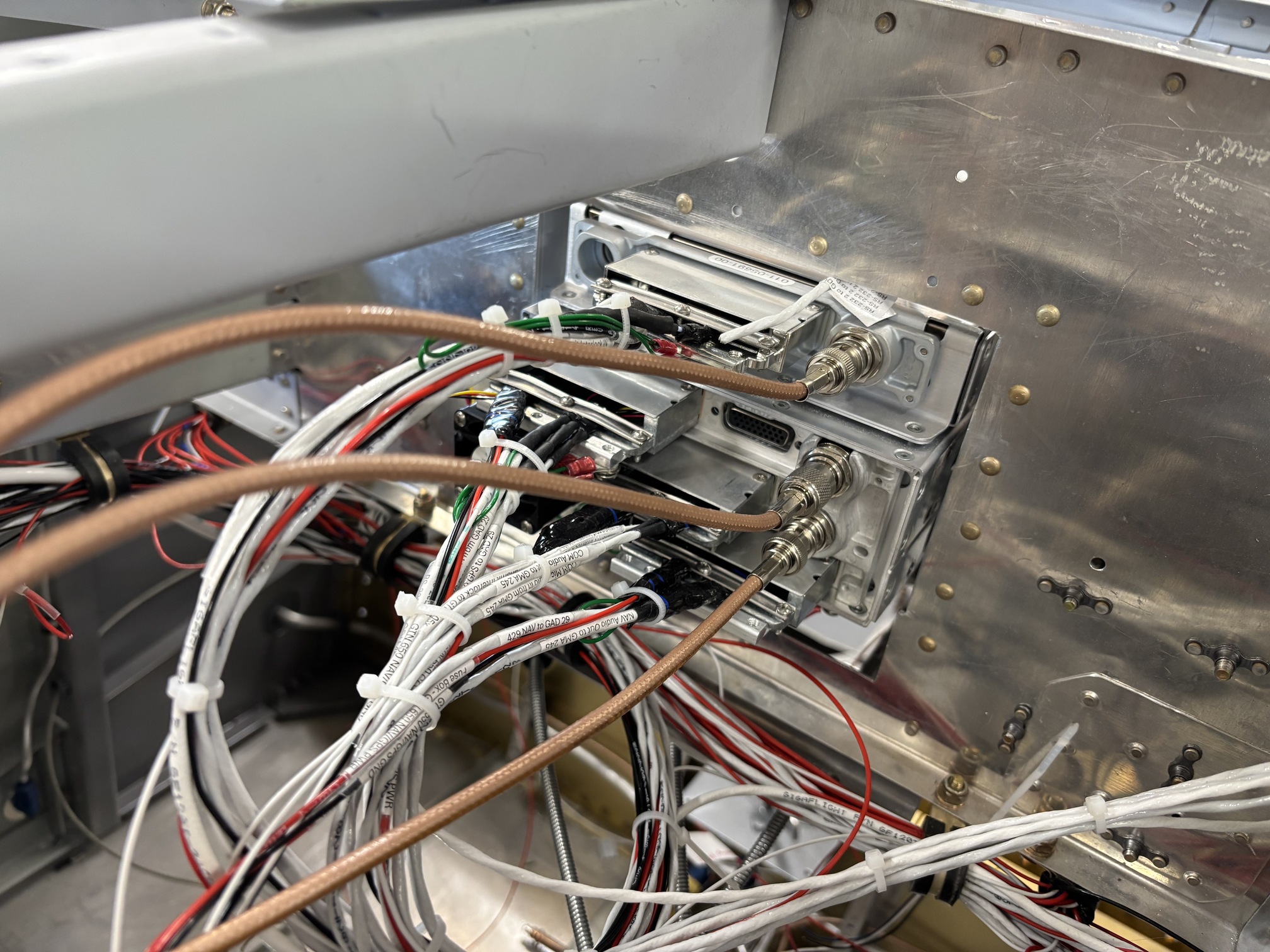

I got the shipment from Stein today, so I finished the 3 connectors on the GTN 650 xi, including the connector for the cooling fan. Unfortunately I ordered 4 wire twisted pair rather than 4 wire shielded for the HSDB connection between the GTN and the GTX transponder, so I can't finish the fourth connector yet.

Then I finished the GDU 460 PFD connector, which involved running wire for the connection to the ELT and GTX and then connecting some wires from the GTN and GMA.

I played around with the system for a while, seeing how flight plans mirror between the G3X and the GTN.
