Wire Cleanup, GEA 24 Wiring (Electrical)
3.5 Hours

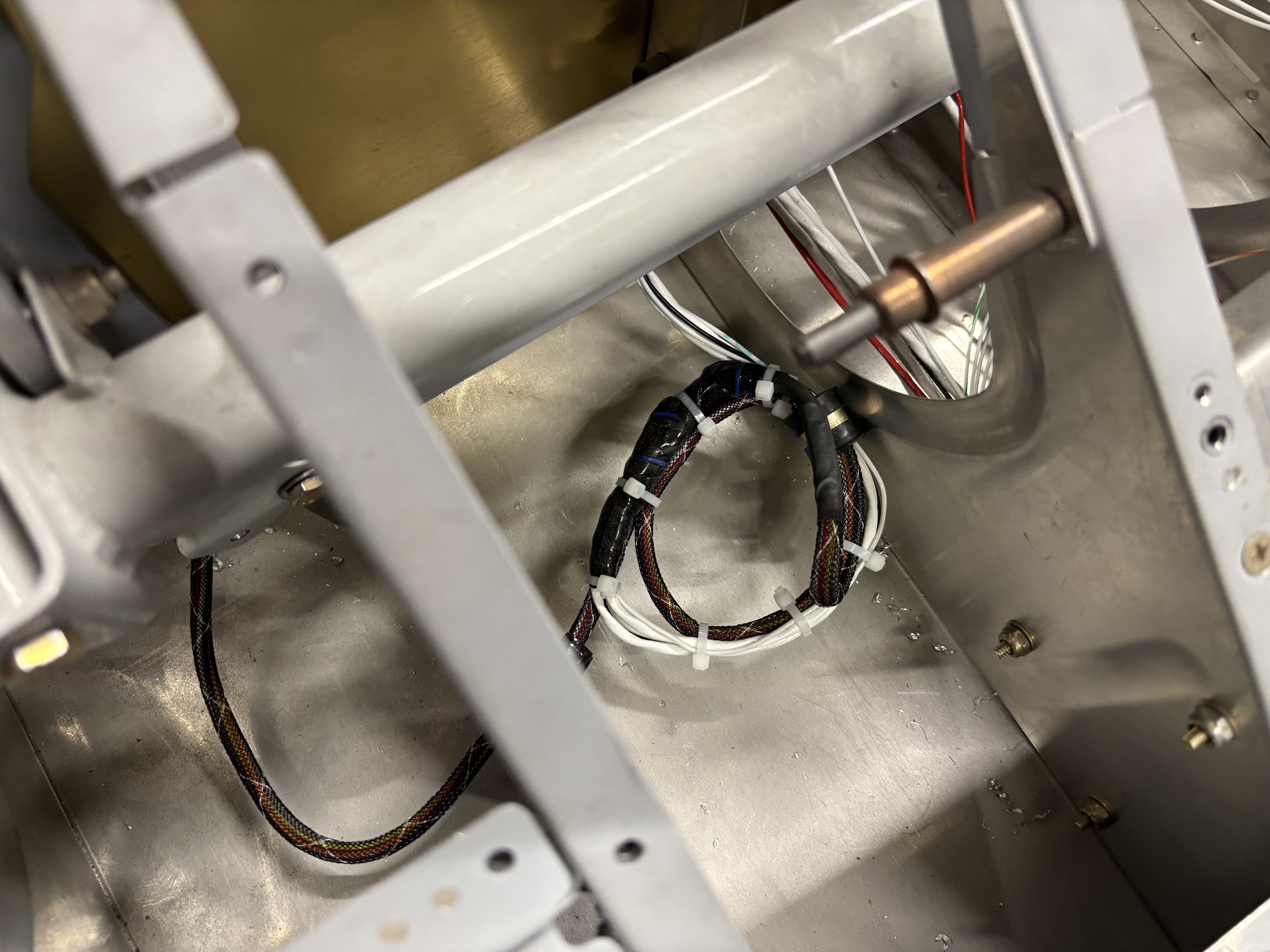

I cleaned up the wires going to the pilot stick.

I upsized some adel clamps behind the panel and did some general wire cleanup in that area.

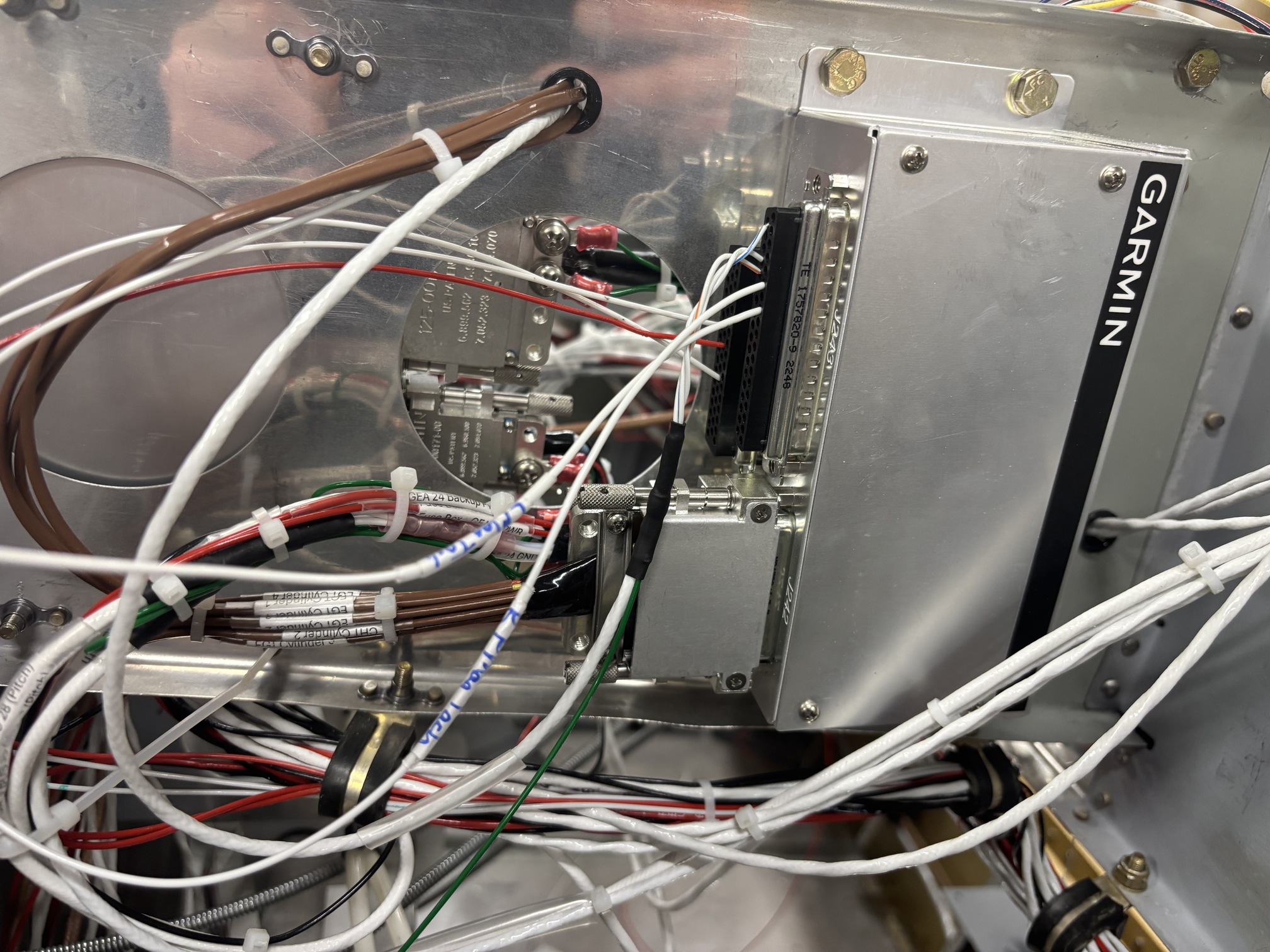

Then I wired all of the thermocouples for EGT and CHT to the GEA24. Neither wire on cylinder 2 worked, so I opened up the splices by the engine and found that a wire had pulled out of a crimp on both of them. Redid those and all of the CHT/EGT sensors then worked.

I also wired the fuel flow sensor (FT-60) to the GEA 24, which involved running a 3-wire shielded wire to the sensor and splicing it together. I added some adel clamps to secure the wire run. I also connected the two tach sensors from the pmags.
