Sunday June 1, 2025
Finished GTN to GTX Wiring, More GEA Wiring, Firewall Forward Adel Clamps (Electrical)
5.2 Hours

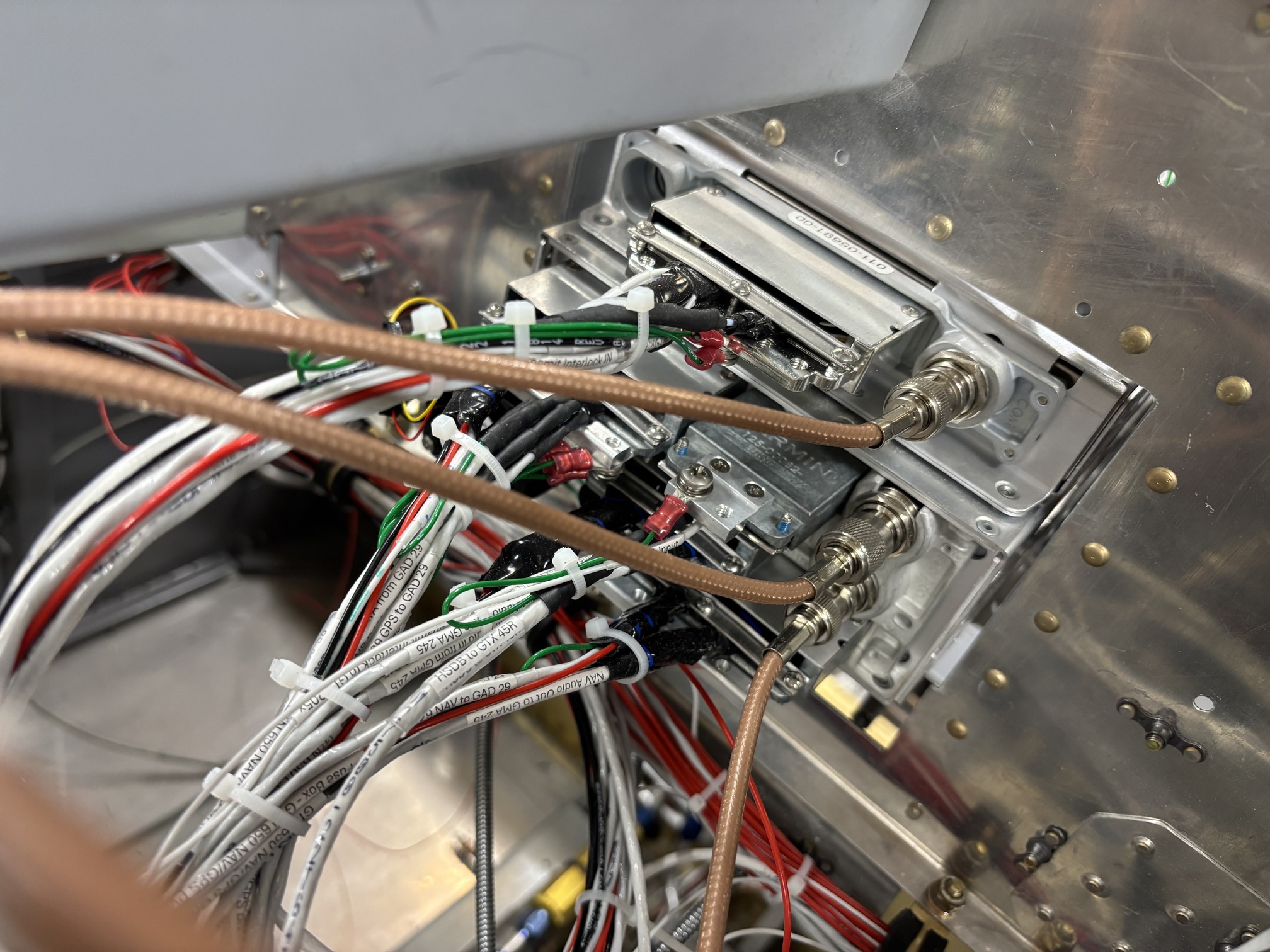

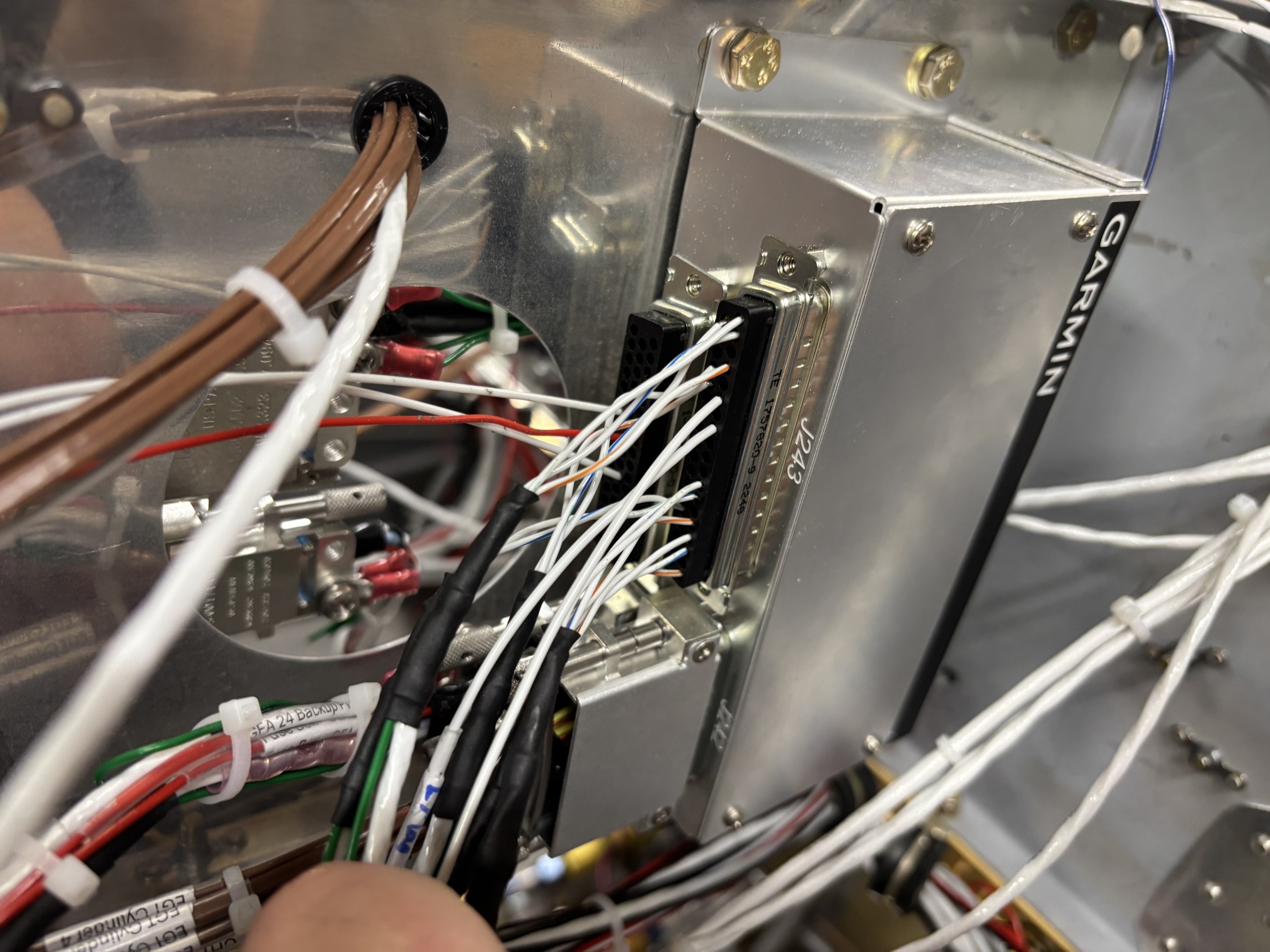

I started today by wiring the GTN 650 xi (GPS navigator) to the GTX 45R transponder with shielded 4 conductor wire HSDB. I also wired the TO/GA button to the GTN and tested that it was being read. That means both the GTN and GTX are now finished.

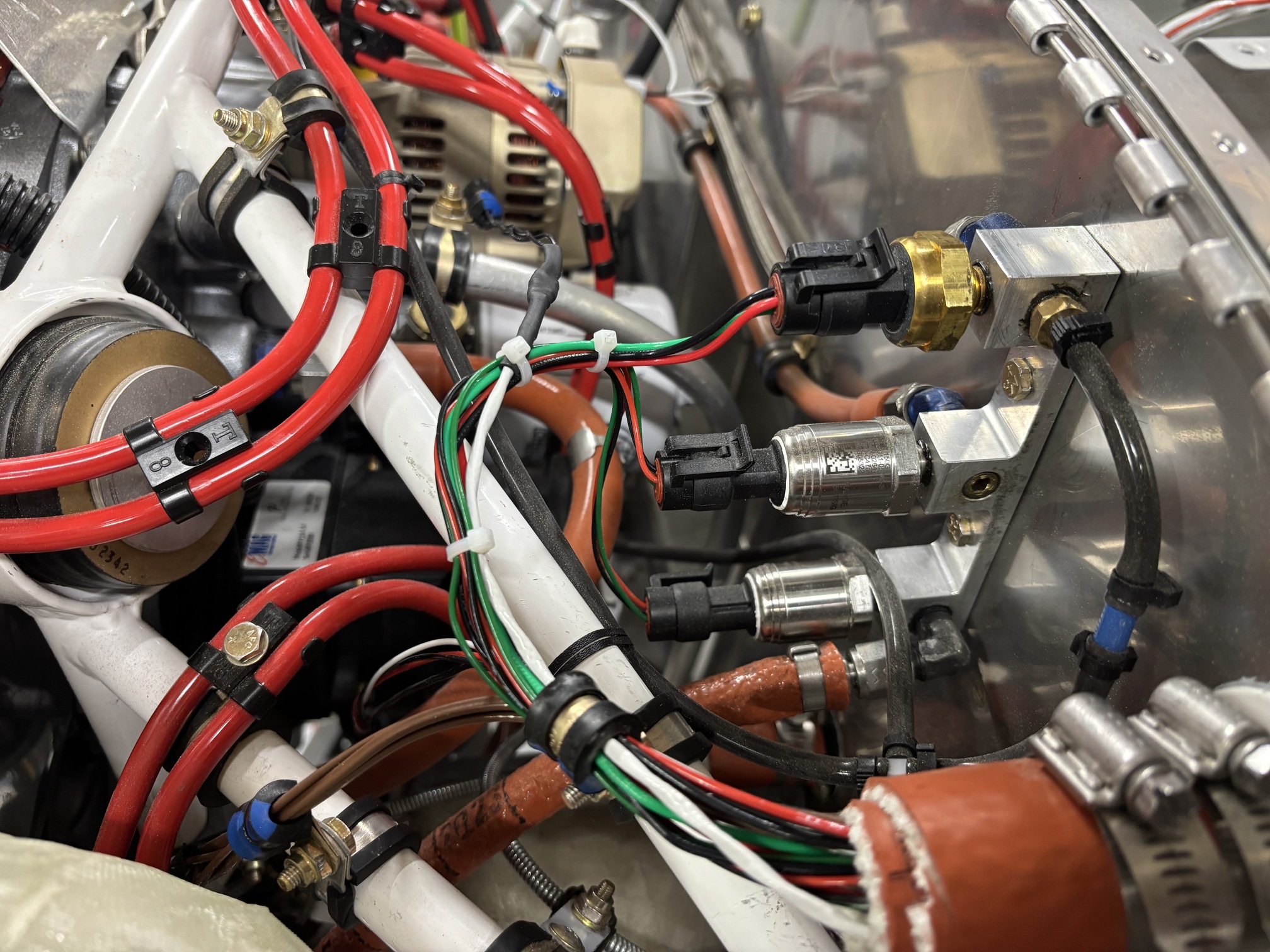

Then I wired all of the engine pressure (oil, fuel, manifold) gauges to the GEA 24. I also safety'd and wired the oil temperature sensor to the GEA. I added a bunch of Adel clamps to keep wires off of the engine mount.

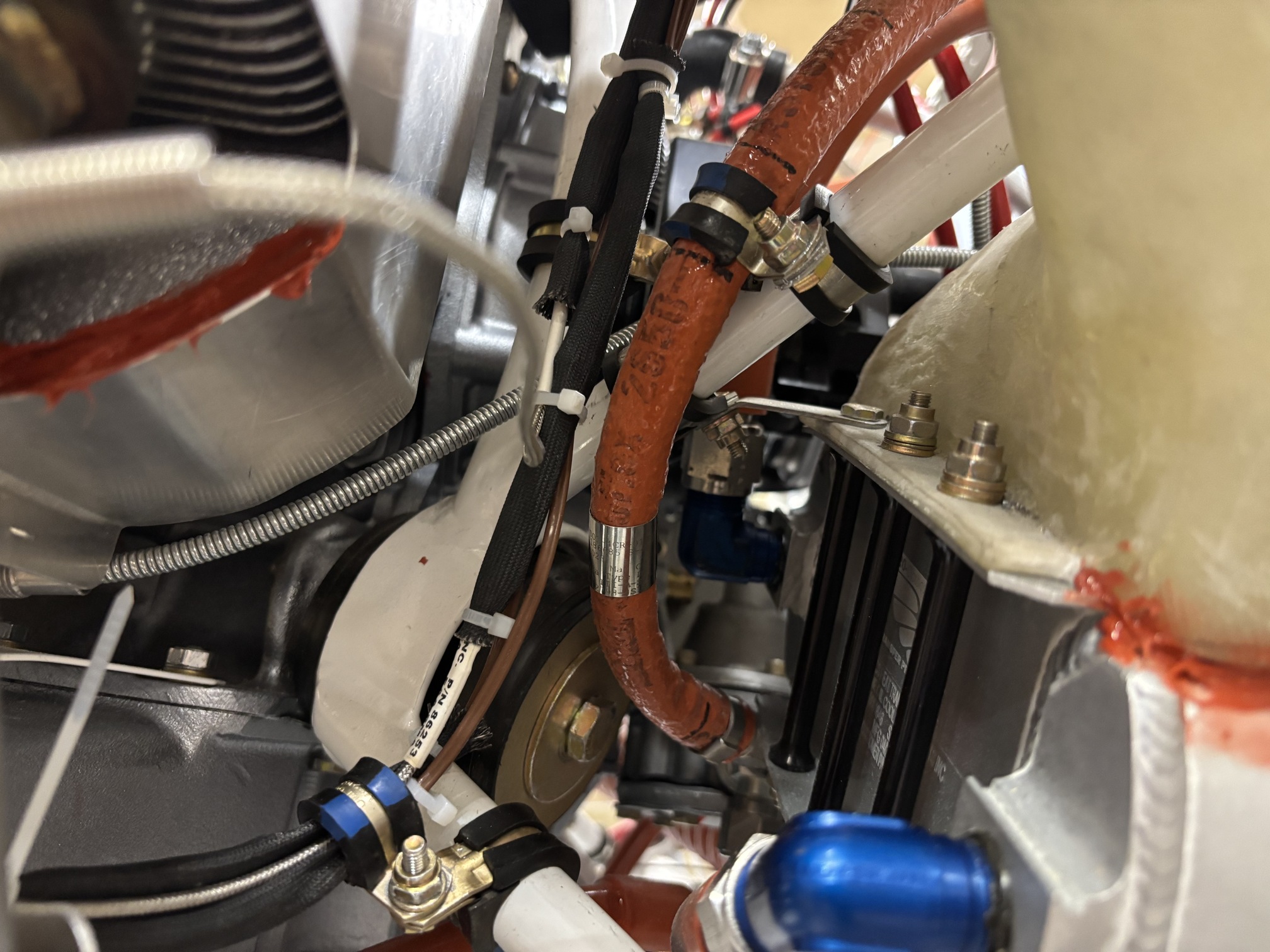

I also added adel clamps to keep the fuel pressure hose off of the engine mount.

The only things left for this connector on the GEA are the two wires for the shunt that measures amps.
