Sunday June 1, 2025
More GEA wiring, Static/Pitot Plumbing (Electrical)
3.5 Hours

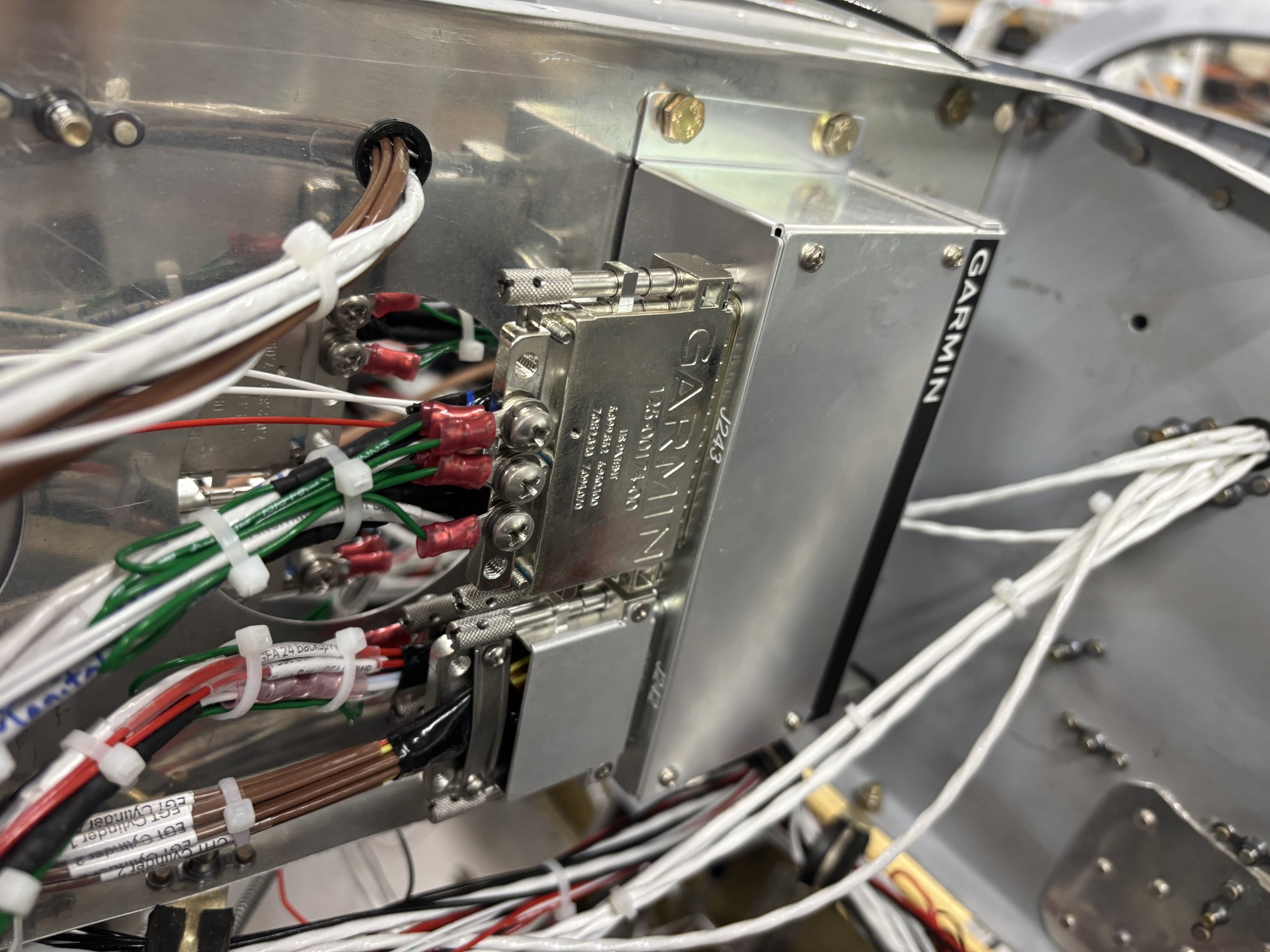

I added the shunt wiring to this connector on the GEA24. This involved soldering a pair of small 1A fuses in line with the two wires to protect the GEA. Then I finished up the backshell and shield wiring on the J243 connector.

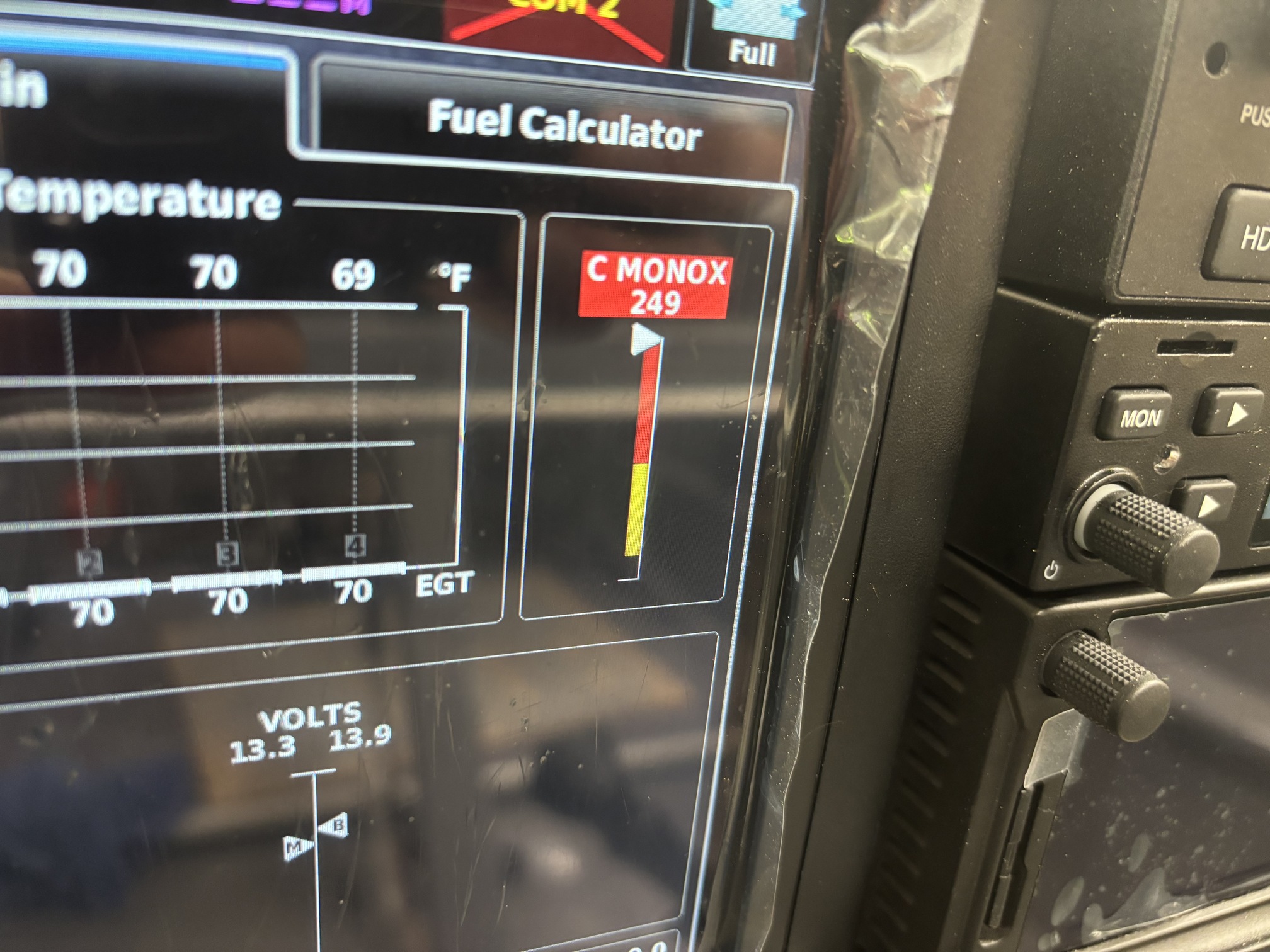

Then I wired the carbon monoxide detector in to the J244 connector and tested it with a little bagged exhaust from my car. It works!

I connected the power wires for the headset jacks to the fuse box--something I had neglected to do when I wired them originally.

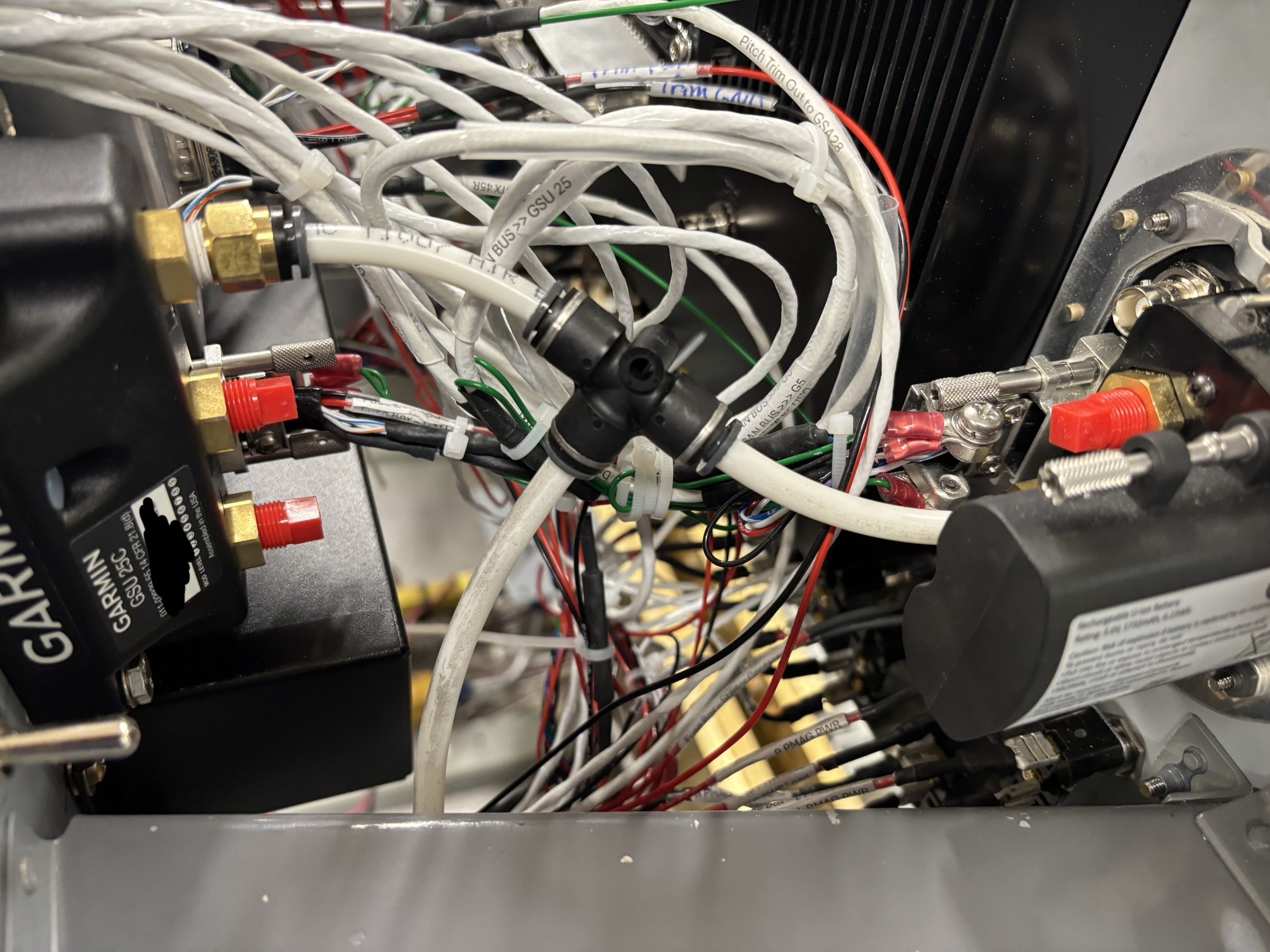

Then I plumbed the static air to the GSU 25 and the G5.

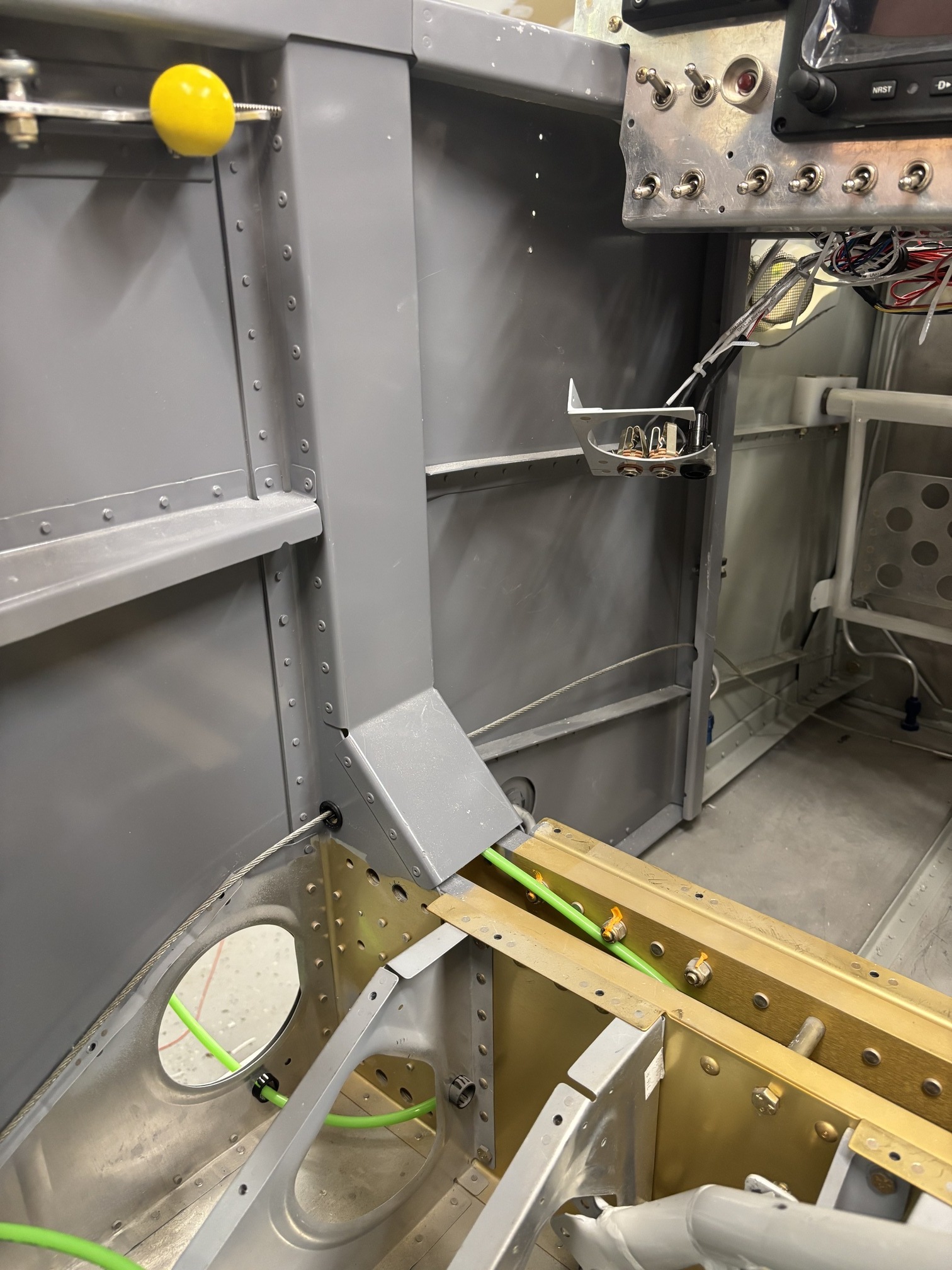

Finally, I figured out a routing for the pitot air coming down through this tunnel cover on the side.

I will route the AOA tubing similarly.
