Wednesday June 4, 2025
Wiring Nav/Strobes (Electrical)
3.5 Hours

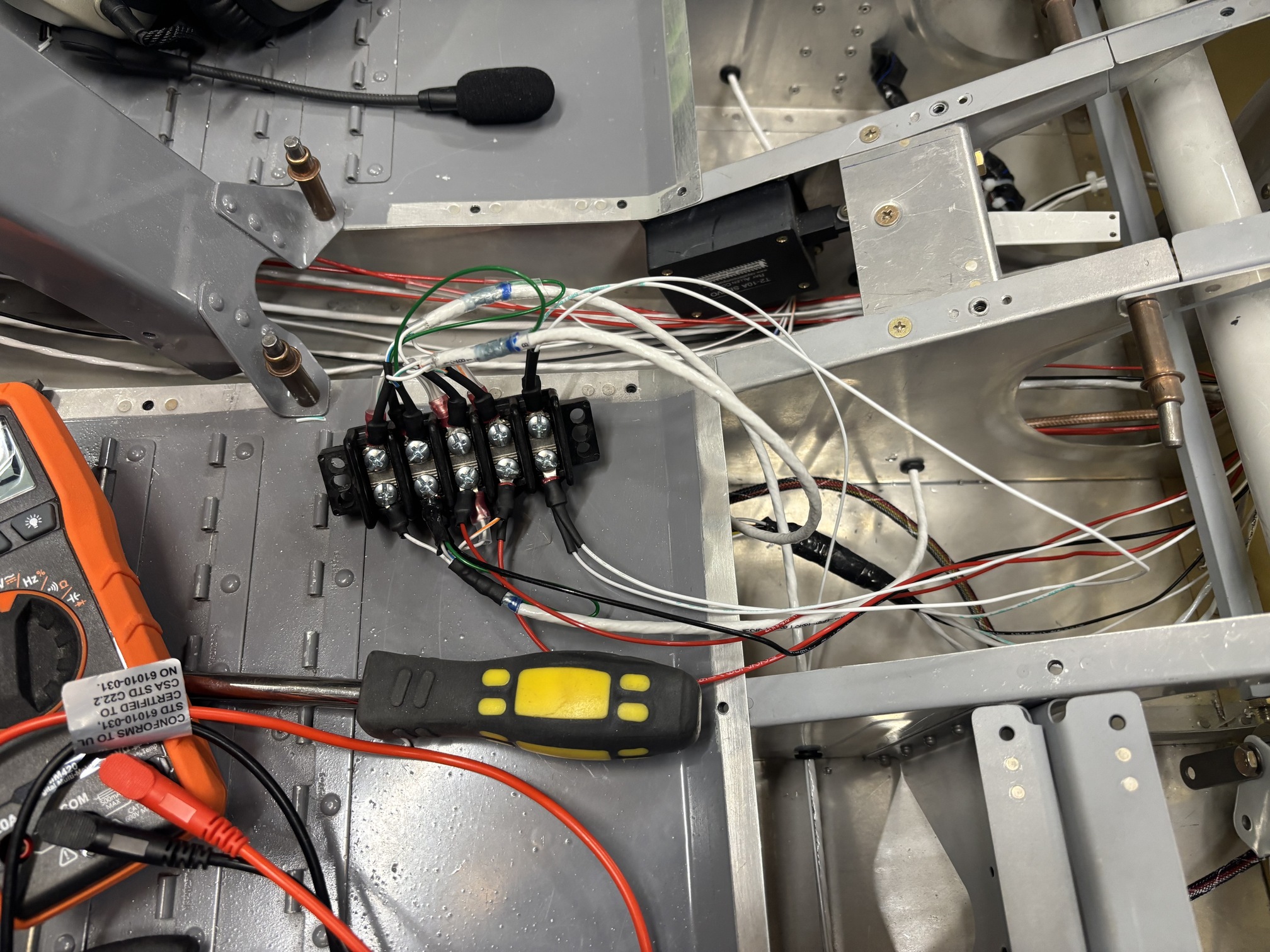

Today I ran the 4 conductor 20 AWG shielded wire from a terminal block under the copilot seat to the tail and both wings. I also ran power to the panel switch and from there to the terminal block. I then terminated all of those wires, as well as the wires for the A/P disconnect switch, to the terminal block.

I then temporarily connected one of the shielded wires to one of the nav lights and tested the functionality--it all works well. The switch on the panel is three way--it turns on the nav lights with the middle position and then both nav and strobe lights in the upper position.
