Saturday June 7, 2025
Trim Wiring (Electrical)
2.0 Hours

I ran 3 conductor shielded wire from the GEA 24 to the tail for pitch trim sensing.

Then I ran 3 conductor shielded wire for roll trim sensing from the GEA 24 to the roll trim module in the center section and wired it up.

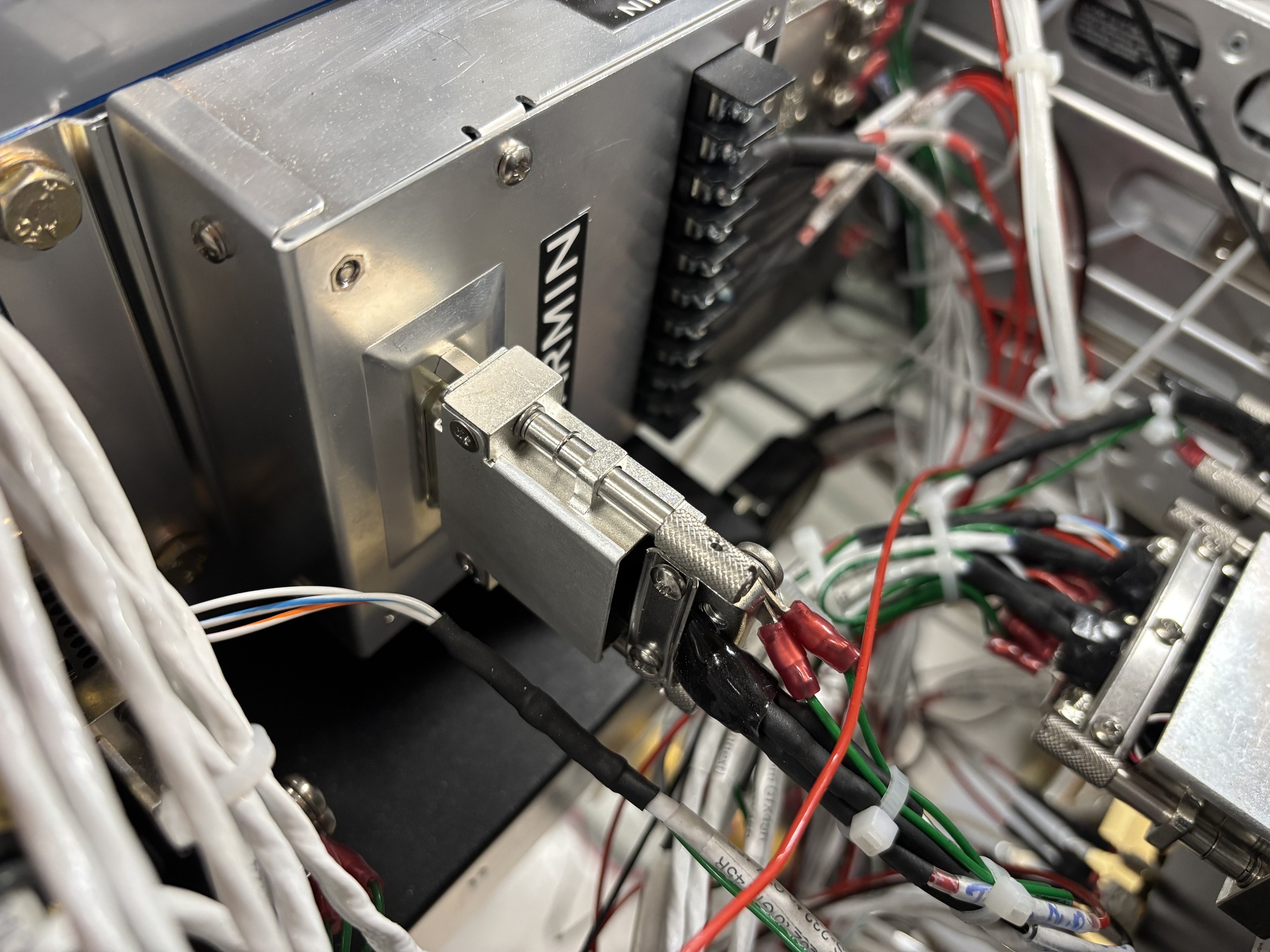

I also ran 2 conductor shielded wire from the GAD 27 to the right wing and again from the roll trim motor to the right wing that will eventually connect to the GSA 28 once the wing is on. This allowed me to finish the J272 connector on the GAD 27.
