Wednesday June 18, 2025
Misc Pitot, Wire Cleanup, Cabin Heat, Firewall Sealing
(3.0 Hours Electrical, 1.2 Hours Firewall Forward, 0.8 Hours Wings)
5.0 Hours Total

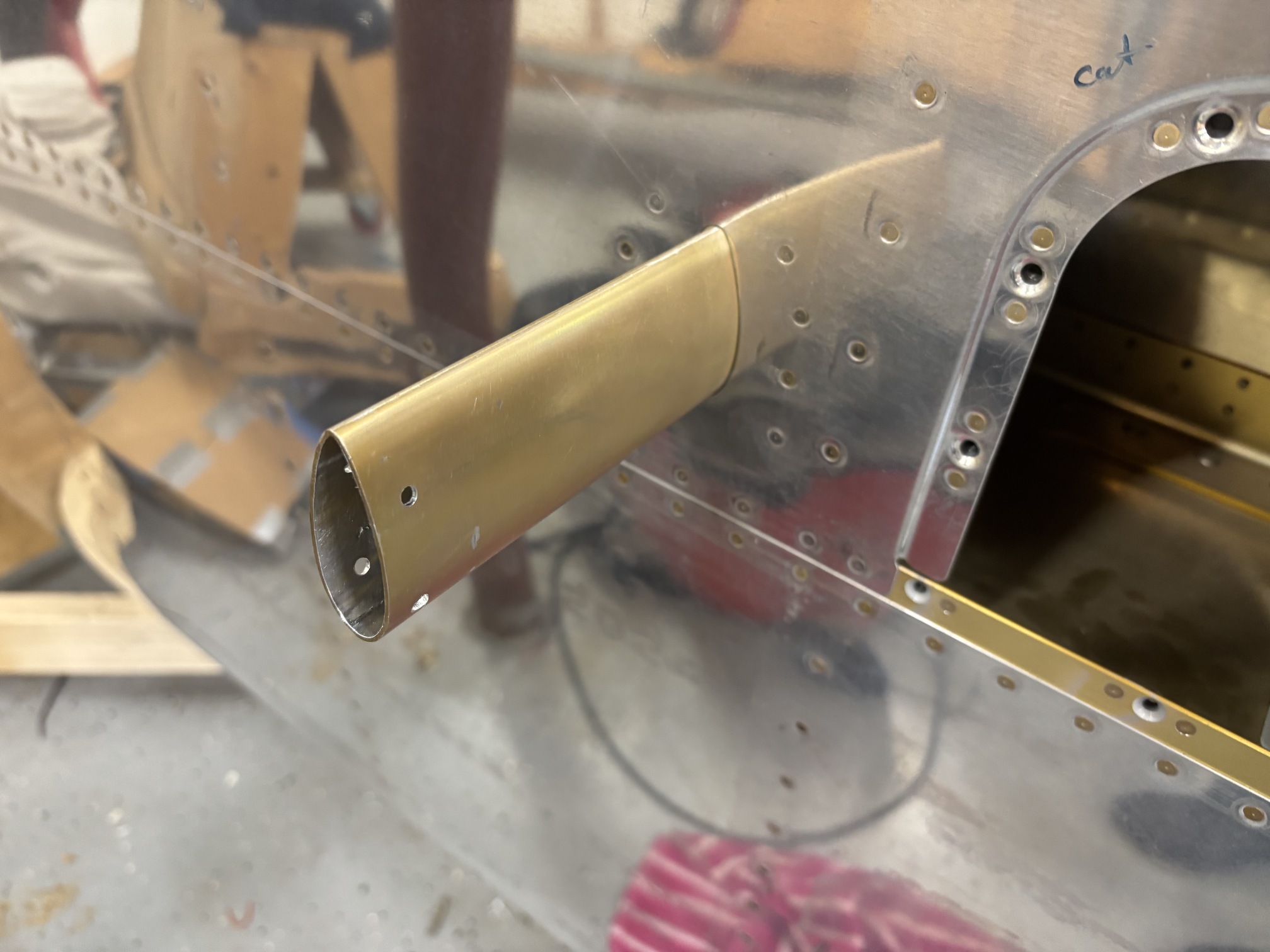

I riveted the pitot mast to the wing.

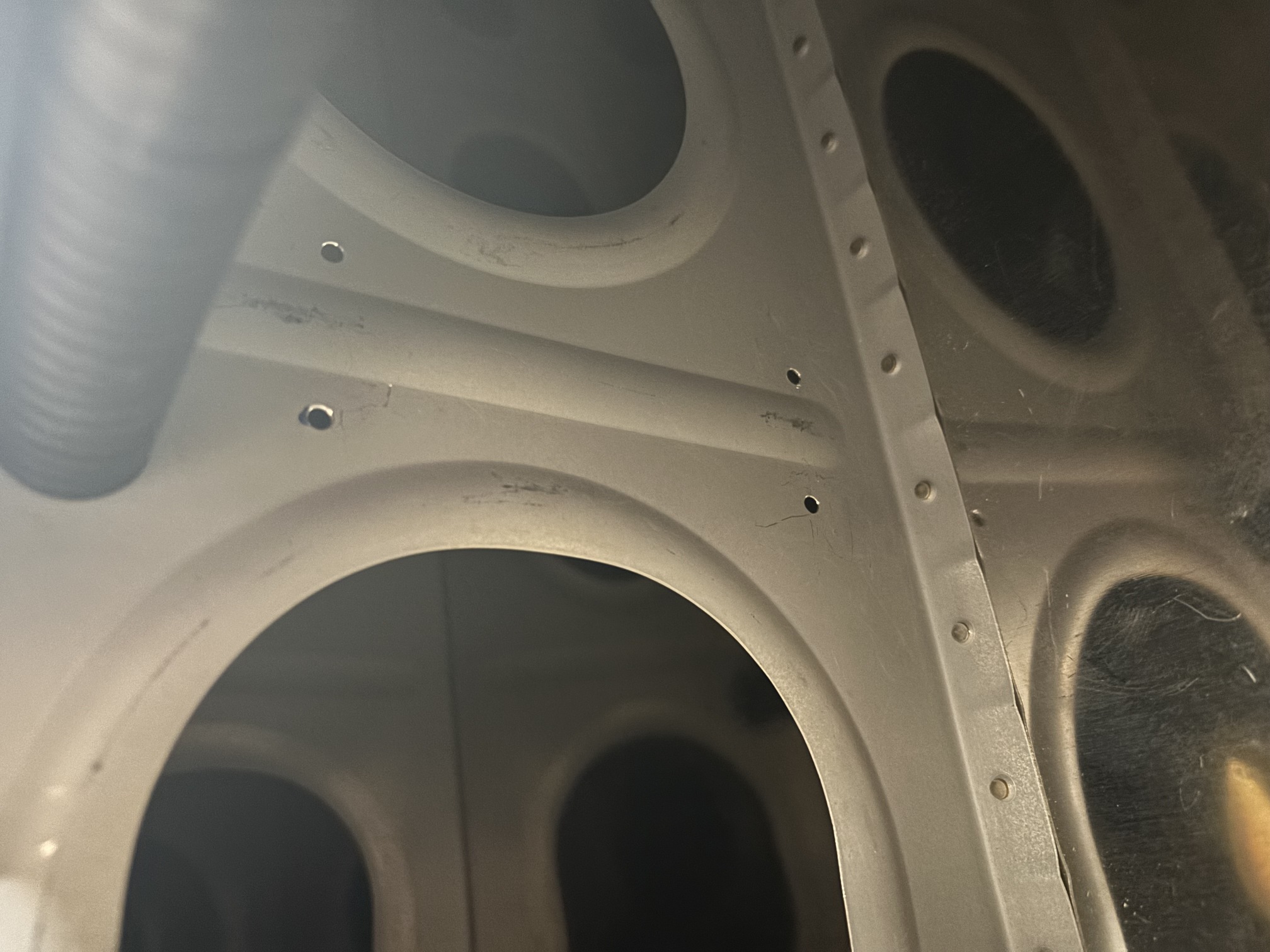

I also drilled mounting holes for the pitot heat regulator on the rib between the access panel and the pitot mast.

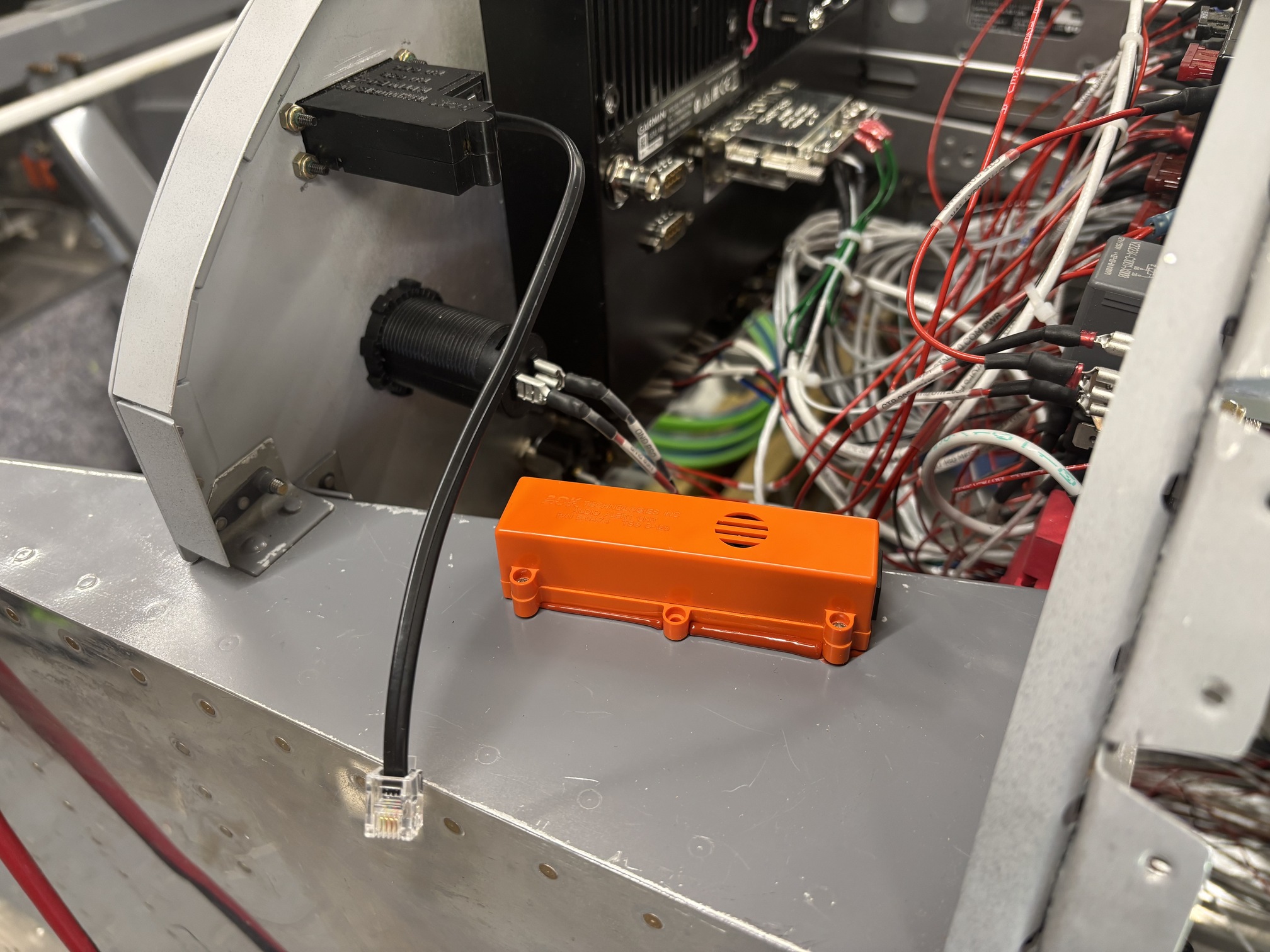

I glued the ELT buzzer to the canopy deck near the remote control.

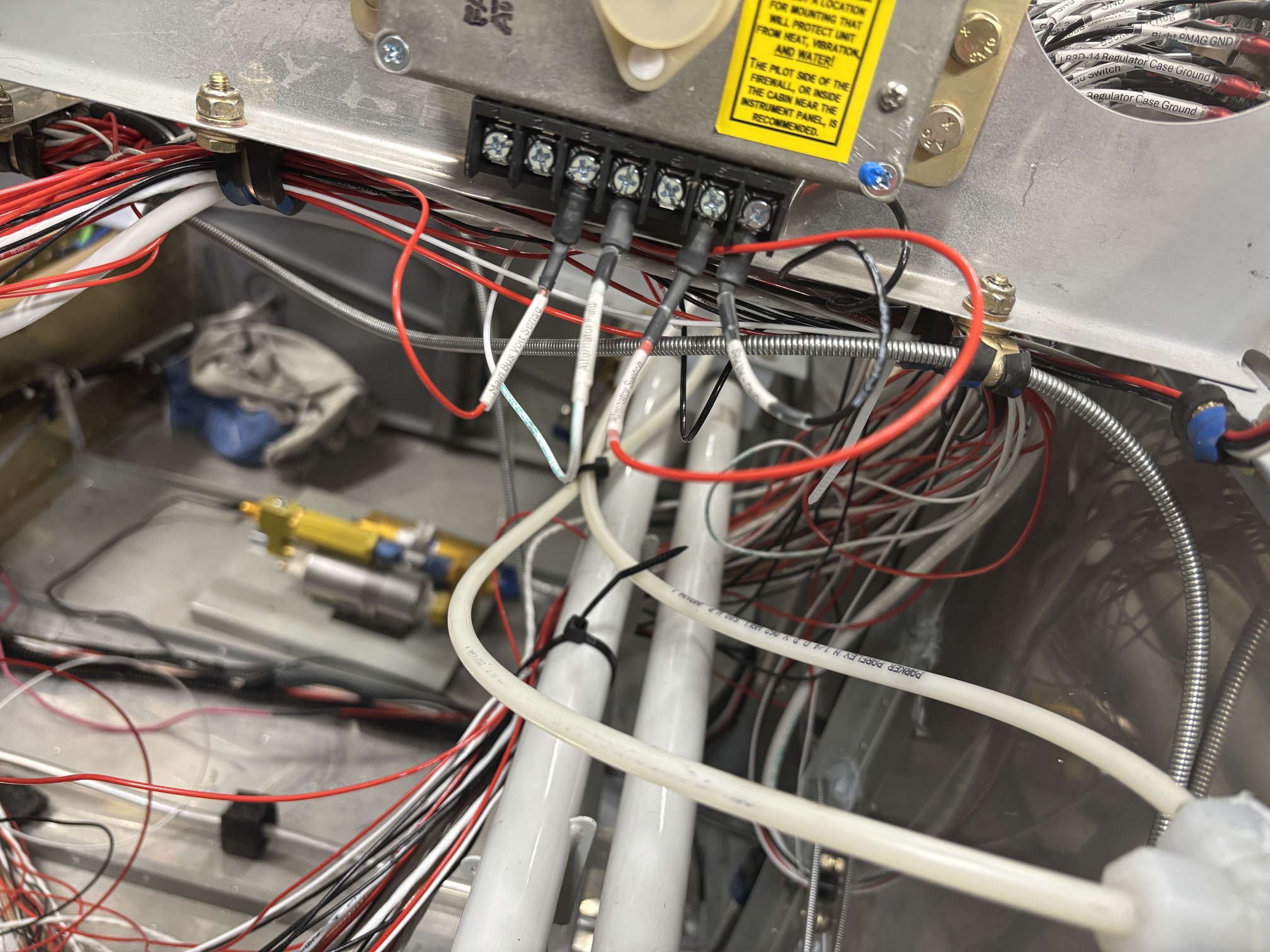

I did a bunch of wire cleanup, removing old crappy zip ties and replacing them with the high quality metal-tongue zip ties.

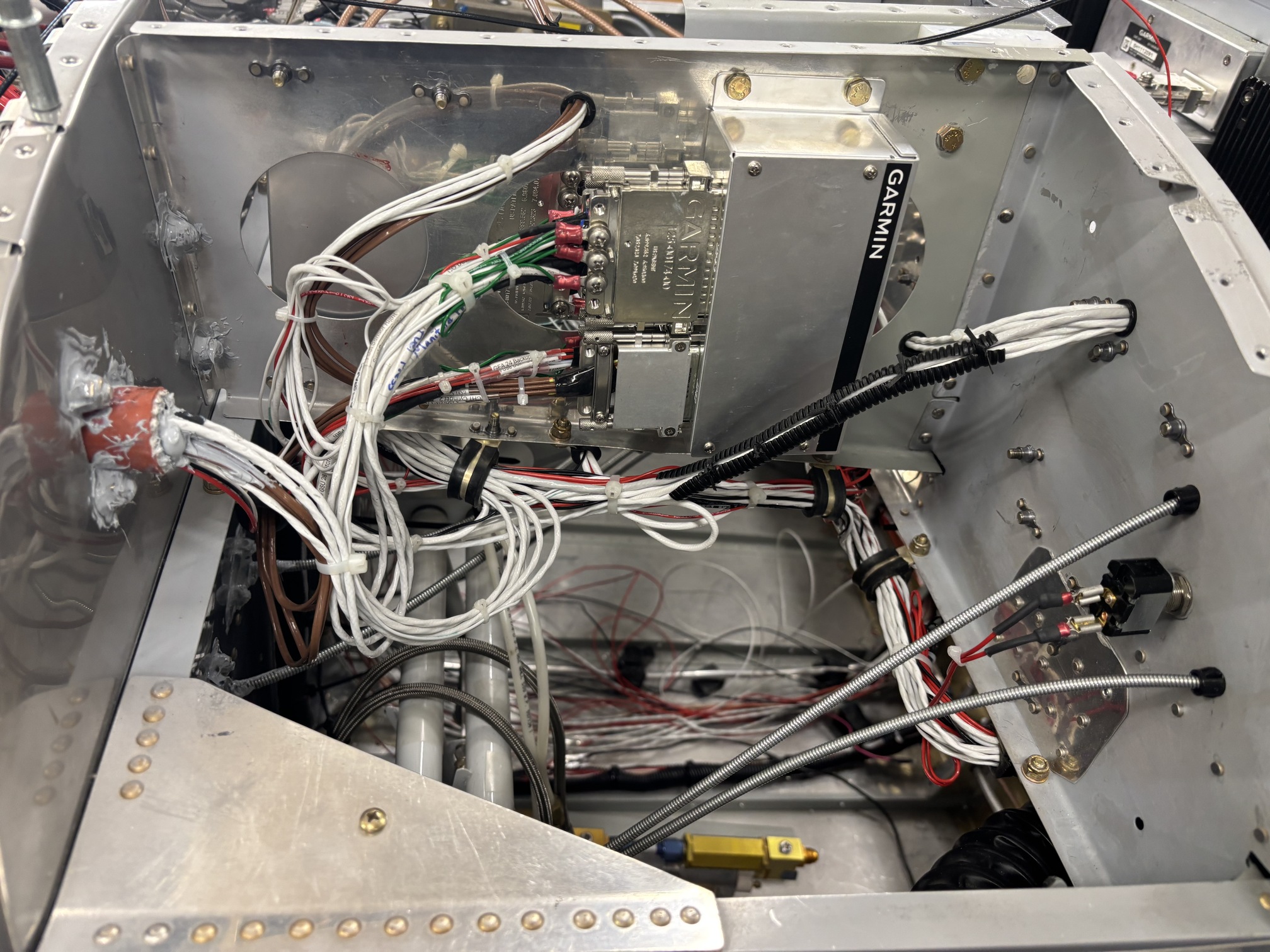

I did a bunch of sealing on the firewall.

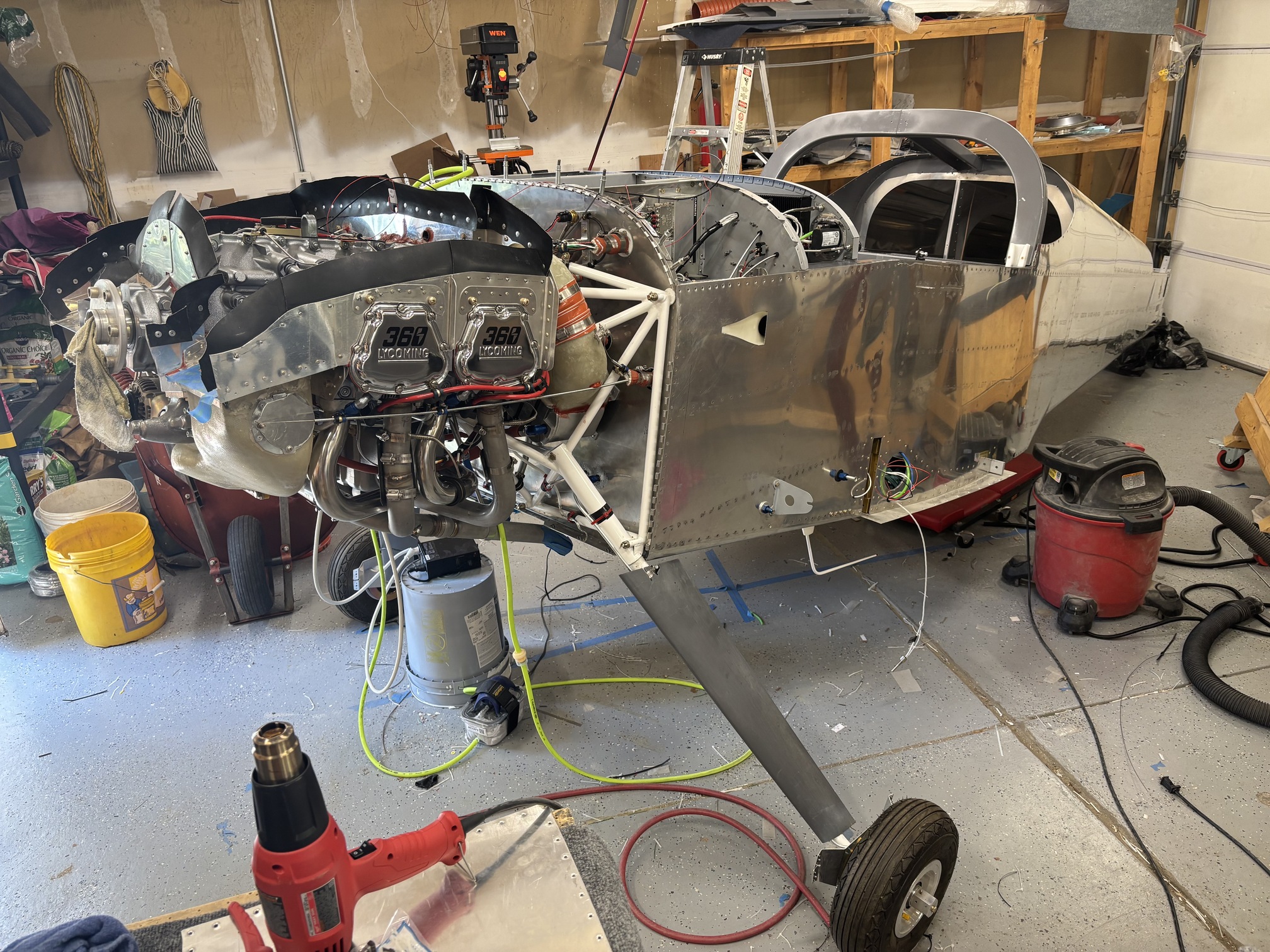

Gratuitous picture cause I don't take wide shots very often.

It's hard to get it all in one shot, but I did some routing of the cabin heat control, including clamping it to some supports and drilling the hole in the angle on the firewall.

Later, I went through some more G3X settings, configuring yellow/red/green bands on the engine instruments.
