Thursday June 19, 2025
ELT Remote Wiring, Wiring Cleanup (Electrical)
7.5 Hours

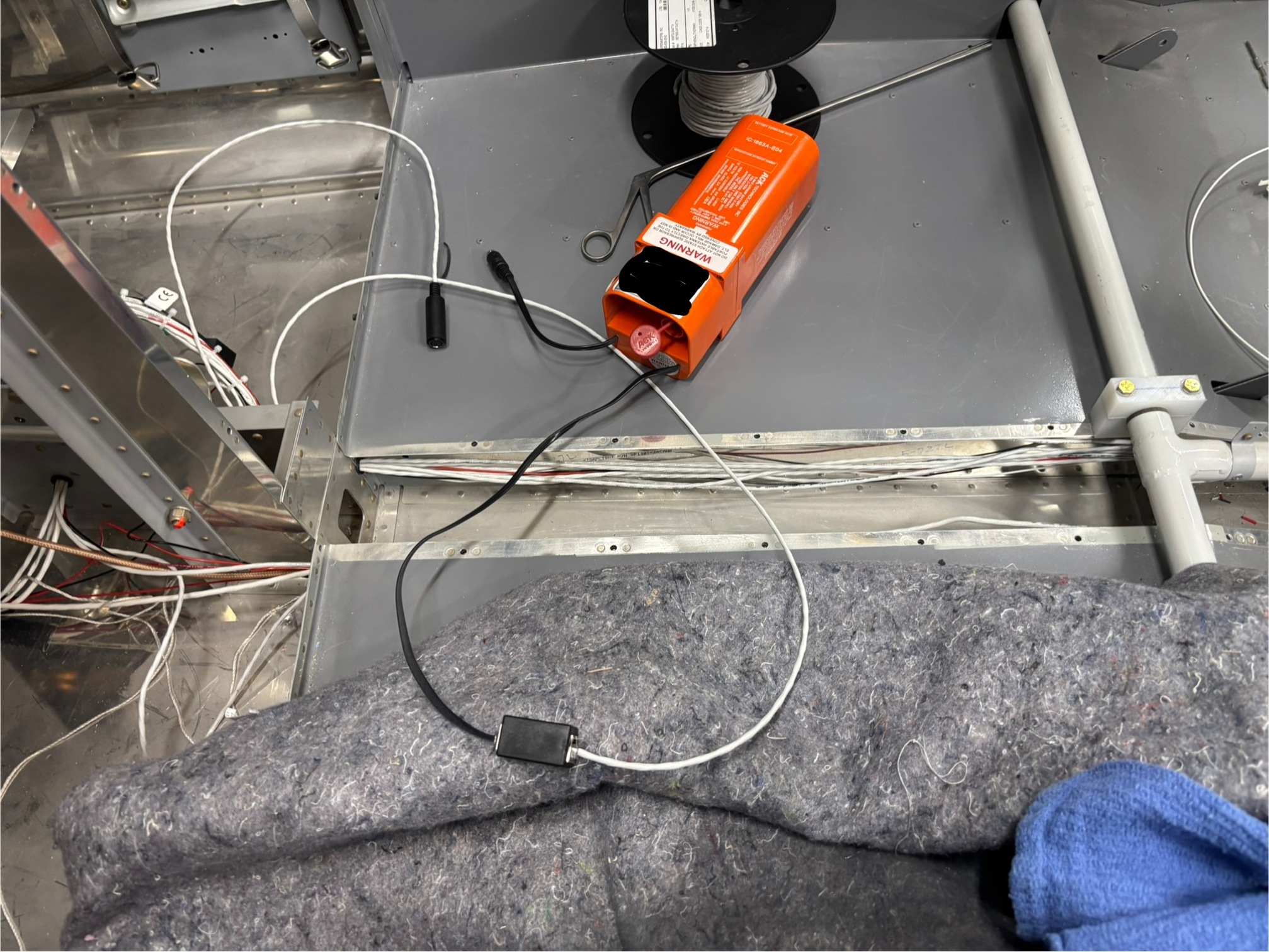

I installed the 24 gauge 4 conductor shielded wire between the ELT and the remote/buzzer in the panel this morning. I crimped on RJ-11 connectors and then tested the system. It works!

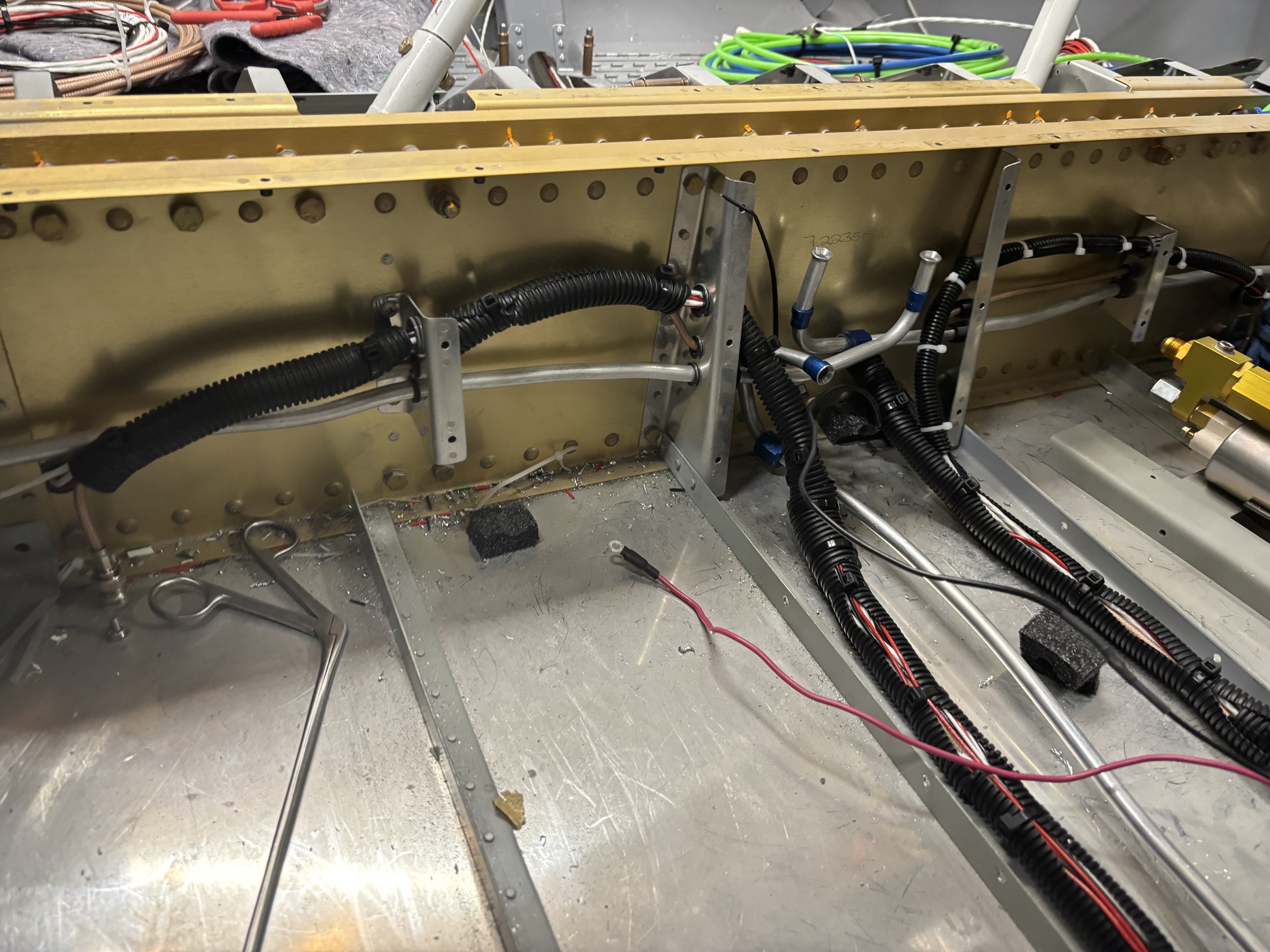

Then I got to work cleaning up all of the wiring on the right side of the panel and down into the center tunnel.

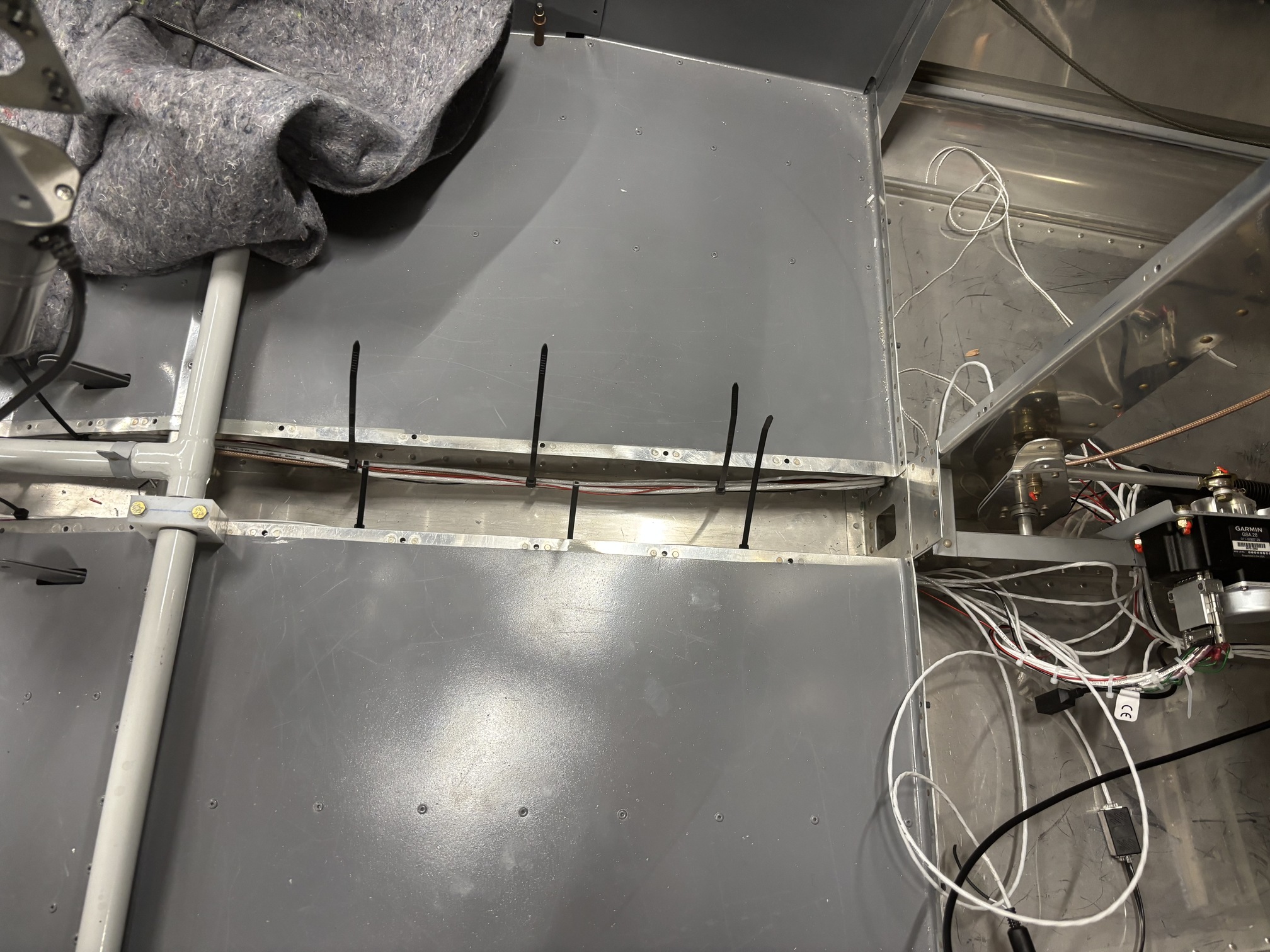

It's nice to have this cleaned up and placed in conduit. Still need to decide how I'm going to affix it to the tunnel floor.

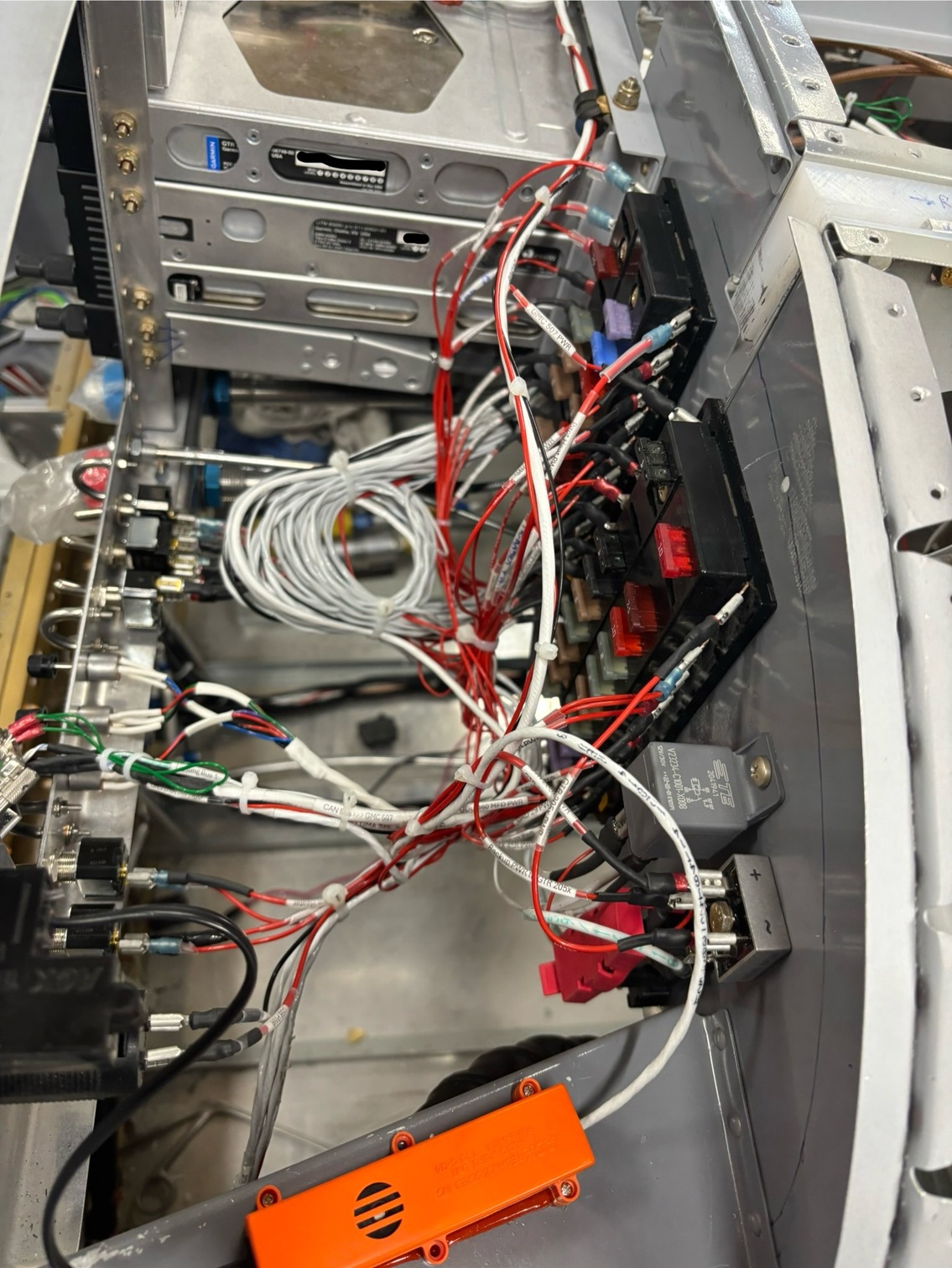

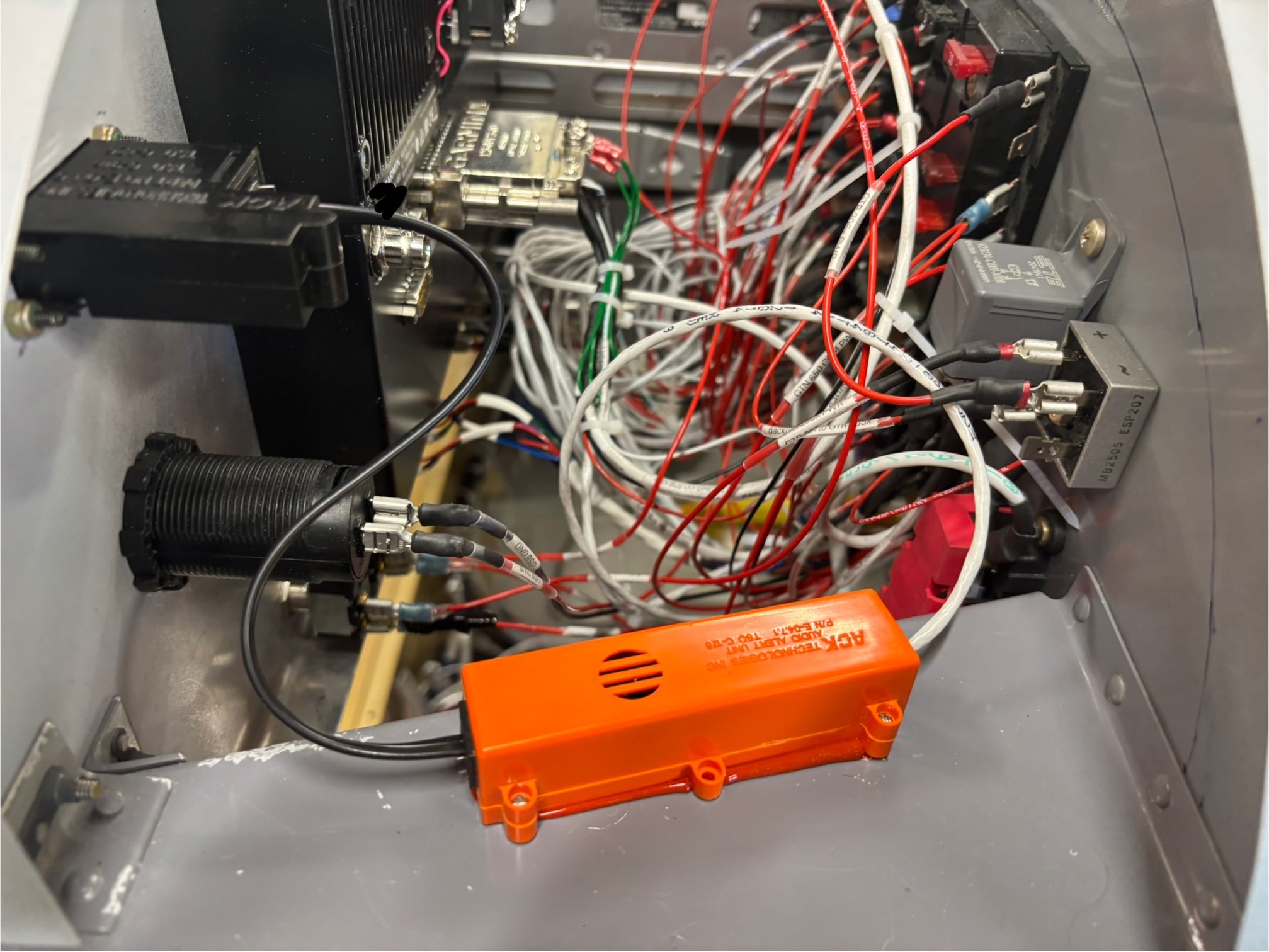

I cleaned up all of the wiring behind the right side of the panel.

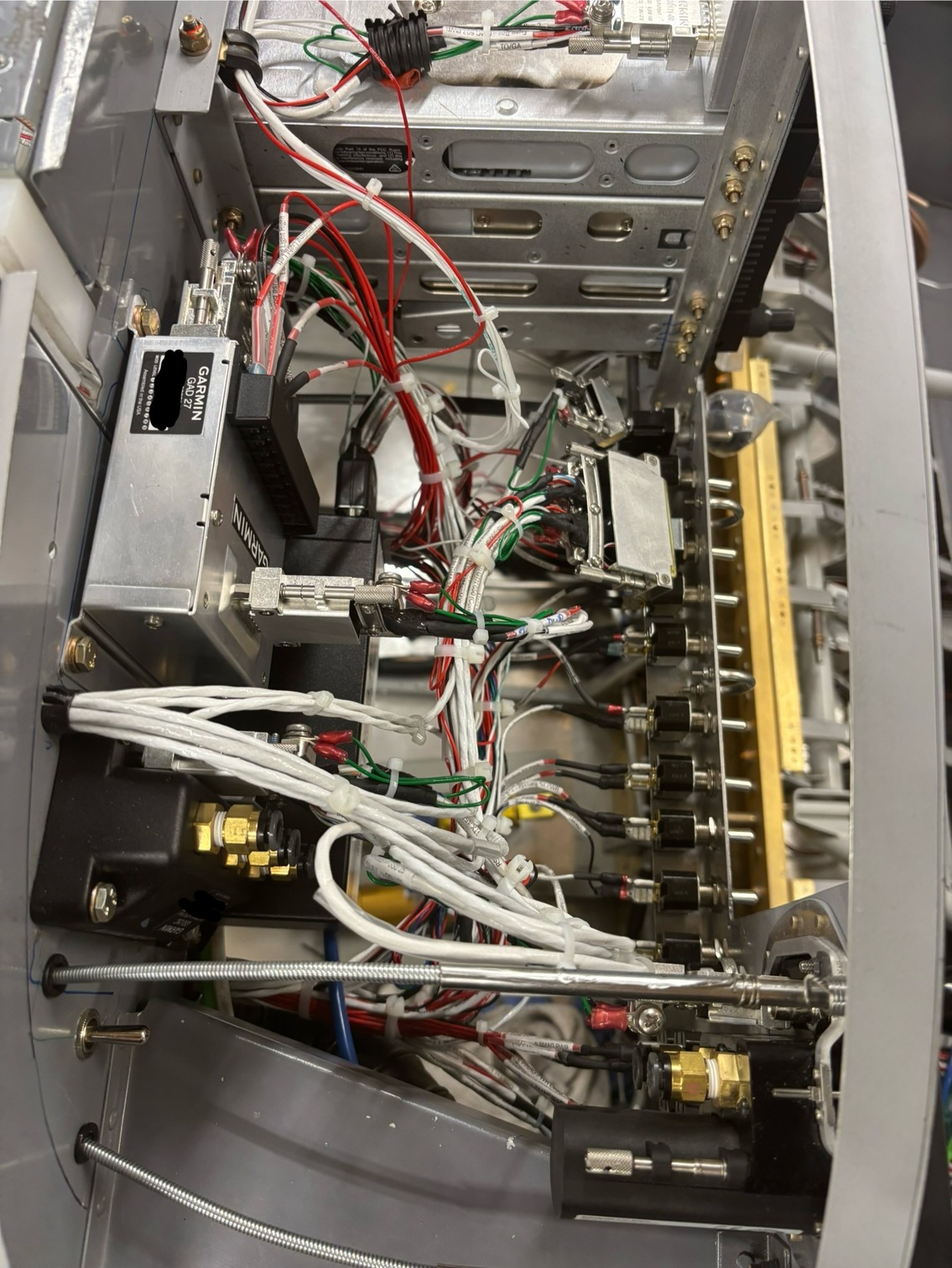

And the left side. It's a little bit messy, but it'll do.

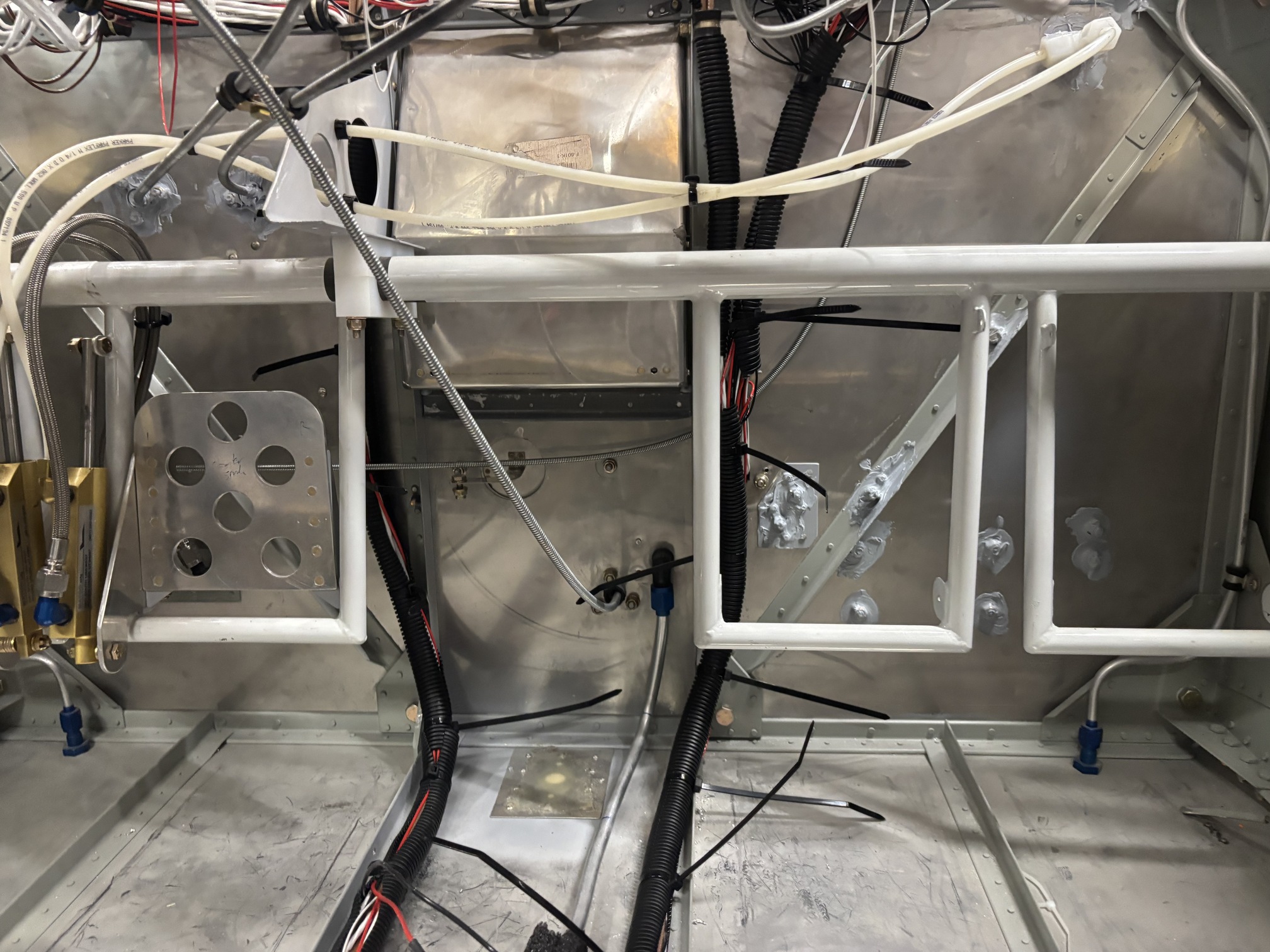

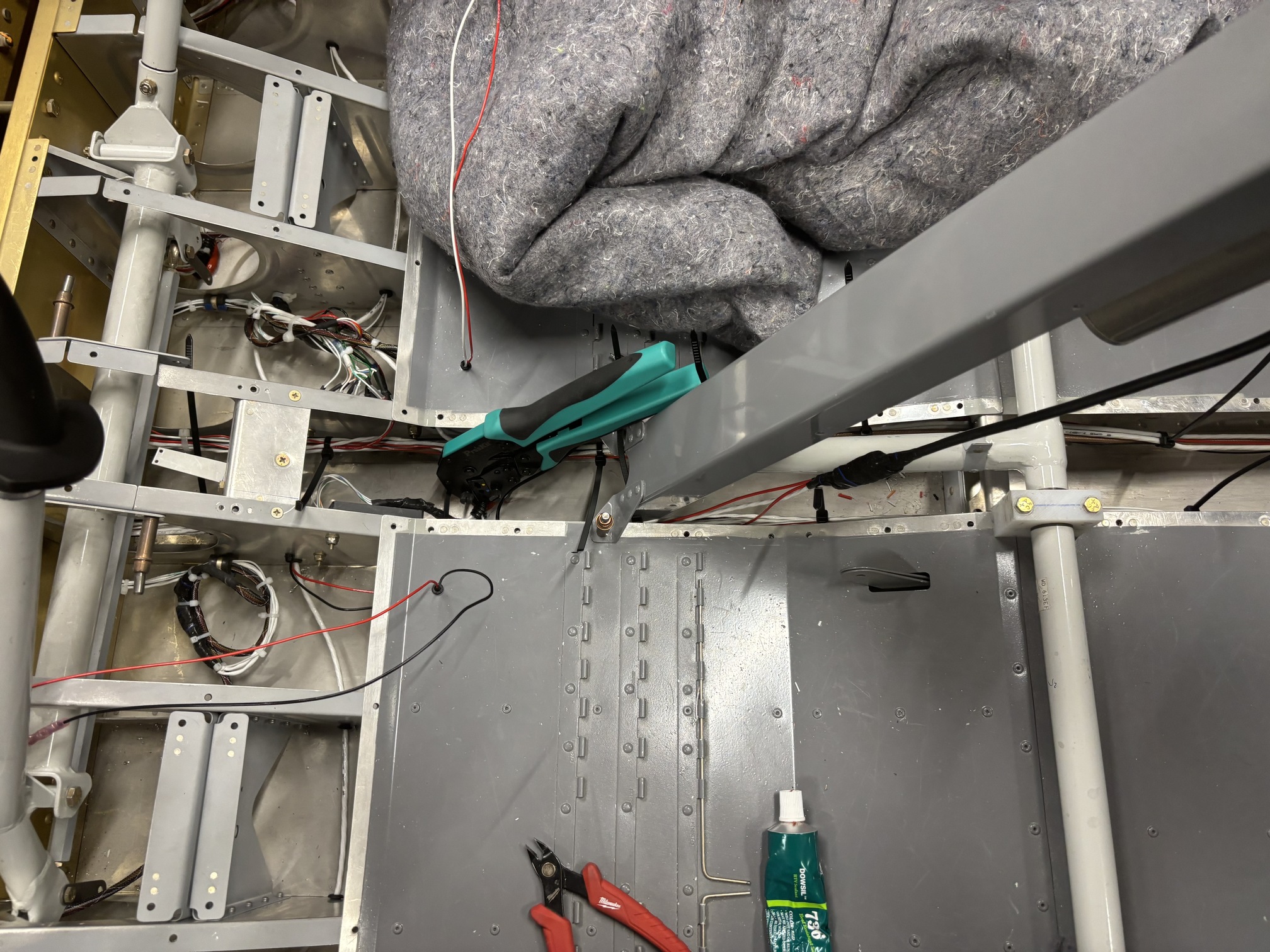

Then I started working on wire cleanup in the center tunnel between the seats and in the baggage compartment. I also wired the seat heater connectors on the right seat.
