Sunday June 22, 2025
More Wire Cleanup, Alt Air Cable Tweak
(2.2 Hours Electrical, 0.5 Hours Firewall Forward)
2.8 Hours Total

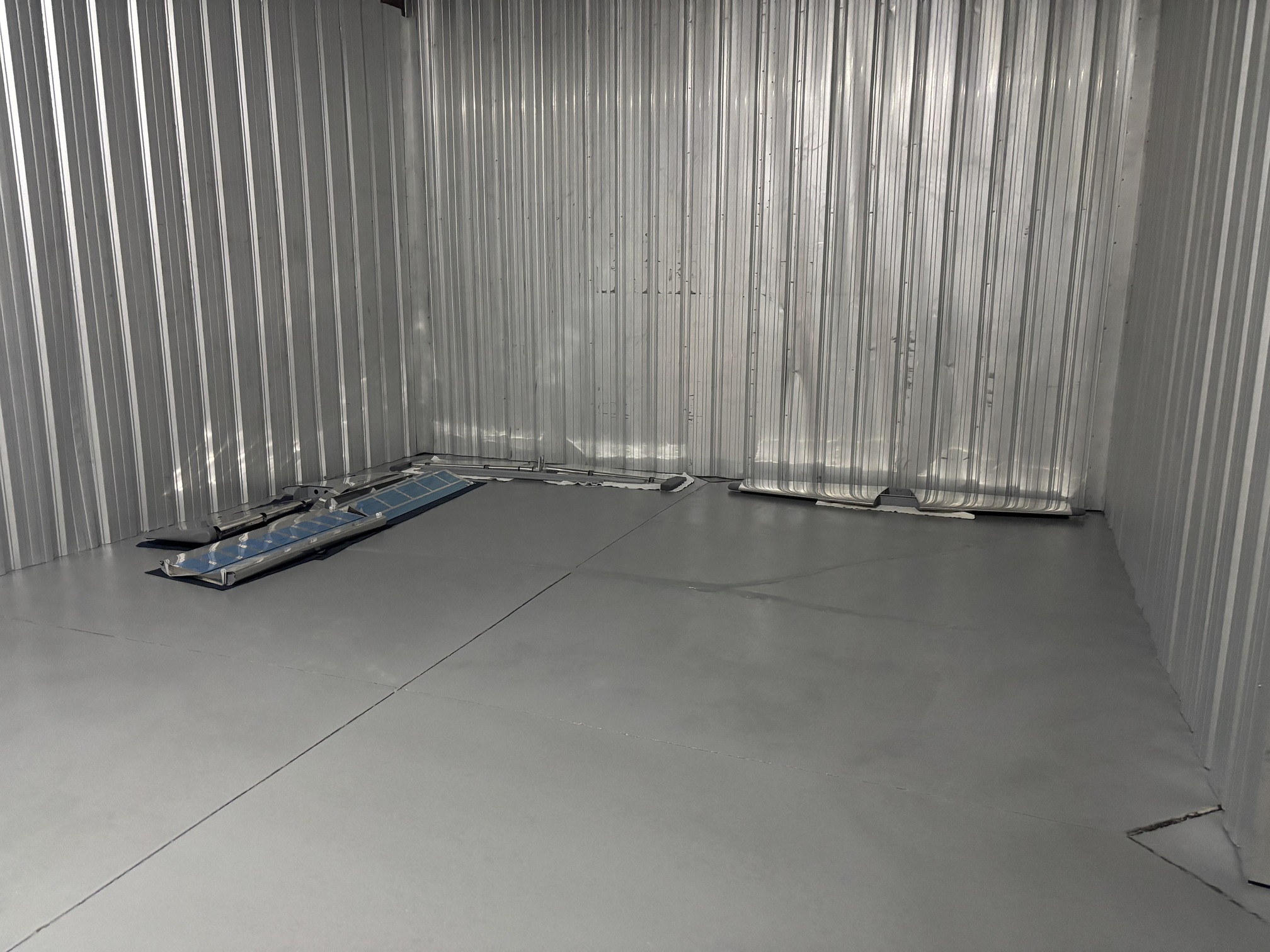

I have a T-hangar rented at the nearby airport in preparation for the big move, so I moved the tail feathers, ailerons, and flaps out there.

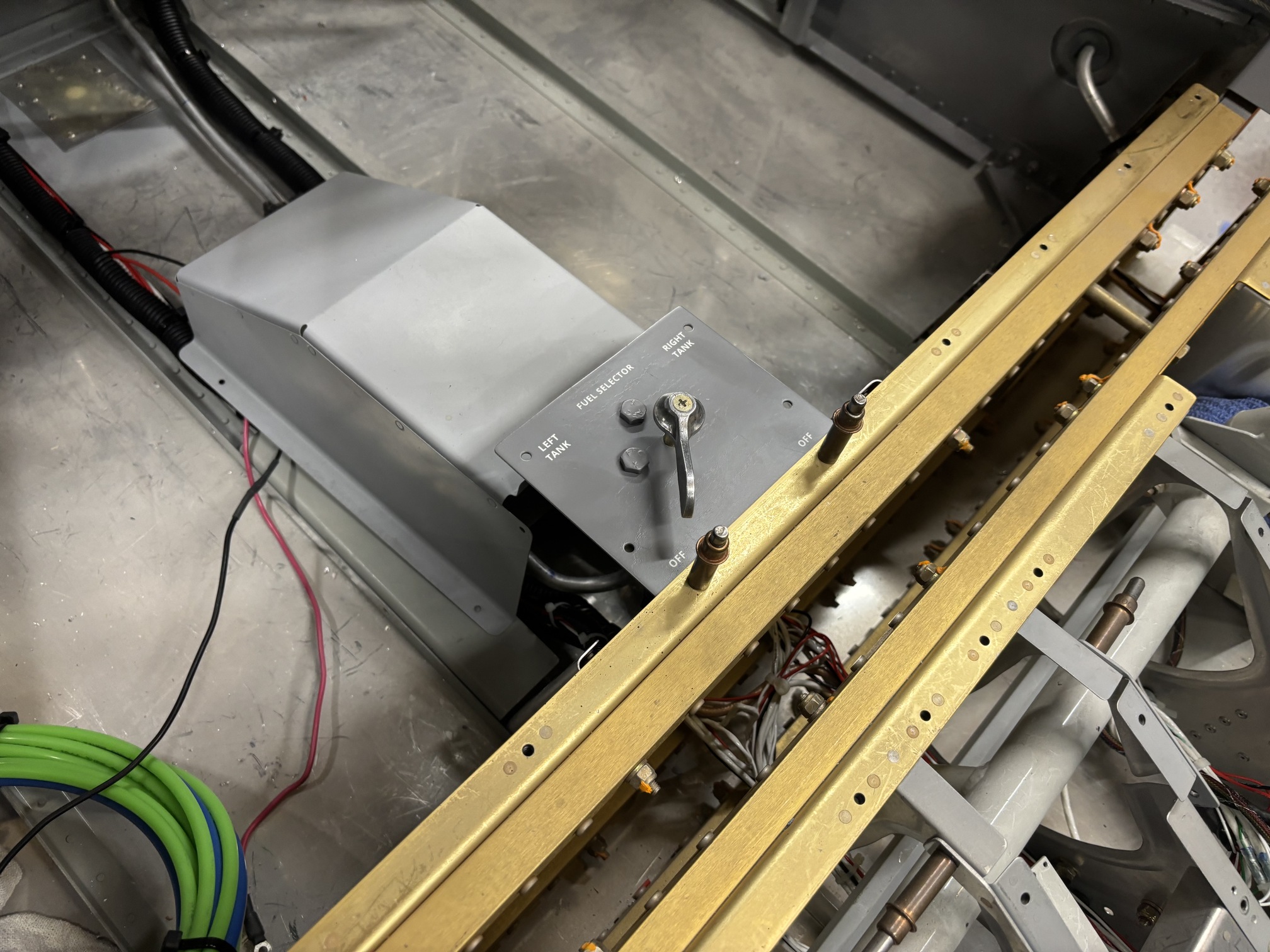

Back at home, I reinstalled the fuel selector cover plate and put it in the plane.

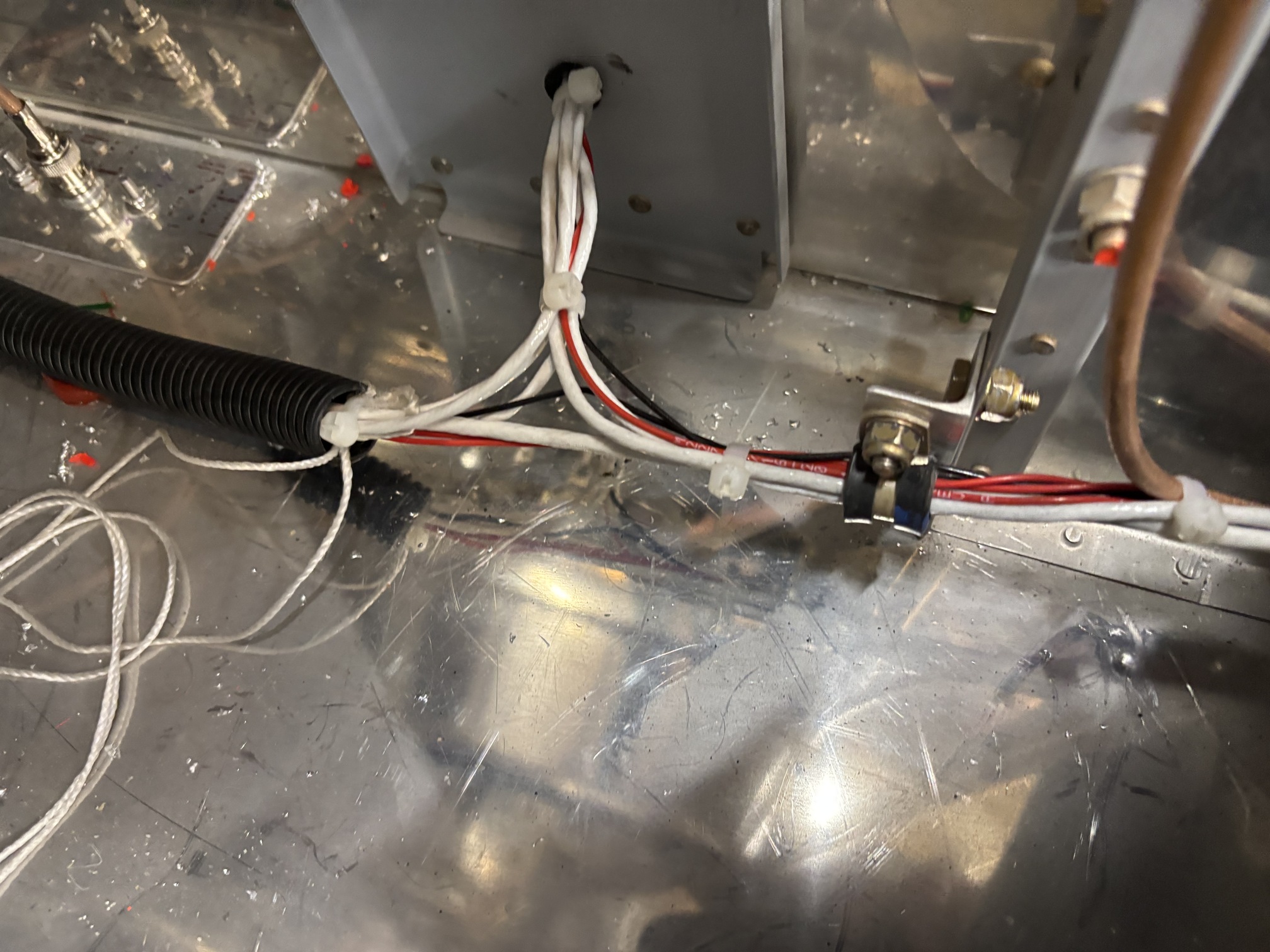

I cleaned up and secured the wiring behind the baggage area.

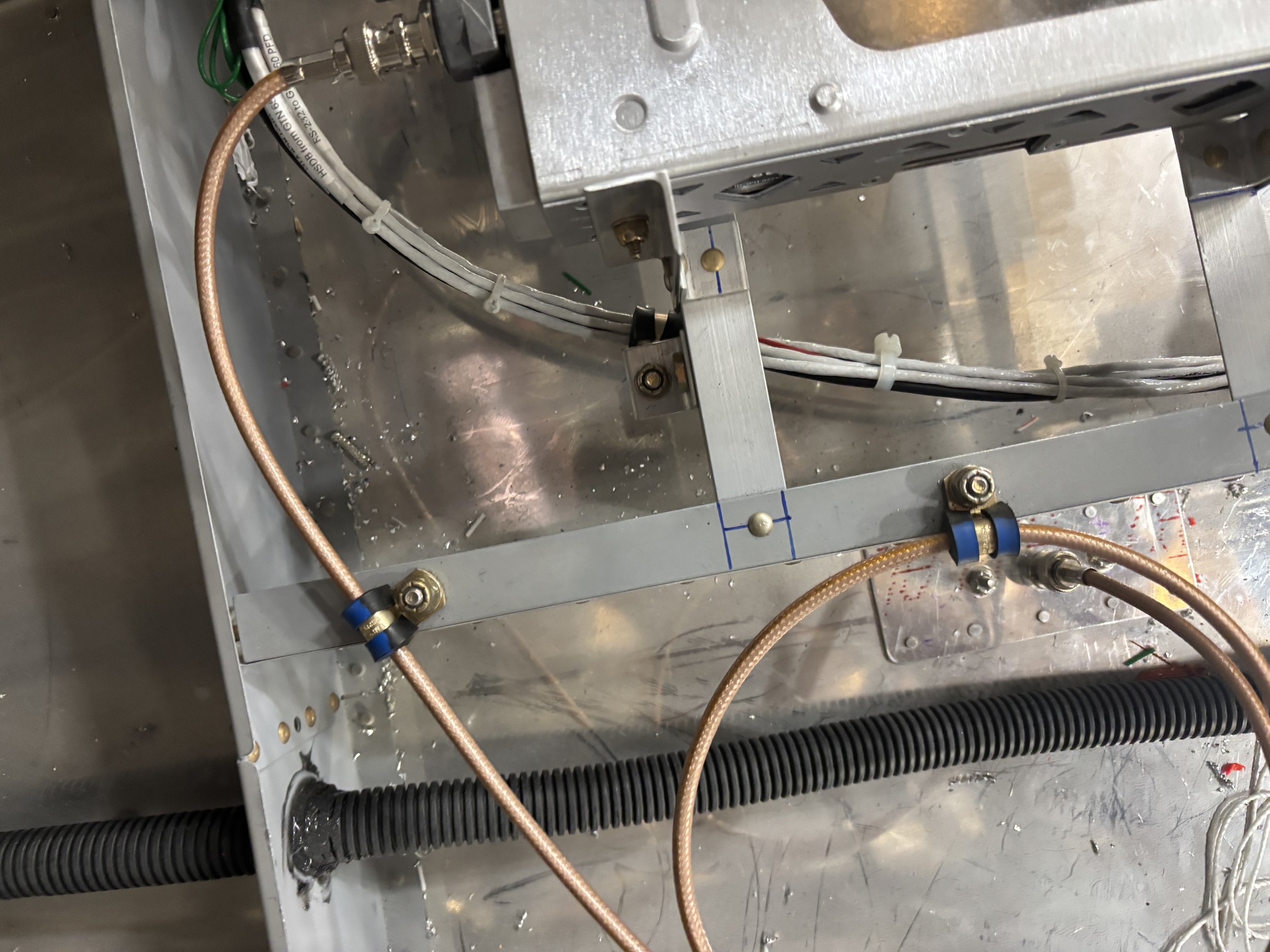

Adel clamp and some aluminum angle here to support the wire bundle.

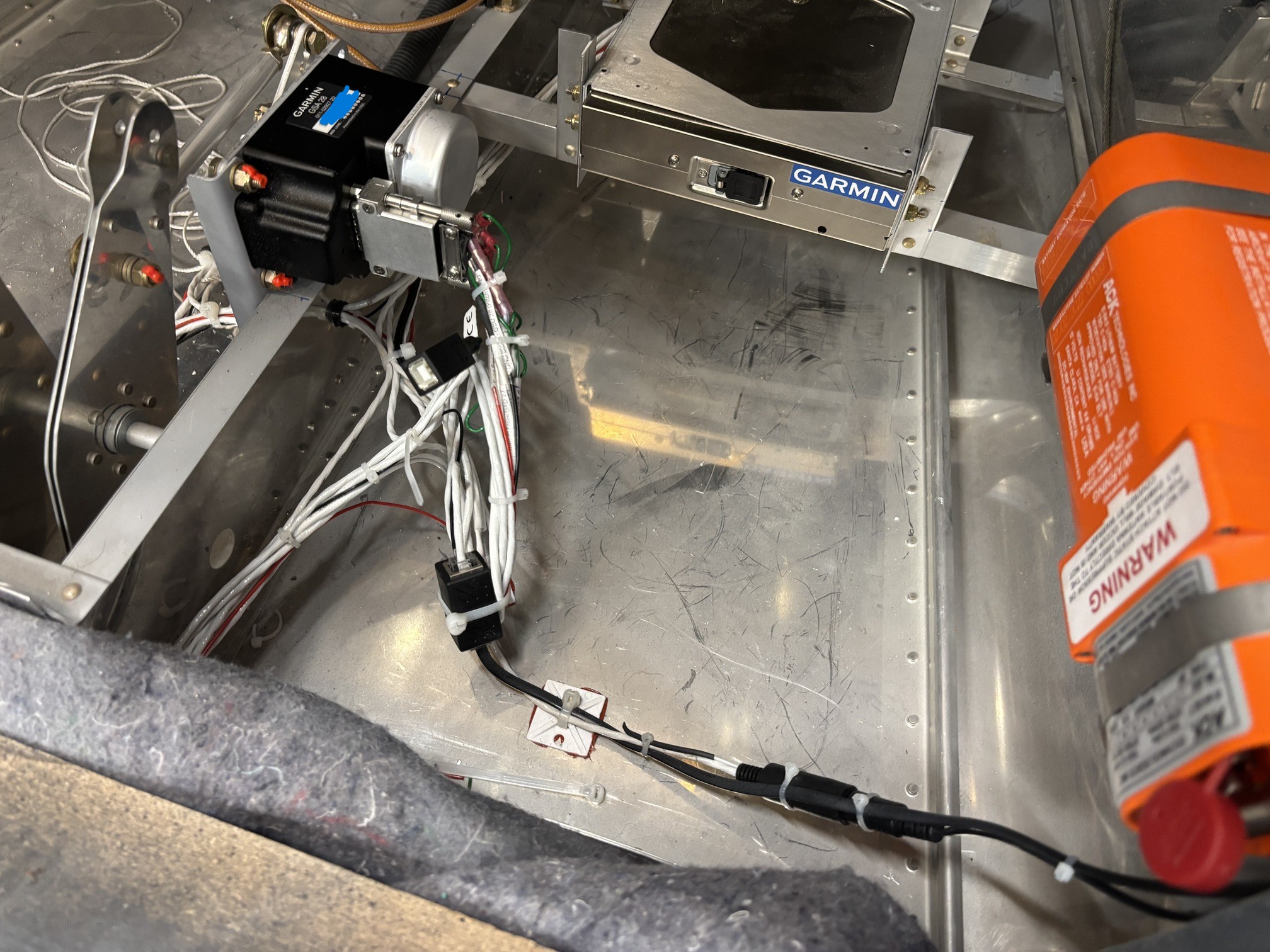

And another clamp and angle segment here to support the wires going to the transponder.

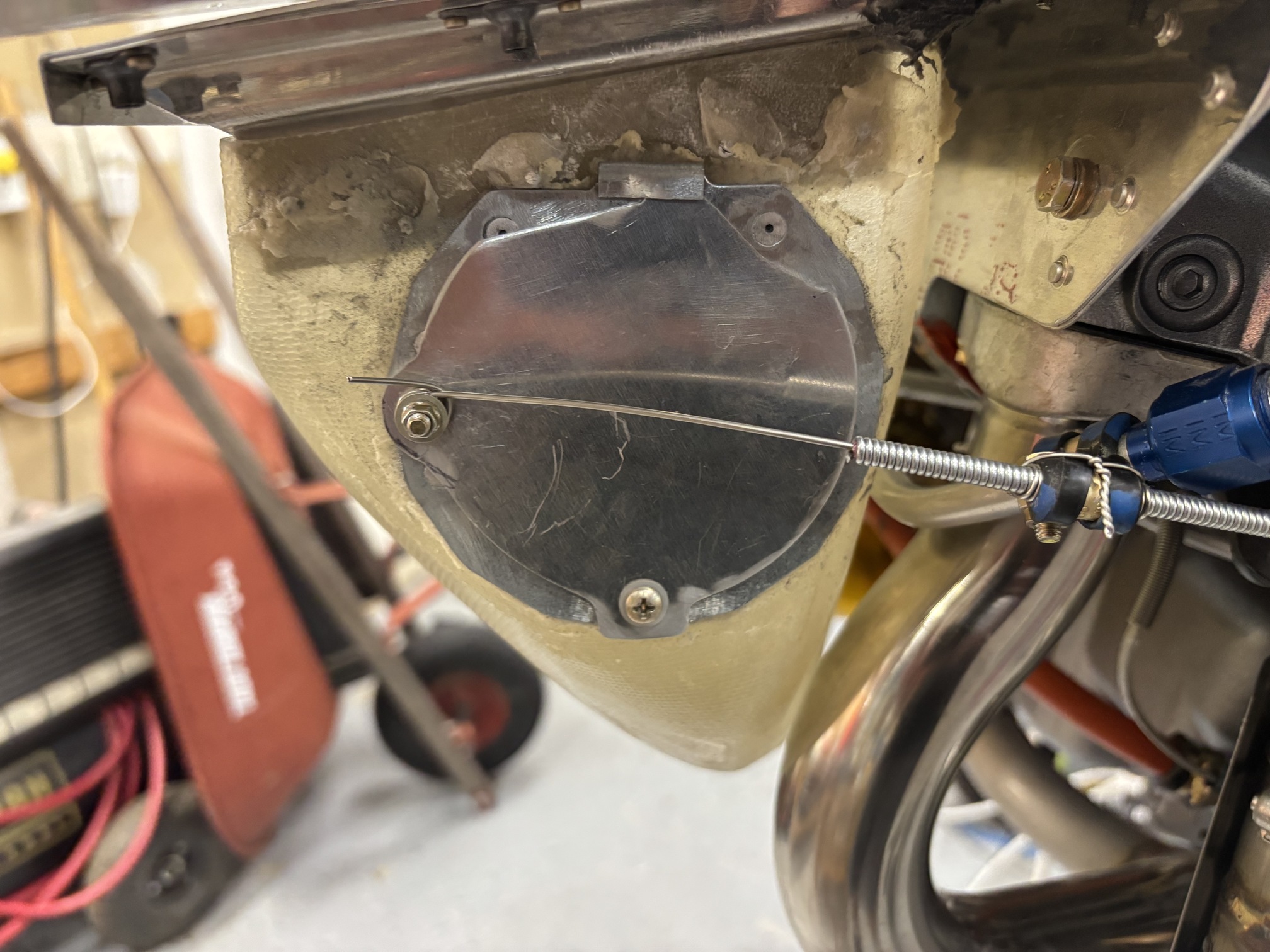

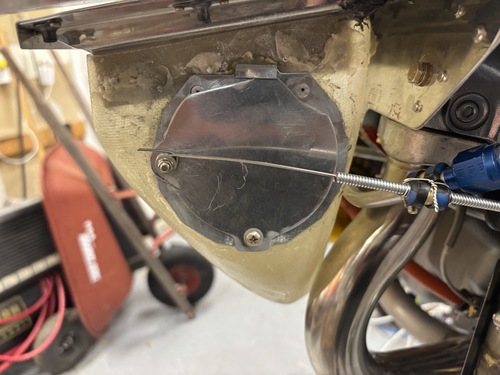

I also disconnected the alternate air cable and straightened some of the spiral a little bit to give more reach.

I also removed some duct tape residue from the tail area with some WD-40.
