Sunday July 6, 2025
Tail Assembly (Empennage)
3.5 Hours

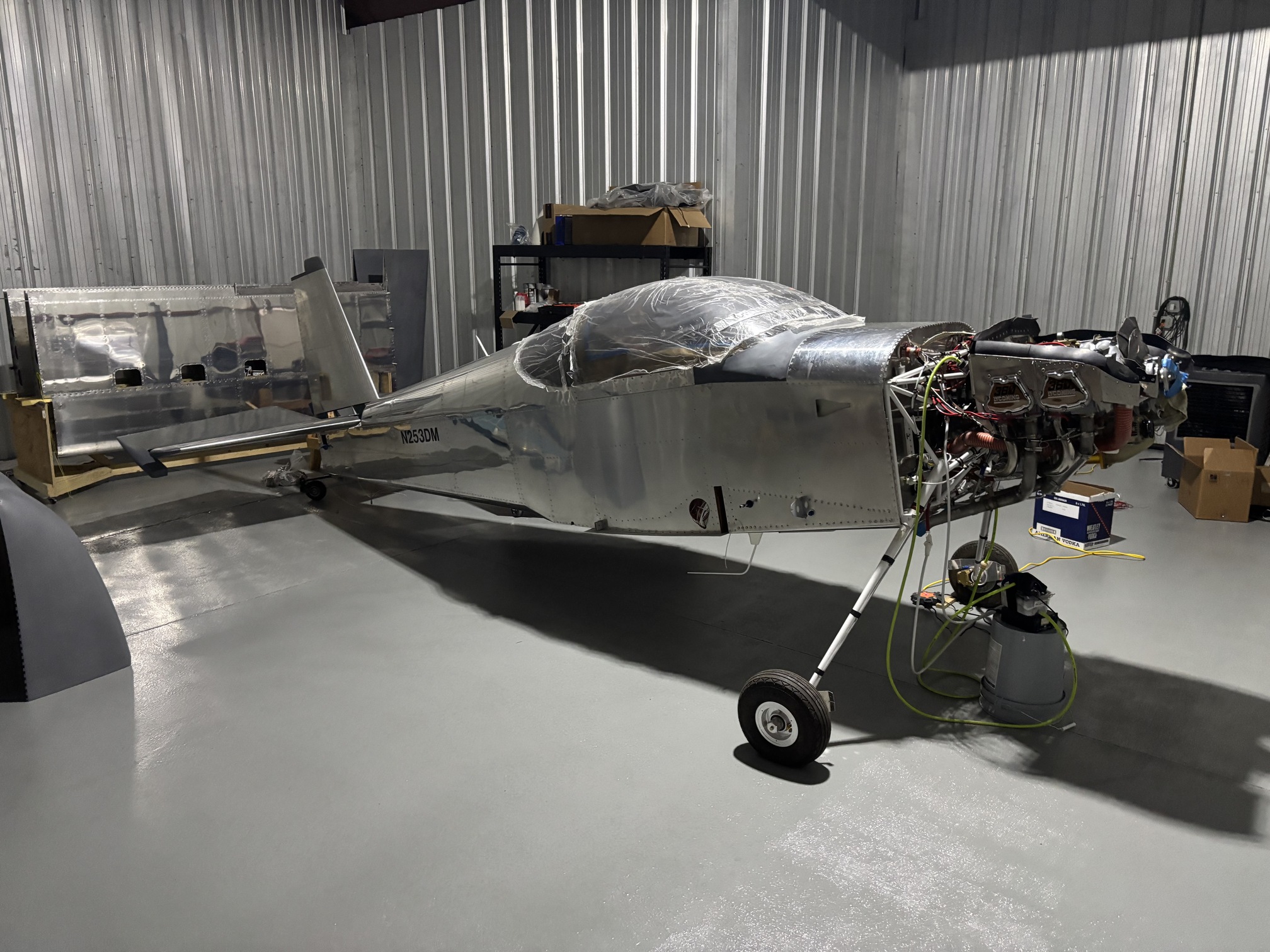

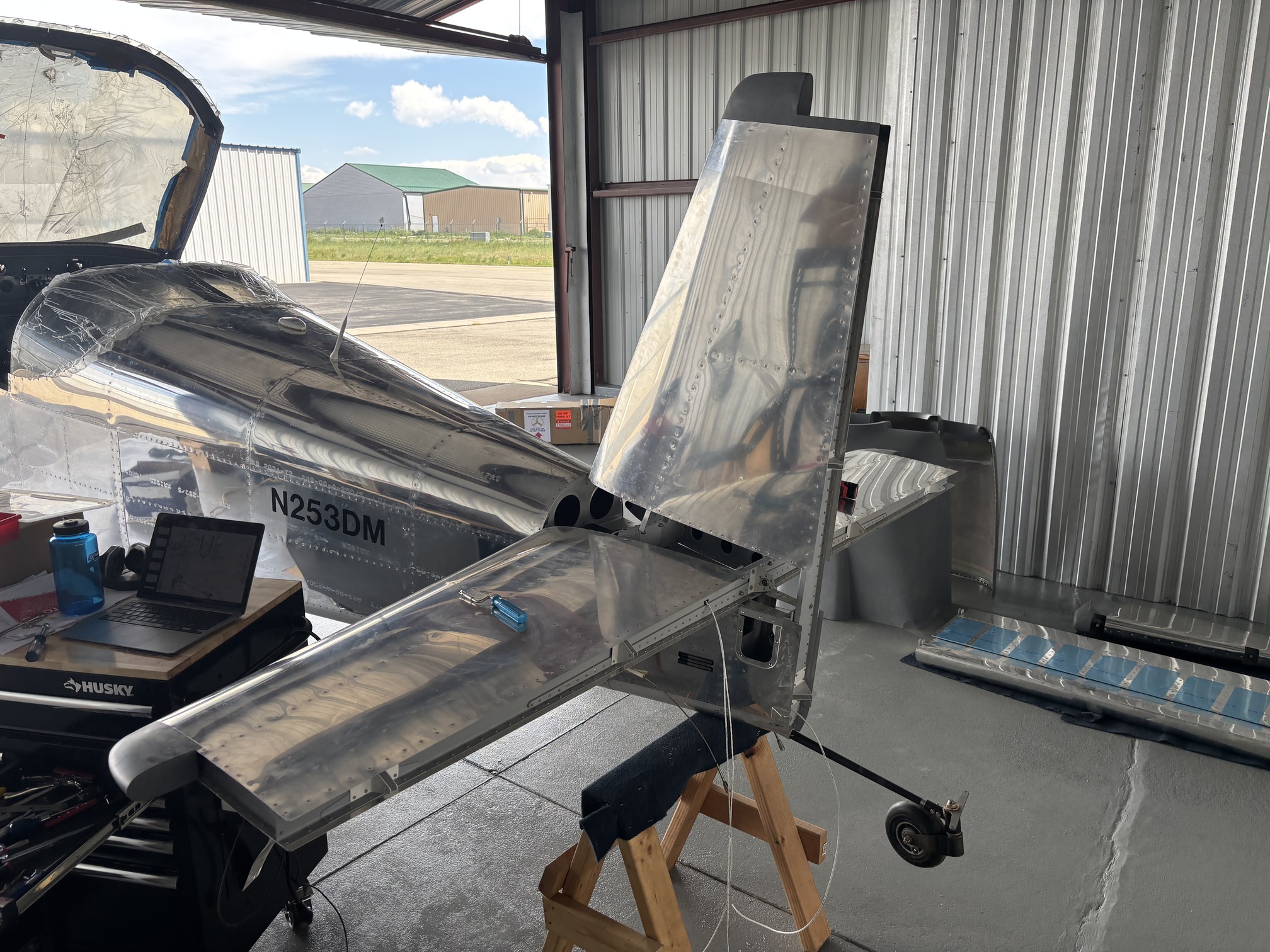

Today I started assembling the tail onto the fuselage for the final (I hope) time. I mounted both the horizontal stabilizer and the vertical stabilizer.

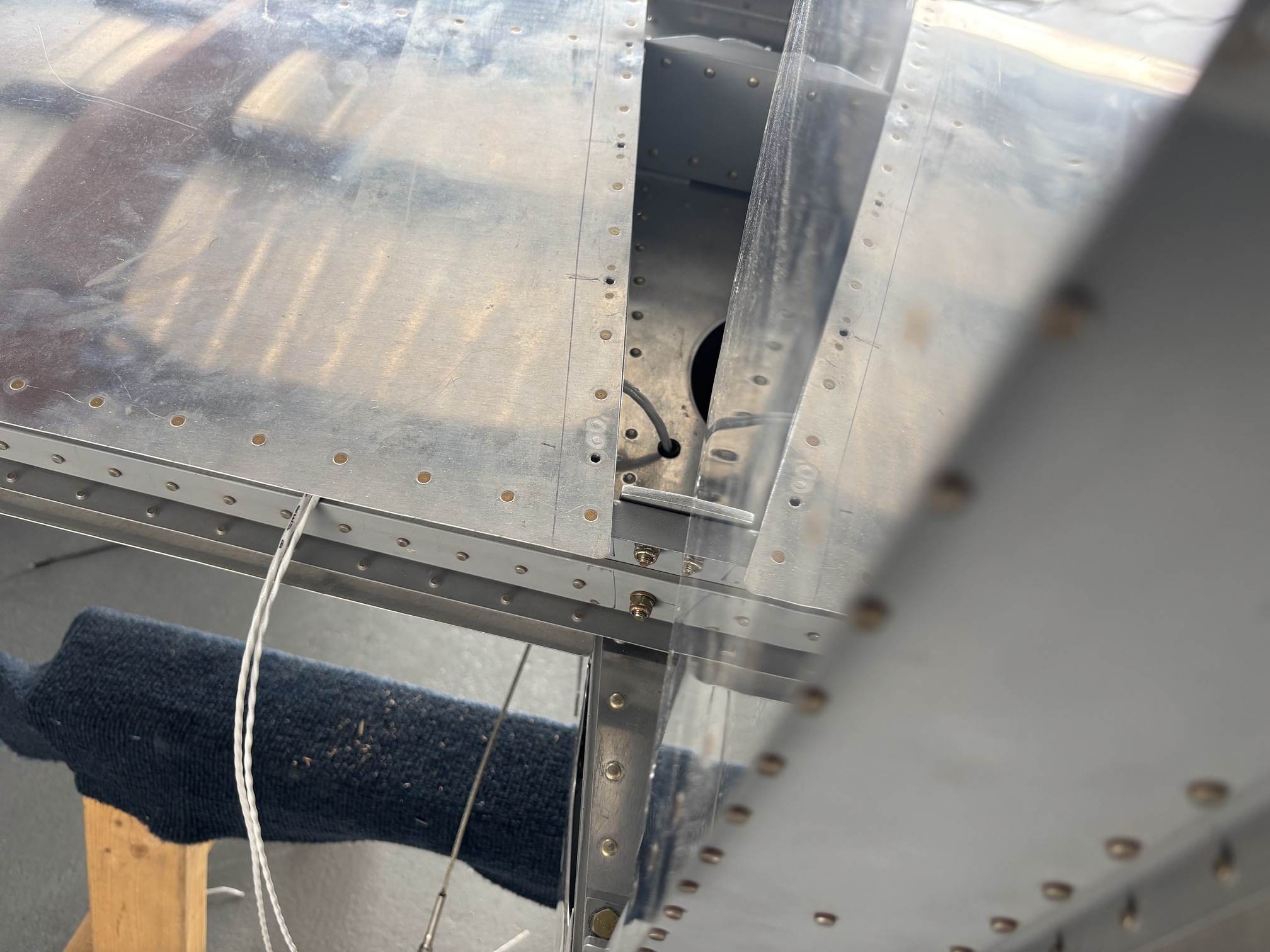

I routed the wires for the elevator trim through the aft fuselage and HS.

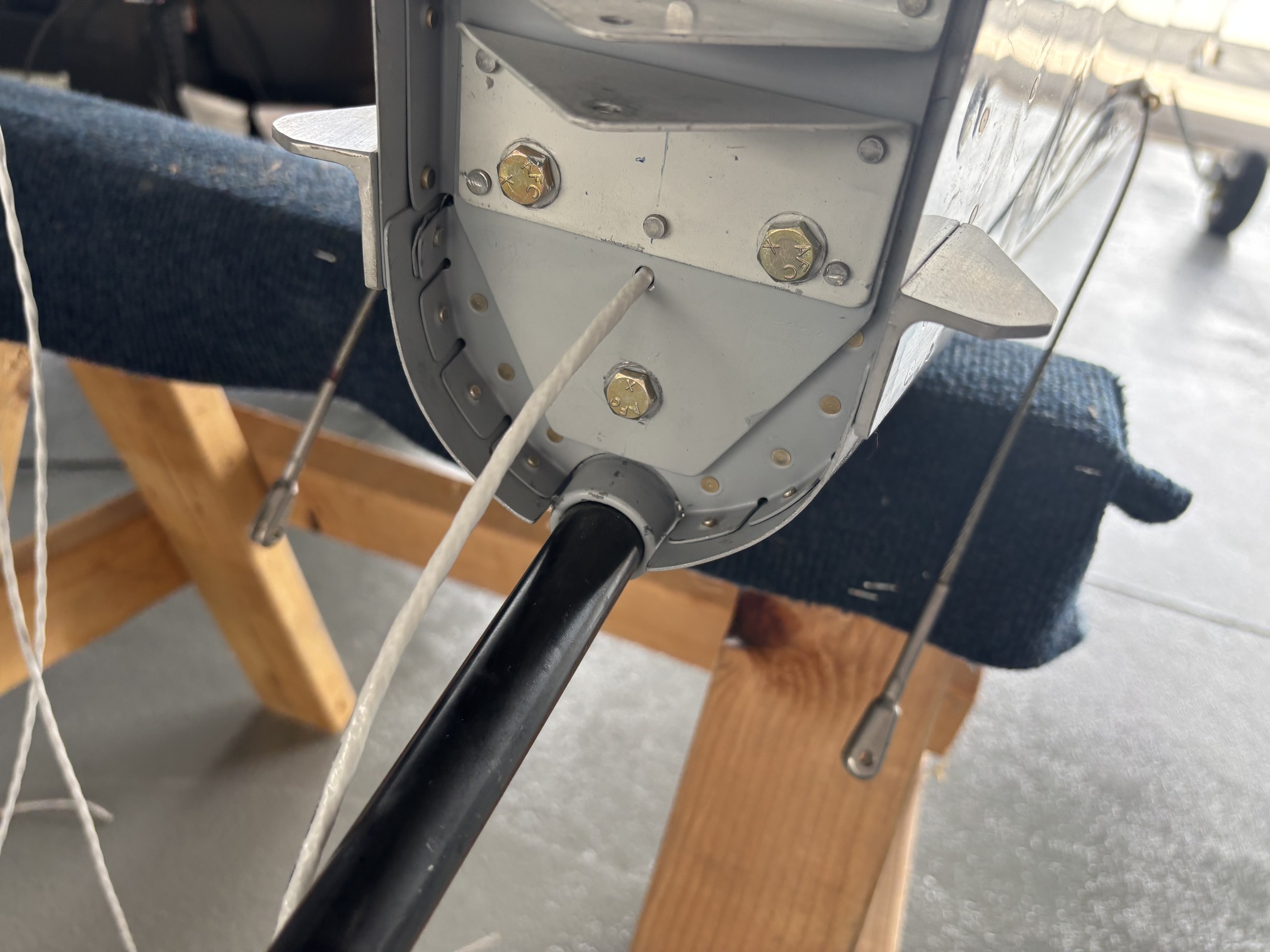

And I routed the wires for the rudder nav/strobe through the aft bulkheads. I will put some RTV in this hole with the wire to keep it from chafing.

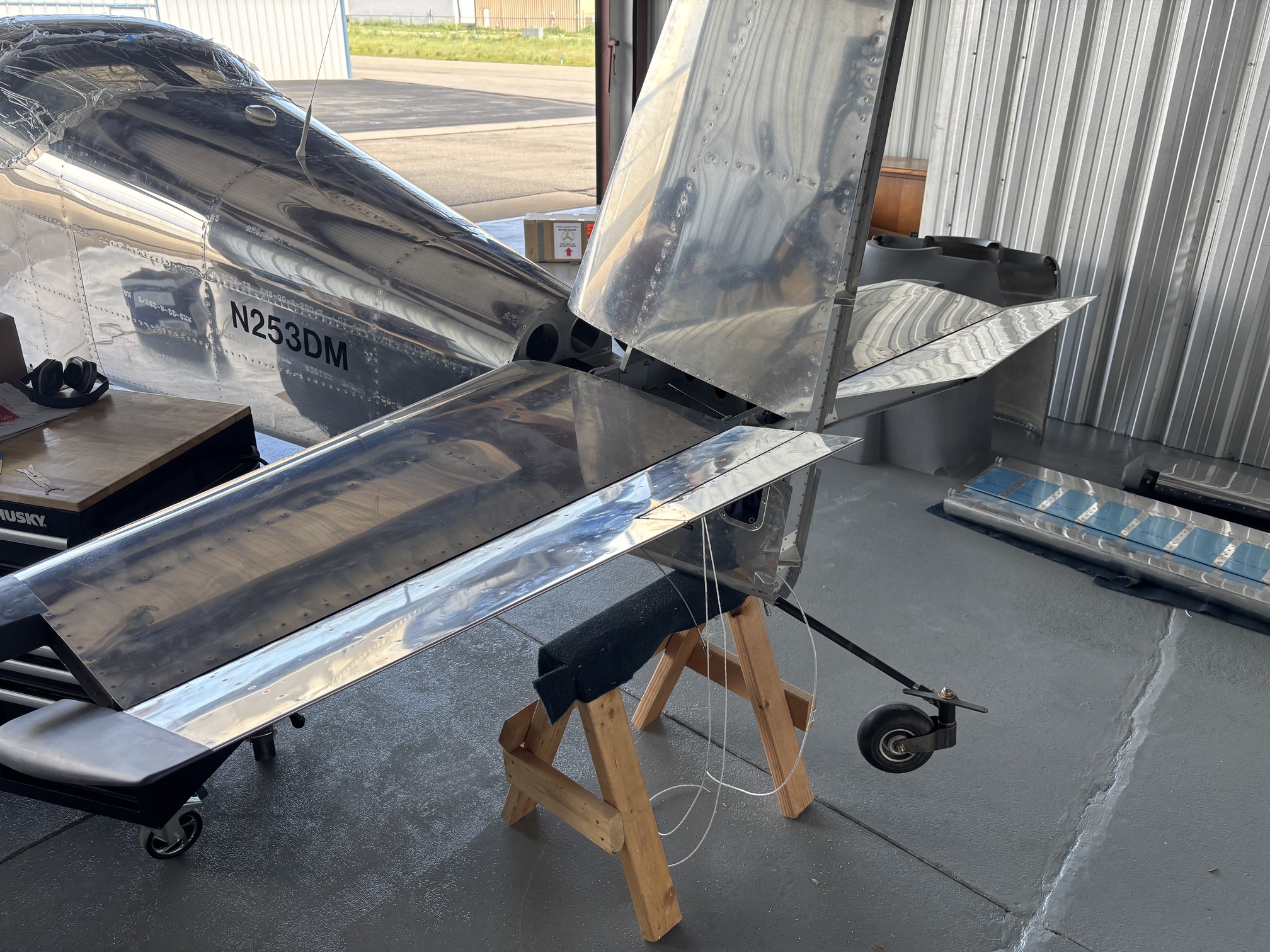

Then I hung the elevators.

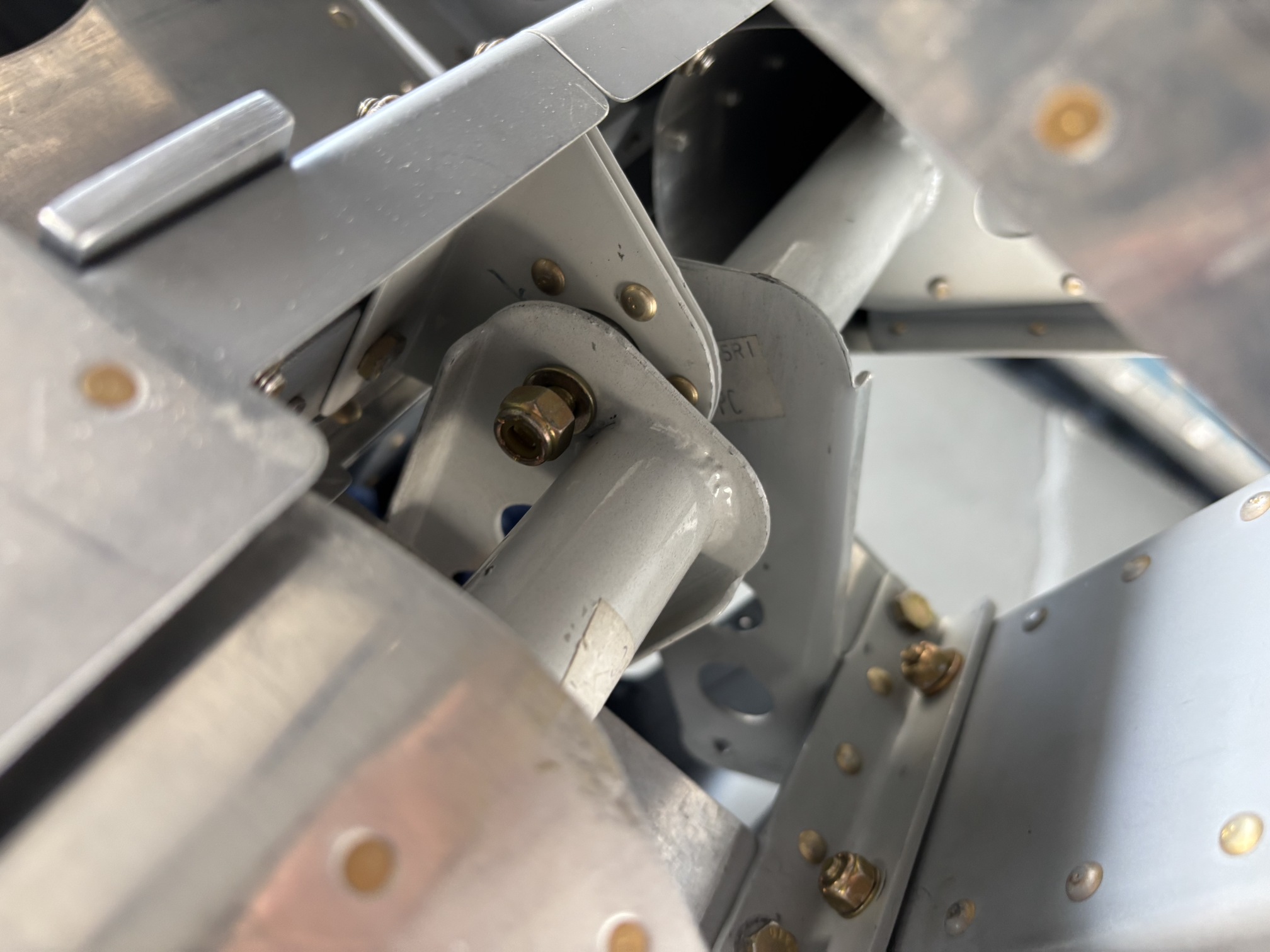

And inserted all of the required washers for this bolt through the center hinge.

Just a cool shot...
