Sunday July 13, 2025
Installed Battery & Prop, Installed & Wired Rudder, Installed Aileron Pushrods
(0.5 Hours Ailerons, 1.0 Hours Firewall Forward, 2.5 Hours Rudder)
4.0 Hours Total

I replaced some bolts from the HS to the aft fuselage with new ones just cause the old ones were pretty banged up.

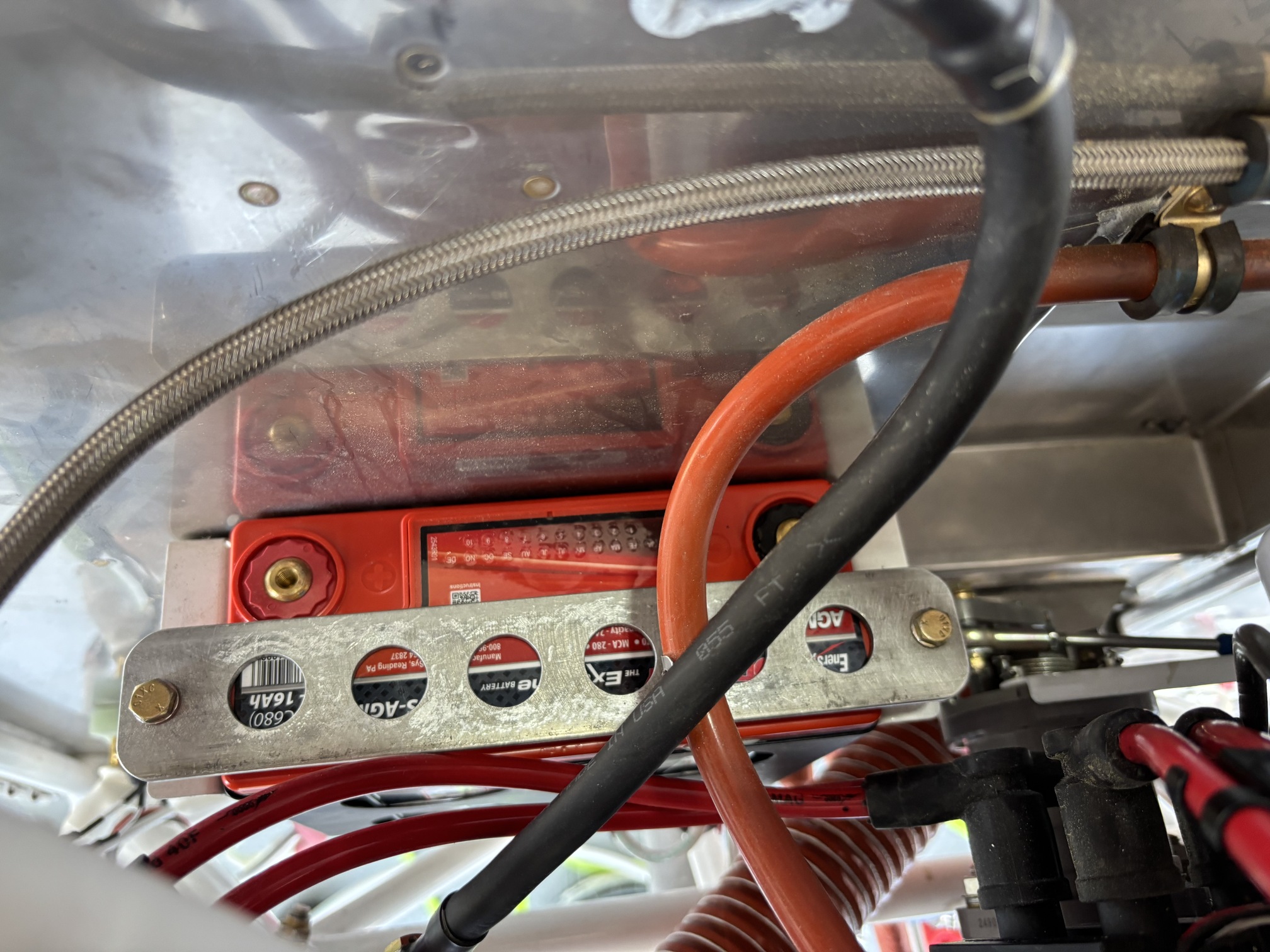

Then I installed the battery in the battery holder on the firewall.

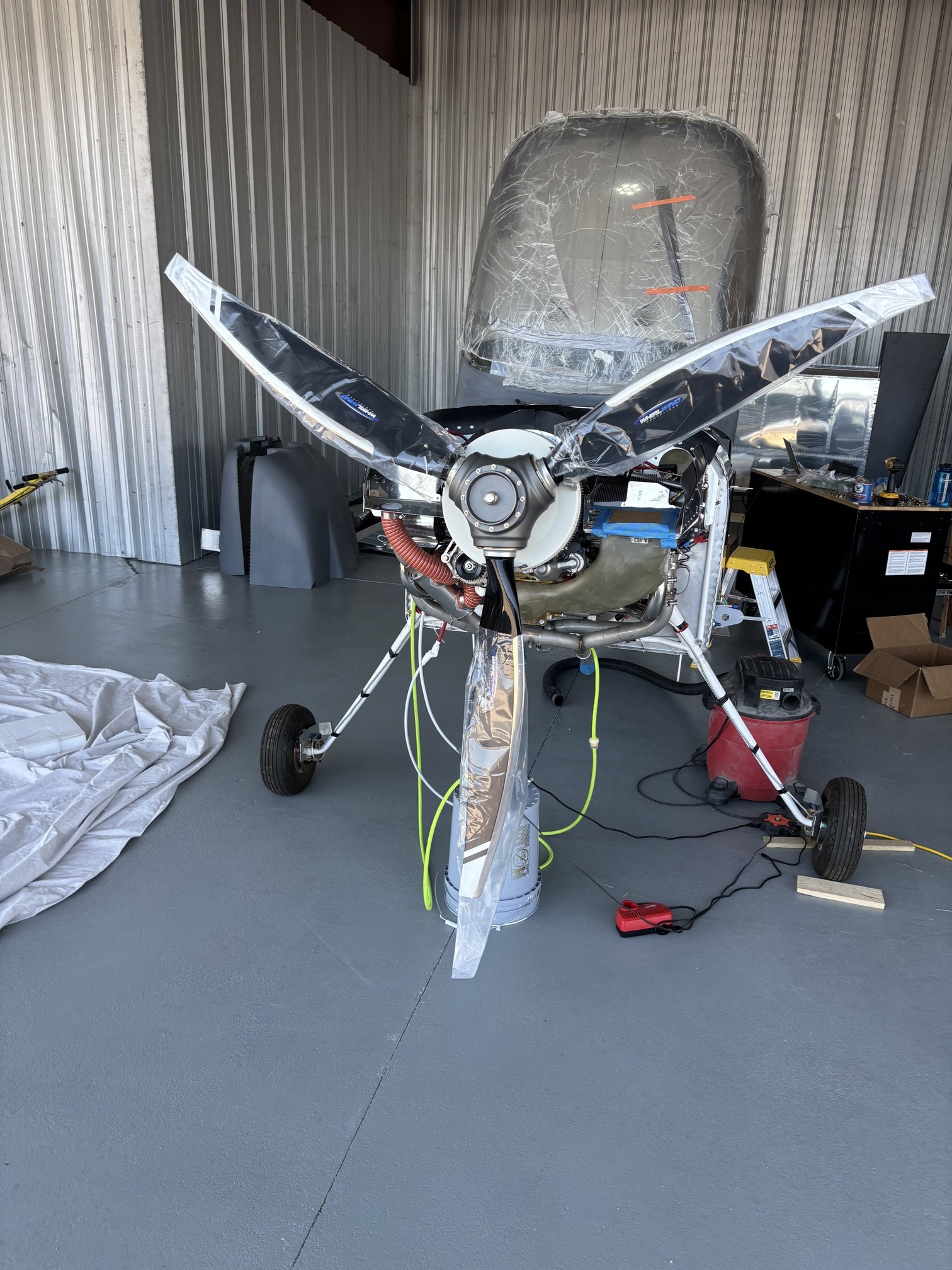

Then I installed the prop on the plane. I need to bring my big foot-lb torque wrench next time to torque the bolts and then safety them.

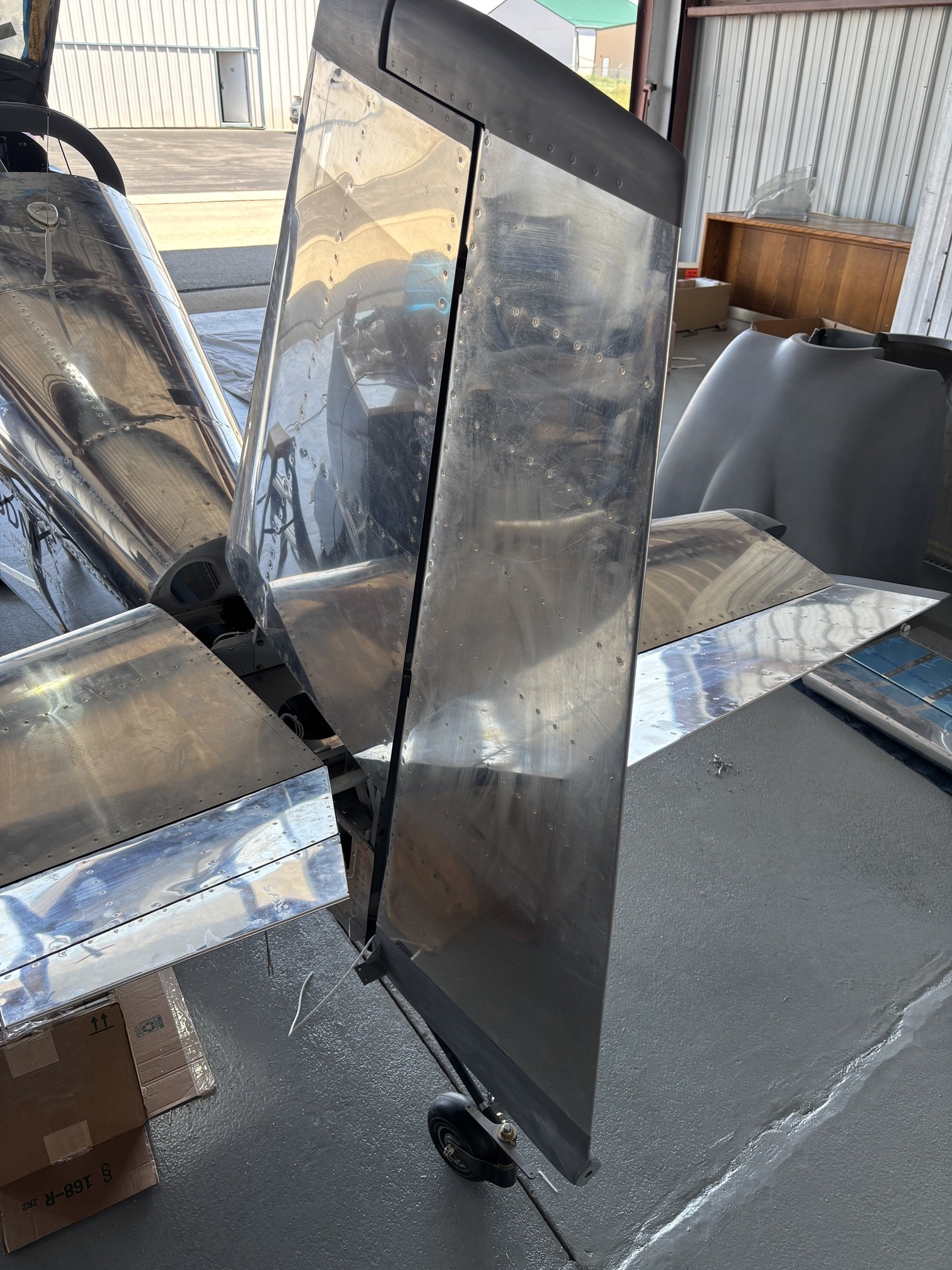

I installed the rudder on the plane. This is the new RV-8 style rudder I made. I dropped so many washers, bolts, and nuts in the bottom fairing while doing this. Luckily I was able to fish them all out.

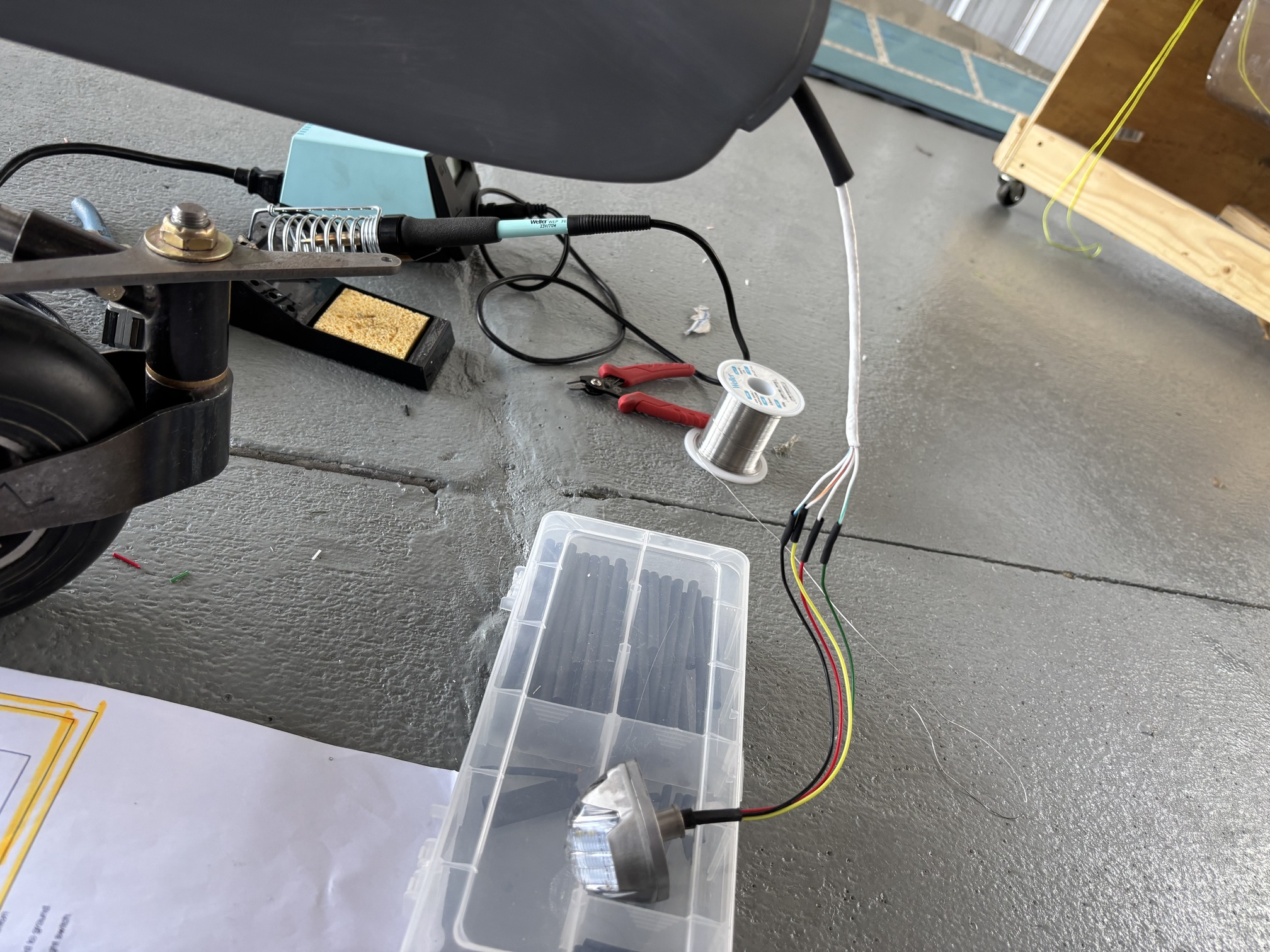

I routed the tail light wire through and connected it.

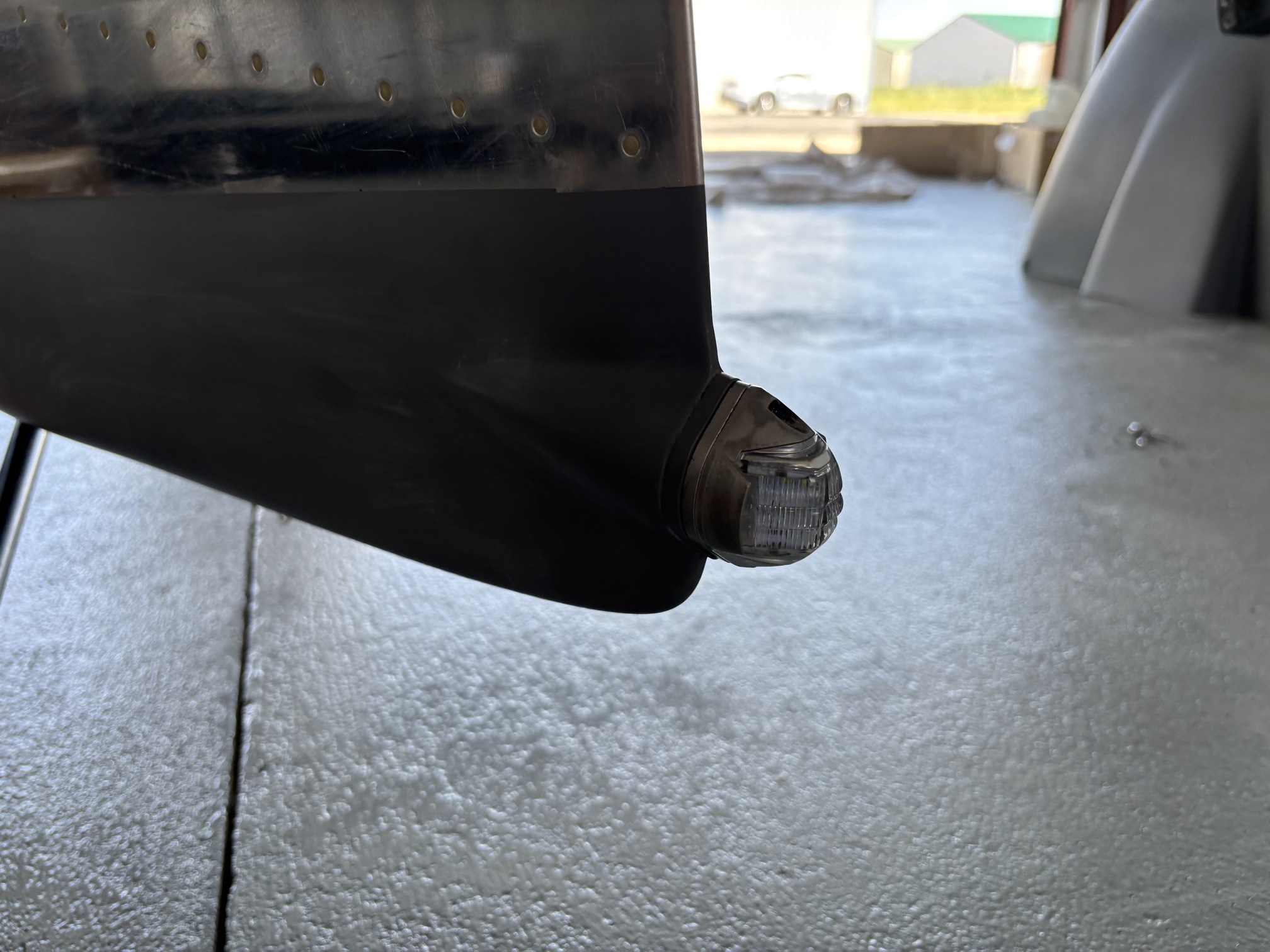

Tail light is screwed on with some Loctite.

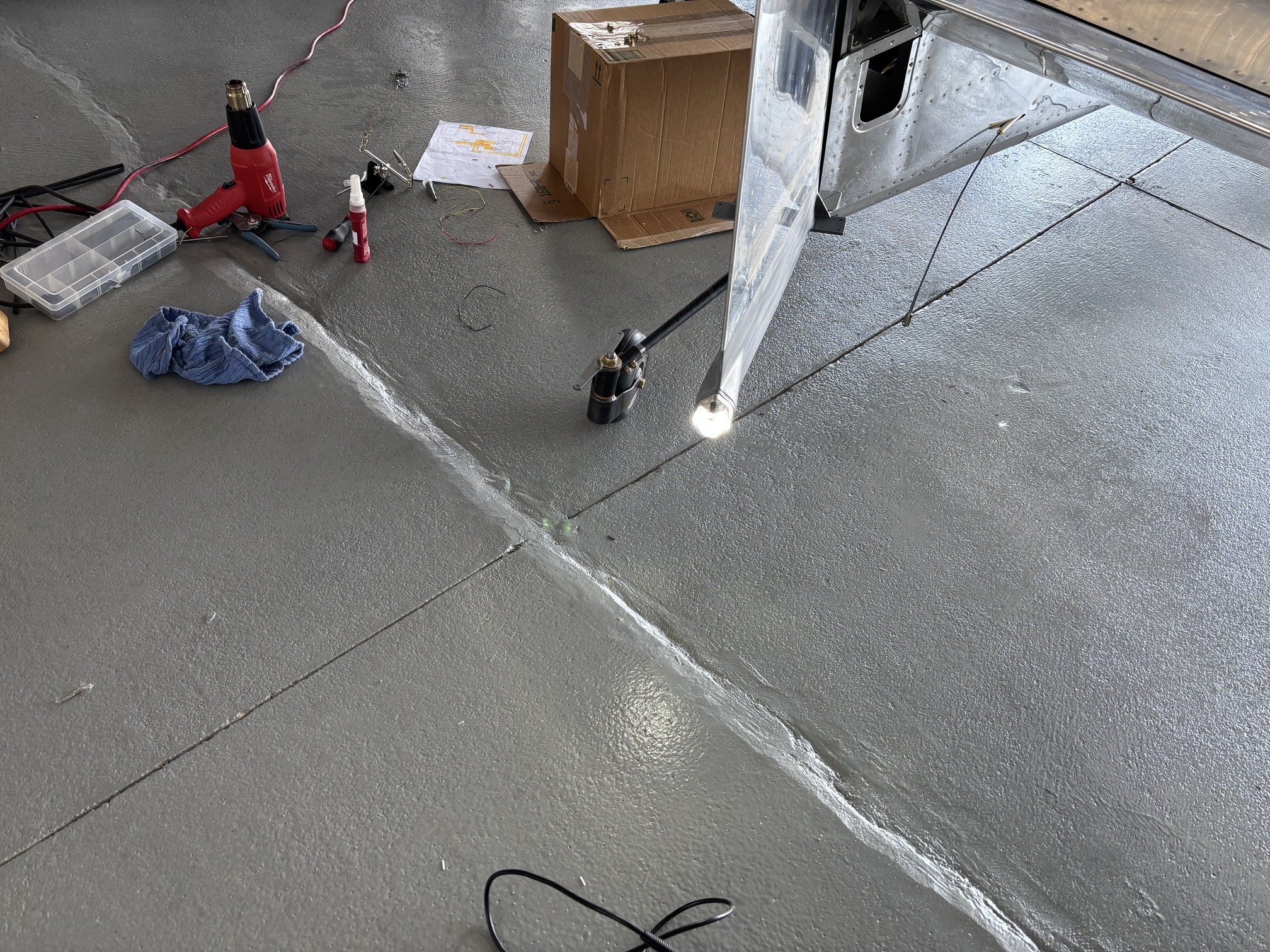

And it works!

I bolted the rudder cables to the rudder horn and took some measurements to make the links that connect with cable to the pedals. I will make those at home and bring them next time.

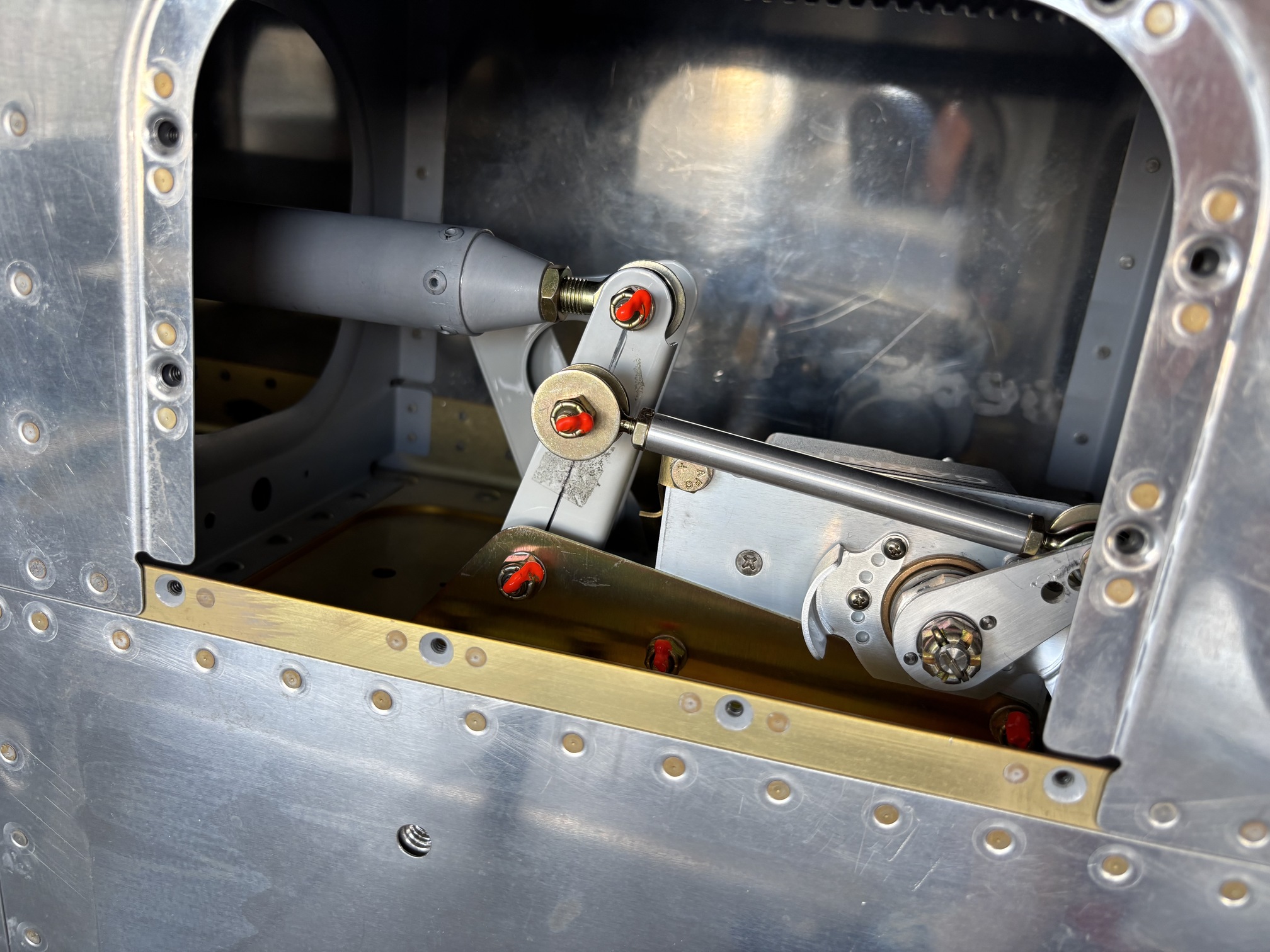

Finally, I installed both aileron push rods in the wings and bolted them to the bellcranks.
