Sunday July 20, 2025
Installed Ailerons, Wired L Nav/Strobe (Wings)
3.0 Hours

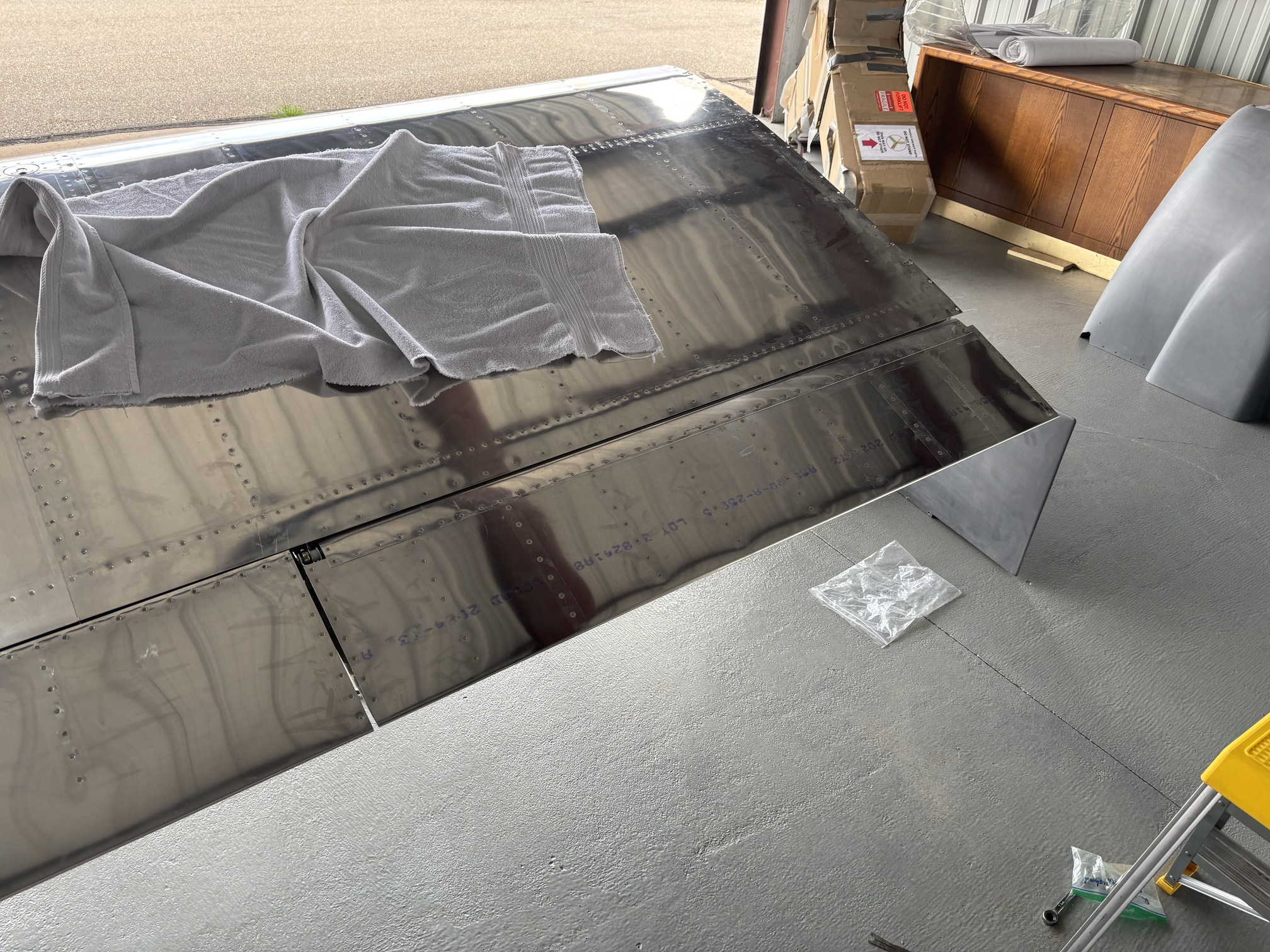

I installed and rigged the ailerons today.

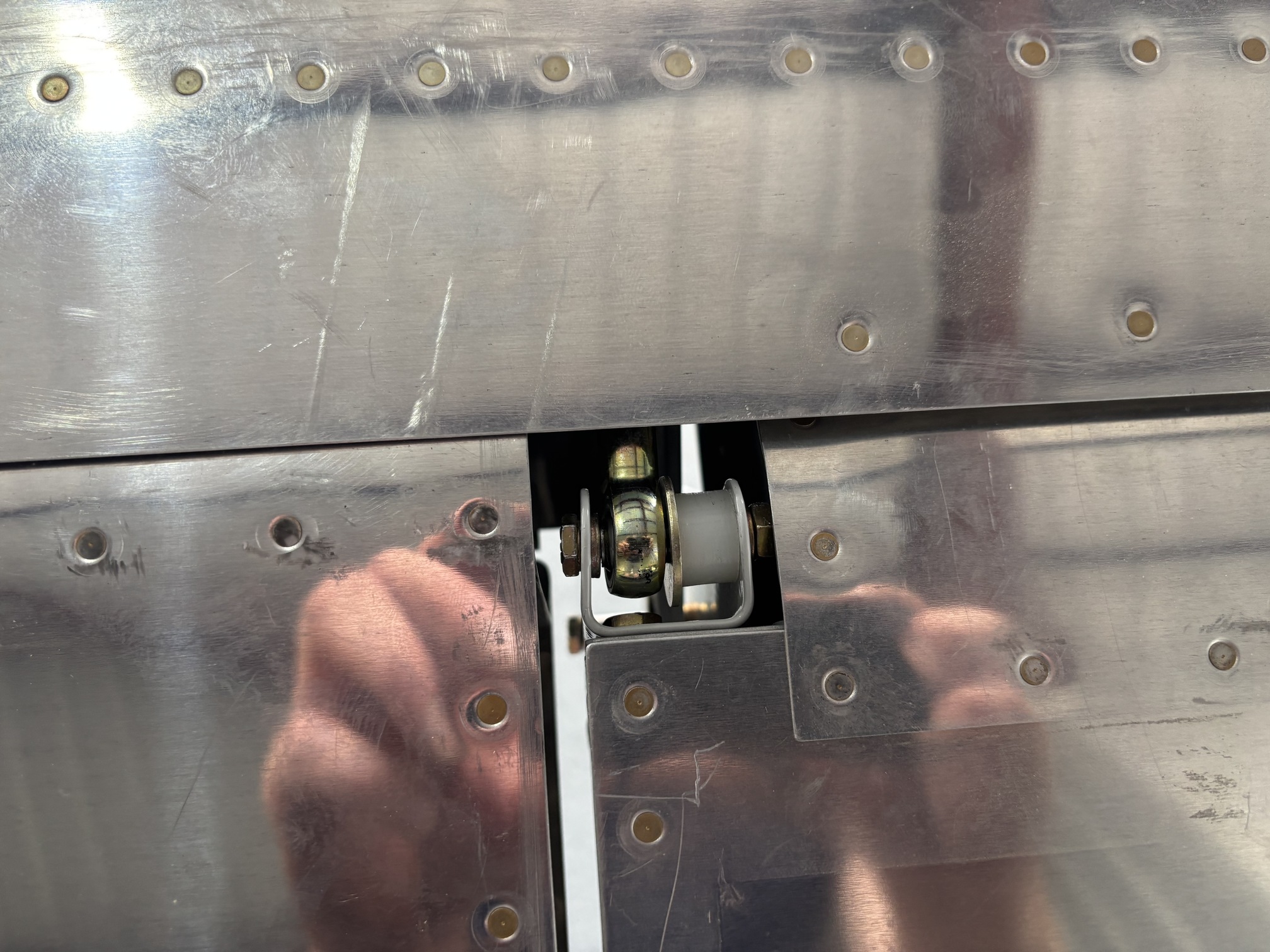

I went with the nylon spacer method for the aileron stops. You put this 5/8" or 3/4" spacer around the aluminum spacer and it hits the aileron bracket in the up position. I measured travel and I was at about 30 degrees up and 16.5 down, which is within the limits.

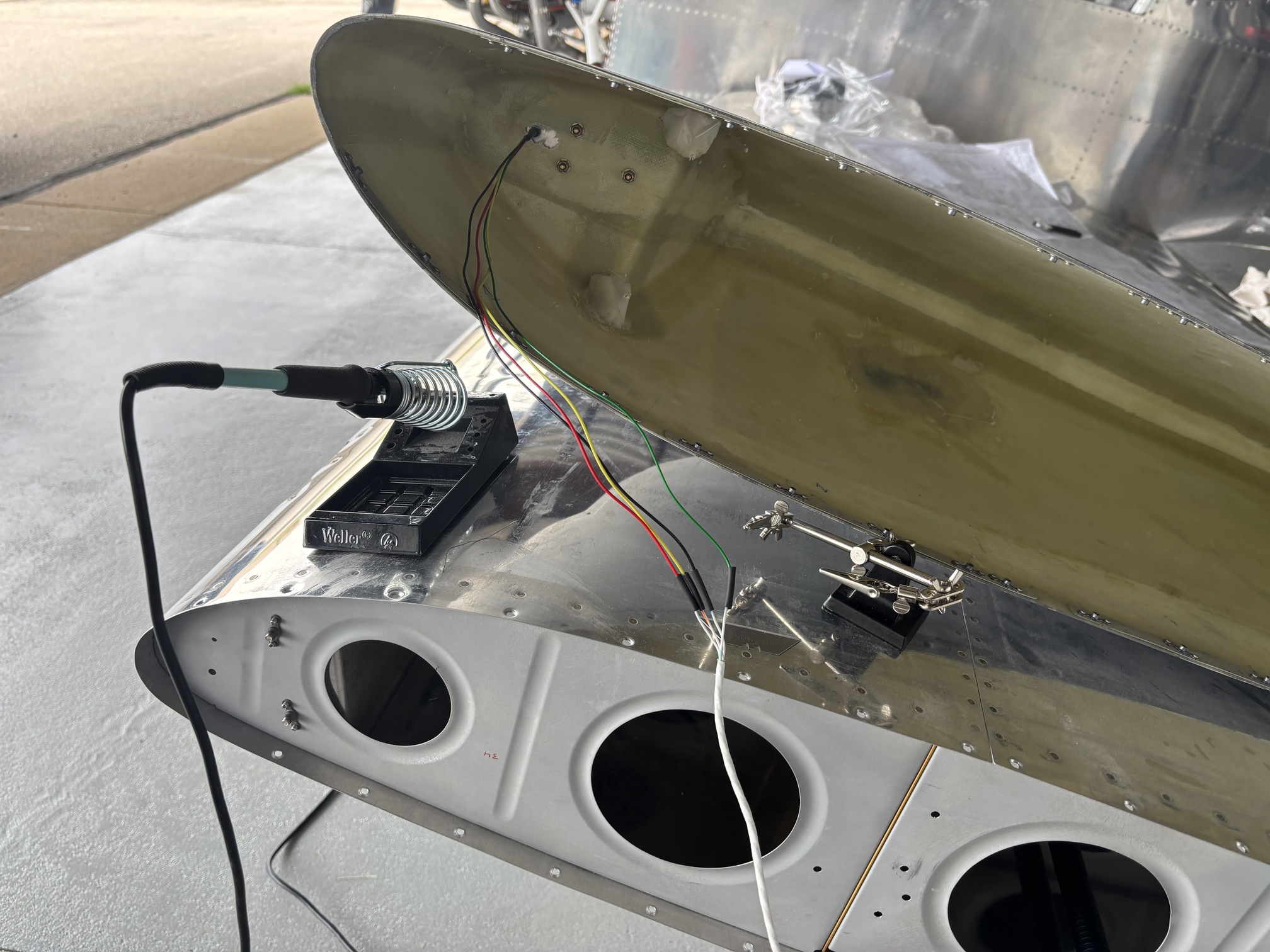

I wired the nav/strobe on the left wing tip and tested it.

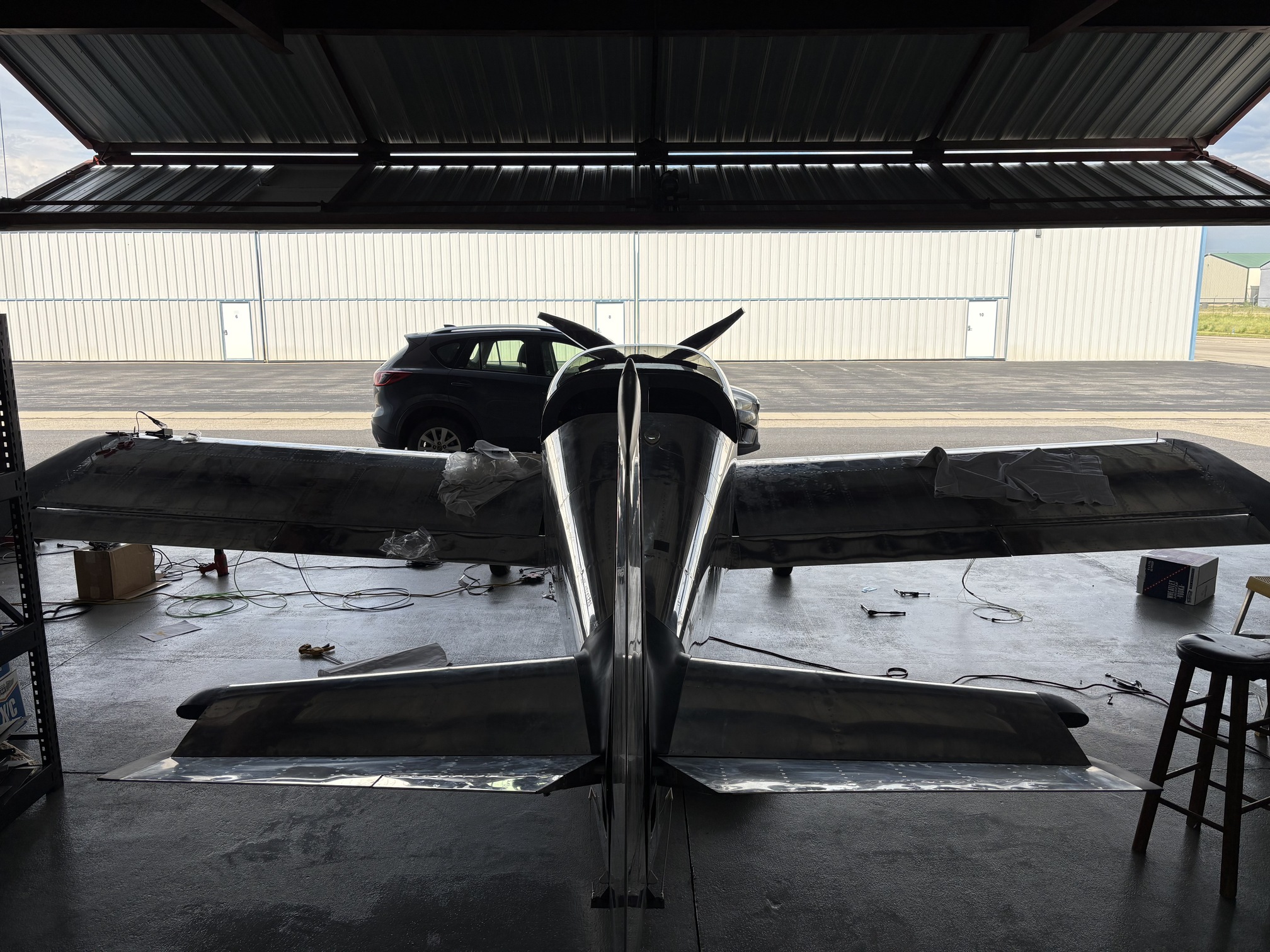

It's really looking like a plane...
