Wednesday July 23, 2025
Landing Light, Pitot Heat (Wings)
1.0 Hours

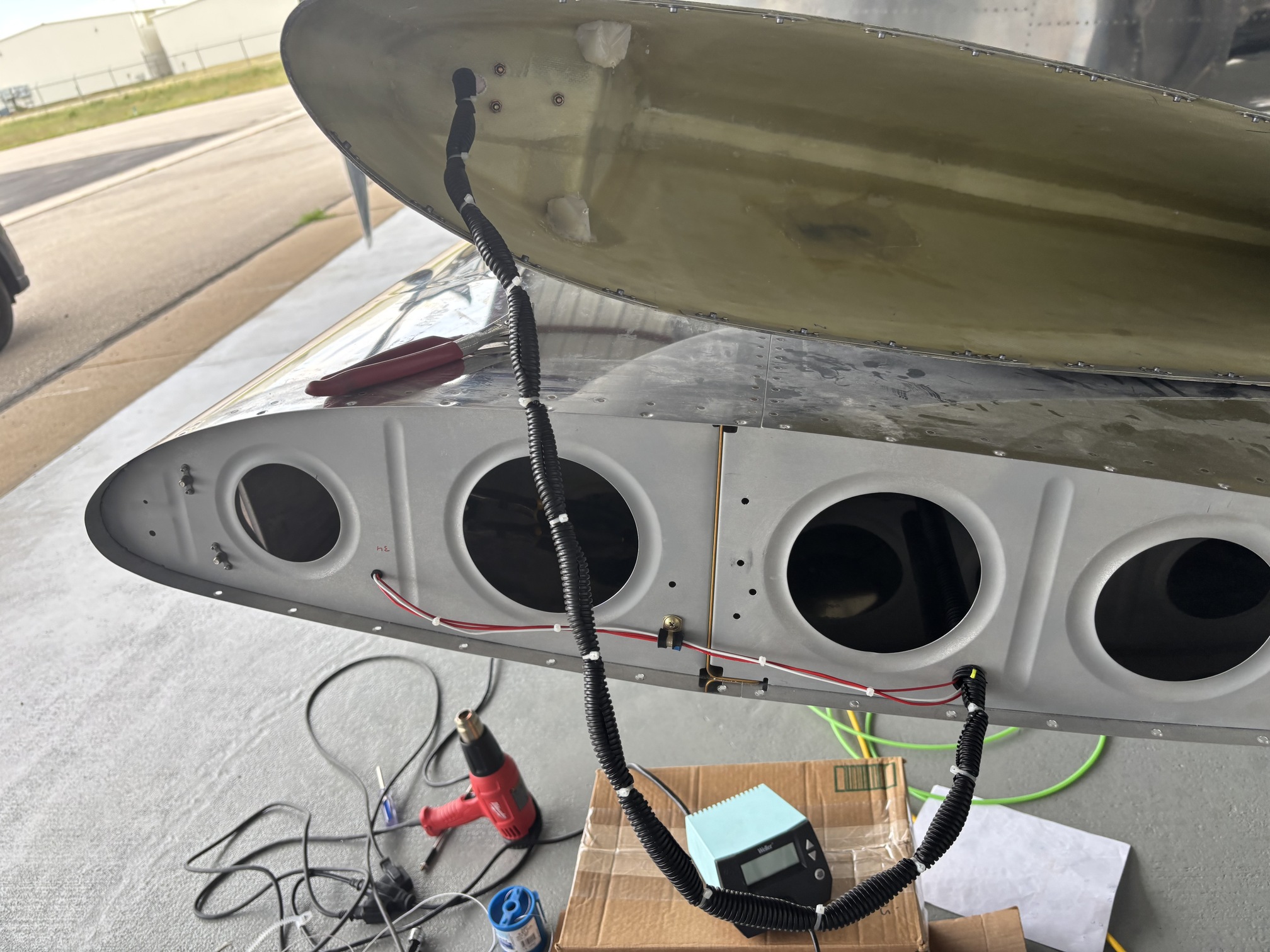

I finished up the left landing light today--reinstalled the lens, added conduit from the tip to the landing light, and secured the wires to the outboard rib.

I torqued the big -7 bolts on the wing attach points.

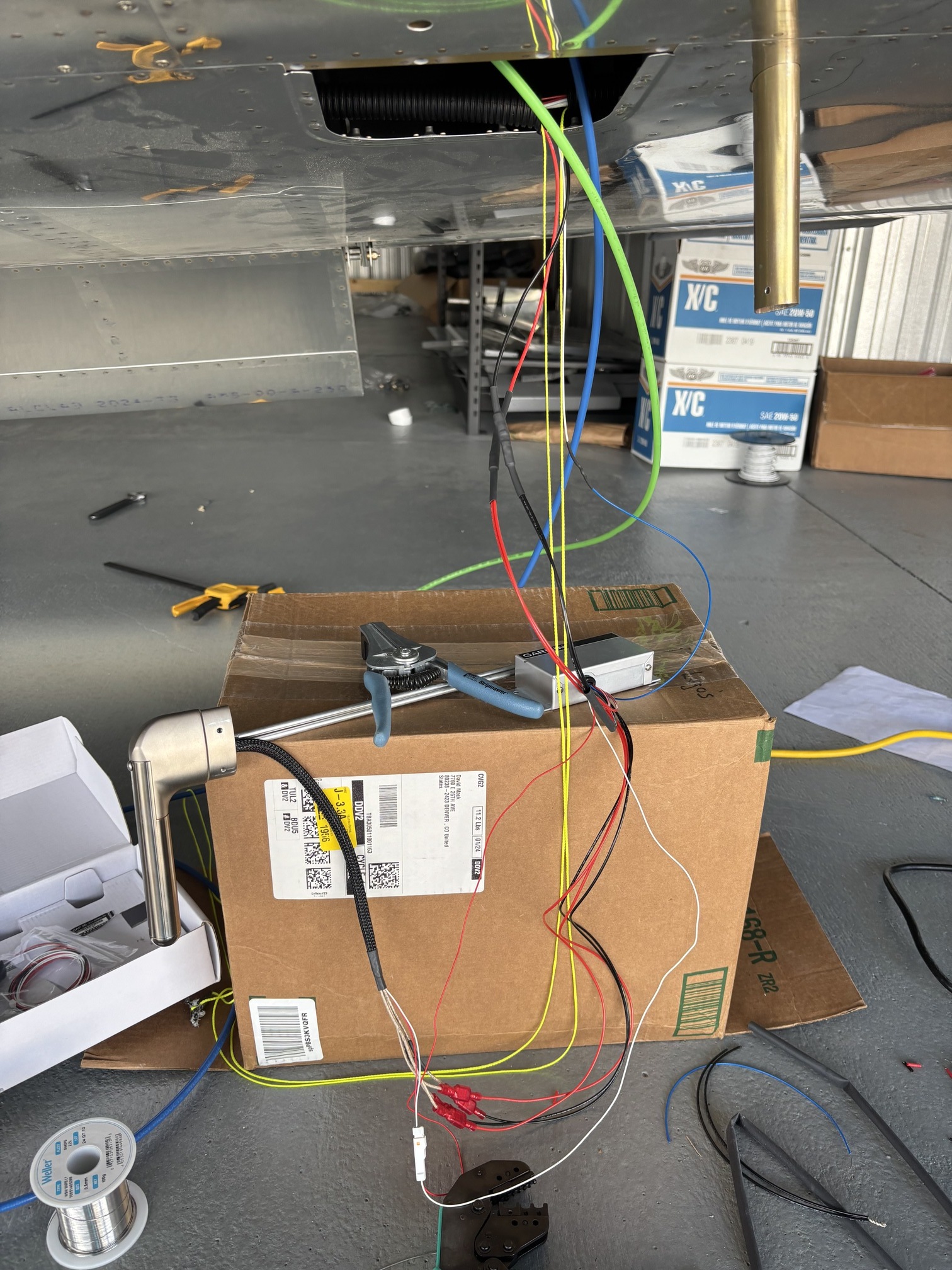

Then I started working on the pitot heat wiring. I cut the wires to length and then butt spliced them together. I will test that the heat works and then start installing this stuff in the wing next time.
