Friday July 25, 2025
Pitot Tube and OAT Sensor Installation, Left Wing Buttoning Up (Wings)
2.8 Hours

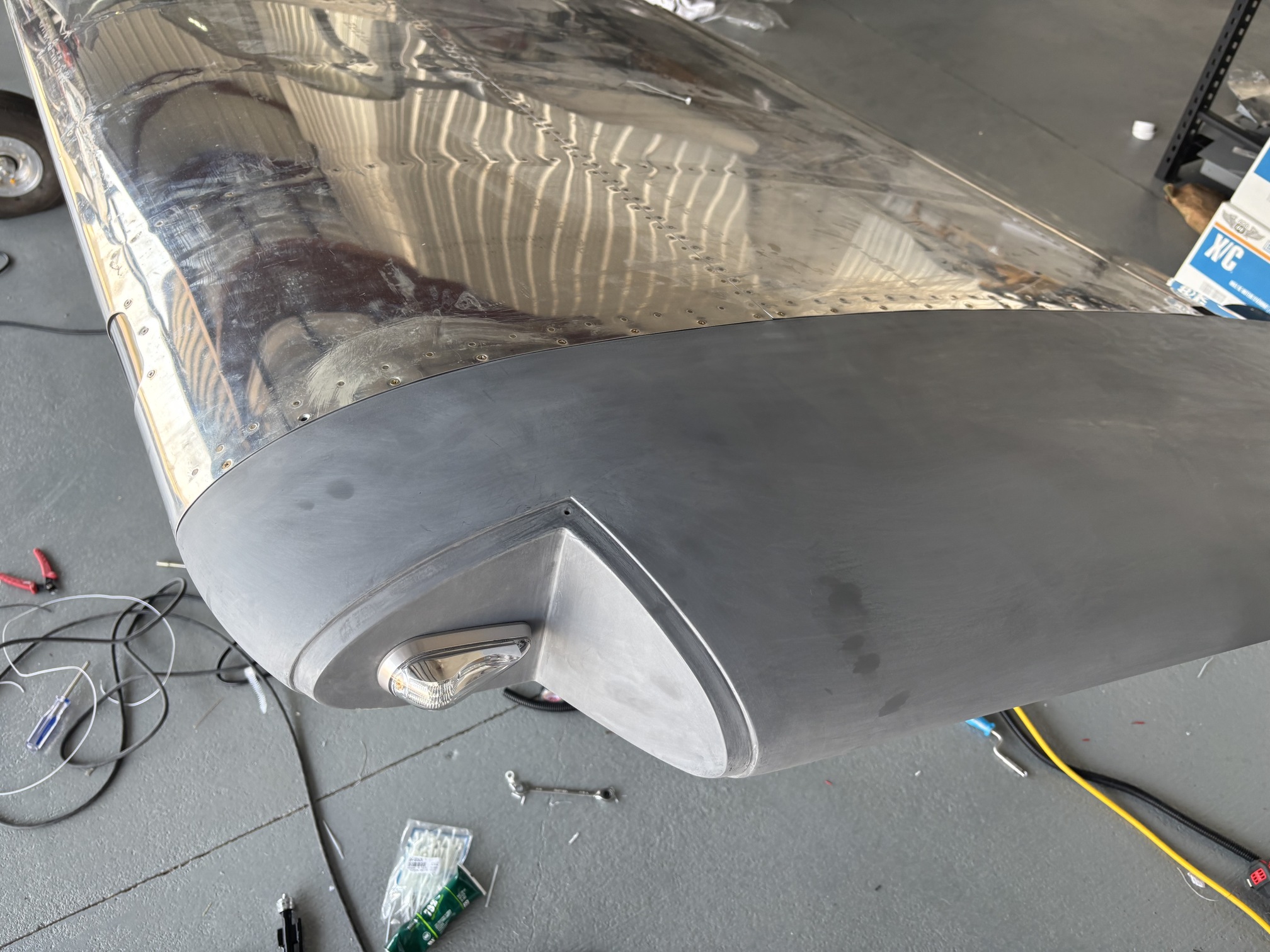

I installed the left wing tip with screws.

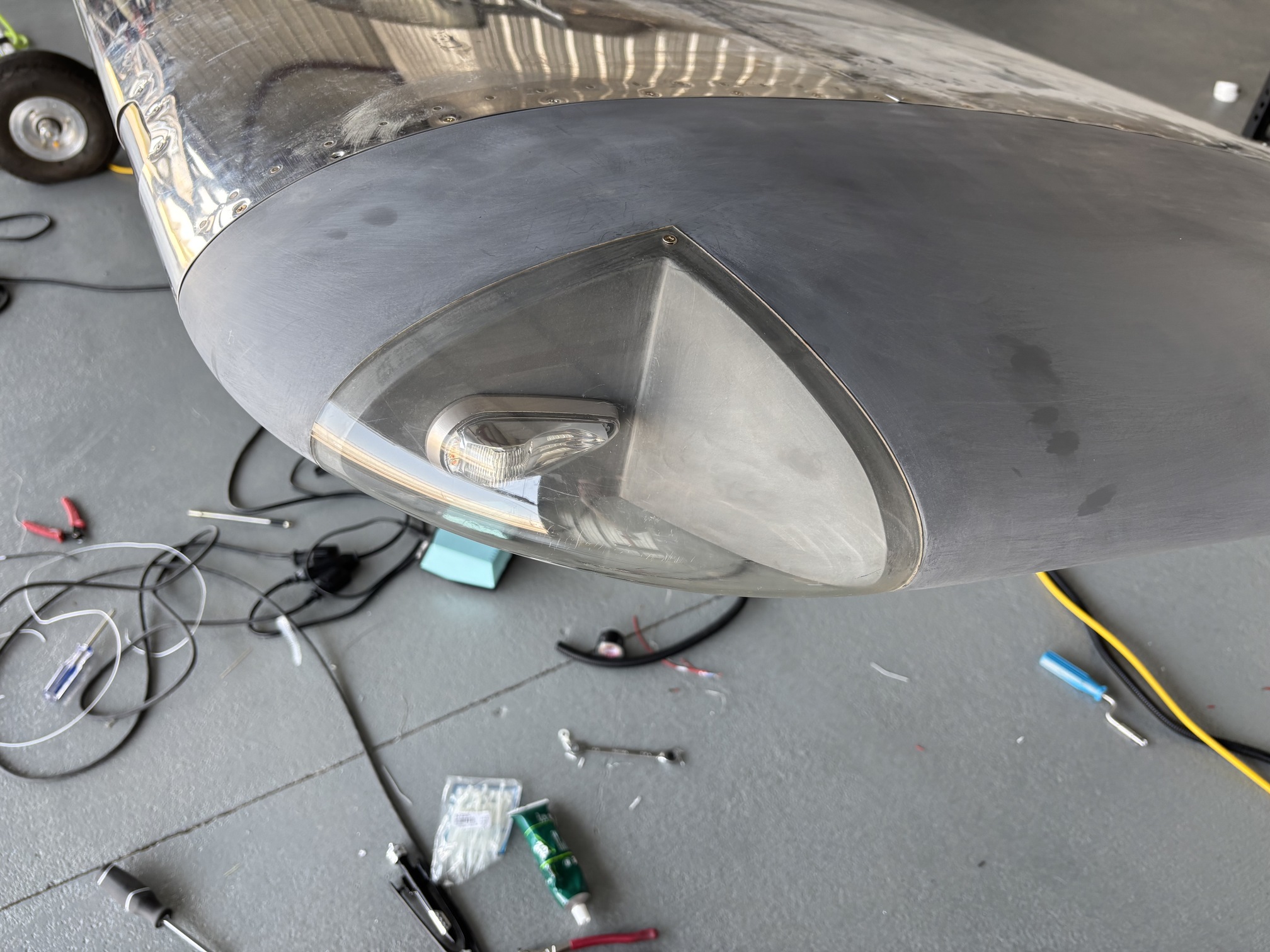

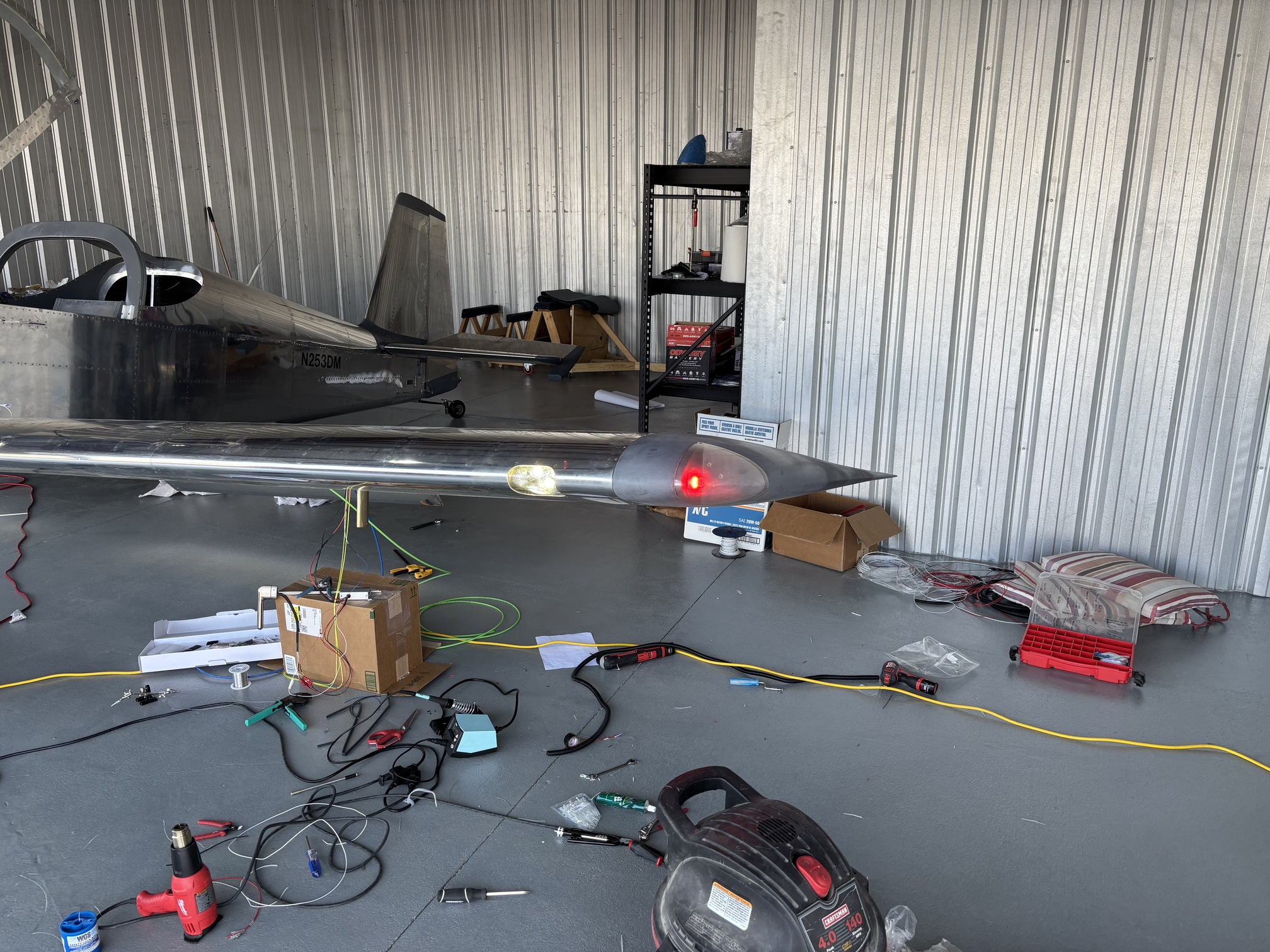

And then installed the nav light lens.

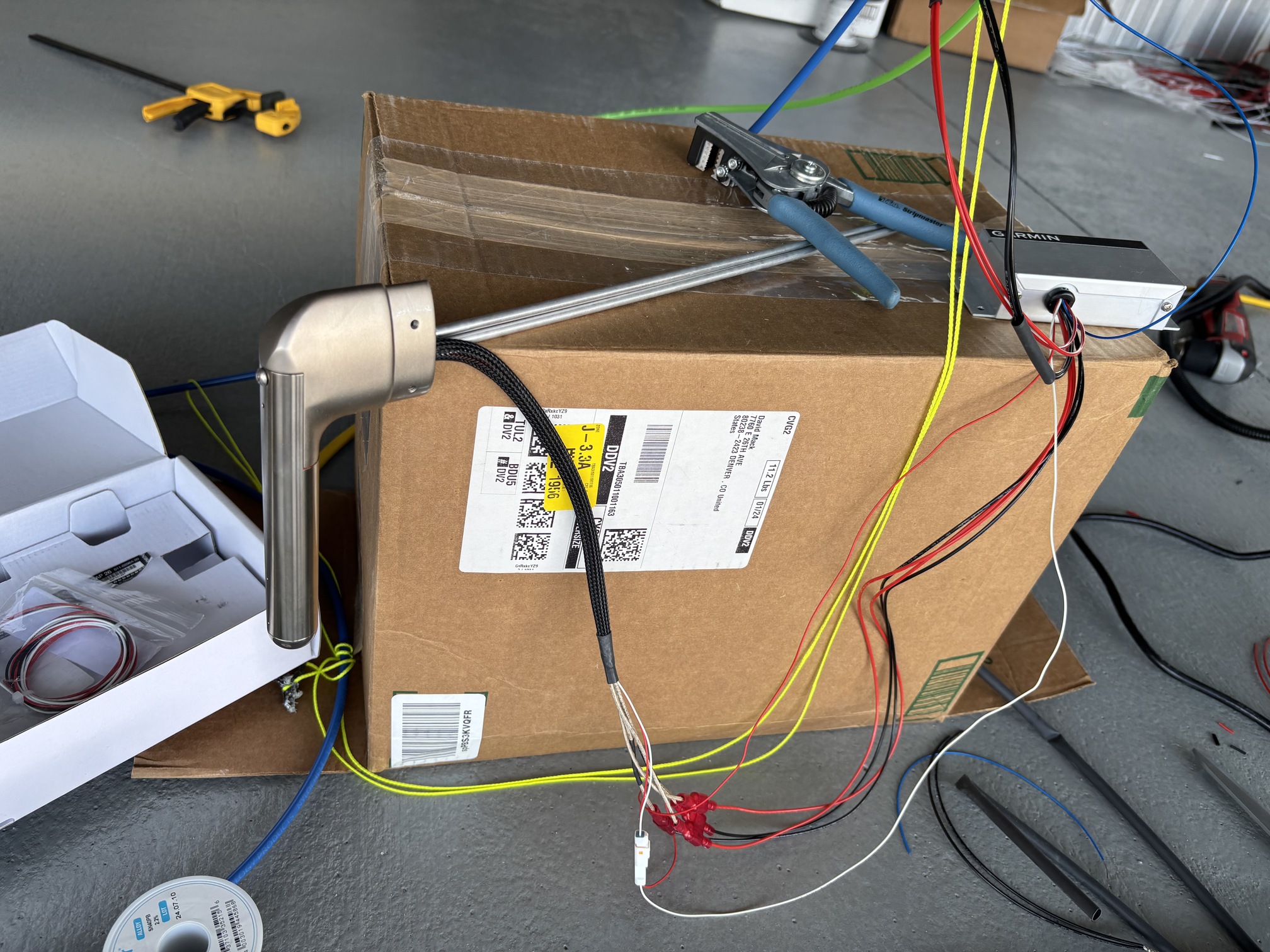

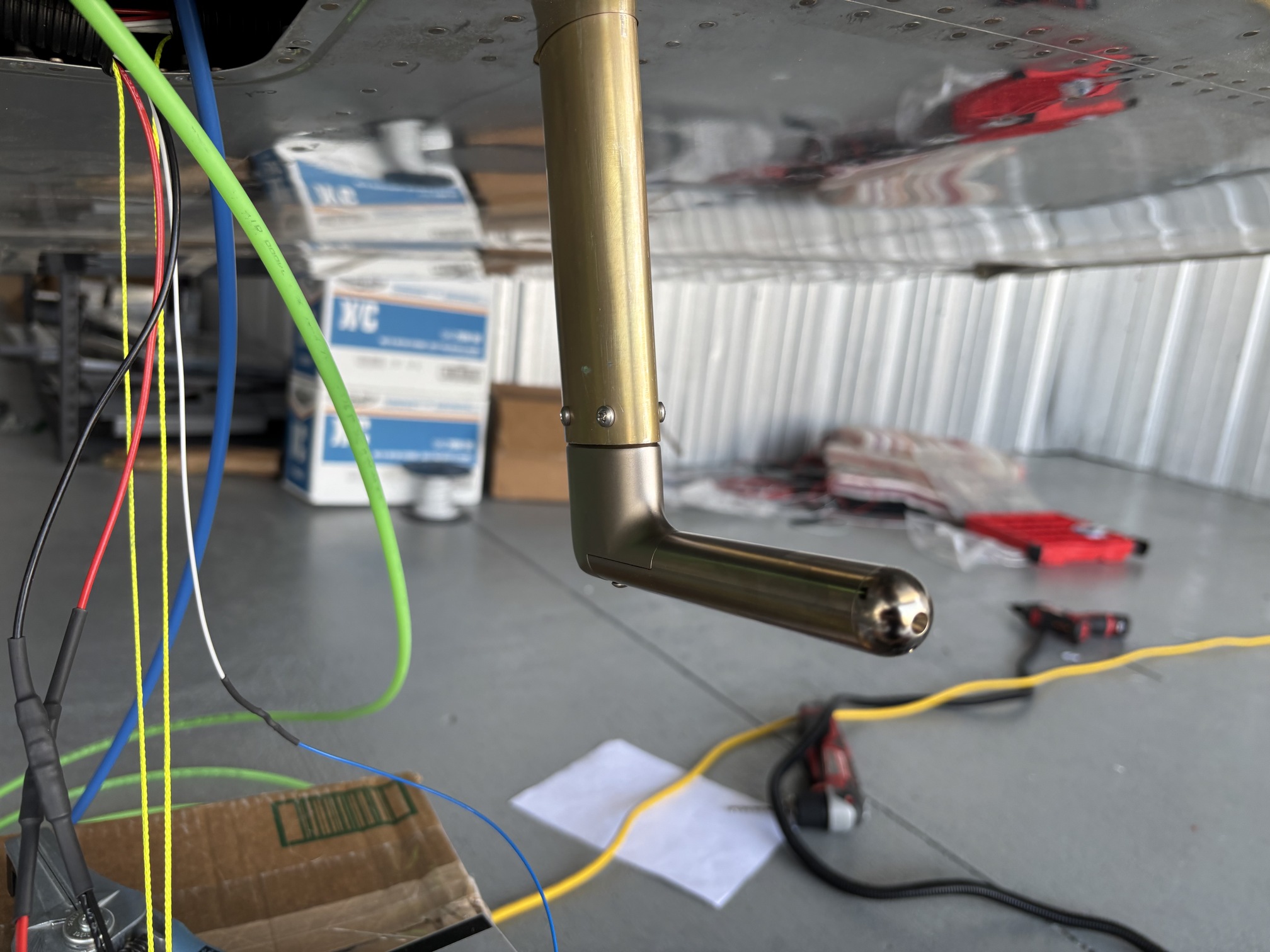

I tested the pitot tube to make sure it heated up, which it did, very quickly.

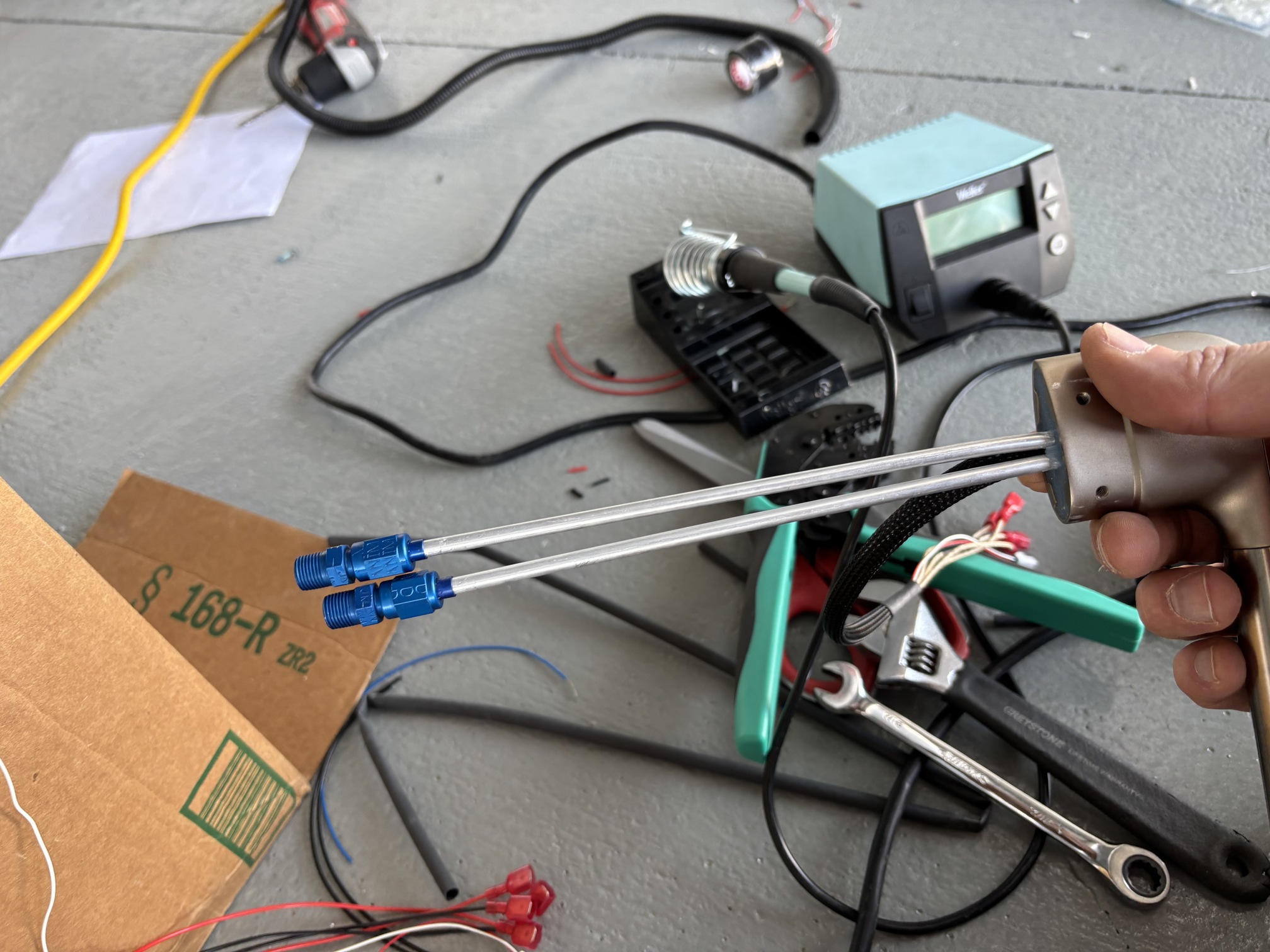

I cut and flared the metal tubing from the pitot tube and installed the AN hardware on the end.

Then I installed the pitot tube in the mount.

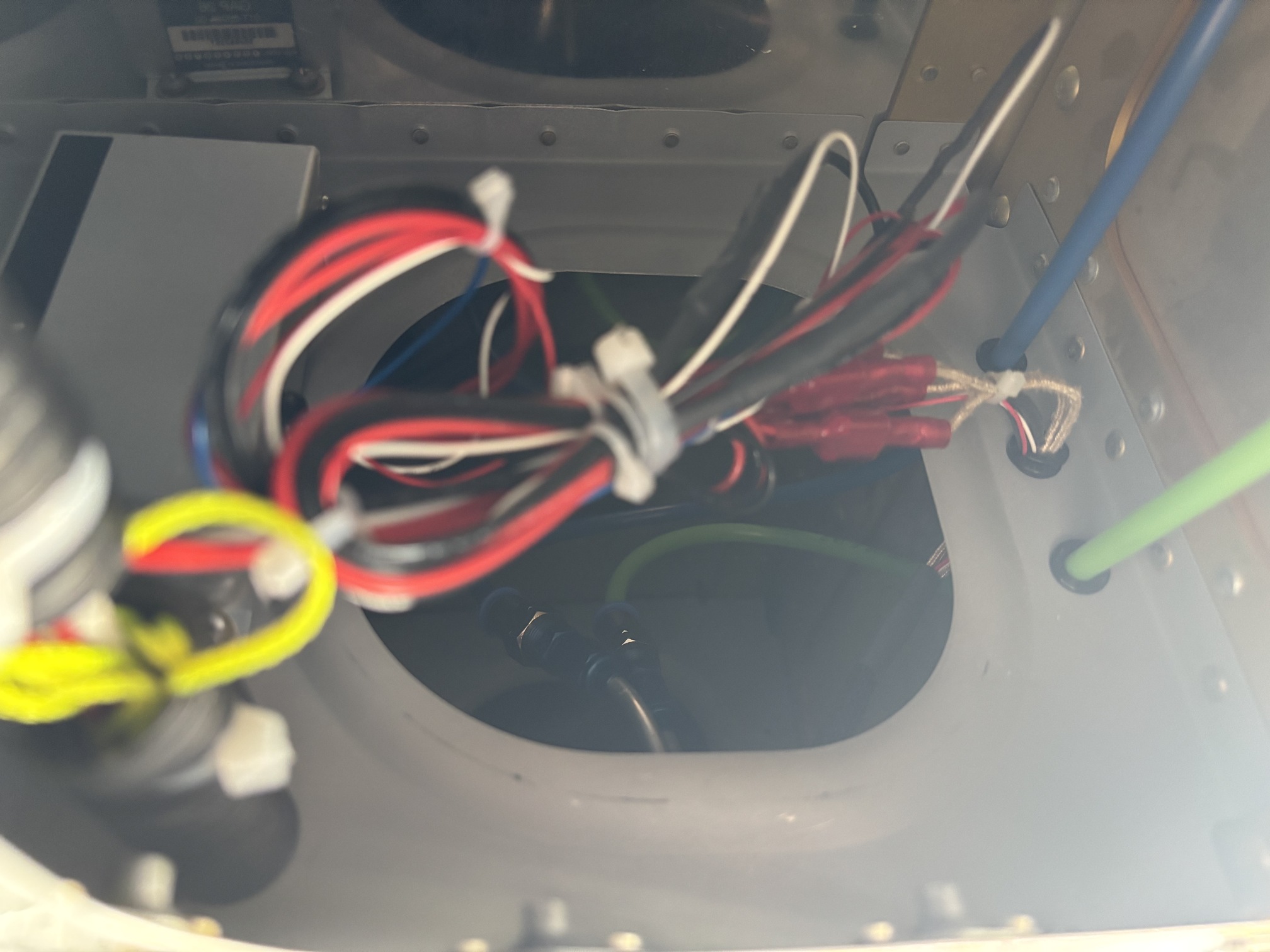

Finally, I connected the plastic pitot and AOA tubing to the fittings. I also installed the heater regulator and connected the wiring to the pitot.

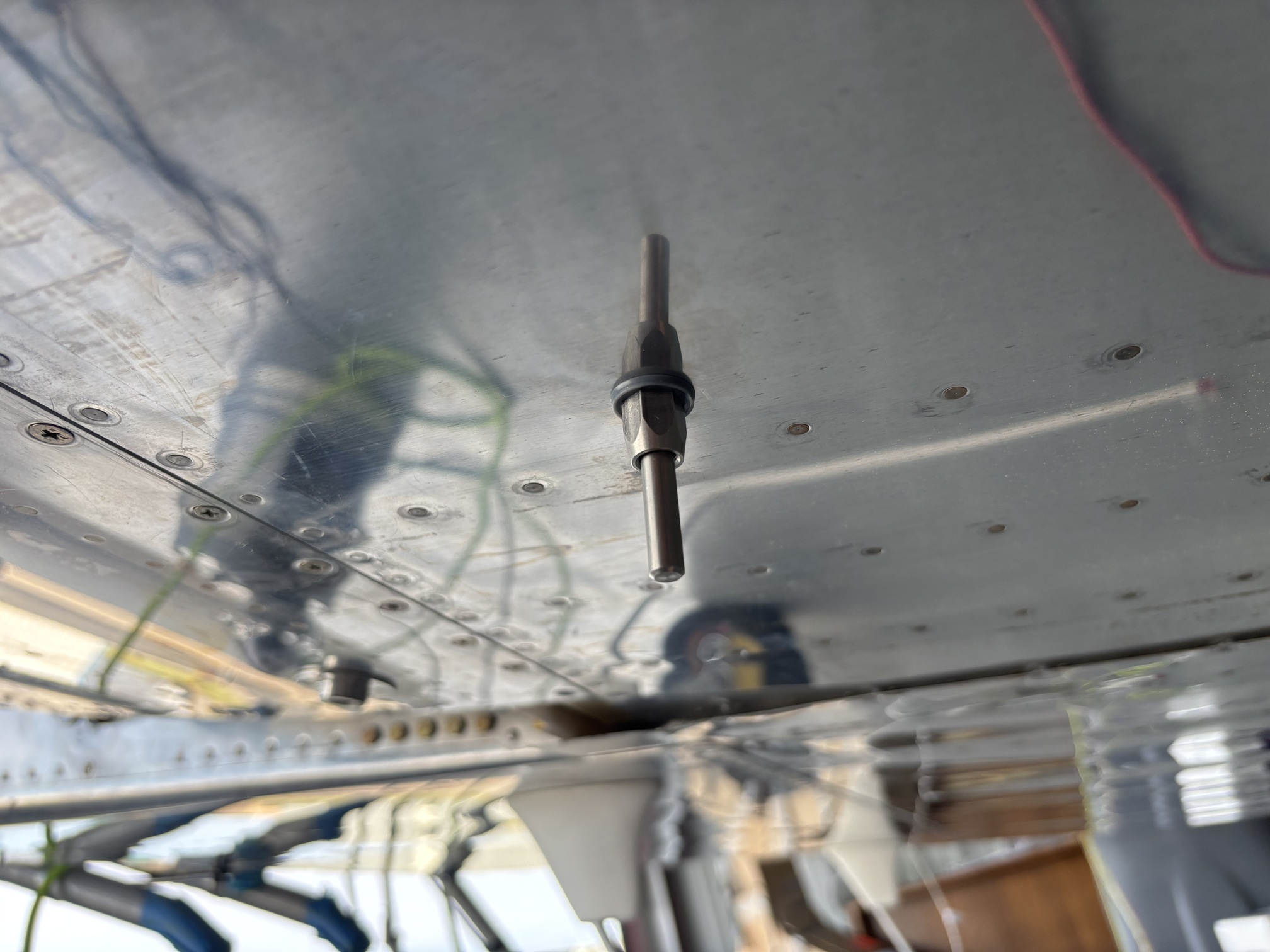

I drilled the hole for the outside temperature sensor in the left wing and then mounted the sensor.

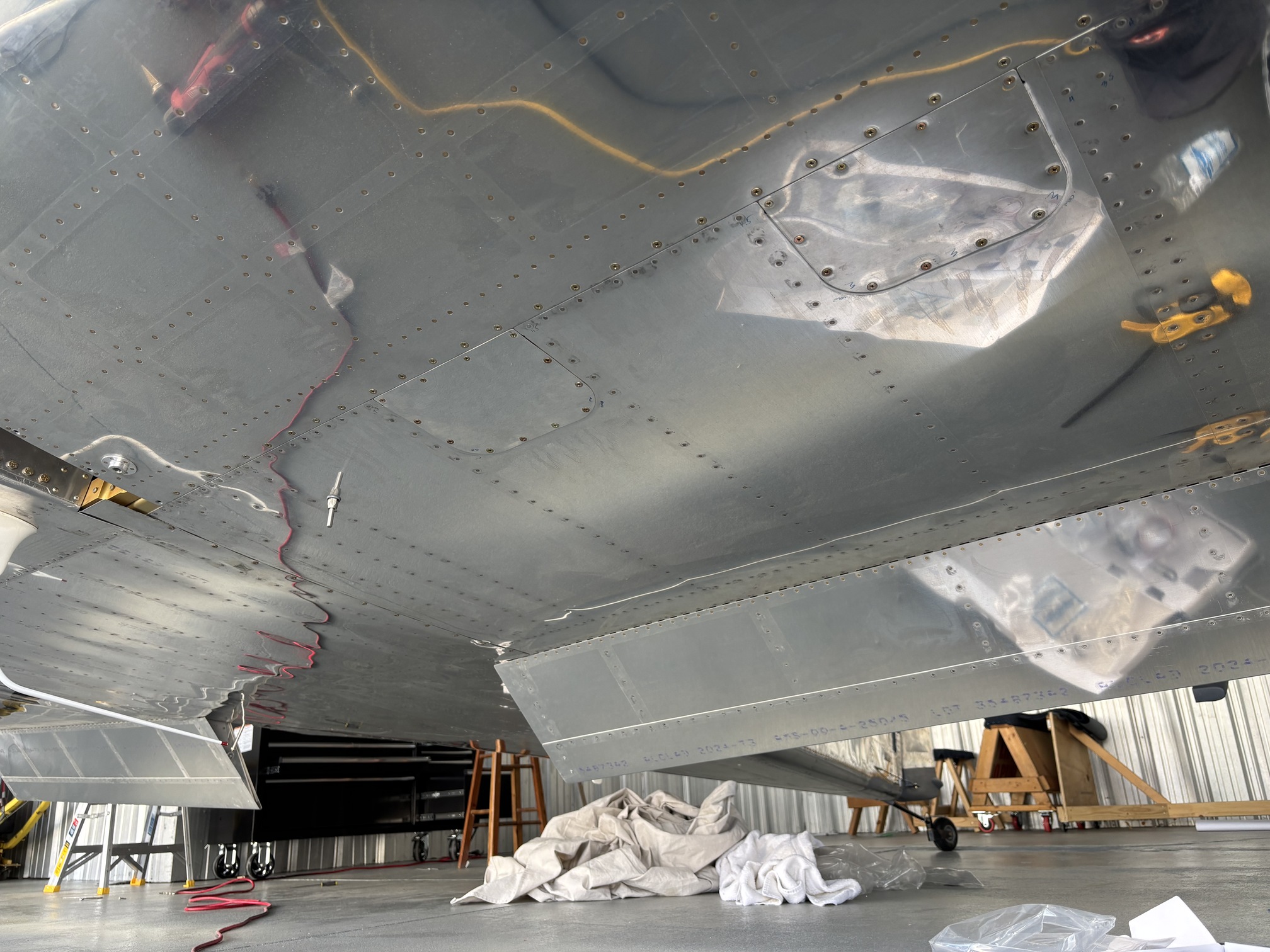

I installed all of the access panel covers in the left wing as well as the fuselage bottom skin to wing bottom skin screws.
