Sunday July 27, 2025
Finished Roll Autopilot Servo, Wired Right Nav/Strobe, Landing/Taxi Lights (Electrical)
2.5 Hours

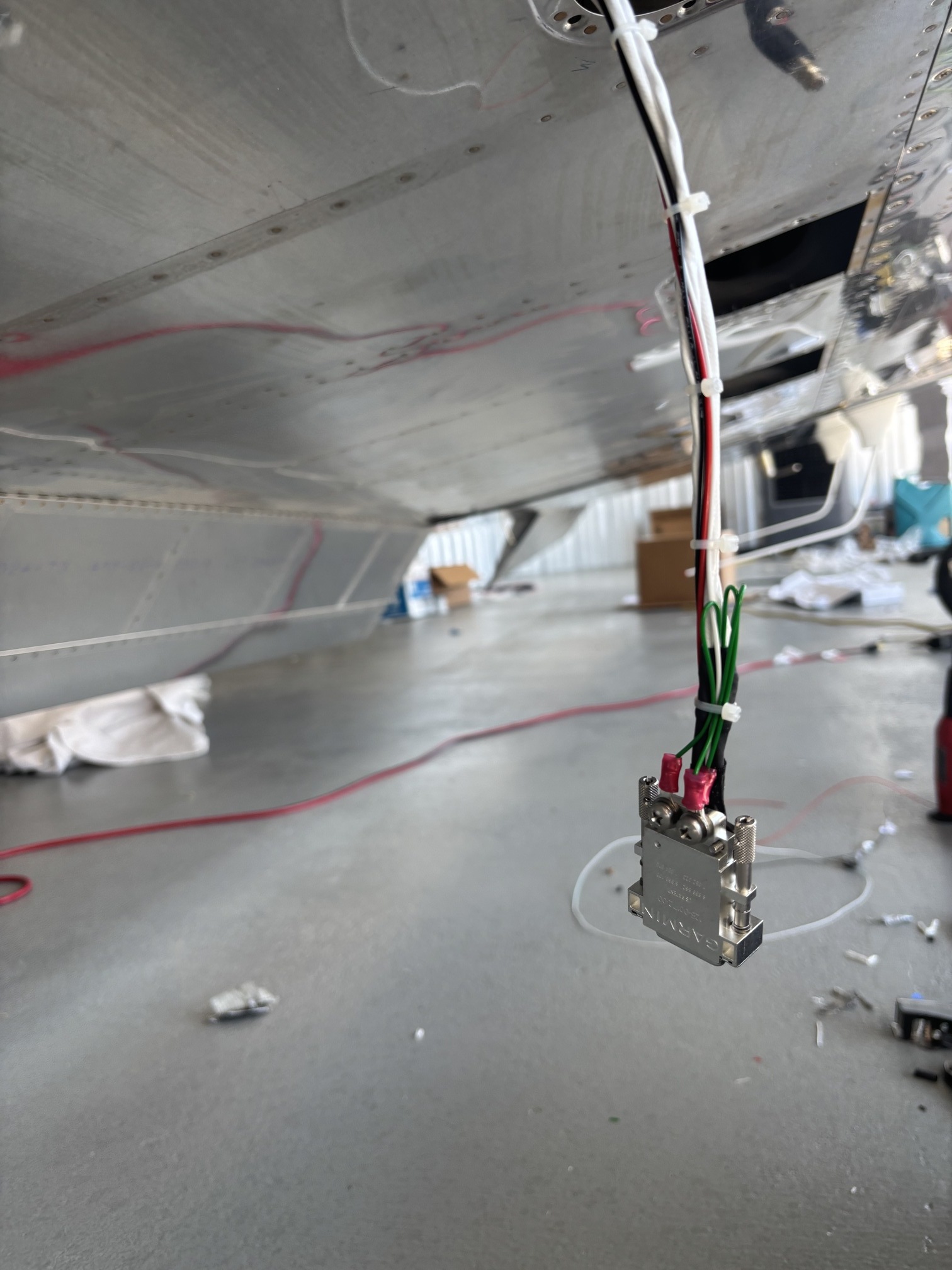

I finished up the GSA 28 roll servo connector.

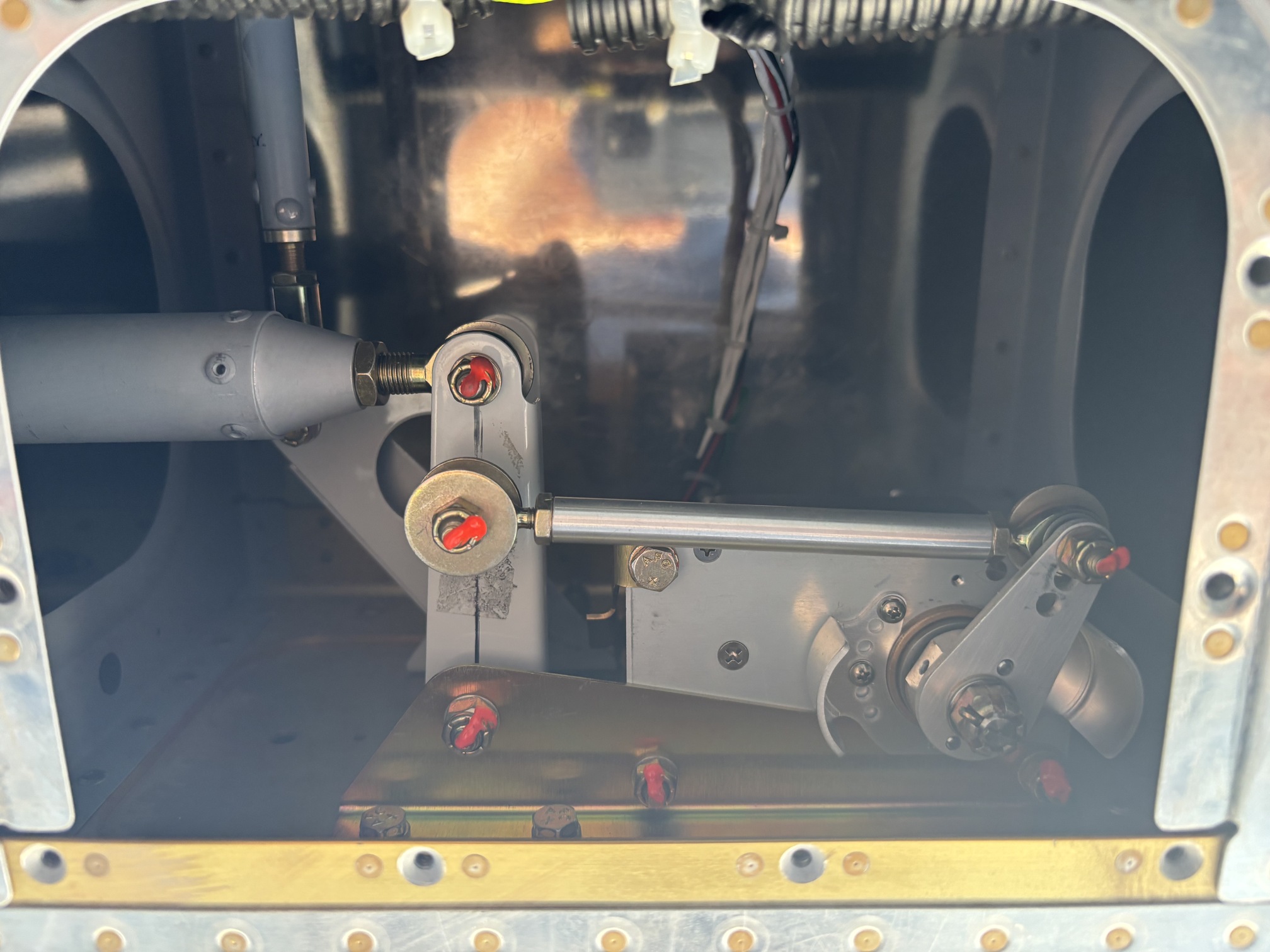

Then I attached it to the servo and tested everything again.

I installed the wing access panels and screwed the wing bottom skin to the fuselage bottom skin.

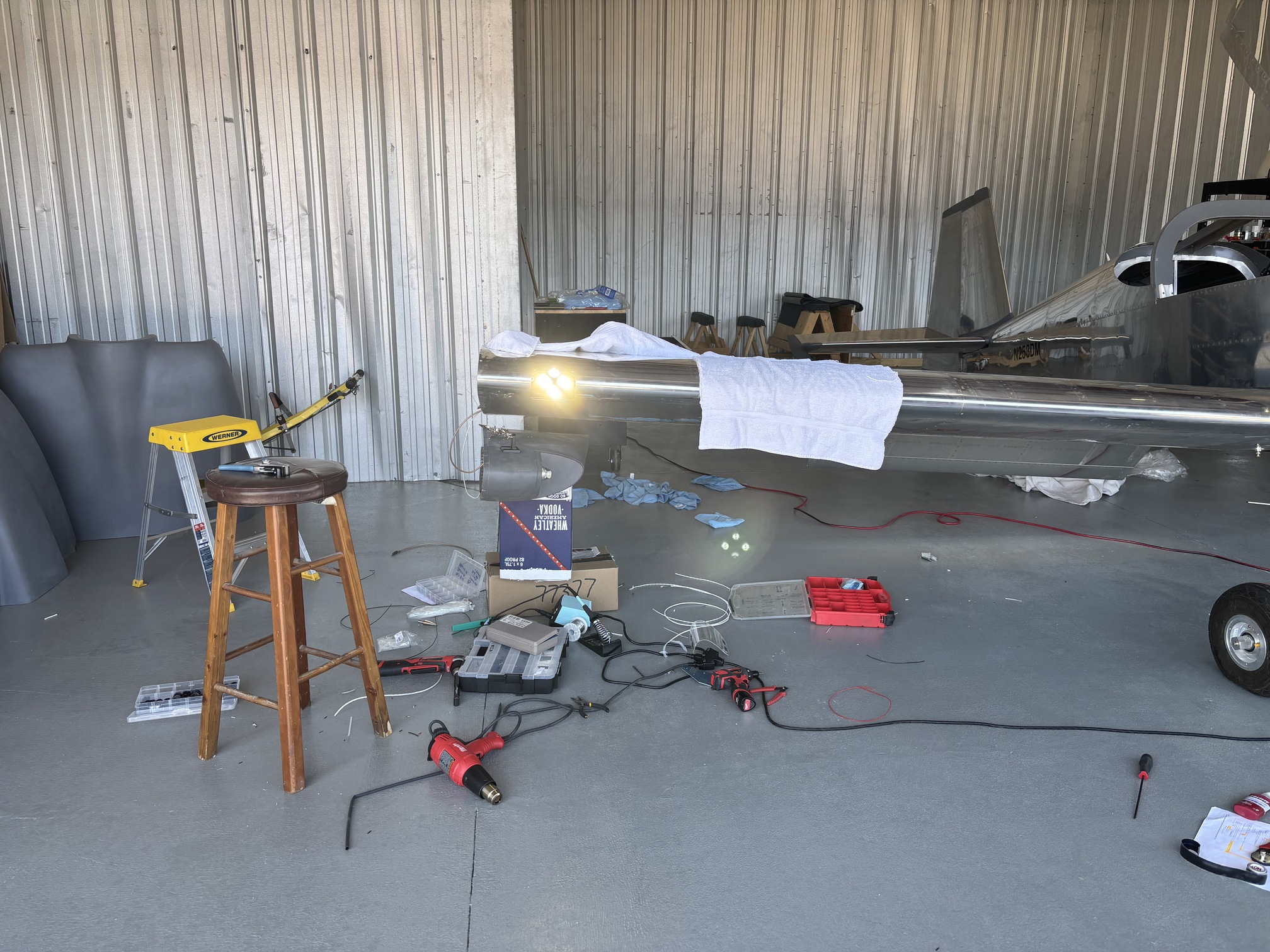

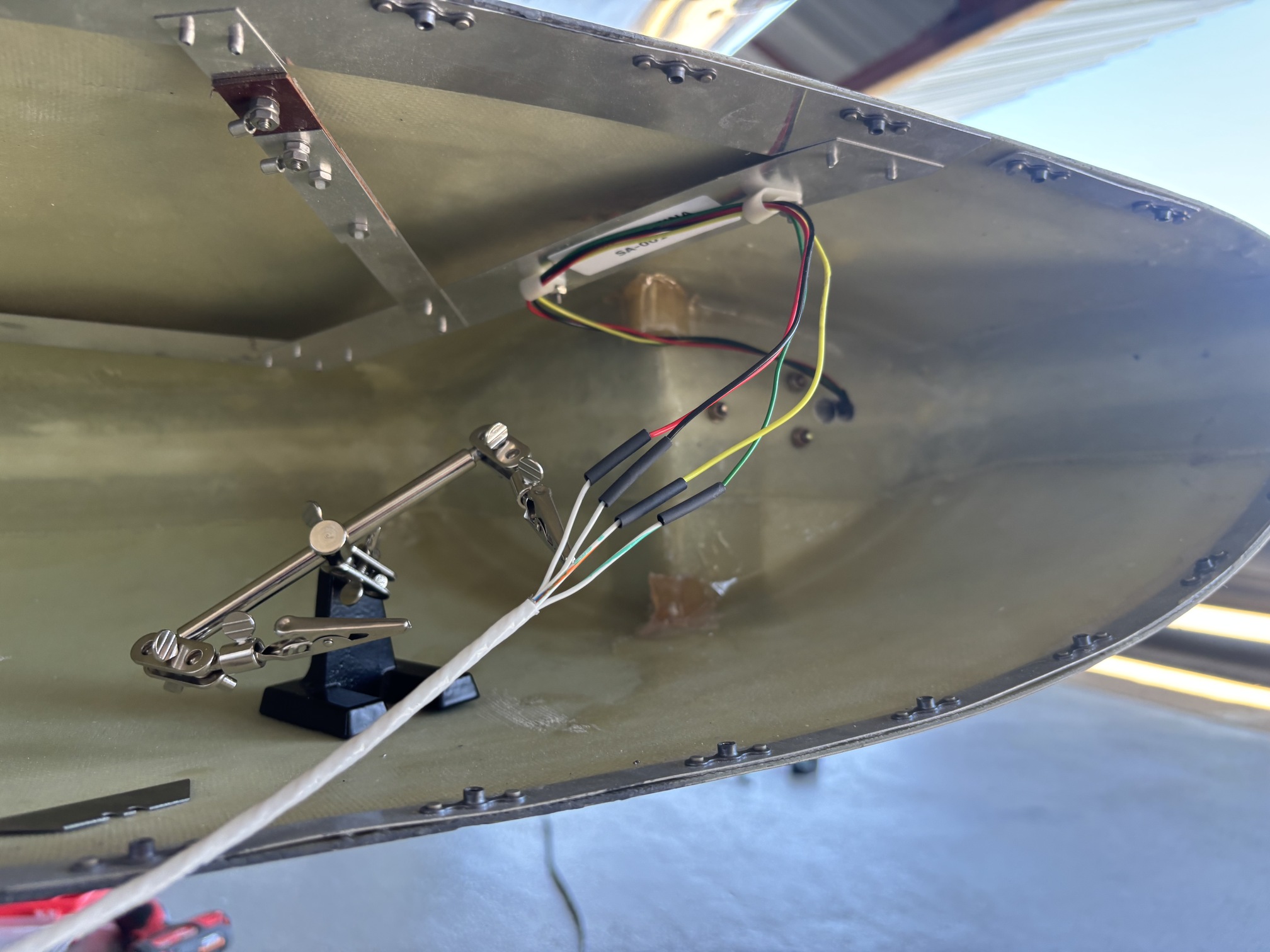

Then I got to work on the right wing tip wiring. First was wiring the nav/strobe light.

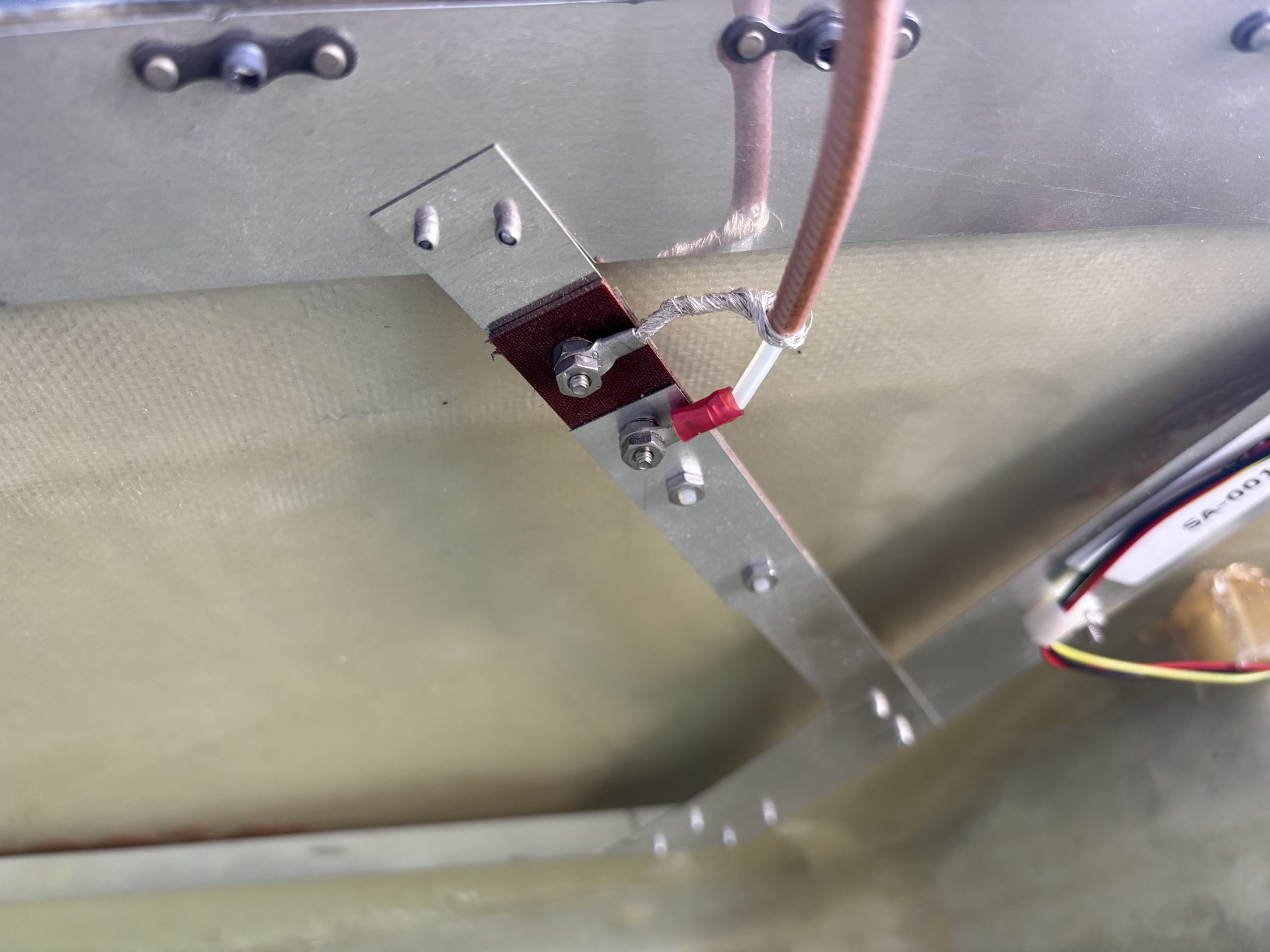

Then I wired the Archer VOR antenna.

Then I installed the landing/taxi light wiring. This was much easier on this side because the connectors are on the right side of the fixture and I could see them from the end of the wing.

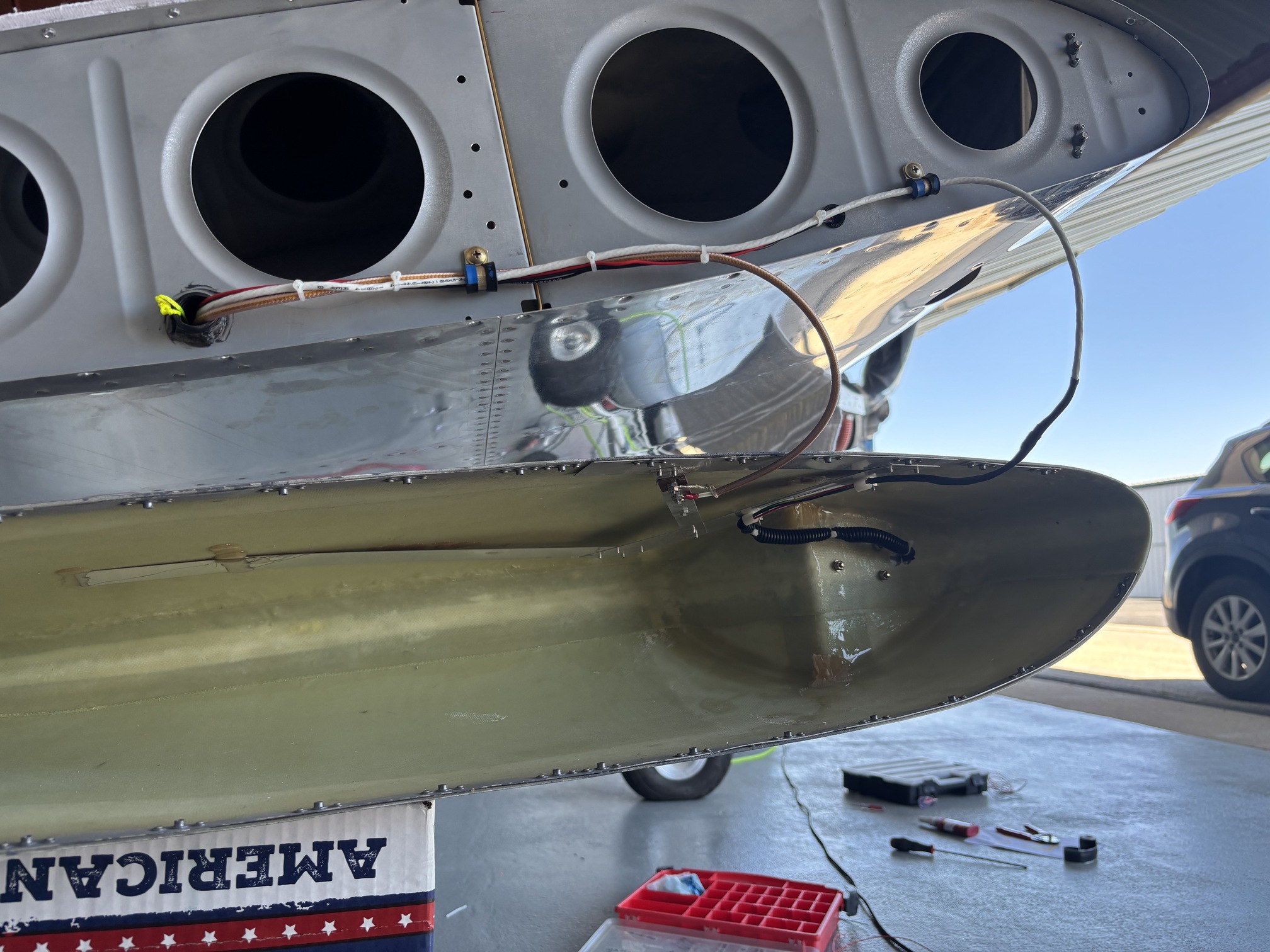

I cleaned up and secured all of the right wing tip wiring.

This should be the last of the wiring on the project...
