Monday August 4, 2025
Torqued Spark Plugs, Finished Control Column Bolts, Installed Aileron Trim Springs
(1.2 Hours Center Fuselage, 0.2 Hours Firewall Forward)
1.5 Hours Total

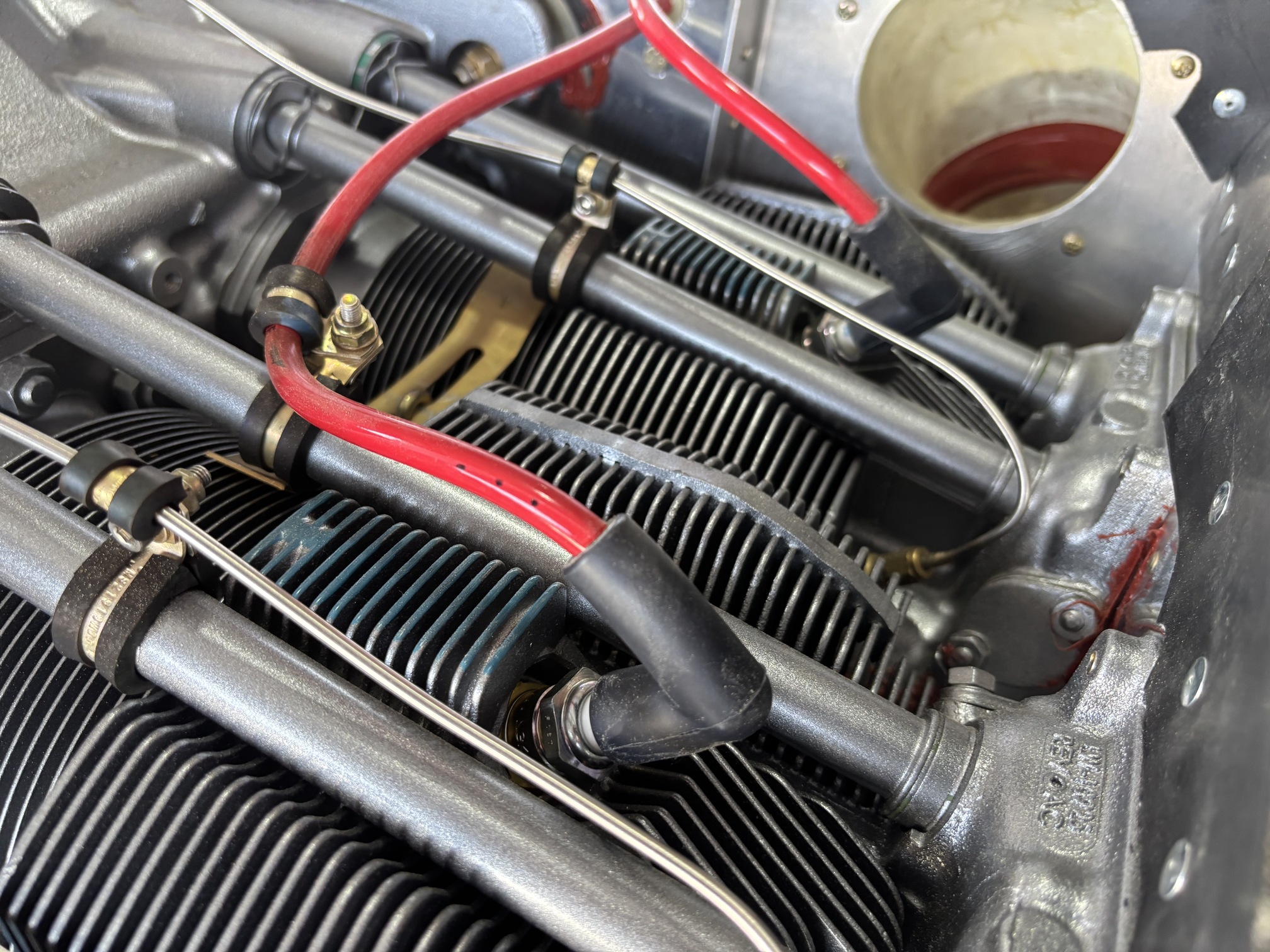

I torqued the upper spark plugs.

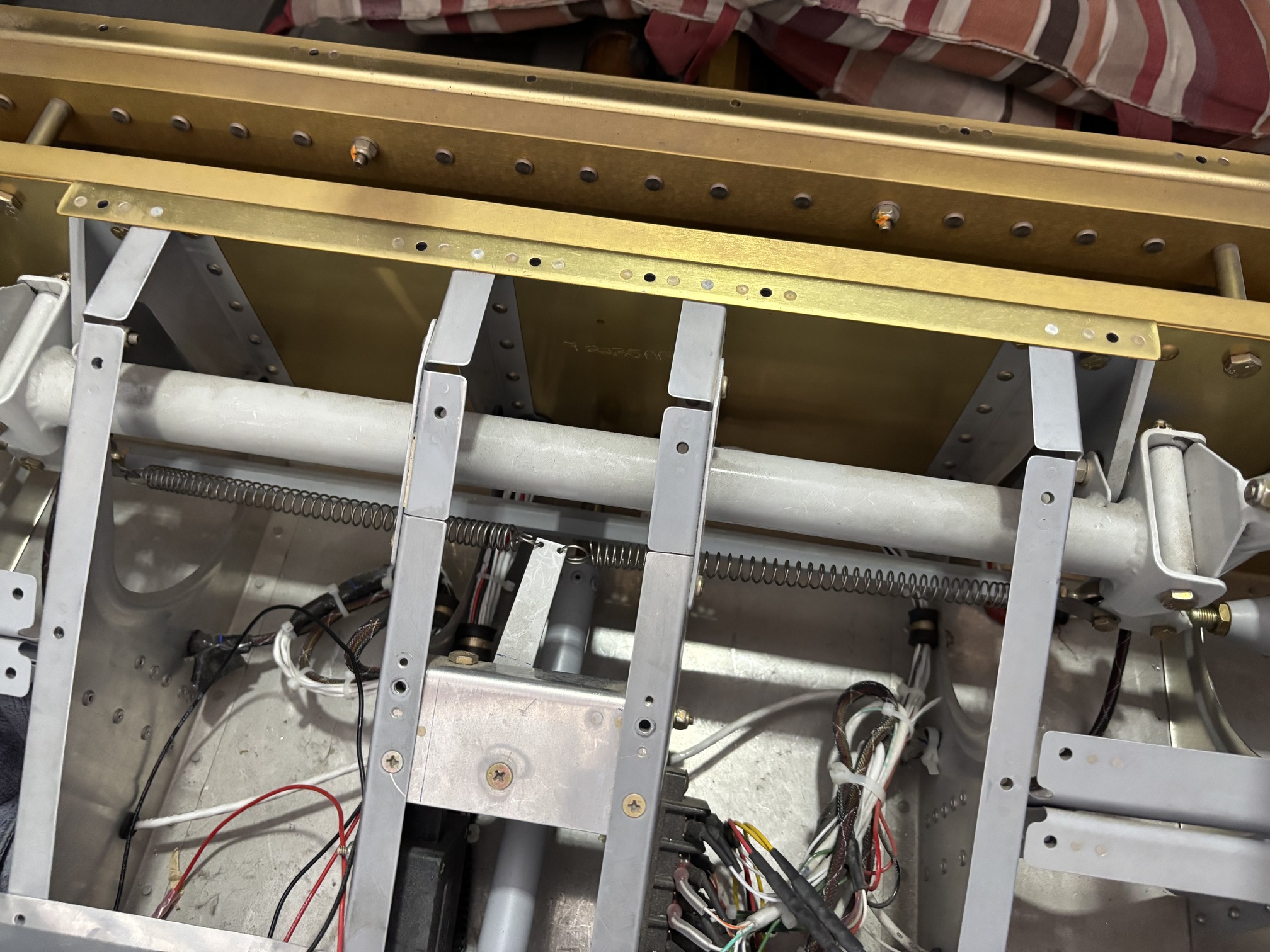

I finished installing the control stick assembly bolts and then installed the aileron trim springs.

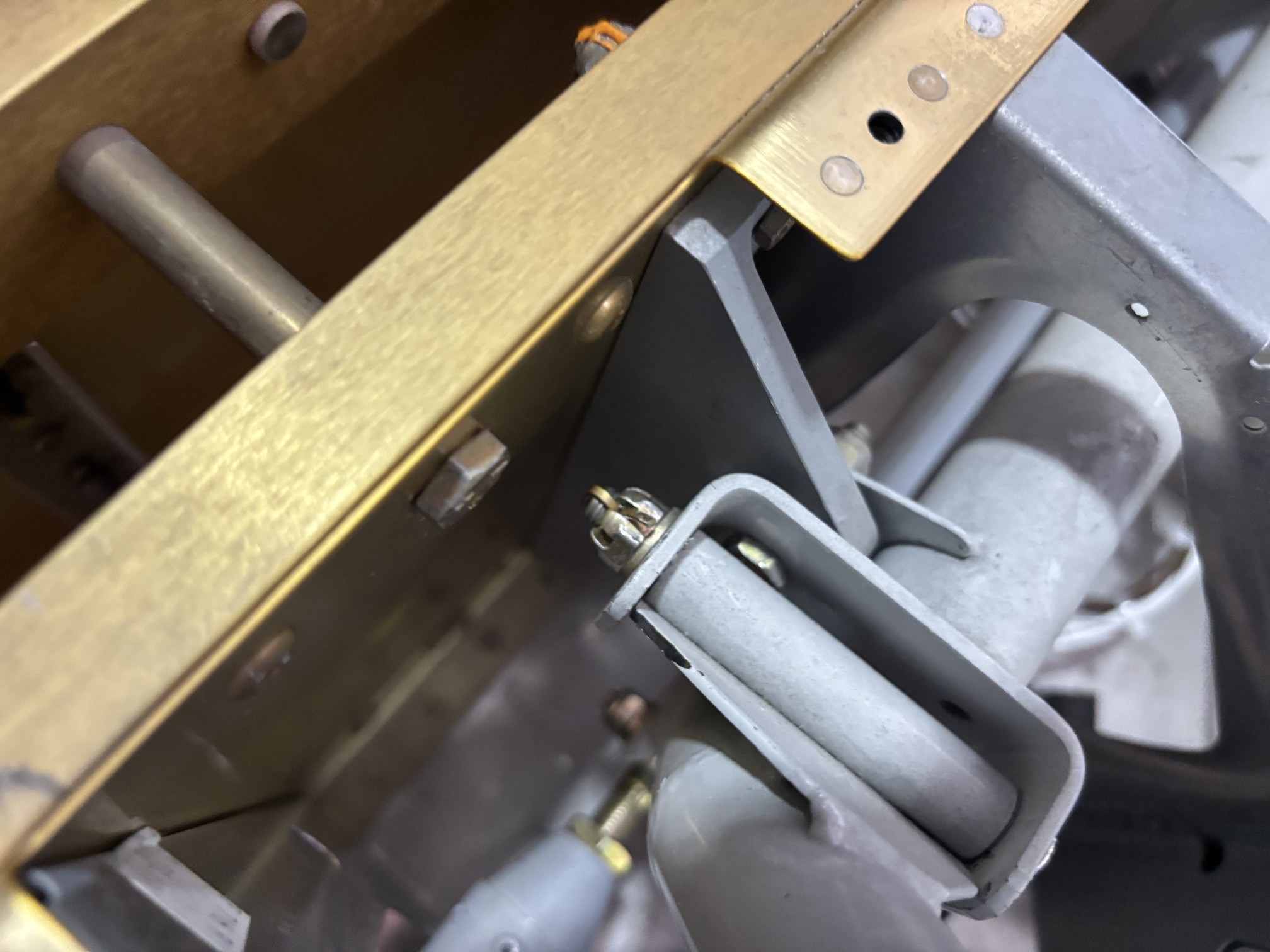

I also installed these cotter pins in the control stick base bolts.

Yesterday when I drilled out the incorrectly sized nut plates for the wing root fairings, one of them disappeared into the wing. I spent a long while today trying to find it and extract it, which I eventually did.
